Comelz Cutting Machine Main Models and Knives Blades

Comelz Cutting Machine Main Models and Official Main Blades

Comelz is a leader in CNC cutting technology, primarily serving the footwear and leather goods industries. Their machines use high-frequency oscillating knife technology to cut materials like leather, synthetics, and textiles.

Main Comelz Cutting Machine Models

Comelz offers several series designed for different production scales, from small sample-making to high-volume industrial islands.

CZ Series (High-Production Islands):
- CZ-M: A compact cutting island with a 1500 x 850 mm area.
- CZ-L: A high-production island for leather and synthetics with a larger 1900 x 850 mm working field.
- CZ-XL: The largest solution, featuring a conveyor belt up to 2.4 meters wide to process entire hides.
CZ Plus Series: Advanced versions like the CZ Plus L and CZ Plus XXL, which integrate enhanced vision systems for pattern matching (e.g., plaid fabrics) and automatic nesting.
CM Series:
- CM44 / CM44+: One of the first high-production islands with a double-head system and conveyor belt for simultaneous nesting and cutting.
CT/M Series:
- CT/M: A multi-purpose, single-head utility cutter used for a wide variety of materials, including outsoles and thick leather.
CJ Series:
- CJ-1 / CJ-3: Fixed-table CNC cutting machines often used as compact cutting islands.

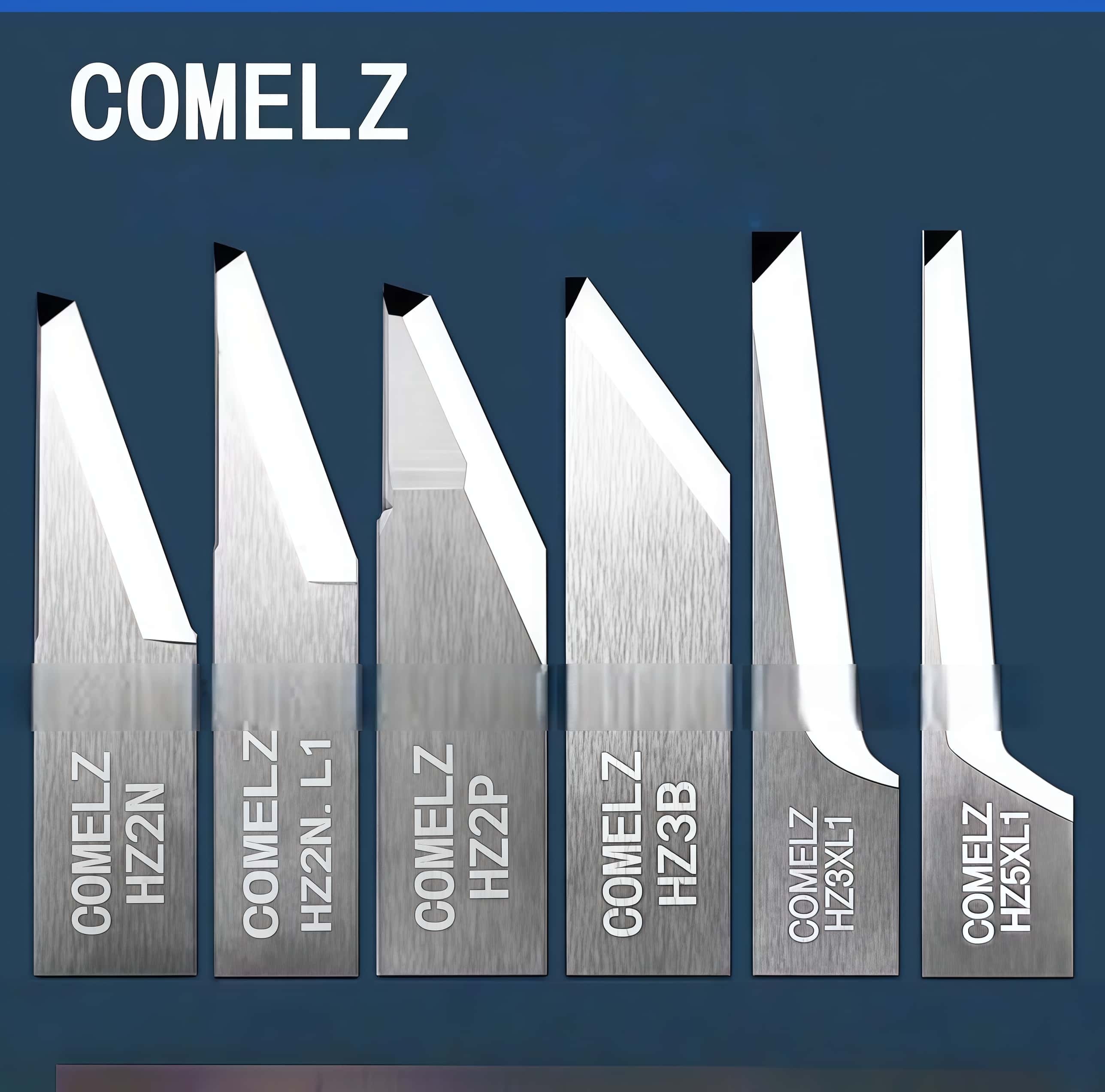

Official & Compatible Blade Models

Comelz machines utilize vibrating (oscillating) blades made from tungsten carbide. Blade choice depends on the material thickness and complexity of the cut.

Blade Model	Primary Use / Features
HZ3B	One of the most common standard blades for leather and synthetics.
HZ2P / HZ2PL1	Thicker blades (up to 1.0mm) for deep or heavy-duty cutting.
HZ4N	Often used for precise, detailed cuts in footwear uppers.
HZ5XL1	Long-reach blade with a cutting depth of up to 20mm for thicker materials like sponges or rubber.
HZ2R / HZ2RL1	Tungsten steel blades used for diverse digital cutting needs.
HZ5K / HZ5KS	Specialized for specific vibrating tool configurations.
