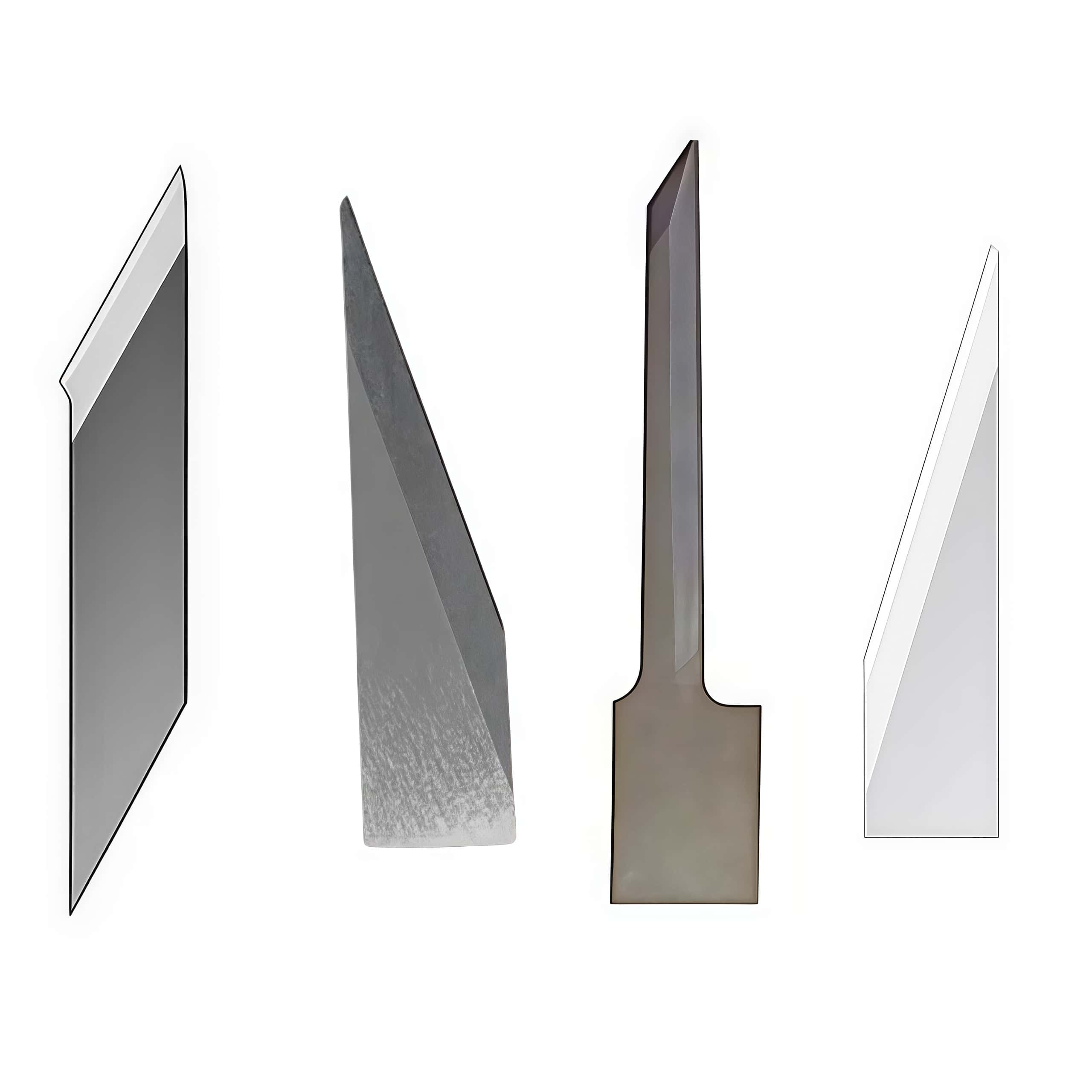

Mimaki Cf2 Series Flatbed Cutters Tangential, Reciprocating Swivel Cutting Knife Blades

The Mimaki CF2 series flatbed cutters utilize a diverse range of blades categorized by the specific cutting head used (Tangential, Reciprocating, or Swivel) and the thickness of the material.

Main Blade Models and Applications

Blade Model/Type	Primary Application	Key Characteristics
Carbide Blade 30° (e.g., SPB-0045)	Hard materials and thin media requiring high accuracy.	Features a $\phi$3mm rod-shaped edge with minimal deflection.
Titanium-Coated Blades (e.g., SPB-0009)	High-intensity reflective sheeting.	2mm thickness designed for high-pressure cutting of large characters.
Reciprocating Blades (e.g., SPB-0055, SPB-0065)	Corrugated board (E to AB corrugation).	SPB-0065 offers higher durability for frequent use; SPB-0055 is a more affordable option for light use.
Foam Cutting Blades (e.g., SPB-0064, SPB-0056)	Foam boards and soft materials.	SPB-0064 (2° angle) is for foam up to 20mm; SPB-0056 can cut up to 40mm thick materials.
High-Speed Steel Blades (30°/45°)	General-purpose tangential cutting.	Available in various angles to match the required cutting precision and material toughness.
Swivel/Eccentric Blades	Thin vinyl chloride sheets for signboards and small lettering.	Used for intricate, small-character work where high-speed swivel move

Tool Head Compatibility

The type of blade you choose depends heavily on which head your CF2 model is equipped with:

· Tangential Head (T/TD/TF): Uses high-speed steel or carbide blades for materials like coated board, vinyl chloride for clear packaging, and soft vinyl up to 25mm thick.

· Reciprocating Head (RT/RC): Uses specialized reciprocating blades to "saw" through thick or layered materials like corrugated fiberboard and foam up to 20mm thick.

· Swivel Head: Primarily for standard vinyl cutting and half-cutting of thin films.
