Valiani 02445 T18 002447 T19 002733 T21 Knife Blades For Digital Flatbed Plotters

Valiani 002445, 002447, and 002733 appear to be blade codes used for Valiani digital flatbed plotters, with the Valiani tooling documentation grouping them among knife/blade options for the platform. Enquire now

Description

Valiani 02445 T18 002447 T19 002733 T21 Knife Blades For Digital Flatbed Plotters

Valiani 002445, 002447, and 002733 appear to be blade codes used for Valiani digital flatbed plotters, with the Valiani tooling documentation grouping them among knife/blade options for the platform. The same source shows Valiani’s system supports different blade families, including tangential, drag-knife, and oscillating cutting tools, so these codes are likely specific blade variants rather than a single universal knife.

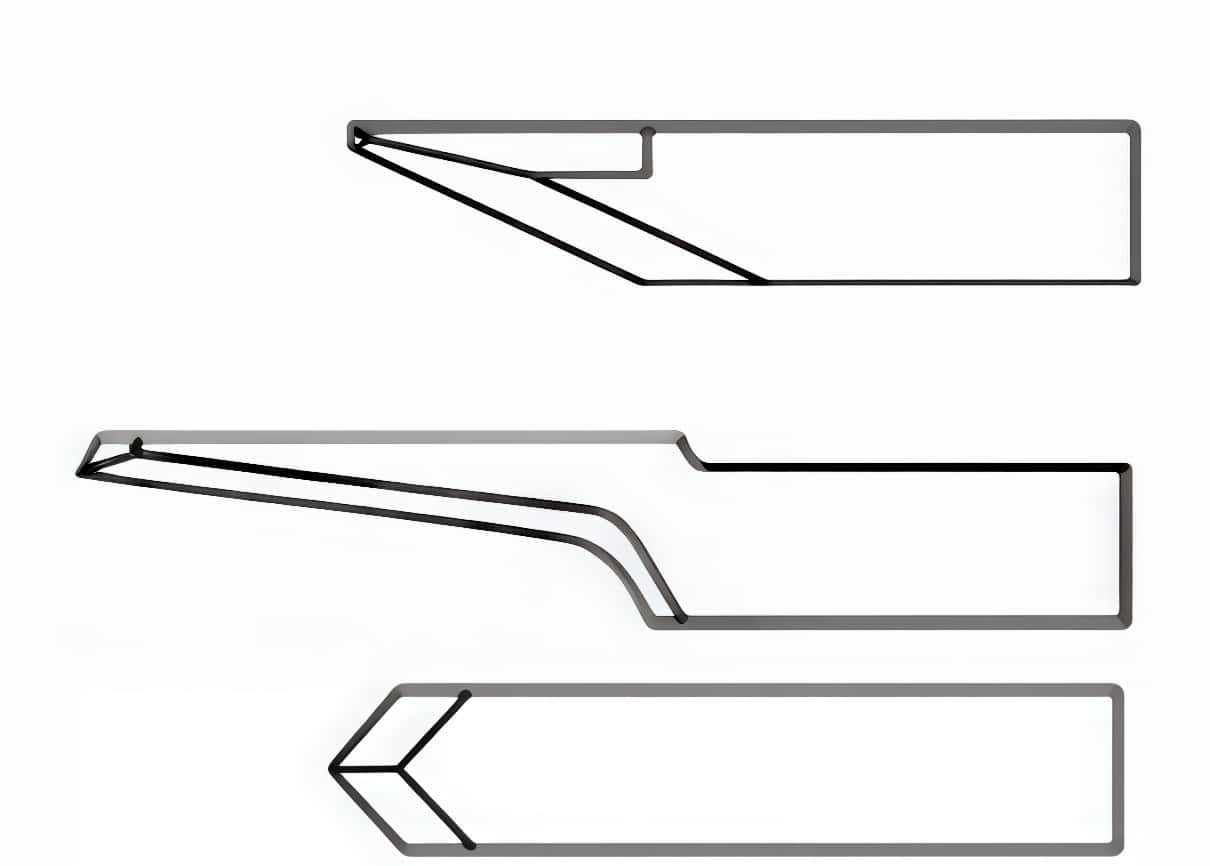

002445 — T18 Heavy-Duty Cutting Blade

Product Number :002445
Main purpose : Specifically designed for cutting very hard or thick materials.
Applicable materials : hard leather (shoe sole leather), hard cardboard, asbestos-free materials, graphite composite board, etc.
Maximum cutting thickness : Can handle materials up to 5 mm thick.

002447 — T19 Soft Rubber Blade(Blade for Soft Rubbers)

Product Number :002447
Main uses : Used for cutting special rubber or foam materials that are elastic, soft, and thick.
Applicable materials : Various soft rubbers, sponges, foam materials, etc.
Maximum cutting thickness : Supports cutting soft rubber materials with a thickness of up to 12 mm .

002733 — T21 Double Edge HD Blade

Product Number :002733
Main application : Heavy-duty machining inserts with a double-edge design.
Key advantages : The dual-blade structure is more efficient, has a longer lifespan, and produces a smoother cut when performing bidirectional continuous cutting or specific high-speed cutting routes
