Kongsberg punching tools/punching bits for Kongsberg CNC machining centers

Kongsberg carbide punch bitsIt is a precision consumable designed by the manufacturer specifically for the packaging die-cutting, digital proofing and sealing gasket industries, and needs to be used with the Combe dedicated punching tool module Enquire now

Description

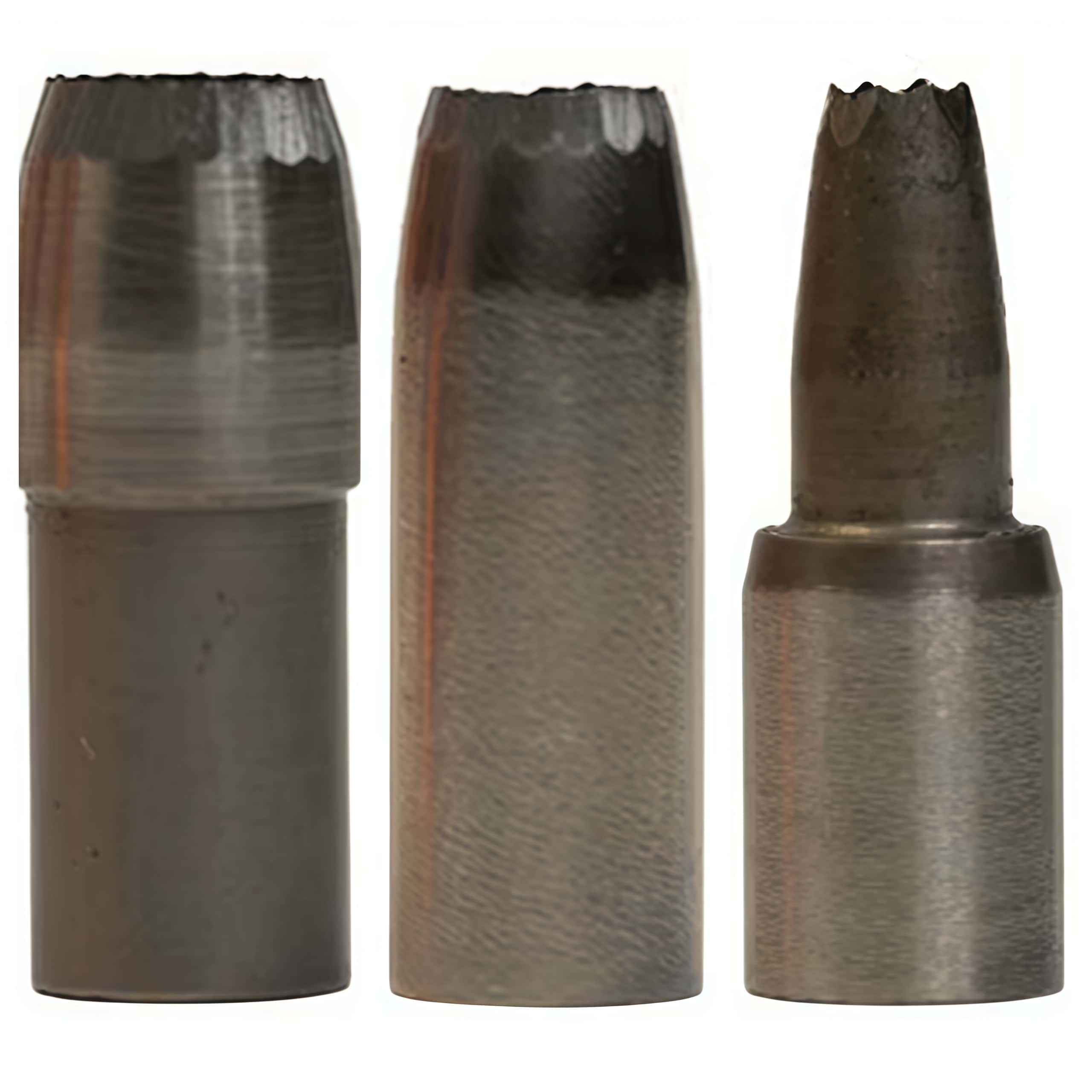

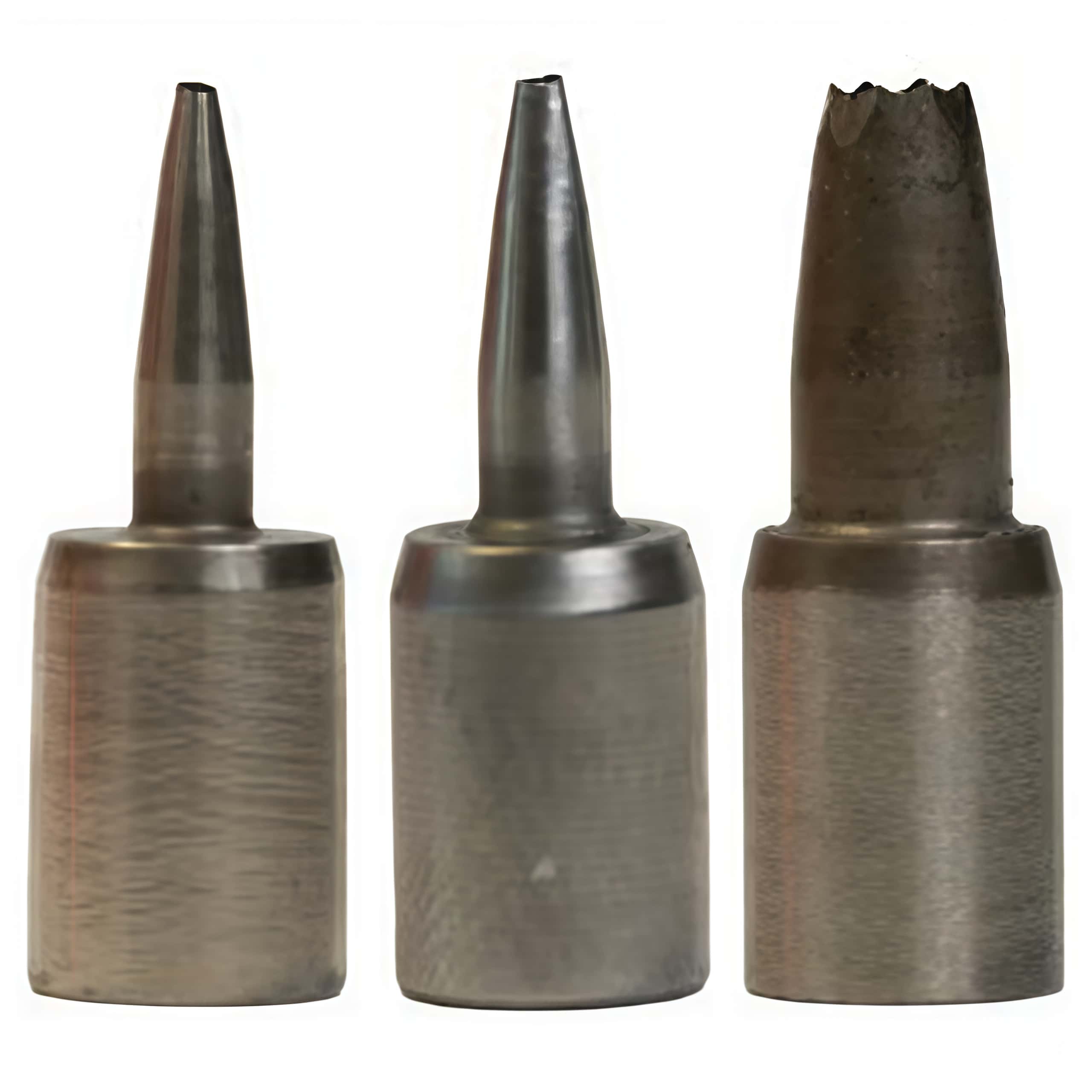

Kongsberg punching tools/punching bits for Kongsberg CNC machining centers and CNC die-cutting digital proofing machines

Comsport Punch Bits Specifications Comparison Table

Official Stock Code (SKU)	Drill bit corresponding to the borehole diameter.	Applicable to main tool sets (Matching Tool)
42489906	2.0 mm	Kongsberg Punching Tool Module
42489914	2.5 mm	Kongsberg Punching Tool Module
42489922	3.0 mm	Kongsberg Punching Tool Module
42489930	3.5 mm	Kongsberg Punching Tool Module
42489948	4.0 mm	Kongsberg Punching Tool Module
42489955	5.0 mm	Kongsberg Punching Tool Module
42489963	5.5 mm	Kongsberg Punching Tool Module
42489971	6.0mm	Kongsberg Punching Tool Module
42489872	0.8 mm	Kangsibo High Precision Ultra-fine Punching Series
42489880	1.0 mm	Kangsibo High Precision Ultra-fine Punching Series
42489898	1.5 MM	Suitable for punching heavy/tough composite materials

Core physical characteristics of consumables

High-hardness integral cemented carbide : The entire punch is made of nano-sized tungsten carbide, which has strong wear resistance and is not easy to chip under high-speed continuous stamping.
Two-way chip removal design : The drill bit has a dedicated waste discharge groove in the center or on the side to ensure that the central paper/glue scraps after each punching can be automatically pushed or vacuumed away to prevent clogging.
Precision standard shank diameter : This batch of 4248xxxx series punches has a uniform shank with a slot, which supports quick tool-free replacement on the punch holder .
