Eclipse Cnc And Digital Cutter Knife Blades

Eclipse CNC and digital cutter knife blades cover a range of blade styles for Eclipse 1523, 2029, 3547, and X-series systems, including cut-through, V-cut, EOT, and UCT/EOT tooling. Enquire now

Description

Eclipse Cnc And Digital Cutter Knife Blades

Eclipse CNC and digital cutter knife blades are highly specialized, tungsten carbide industrial tooling components designed for automated precision cutting. Manufactured mainly for the Cutworx USA Eclipse Series of flatbed digital die cutters (such as the Eclipse 1523, 2029, and 3547), these blades are engineered for high structural durability and clean material penetration.

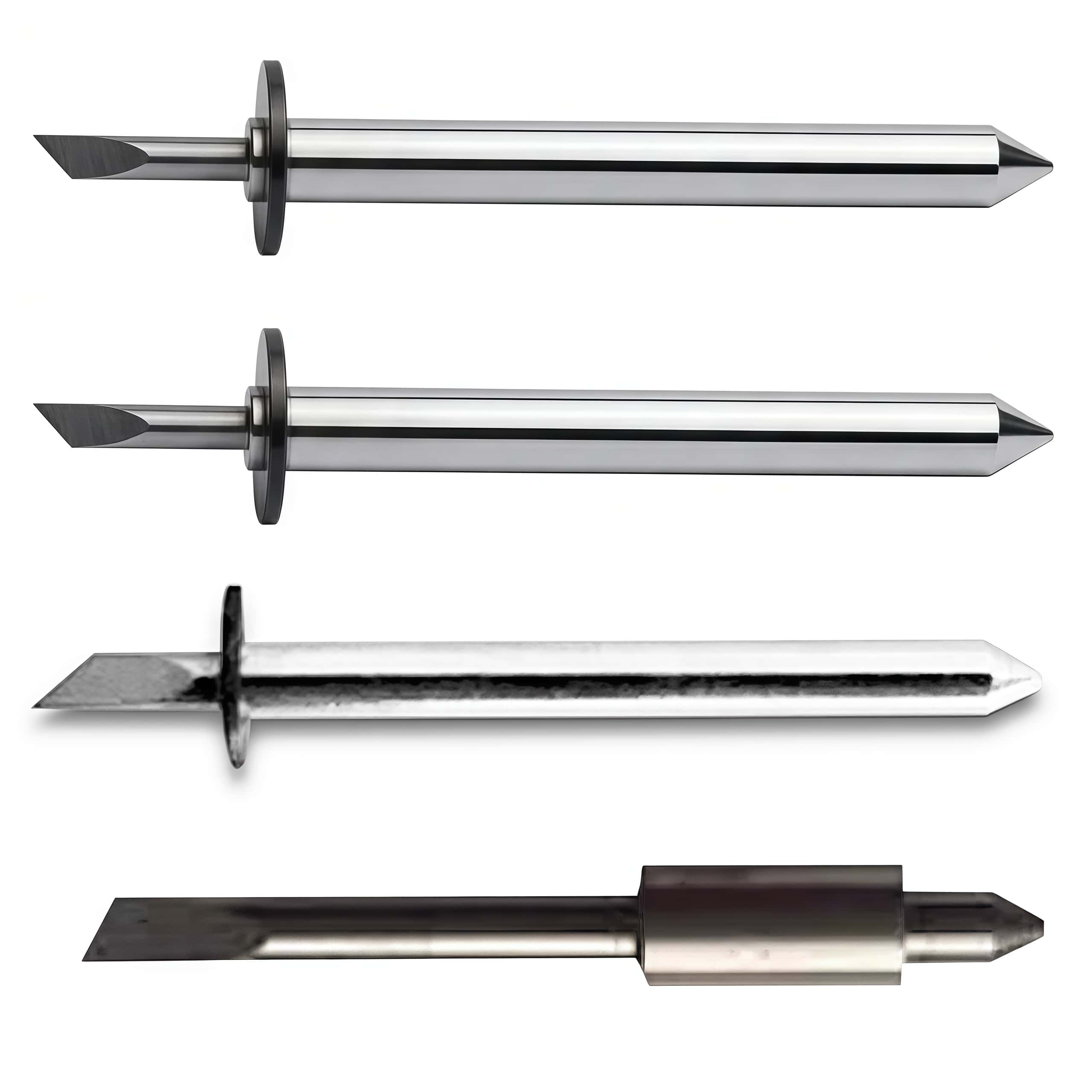

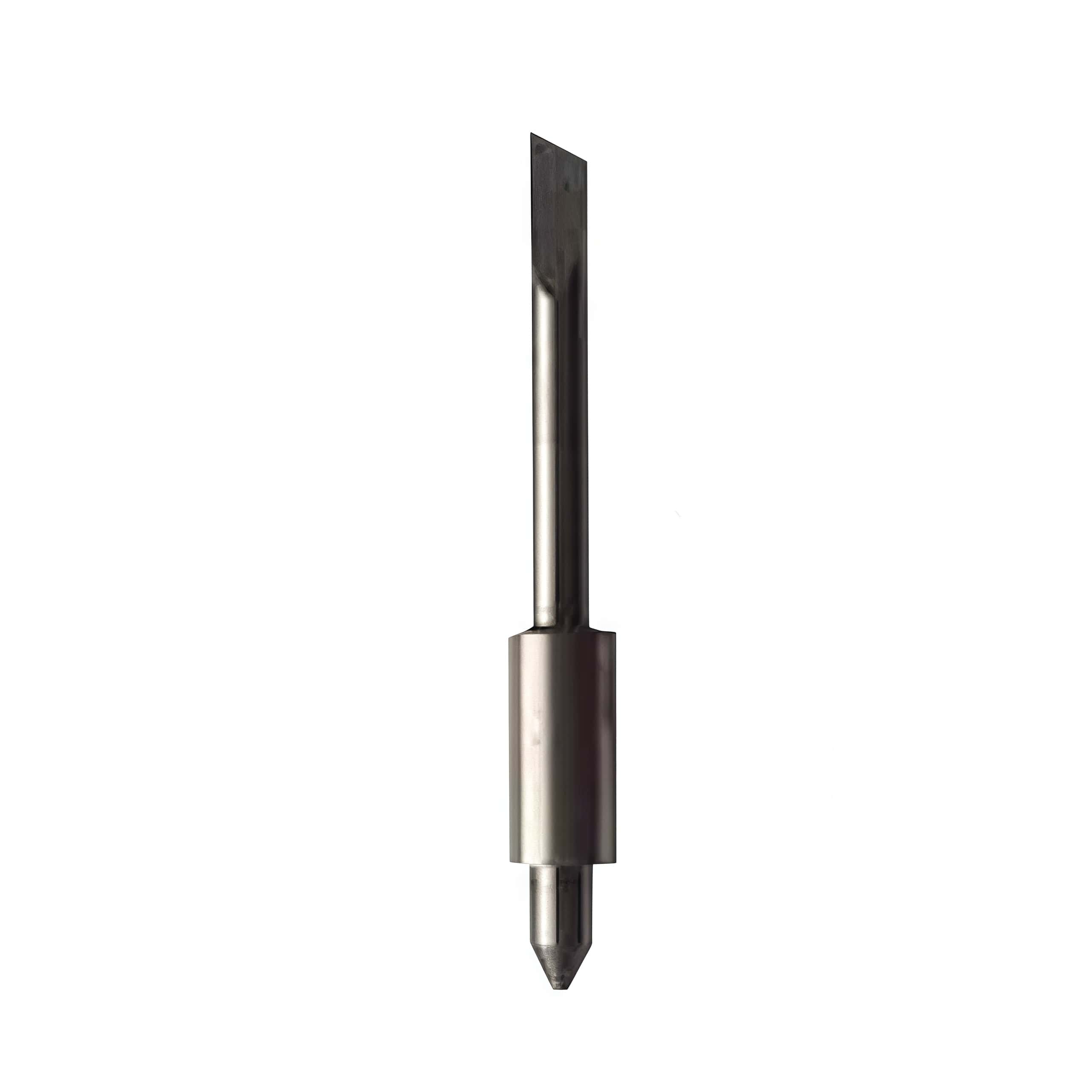

1. Static Drag & Kiss-Cut Blades
- 0.9mm Cut Through Blade (45°): Designed for precise cutting of low-profile materials under 1.0 mm, such as adhesive cast vinyl, light cardstock, and thin magnetic sheets.
- 1.5mm Cut Through Blade (45°): Equipped with an extended vertical edge suitable for thicker items like paperboard, laminated films, and cover stocks up to 1.0 mm.

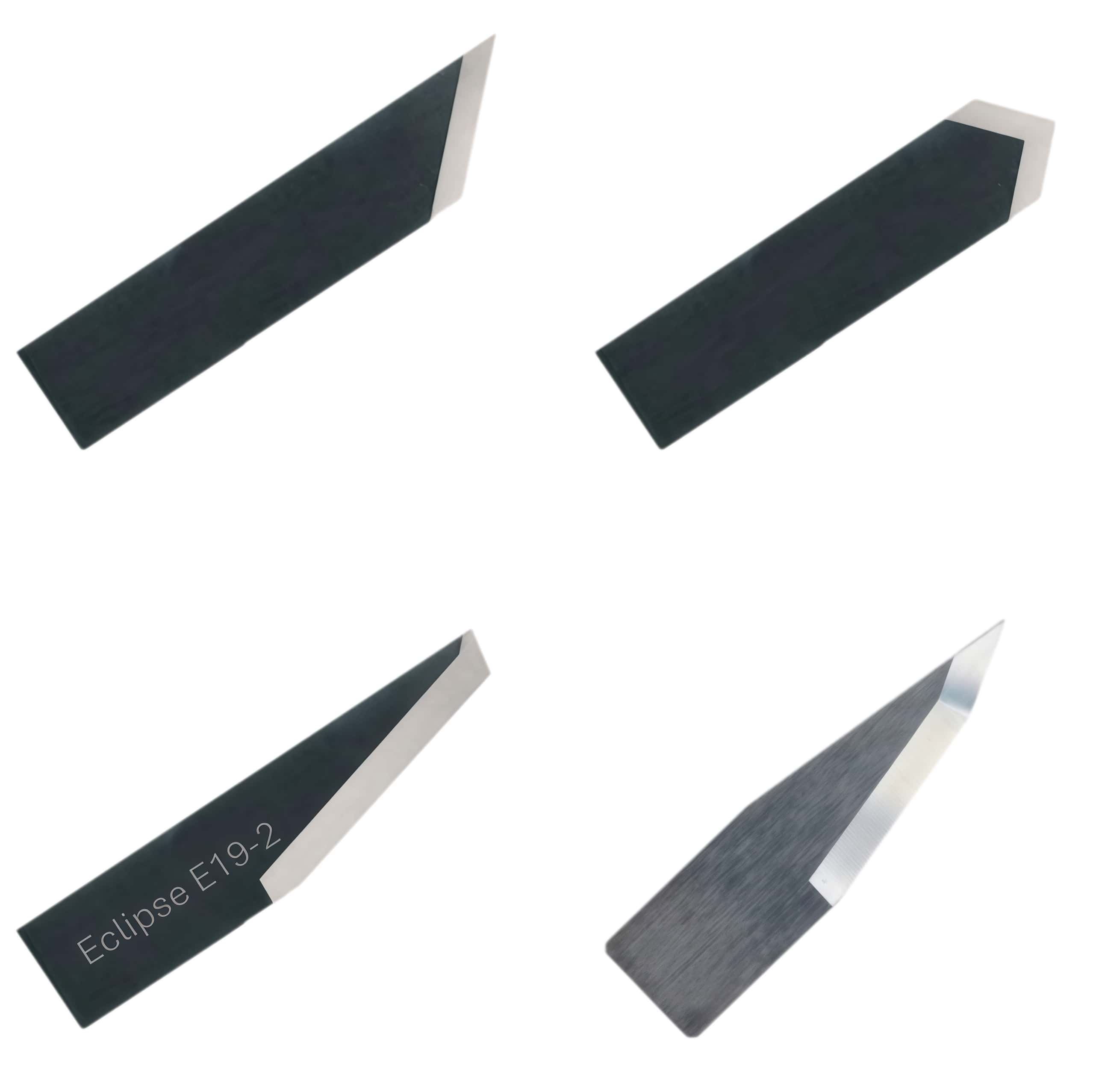

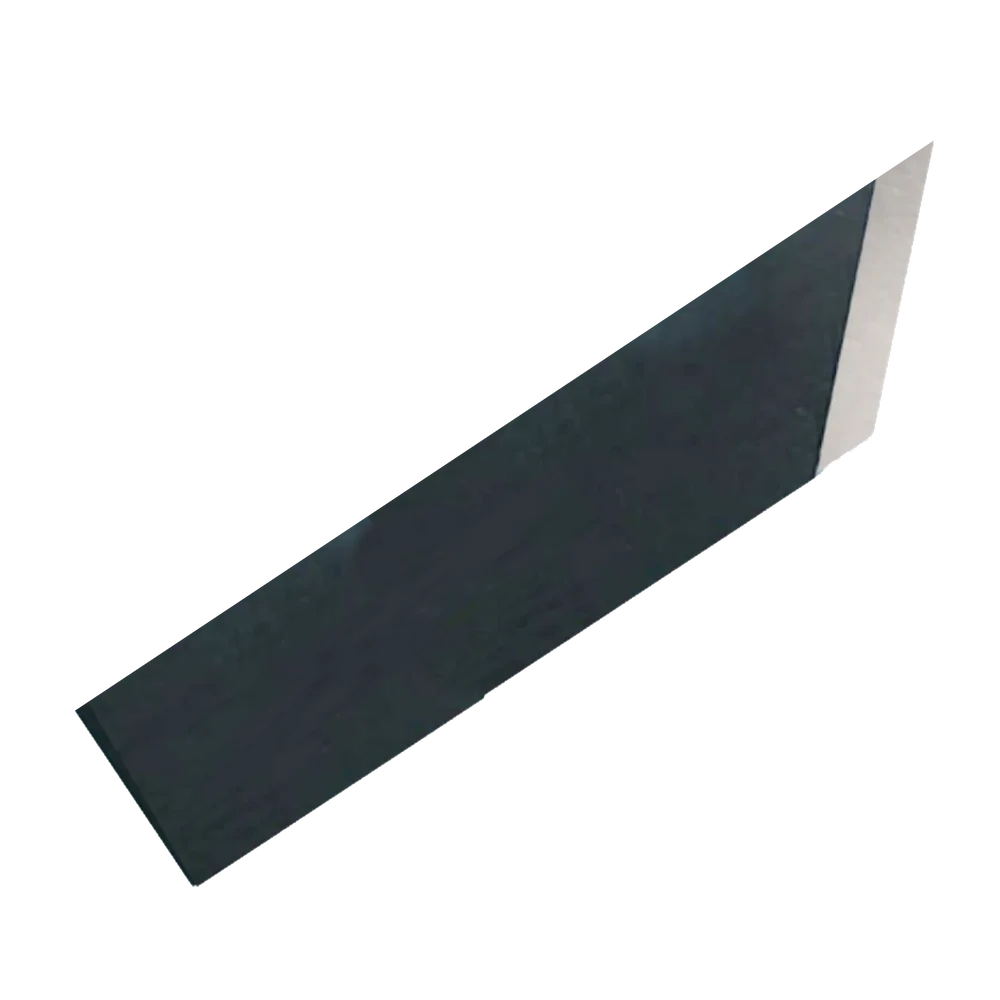

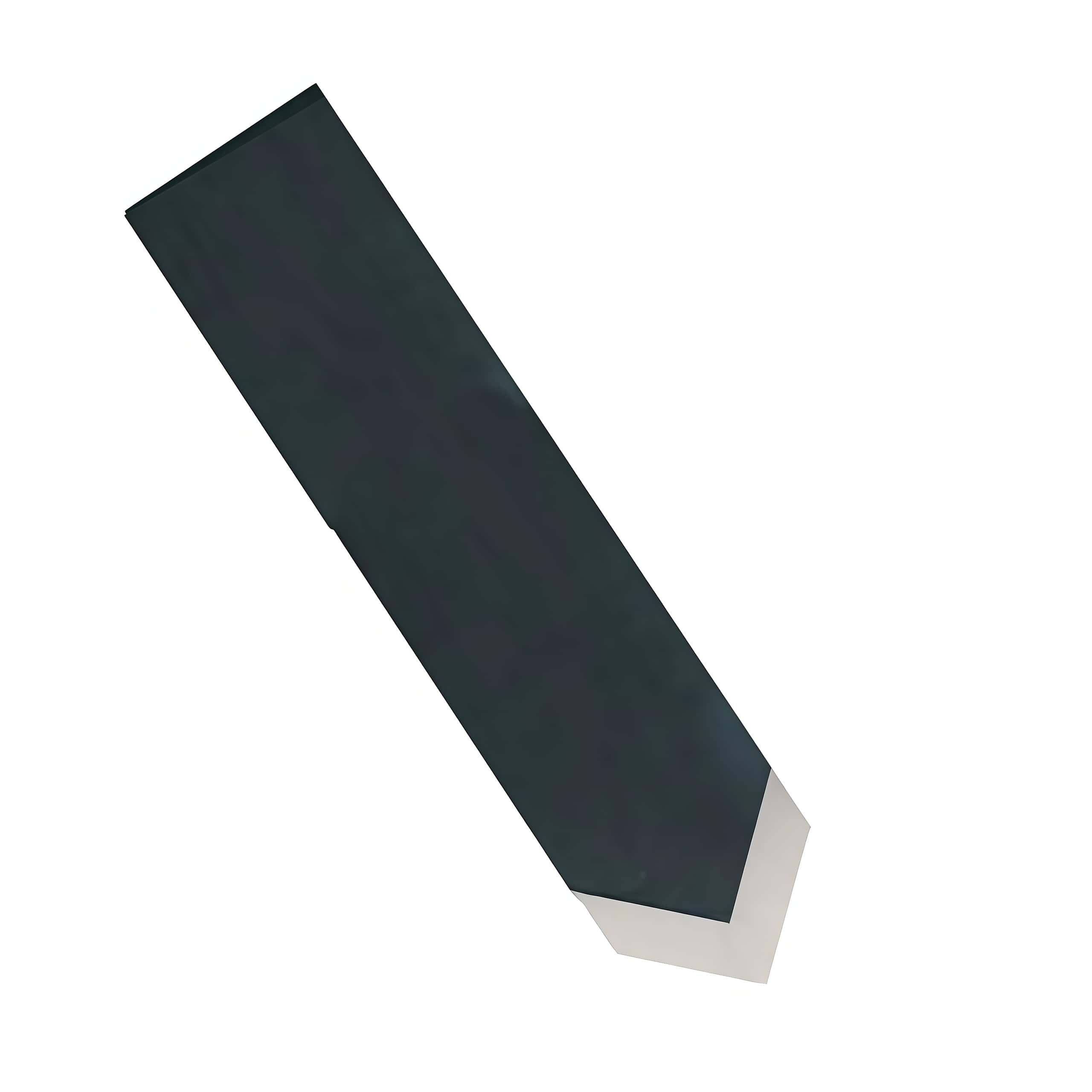

2. High-Frequency Electric Oscillating Tool (EOT) Blades
- E19-1 (22°, Clamp 1): Crafted for contouring chevron board, grayboard, and fine corrugated card under 5.0 mm thick.
- E19-2 (10°, Clamp 1): Features an ultra-sharp edge ideal for plunging through soft polyurethane foam and dense foam core up to 6.0 mm.
- E19-3 (30°, Clamp 1): Specially designed to handle tight, intricate radius curves on single-wall corrugated cardboard and Coroplast under 6.0 mm.
- E19-7 (60°, Clamp 2): A robust setup blade intended for cutting through rigid styrene panels and thick acoustic felts up to 3.0 mm.
- E19-33 (60°, Clamp 1): A standard blade for structural packaging, ideal for B/C/E-flute boxes, heavy kraft board, and fiberboard up to 6.0 mm.
- E19-34 (60°, Clamp 1): Built with a unique rear facet to minimize friction and overheating on abrasive, adhesive-laden honeycomb sheets up to 6.0 mm.

3. Extended Length UCT / EOT Heavy-Duty Blades (Clamp 3)
- E19-31 (64°): A universal deep-profile blade suited for high-volume runs on double-wall corrugated containers and structural grayboard up to 10.0 mm.
- E19-36 (60°): Designed with an aggressive long-edge profile for deep vertical piercing on structural honeycomb panels up to 10.0 mm.
- E19-37 (60°): Features double-edged ground geometry to prevent blade deflection and flexing when carving dense packaging dividers and interlocking slots up to 10.0 mm.
- E19-38 (69°, Clamp 1 & 3): Features the steepest 69° cutting edge, optimized for penetrating thick closed-cell foam boards and rigid cardboard up to 10.0 mm.

Interpretation
The 45° drag/kiss-cut rows fit thin flexible stock like vinyl, paper, and light card, which aligns with common cutter-blade guidance for thinner media.

The EOT and UCT rows make sense as you move into board, corrugated, foam, and honeycomb-type materials, where angle selection and tool-clamp configuration become more important than just blade sharpness.
