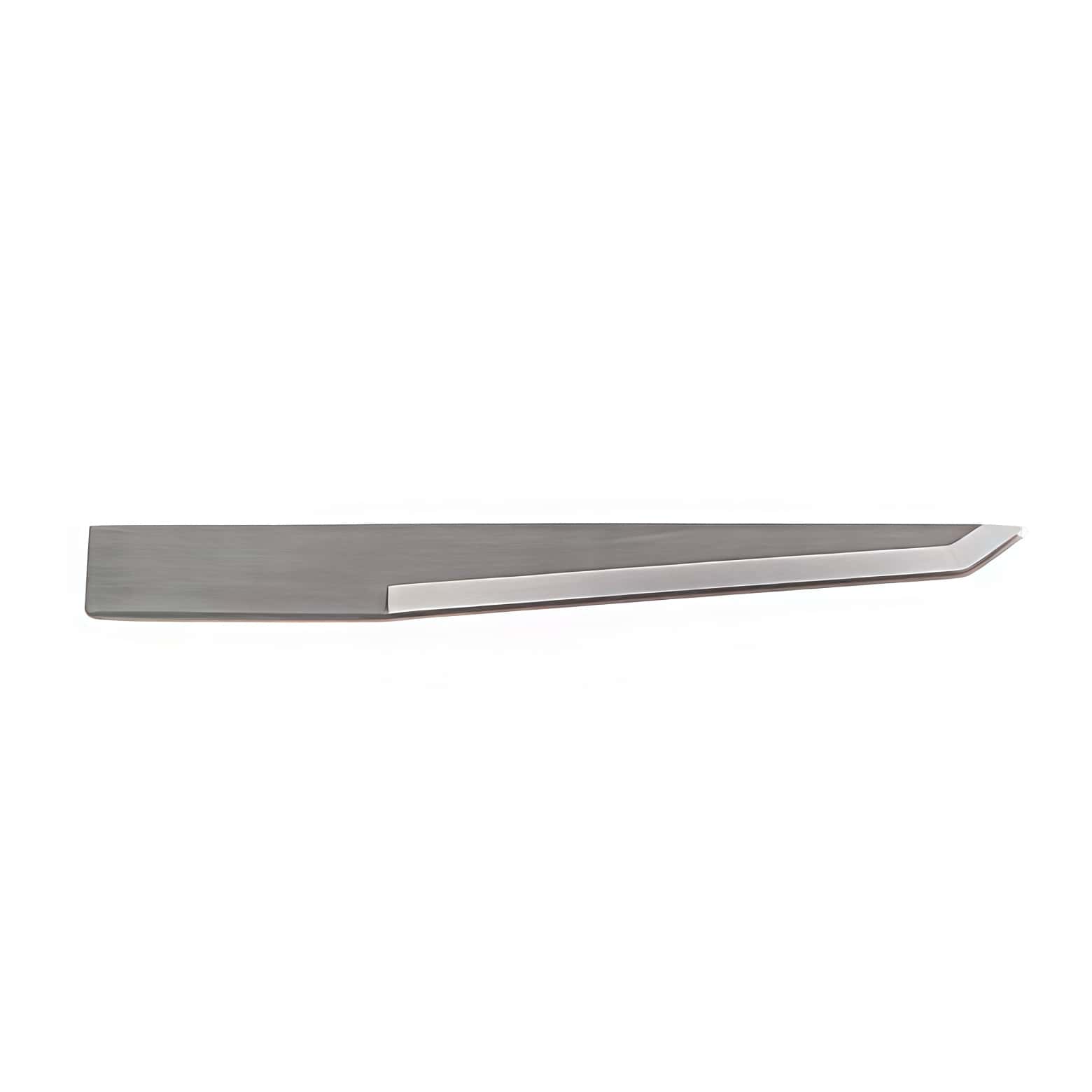

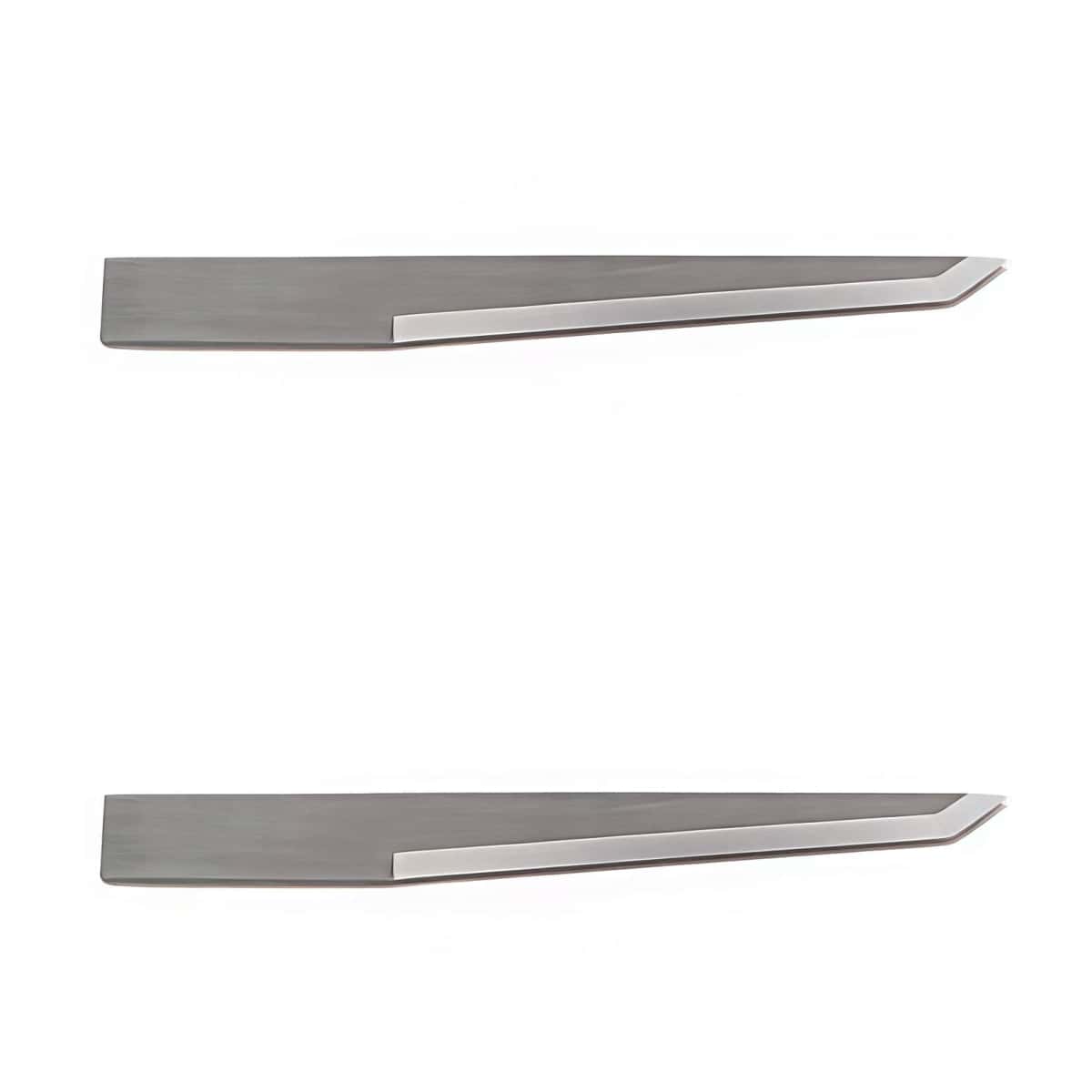

Tungsten Carbide Oscillating Knife Blades designed for MultiCam CNC digital cutting tables, including the Celero, Digital Express, and Graph-X-Cutter series, are high-performance tools specifically crafted to cut through flexible, dense, and fibrous materials  efficiently.

Technical Specifications

Key Performance Features

• Minimal Overcut: Engineered with a narrow profile and optimized blade tip offset, making it ideal for tight radii, intricate geometry, and fine detail cutting without tearing or over-cutting corners.

• Tungsten Carbide Build: Offers high resistance to abrasive wear, extending blade life significantly when cutting dense foams, rubber, or corrugated media compared to standard high-speed steel (HSS).

• Dual-Angle Geometry (65°/85°): Balances initial penetration sharpness with backing strength to maintain clean edges in thicker or multi-layer materials.




Material Compatibility

Optimal Use Case: High-precision detail cutting and fine contours on thin-to-medium thickness flexible and semi-rigid substrate materials up to 10 mm.

• Packaging & Paperboard: Single- and double-wall corrugated boards, folding cartons.

• Plastics: Corrugated plastic (Coroplast), flexible PVC, polypropylene (PP) sheets.

• Foams: Soft polyurethane (PU) foam, closed-cell polyethylene (PE) hard foam, EVA foam.

• Gaskets & Fabrics: Rubberized fabrics, natural/synthetic rubber sheets, gasket media.
