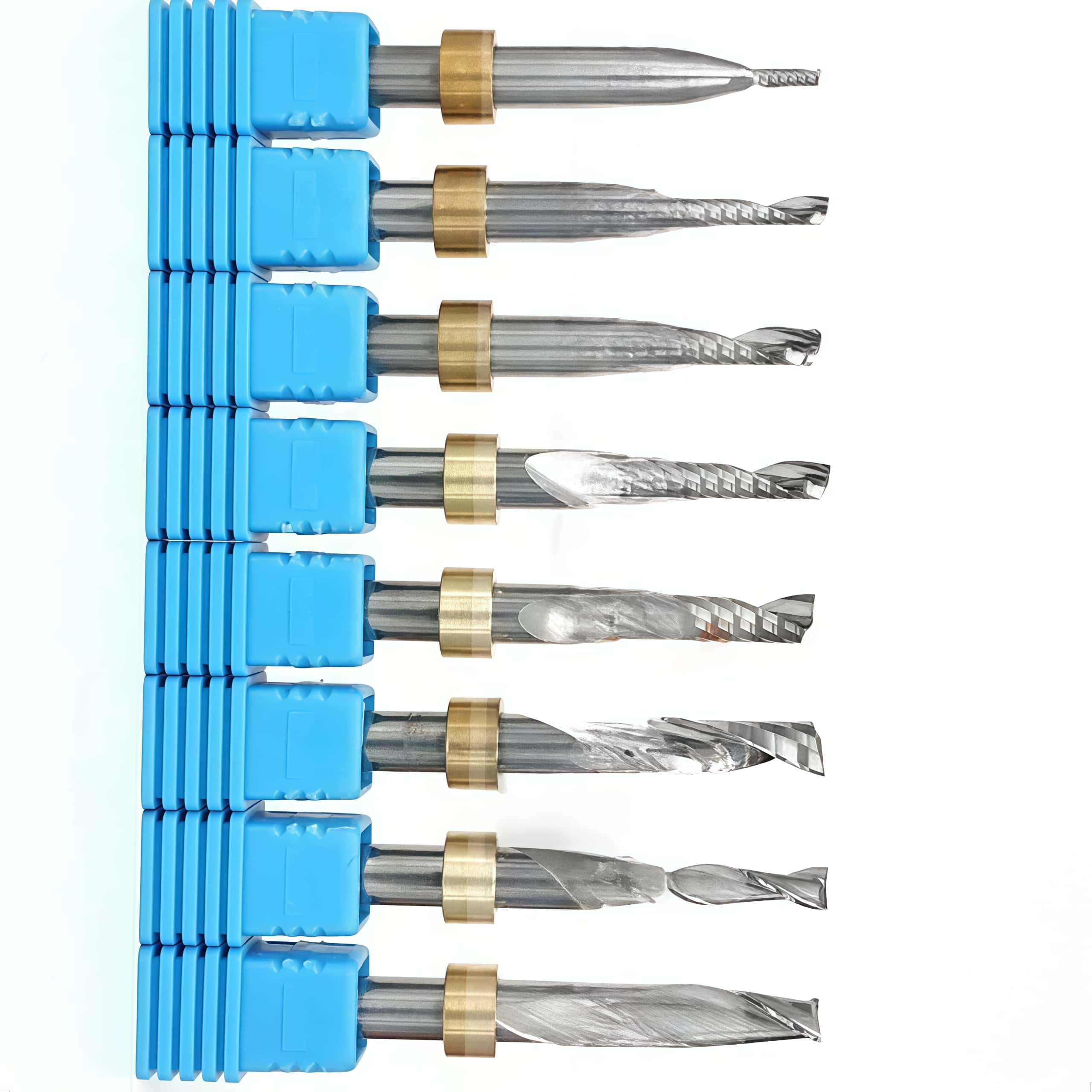

Iecho Er6c4 Tungsten Carbide Router Bit For Routing And Milling Systems

IECHO ER6C4 is a tungsten carbide milling bit (router bit) designed specifically for IECHO high-speed digital cutting systems equipped with 1.0 kW and 1.8 kW high-frequency milling spindles. Enquire now

Description

Iecho Er6c4 Tungsten Carbide Router Bit For Routing And Milling Systems

IECHO ER6C4 is a tungsten carbide milling bit (router bit) designed specifically for IECHO high-speed digital cutting systems equipped with 1.0 kW and 1.8 kW high-frequency milling spindles.

Core Specifications & Features

Feature	Specification Details
Material	Micro-grain Solid Tungsten Carbide (High Wear & Heat Resistance)
Compatible Spindles	IECHO 1.0 kW / 1.8 kW Milling Spindle Modules (e.g., RZ series cutter tables)
Shank Diameter	6 mm
Tool Diameter / Profile	Typically 4 mm routing diameter with special chip-flute geometry
Flute Design	Up-cut spiral flute (forces swarf and chip removal upward away from the cut)

Key Advantages

Up-Cut Spiral Design: Efficiently clears chips upward during high-speed routing. This prevents chip re-cutting, reduces heat buildup, and avoids localized material melting (essential for acrylics and plastics).
High-Speed Balance: Rigorously dynamically balanced to withstand high-RPM operation (up to 60,000 RPM) without causing spindle vibration or tool deflection.
Clean Edge Finish: Designed to yield clean, burr-free edges on dense substrates without requiring extensive post-processing.
