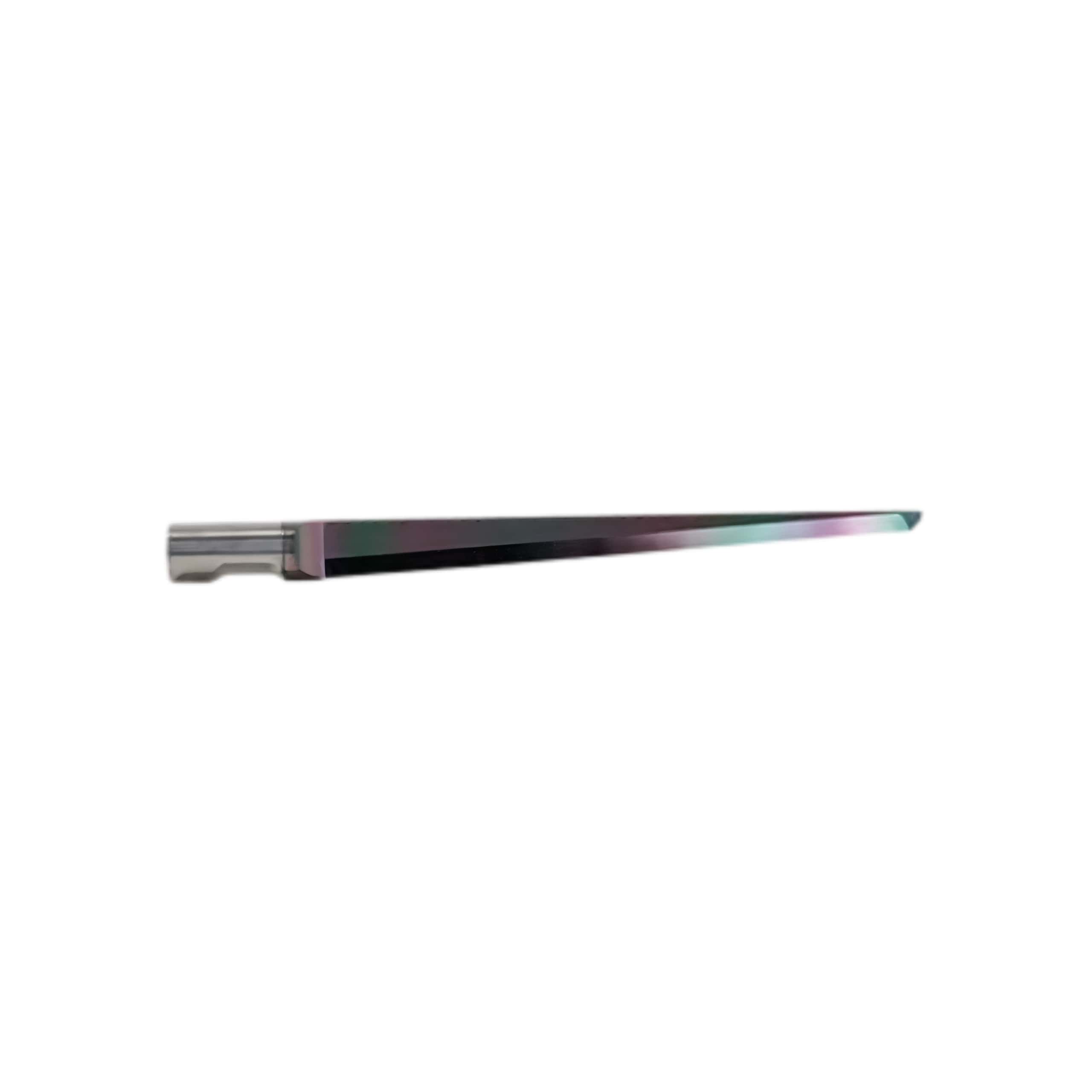

Esko Kongsberg Bld-Sr6523 C2 Coated Round-Shank Static Solid Tungsten Carbide Knife Blades 42490128

OverviewProduct: Esko Kongsberg BLD-SR6523 single-edge round 6mm cutting blade.,Coating: C2 coating for enhanced wear resistance and extended service life. Enquire now

Description

Esko Kongsberg Bld-Sr6523 C2 Coated Round-Shank Static Solid Tungsten Carbide Knife Blades 42490128

Esko Bld-Sr6523 C2 Coated Round-Shank Static Solid Tungsten Carbide Knife Blades 42490128

Technical Specifications

Specification	Value / Feature
Esko Item Number	BLD-SR6523 (Legacy: G42438514)
Blade Class / Code	C2
Shank Type	$6\text{ mm}$
Material	Tungsten Carbide (HM)
Max Cutting Depth	Approximately 2.5 mm - 3.0 mm
Cutting Edge Angle	Single-edge drag knife with optimized trailing geometry
Tool Head Compatibility	Rigid Knife Tool, MultiCut, FlexiHead

Primary Applications & Recommended Materials

Paper & Cardboard: Folding cartons, solid bleached sulfate (SBS) board, paperboard.
Plastics & Synthetics: Polypropylene (PP) sheets, thin PVC films, vinyl, synthetic paper.
Gaskets & Fabrics: Thin gasket materials, technical textiles, non-woven fabrics.

Key Features

High Wear Resistance: Made from micro-grain tungsten carbide to sustain fine edge sharpness under continuous drag cutting friction.
Precision Fine Detail: Designed for high-speed cutting of intricate geometry, small radii, and sharp corners without material pulling.
Standard fit: Can be directly mounted into the standard 6mm fixed tool holder used on Kongsberg X, C and XP series worktables.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
