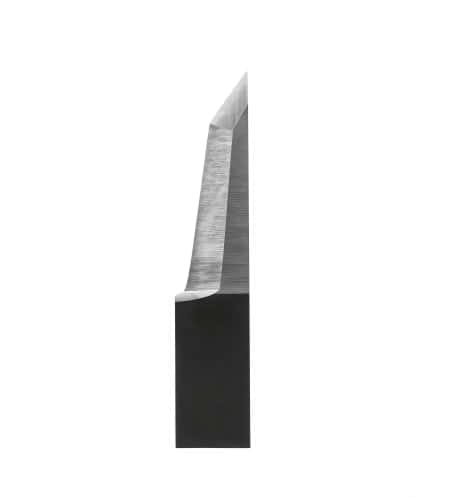

COMAGRAV ZNT01345, also known as ZNT-01345 or ZNT 01345, is a high-performance tungsten carbide blade designed for use in CNC digital cutting tables and plotters.

Overview & Applications
Compatible Equipment: This blade is intended for use with COMAGRAV CNC cutting machines featuring oscillating or tangential knife modules. It is also suitable for various other digital flatbed cutters that utilize standard 6mm shank blade holders, including brands like Zund, iEcho, and Summa.

Primary Function: Its main use is for precise oscillating or tangential cutting of soft and semi-rigid materials in industrial environments.

Materials Commonly Cut:

- Corrugated cardboard and robust folding cartons
- Foam board, EVA foam, and polyurethane foam
- Rubber and gasket materials
- Leather, textiles, and technical fabrics
- Vinyl and plastic corrugated sheets, such as Coroplast

Technical Specifications
Blade Type: Suitable for both Tangential and Oscillating Knife Blades

Material: Constructed from solid tungsten carbide, a micrograin hard alloy

Shank Diameter: 6 mm

Max Cutting Depth: Approximately 14 mm to 16 mm, depending on the specific holder setting

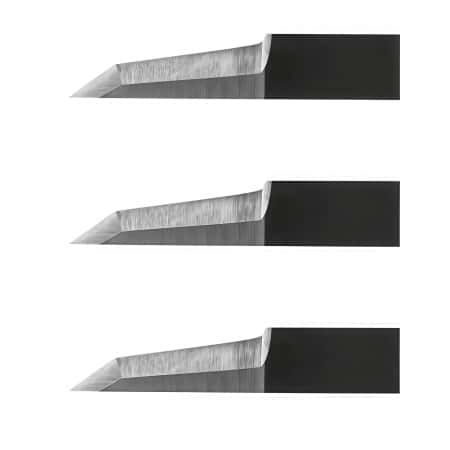

Cutting Geometry: Features a single-edge or double-edge angled tip designed to ensure clean cuts without tearing or dragging through soft materials.

Key Advantages
Extended Wear Life: Its composition of high-density tungsten carbide enables it to resist friction and maintain sharpness over extended production periods.

Clean Edge Quality: The blade's engineered geometry reduces burrs, minimizes material distortion, and prevents heat buildup during rapid cutting cycles.
