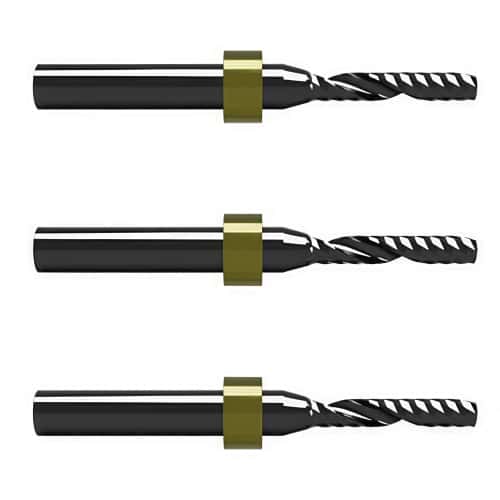

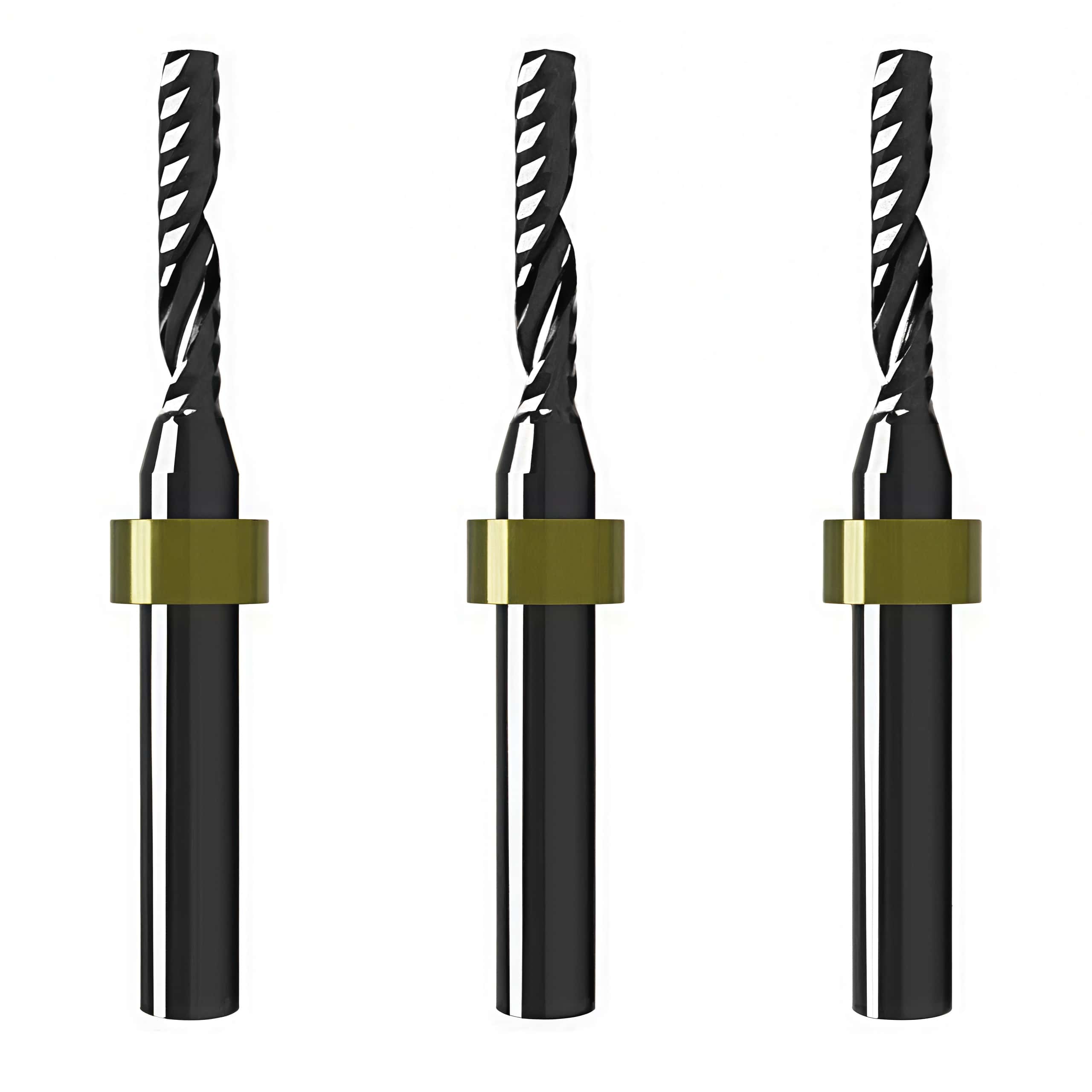

Zund R158-A Oem-Grade Solid Carbide Milling Bit With Stop Ring Systems Part No 3910796

Zund R158-A (Part No. 3910796) is a solid carbide milling bit with an integrated stop ring, engineered for high-precision CNC routing and digital cutting systems. Enquire now

Description

Zund R158-A Oem-Grade Solid Carbide Milling Bit With Stop Ring Systems Part No 3910796

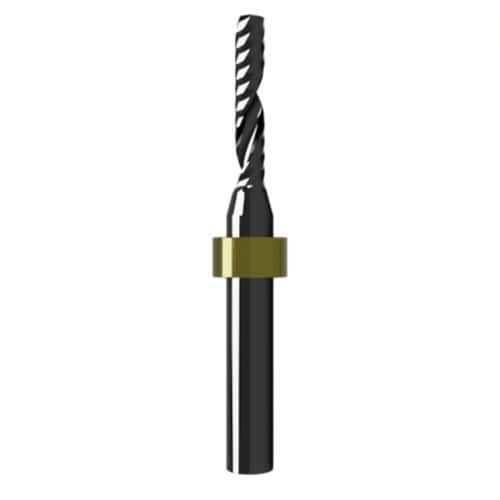

Zund R158-A Spiral (Up-Cut) Solid Carbide Milling Bits Part No. 3910796

Zund R158-A Solid Carbide End Mill (Part No.: 3910796)This is a high-end OEM-grade carbide top-cutting helical end mill designed specifically for Zund digital cutting systems (typically used with the universal milling tool URT).This model is a special version with a Stop Ring Systems (Series A), primarily used to provide precise depth control in high-speed CNC cutting.

Core technical specifications and characteristics

• Part No .: 3910796
• Main material : High-specification solid carbide, some versions have polished surfaces to reduce friction and chip buildup.
• Cutting type : single-edge or multi-edge up-cut spiral, which is more conducive to efficient upward chip removal.
• A-Version : The tool comes with a pre-installed stop ring, which supports automatic tool setting or quick replacement, ensuring absolute consistency of vertical milling depth and avoiding repeated manual calibration.
• Maximum speed limit : up to 46,600 RPM .

Applicable processing materials

This end mill is optimized for high-hardness, multi-layered composite, or hard materials. Recommended materials for machining include:
• Metal and composite panels : Aluminum panels, aluminum composite panels (ACM / Dibond).
• Wood-based panels : Medium-density fiberboard (MDF), solid wood panels.
• Plastic and foam materials : Acrylic, rigid foam (Forex/Hardfoam) and other engineering plastics.
