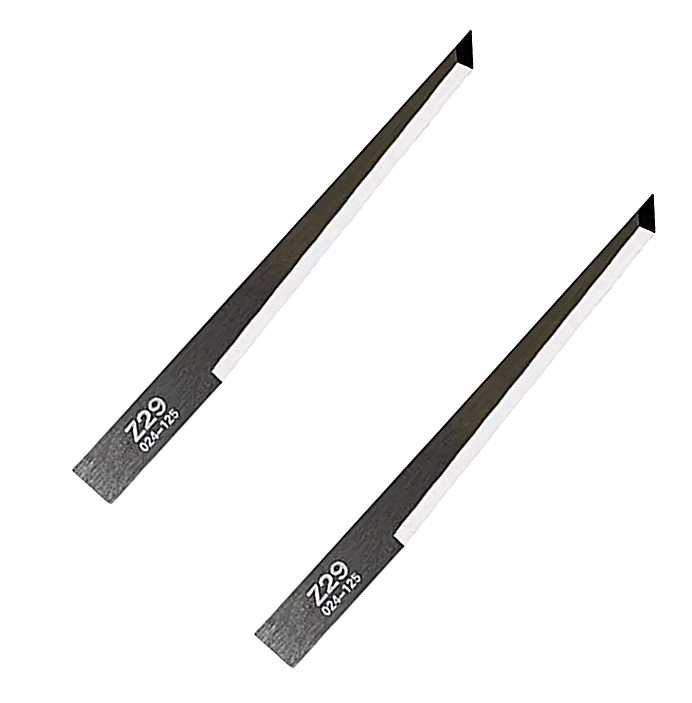

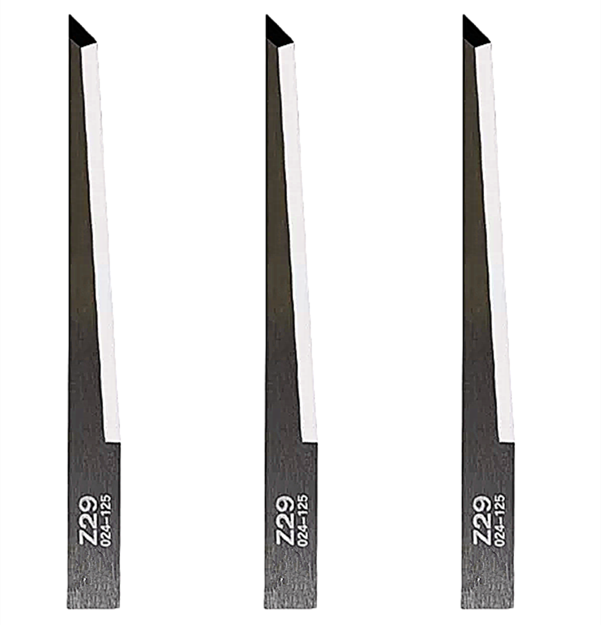

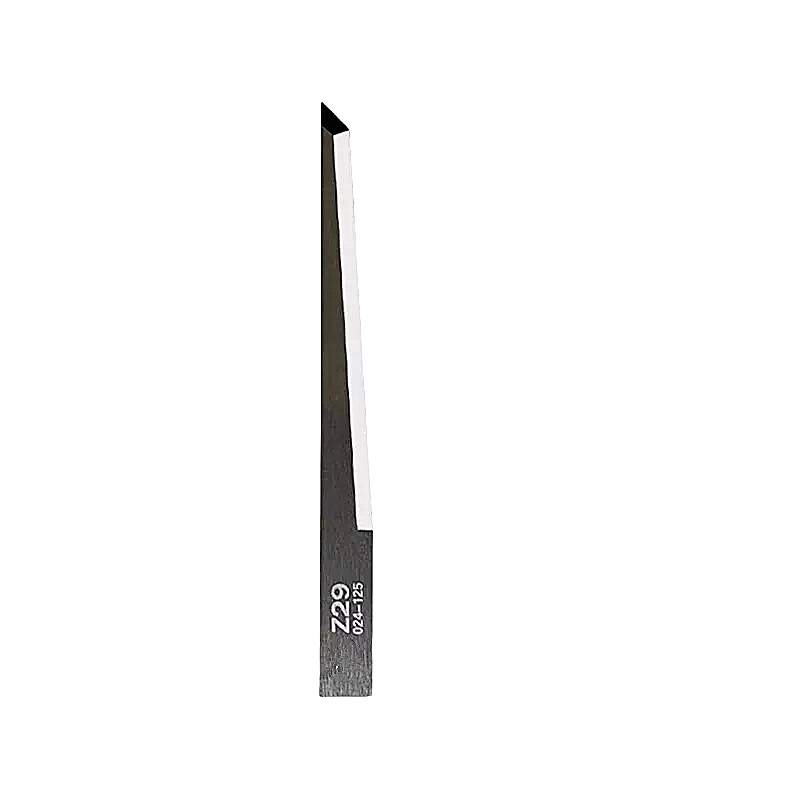

Zund Z29 Carbide Oscillating Replacement Knife Blades For Zund Cutting Systems 3910319

Zund Z29 (3910319) is a long, flat-shank tungsten carbide oscillating knife blade engineered specifically for processing very thick, soft, and textured substrates. Featuring a specialized single-edge pointed design with an aggressive cutting profile, this heavy-duty blade allows your Zund platform t… Enquire now

Description

Zund Z29 Carbide Oscillating Replacement Knife Blades For Zund Cutting Systems 3910319

Zund Knife,Zund Z29 Blade,Zund Z29,Zund,Zund Blade,Zund 3910319,Zund Z29 Knife,Zund Knife Blade

Equivalent
3910319
Z29
Thickness / Type
0.63 mm.
Max. cutting depth
30 mm
Pre-cut
1.9 + 0.06 x Tm
Post-cut
-
Composition
Tungsten Carbide - HM - Hard Metal
Tool
EOT-250
Electric Oscillating Tool (EOT) / Electric Oscillating Cutting Tool
POT 1,5
Pneumatic Oscillating Tool ( POT ) / Pneumatic Oscillating Cutting Tool
Knife width
4,0 mm

Target Materials & Applications

Because of its deep 31.0 mm depth tolerance, the Z29 prevents material compression, structural crushing, or tearing on specialized substrates:

Foams & Insulation: Open/closed-cell polyethylene (PE), polyurethane (PUR) foam inserts, and soundproofing acoustic panels.
Structural Cores: Thick honeycomb cardboard, multi-wall sandwich boards, and heavy corrugated display units.
Industrial Media: Thick natural leather hides, heavy textile weaves, dense felt padding, and soft rubber gaskets.

Suitable for machine manufacturer:BT-2329 Esko Kongsberg G42458315 42458315 BLD-SF429 i-429, iEcho E29, Mécanuméric 100610430, Zund 3910319 Z29, Blackman & White BW29, Gerber MCT SE29 895029, Summa 500-9814 500-0814, Colex T00428 ,GUNNAR GZ29
