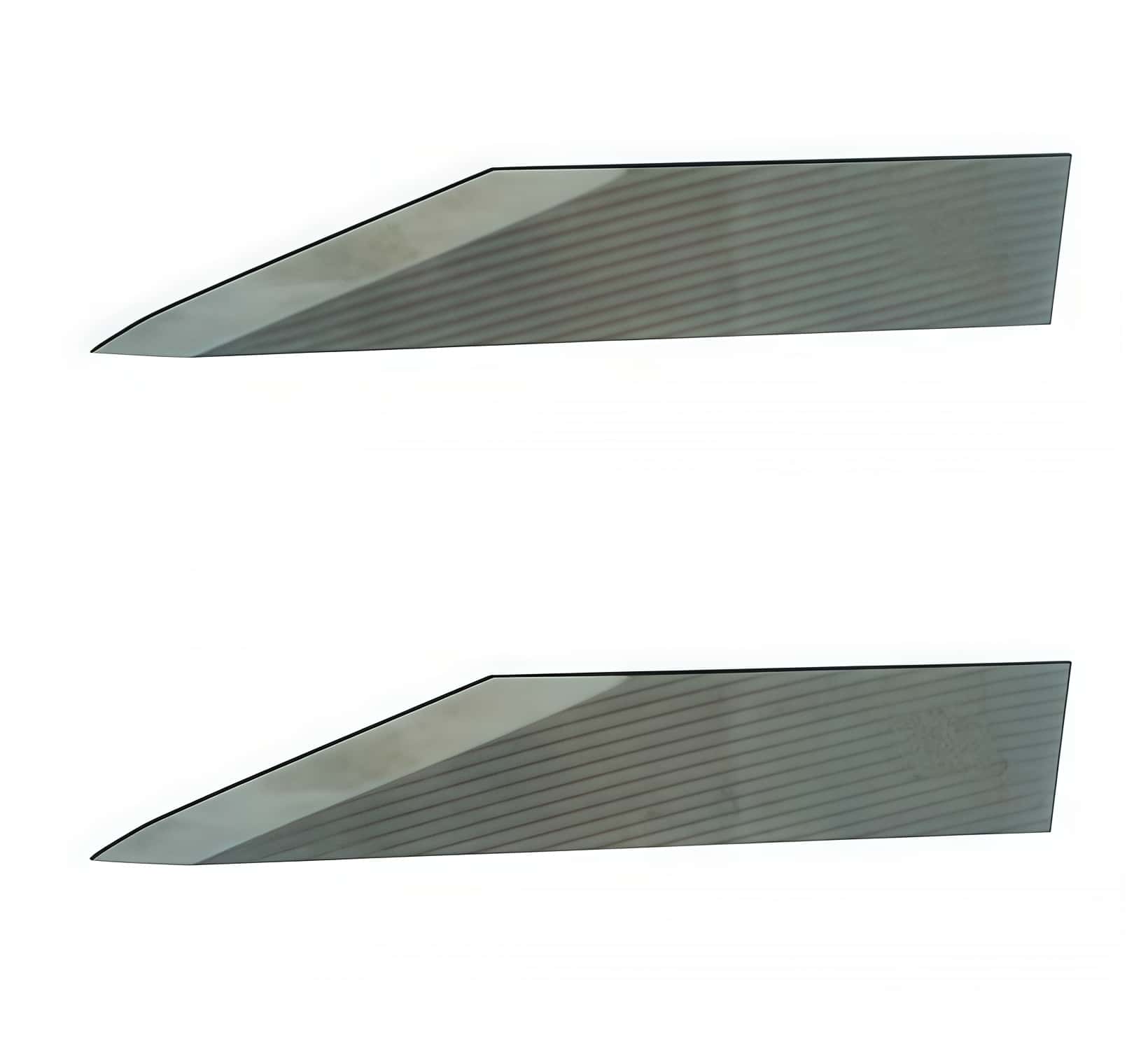

Atom 01033371 (HV1400) 01039896 (HV1600)Flashcut Knife Blades Price

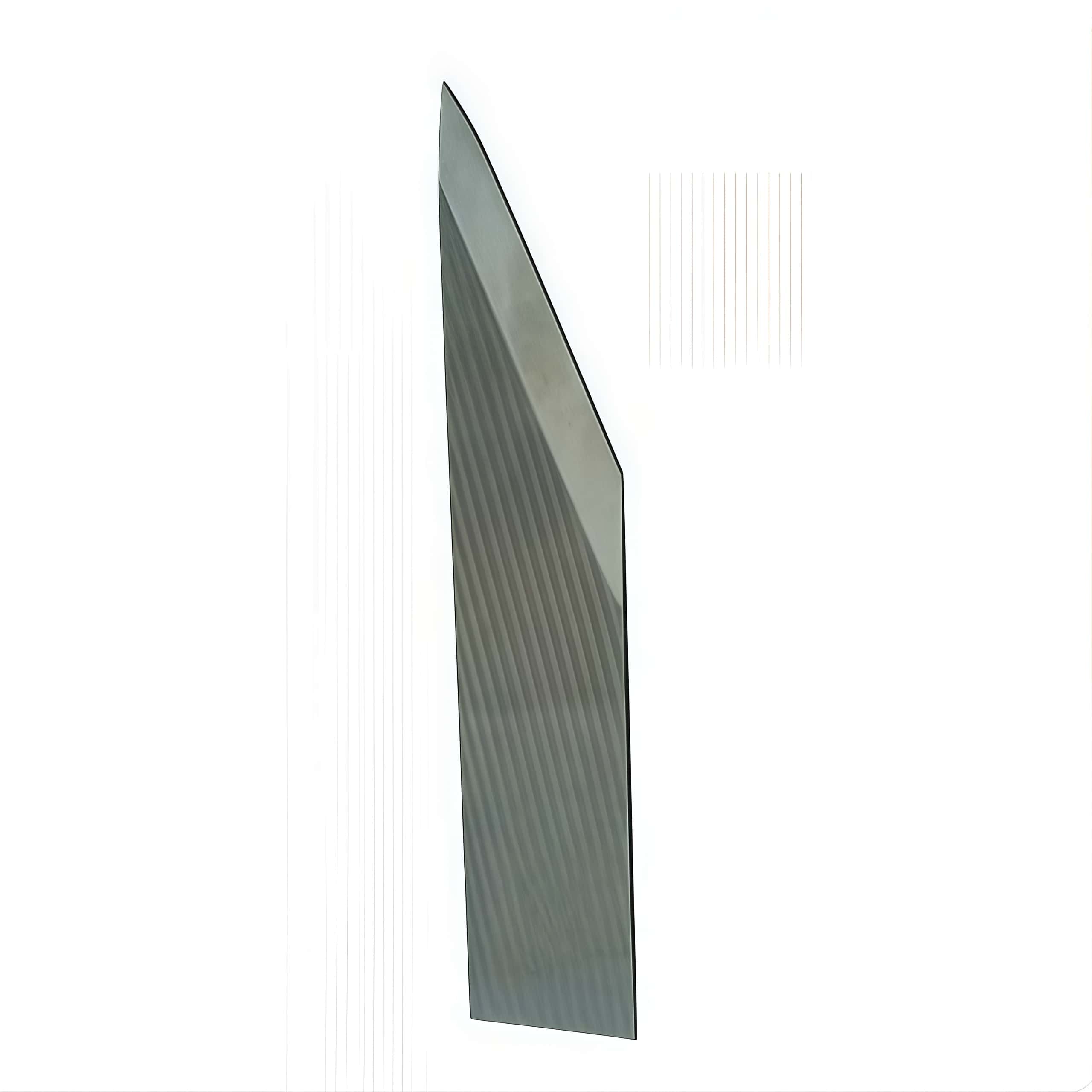

CHINA Atom 01033371 (compatible with the HV1400 series) and Atom 01039896 (designed for the HV1600 series) are tungsten carbide vibrating blades crafted explicitly for use with the Atom Flashcut automated digital cutting system.
Enquire now

Description

Atom 01033371 (HV1400) 01039896 (HV1600) Flashcut Knife Blade 15°-15° Price

Atom 01033371,Atom 01039896,Atom 33371,Atom 39896,Atom Flashcut Blade,Atom Flashcut Knife,Atom Blade,Atom Knife

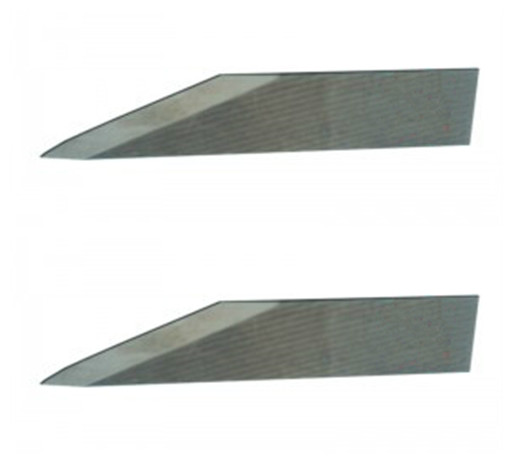

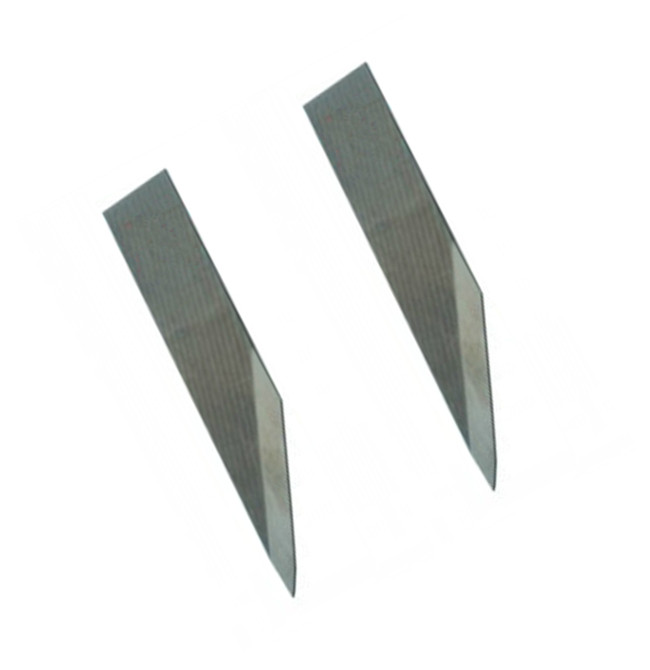

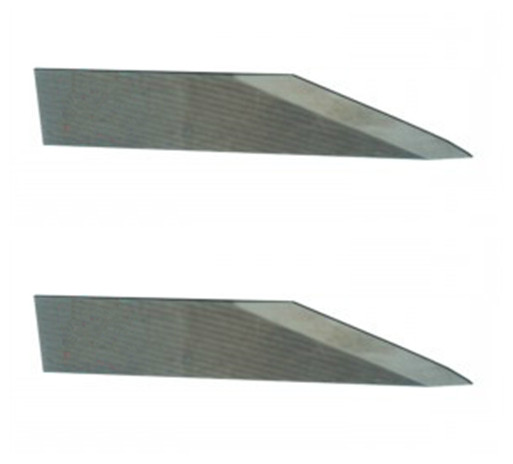

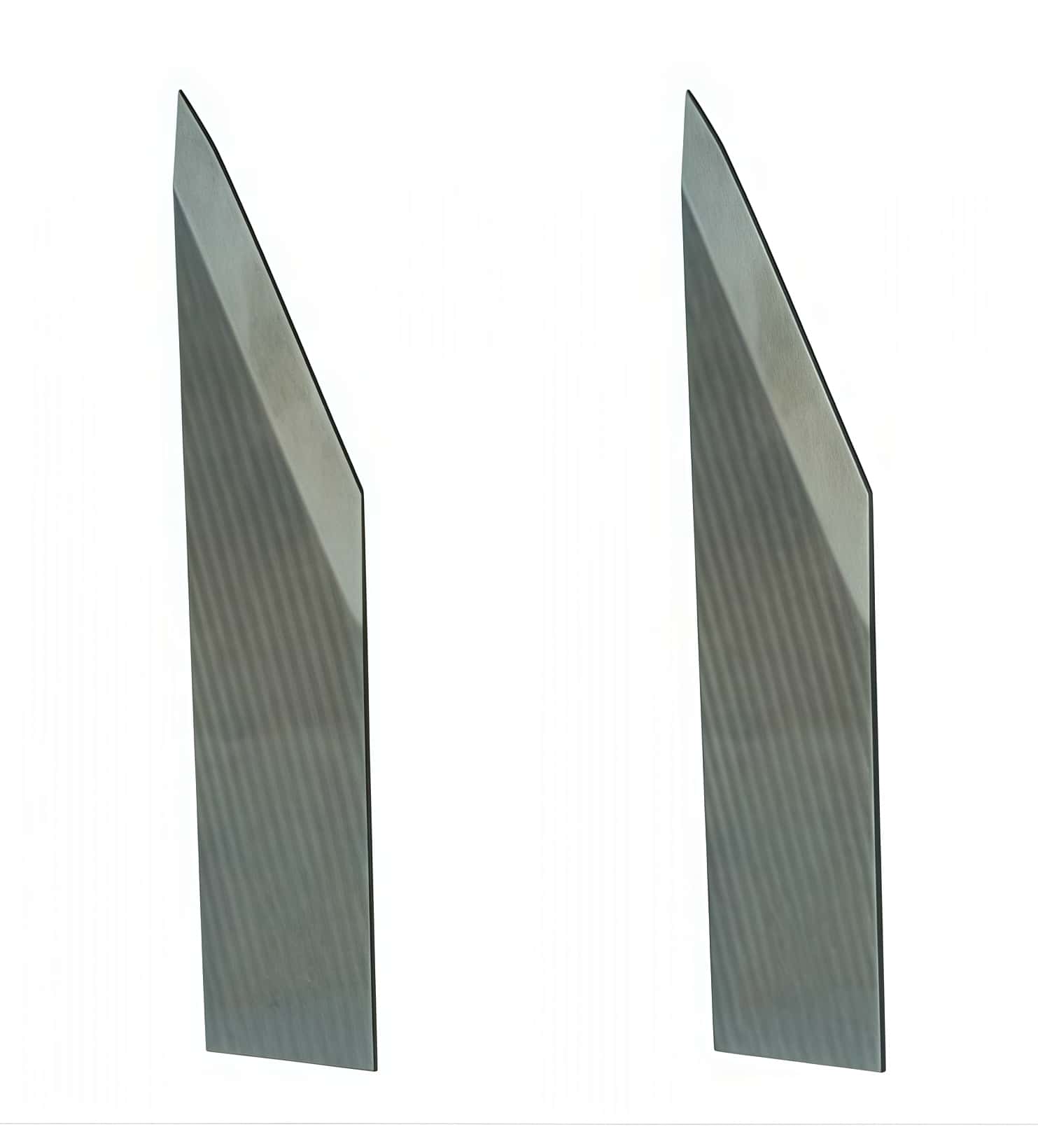

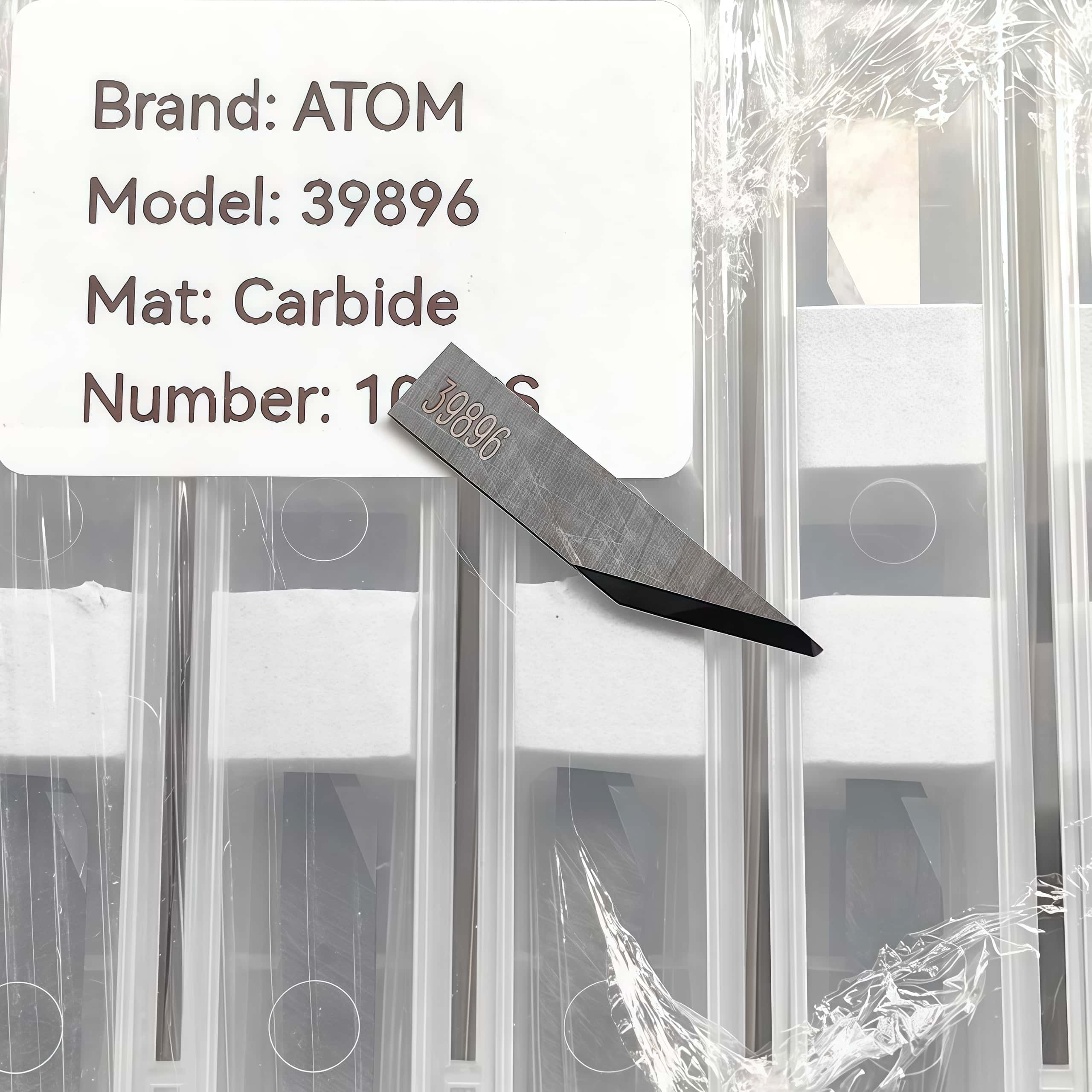

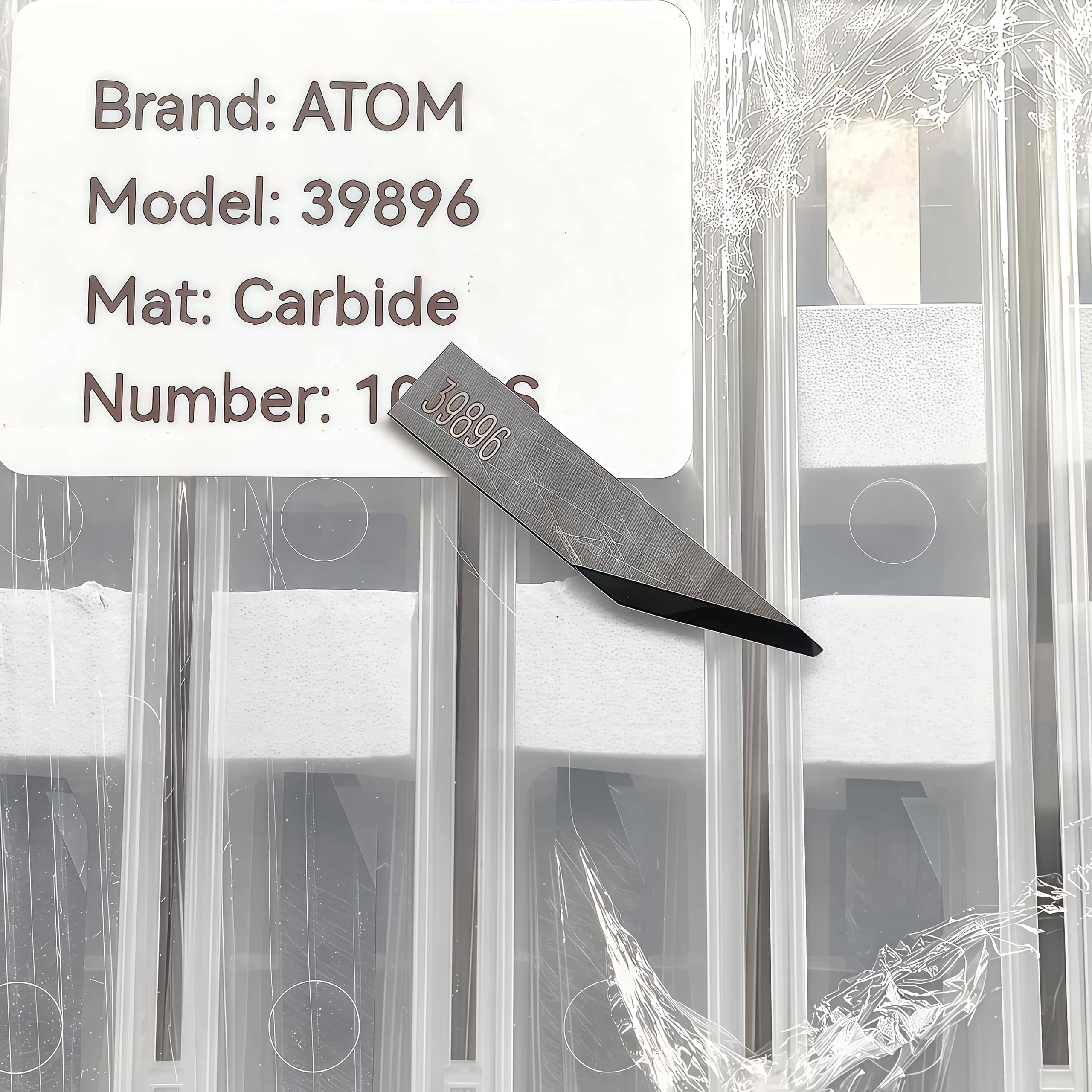

Atom 01033371 (for HV1400 series) and Atom 01039896 (for HV1600 series) is Carbide (tungsten carbide) vibrating blades designed specifically for the Atom Flashcut automated digital cutting systemThese two blades are of the same type in terms of geometry; the only difference is that the shank or mounting specifications have been adapted for different equipment head series (HV1400 and HV1600).

Core Technical Specifications

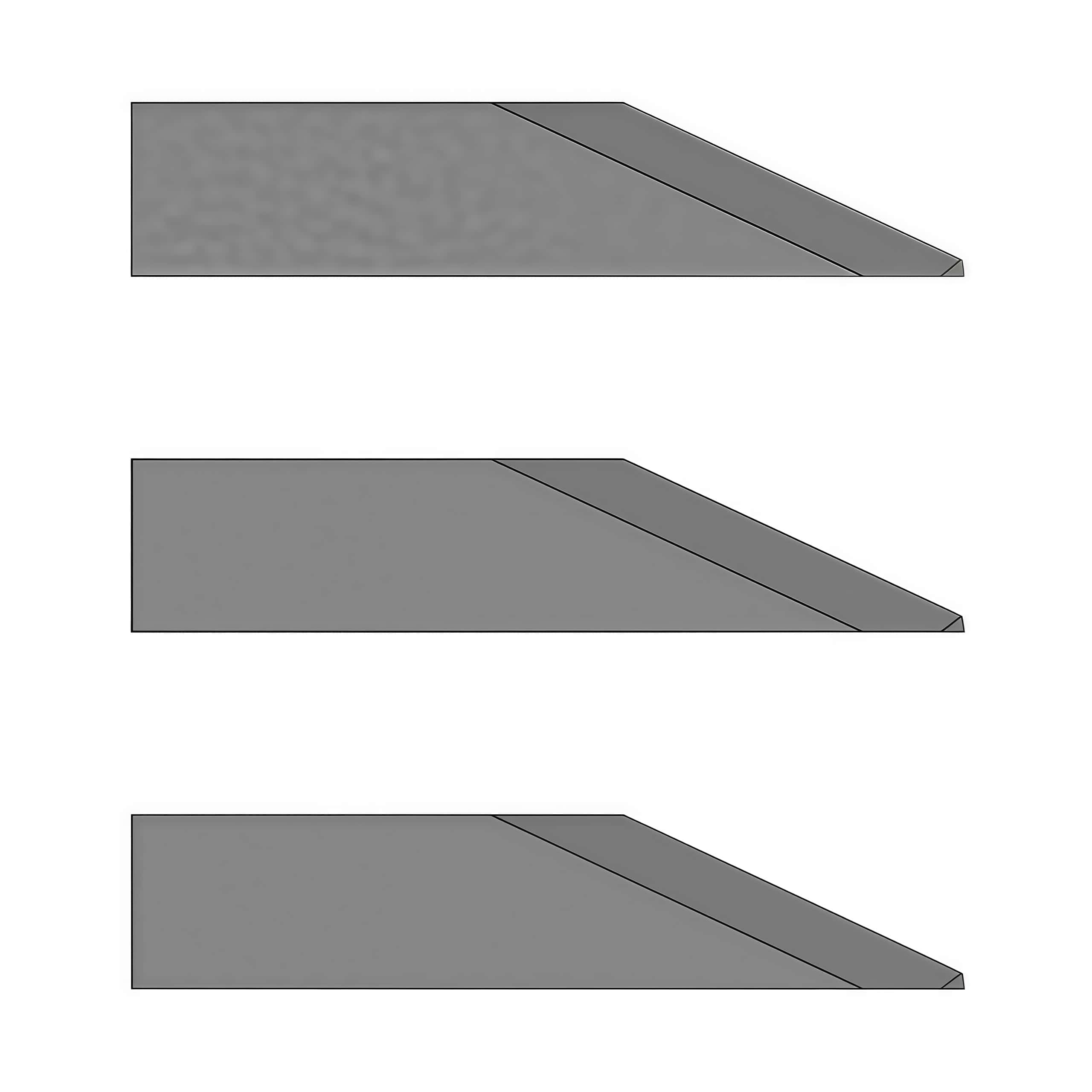

Cutting angle : 15° - 15° double-edged symmetrical design.
Blade material : premium carbide/tungsten carbide, with long-lasting wear resistance and cutting edge retention.
Blade characteristics : Flat oscillating blade, capable of withstanding the impact of high-frequency vibration.
Model compatibility :
- 01033371: Compatible with Atom Flashcut HV1400 series tool heads.
- 01039896: Compatible with Atom Flashcut HV1600 series tool heads (usually with a more robust 1.0mm clamping design for high-intensity working conditions).

Suitable for cutting materials

The two 15°-15° blades are mainly used for cutting complex shapes with high precision requirements:

Leather products : natural leather, footwear fabrics, genuine leather for automotive interiors, and synthetic leather.
Industrial textiles : woven fabrics, felt products, high-density synthetic fibers.
Packaging materials : corrugated cardboard, honeycomb cardboard, grey board.
Composite materials : multilayer carbon fiber, aramid composite materials, etc.

Available tools	Angles	Description	Code
	25-10°	Cardboard, leather. Min. Radius 2.5mm	01033371 (HV1400) 01039896 (HV1600)
