Atom 01033304 (HV1400) 01039892 (HV1600) Flashcut Knife Blades Shop

Description

Atom 01033304 (HV1400) 01039892 (HV1600) Flashcut Knife Blades Shop

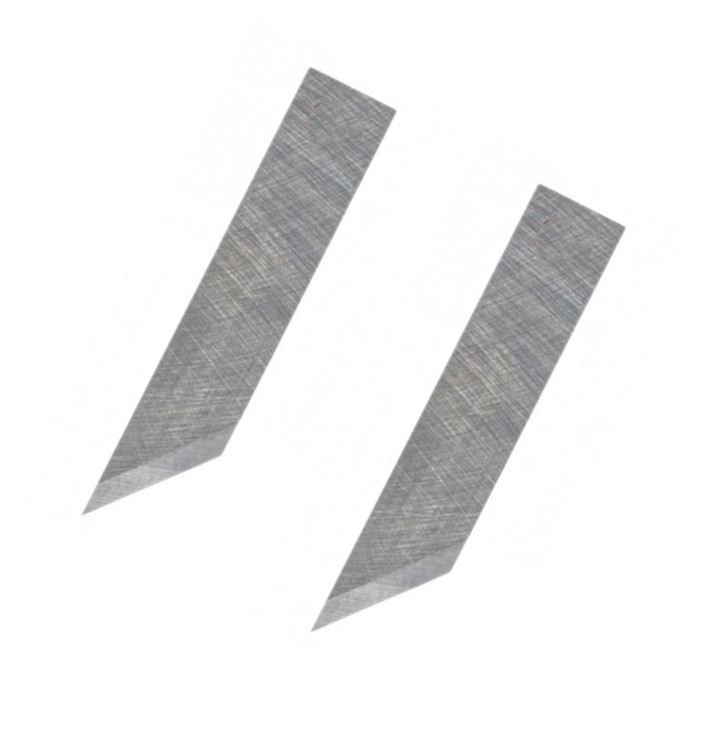

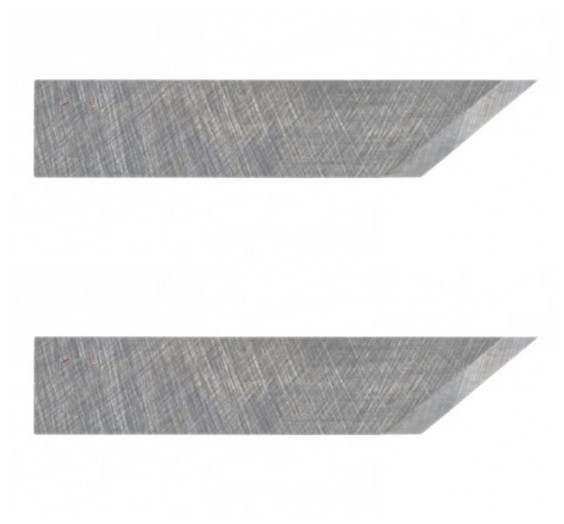

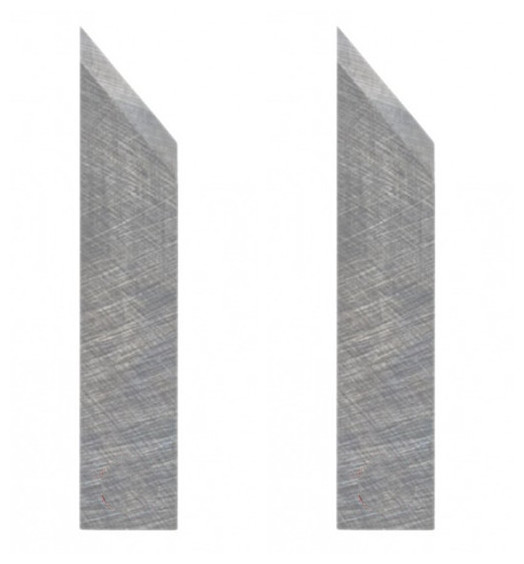

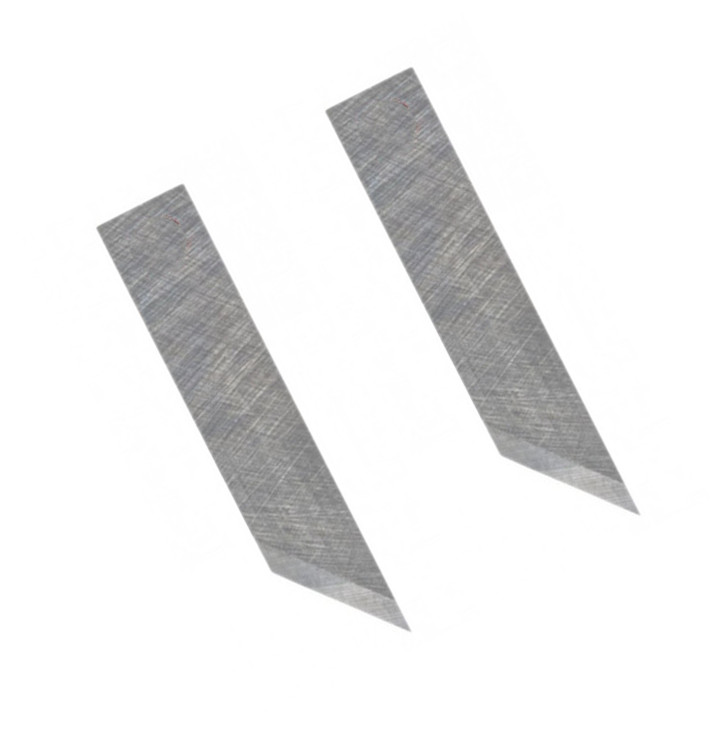

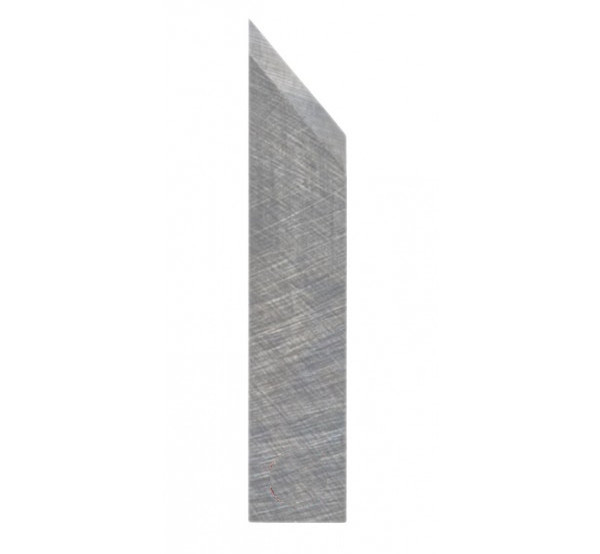

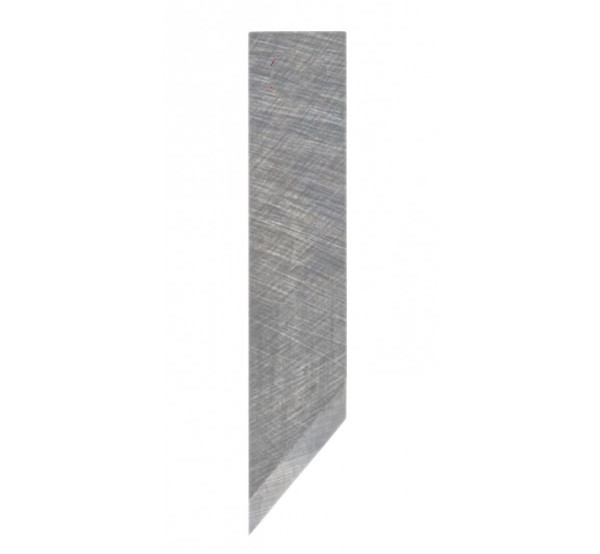

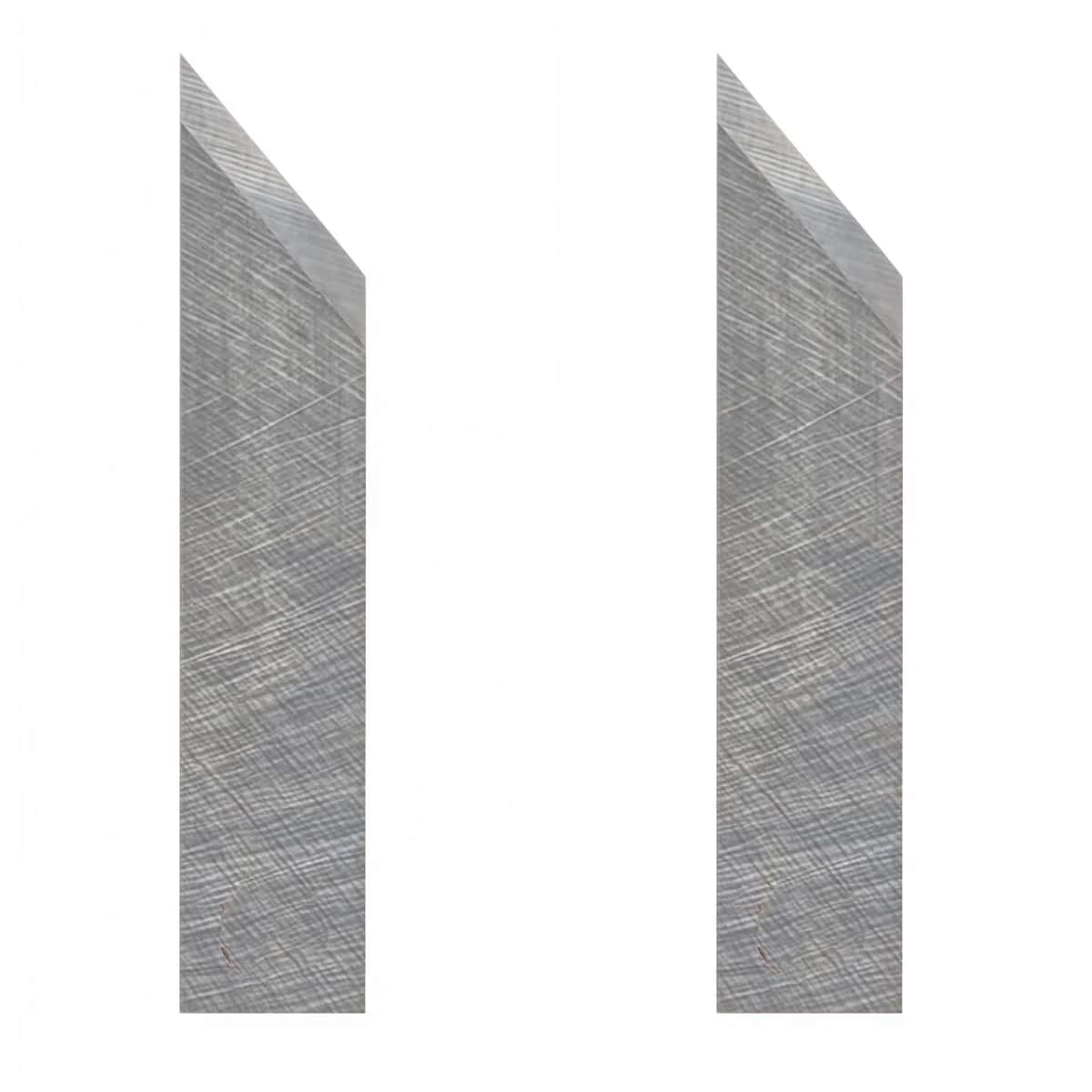

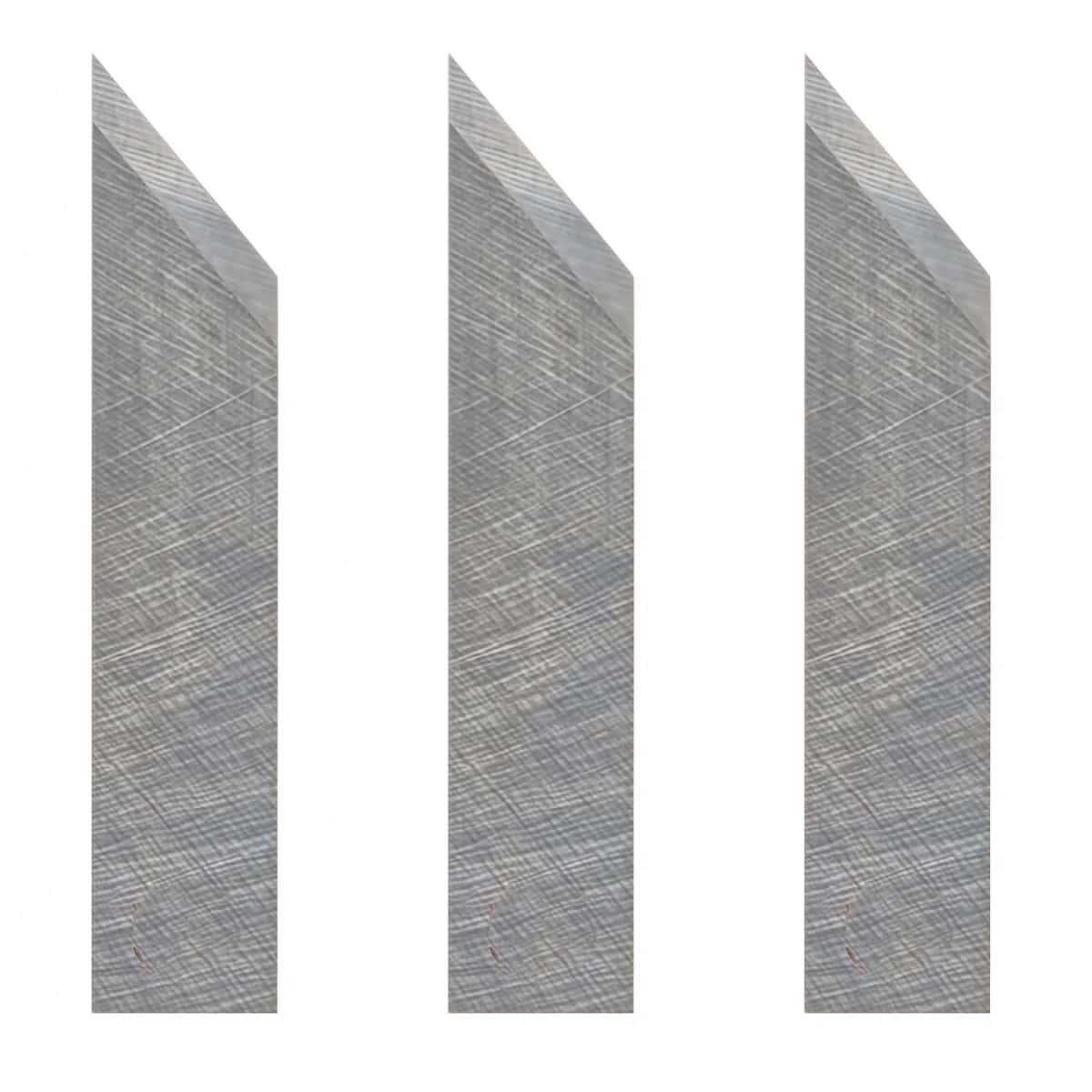

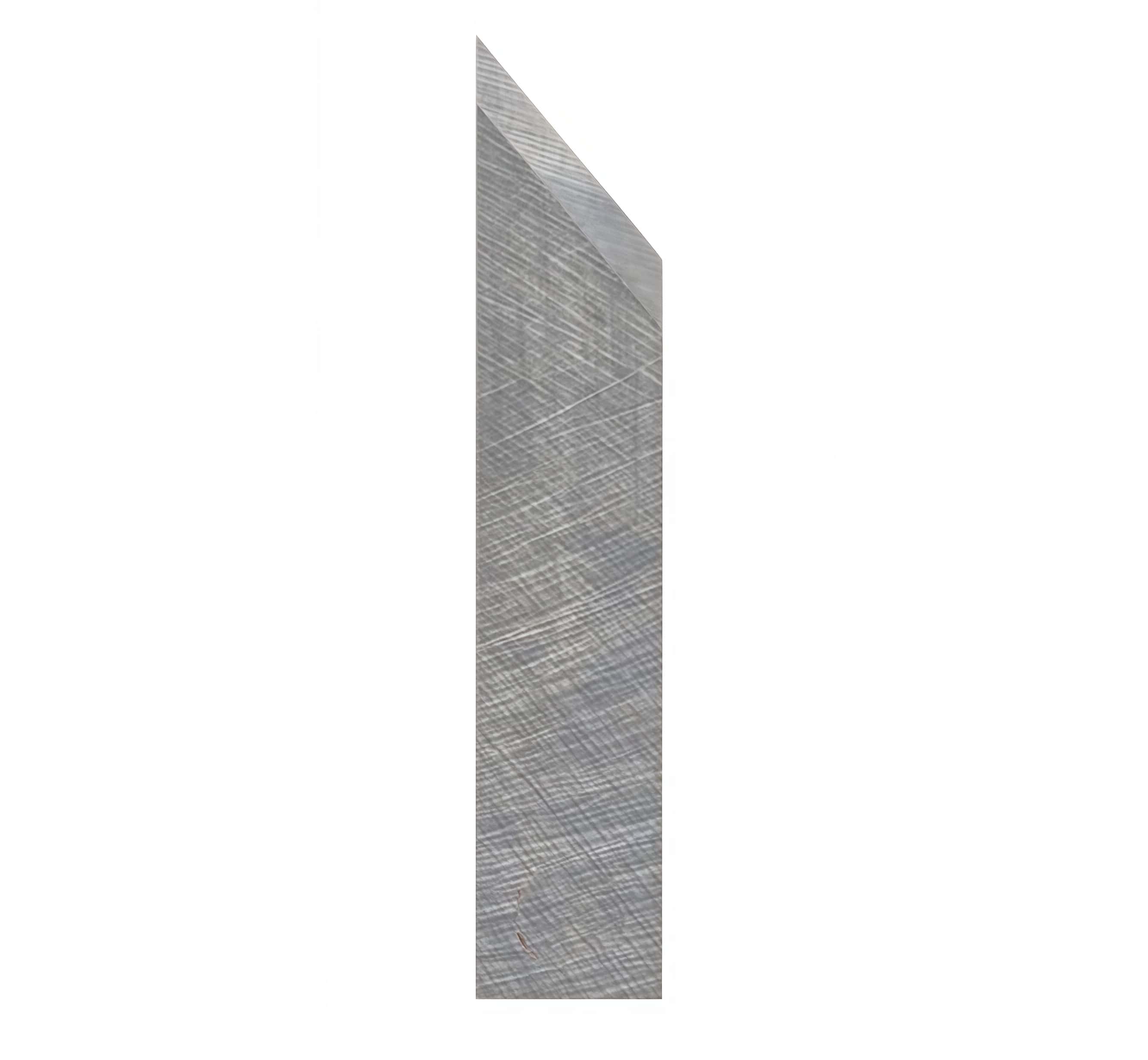

Atom 01033304(For HV1400 series) and Atom 01039892 (For HV1600 series) are High-efficiency carbide (tungsten carbide) flat shank vibrating blades designed specifically for the Atom Flashcut automated digital cutting systemThey belong to the same type of functional blade, developed for high-speed, precision cutting of textiles and thin, soft materials.

Core Technical Specifications

According to the technical parameters of industrial cutting tools:

Cutting angle : 50° (or a 40° blade angle variant in the process application).
Maximum cutting depth : 6.00 mm .
Blade thickness (shank) : 0.63 mm .
Blade dimensions : Total height 28.00 mm, total width 5.50 mm.
Compatible tool heads : Electric vibratory tool (EOT) and pneumatic vibratory tool (POT).
Model and code correspondence :
- 01033304: Compatible with Atom Flashcut HV1400 series tool heads.
- 01039892:Compatible with Atom Flashcut HV1600 series tool heads. This blade also features broad cross-platform compatibility, compatible with Gerber MCT systems and Sabal devices.

Suitable for cutting materials

Both blades feature a single-wire sharp edge design , making them ideal for handling soft or fuzzy materials while preventing fraying.

Apparel and industrial textiles : various woven and knitted fabrics, polyester fibers, canvas and non-woven fabrics.
Lightweight and soft leather : leather for car seats and furniture, genuine leather for shoe uppers, and artificial leather.
Advertising and packaging consumables : thin plastic films, self-adhesive vinyls, and self-adhesive materials.
Lightweight cushioning material : thin sponge and lightweight foam.

Process Applications and Performance Advantages

The combination of a large 50° angle and a shallow cutting depth of 6mm gives this blade excellent anti-deflection rigidity when processing fabrics or leather . Even during high-speed, frequent turning or cutting complex nesting patterns, the blade is not prone to bending, ensuring that the upper and lower cut pieces of each layer of material are completely equal in size

Available tools	Angles	Description	Code
	40°	Universal blade for soft materials. Execution of sharp edges	01033304 (HV1400) 01039892 (HV1600)
