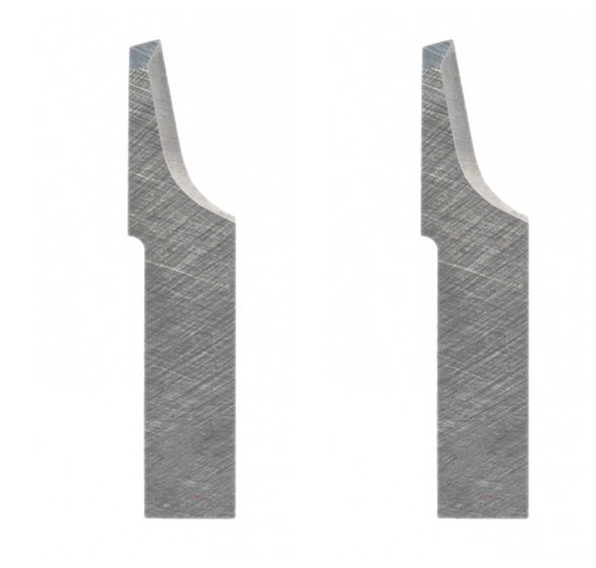

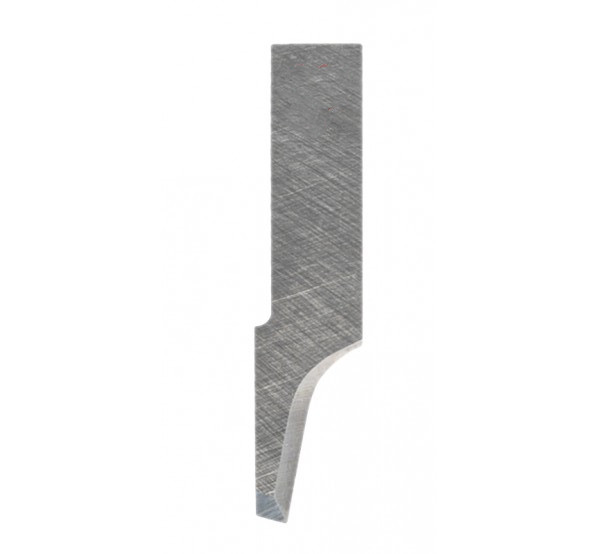

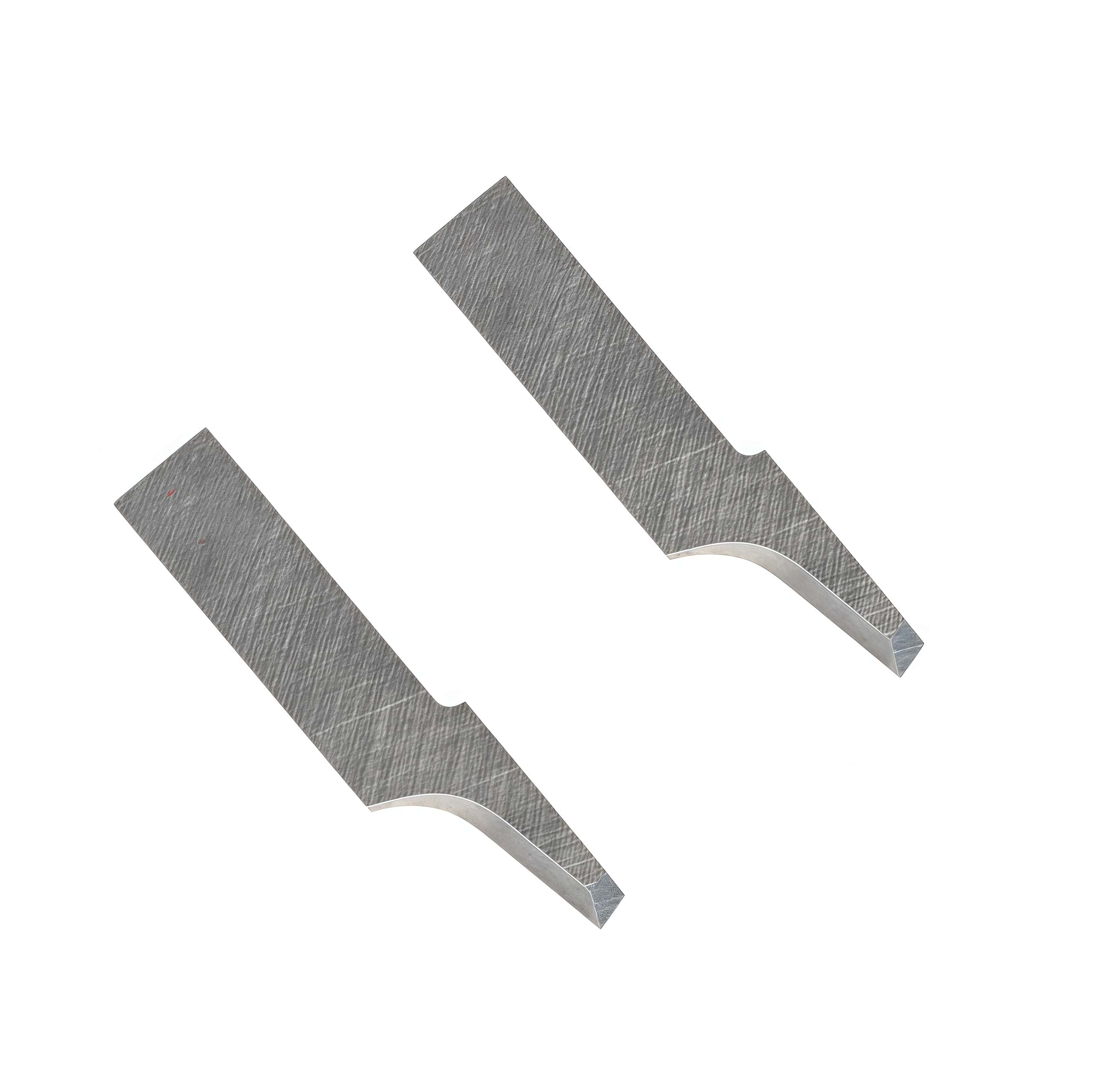

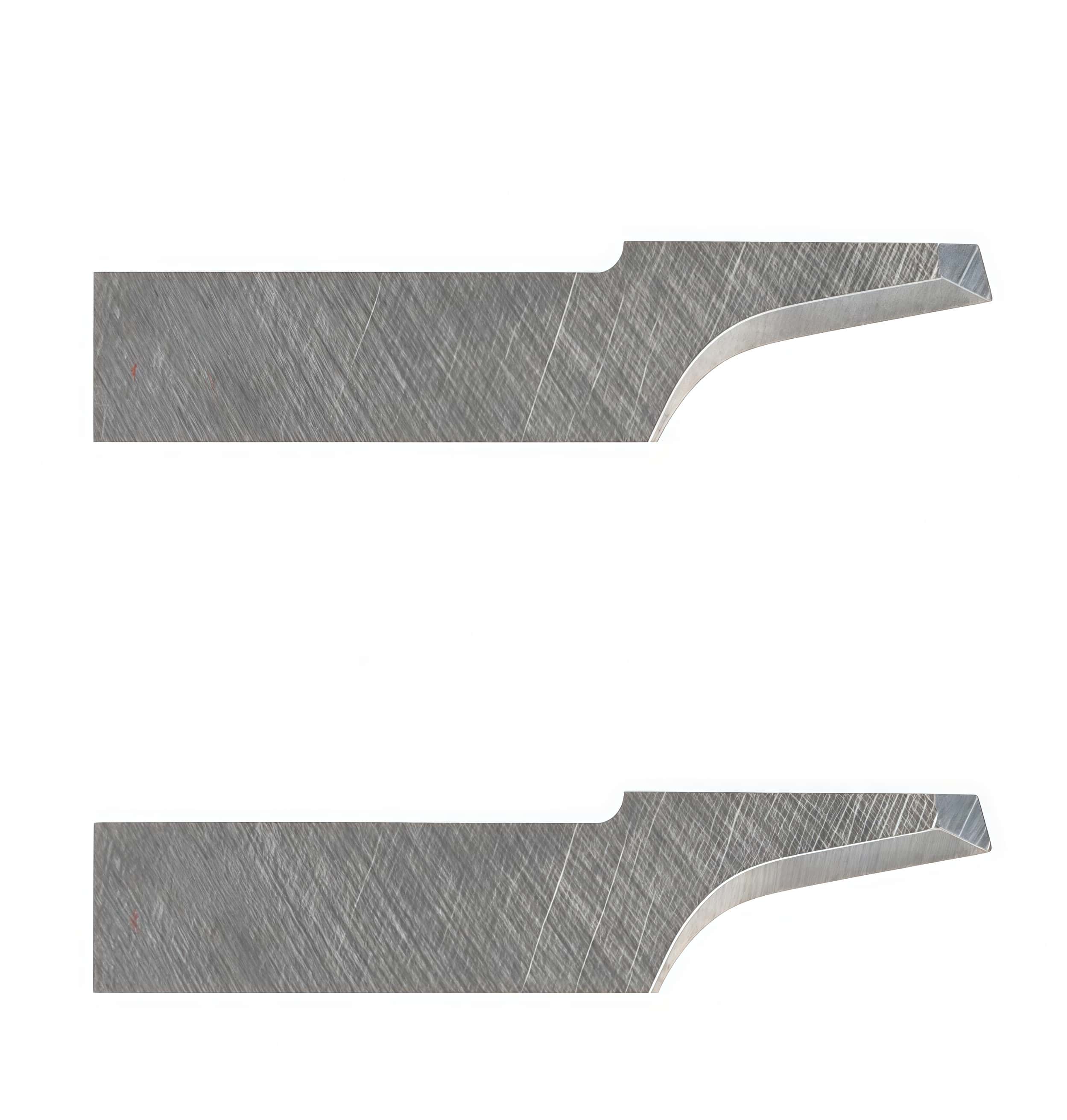

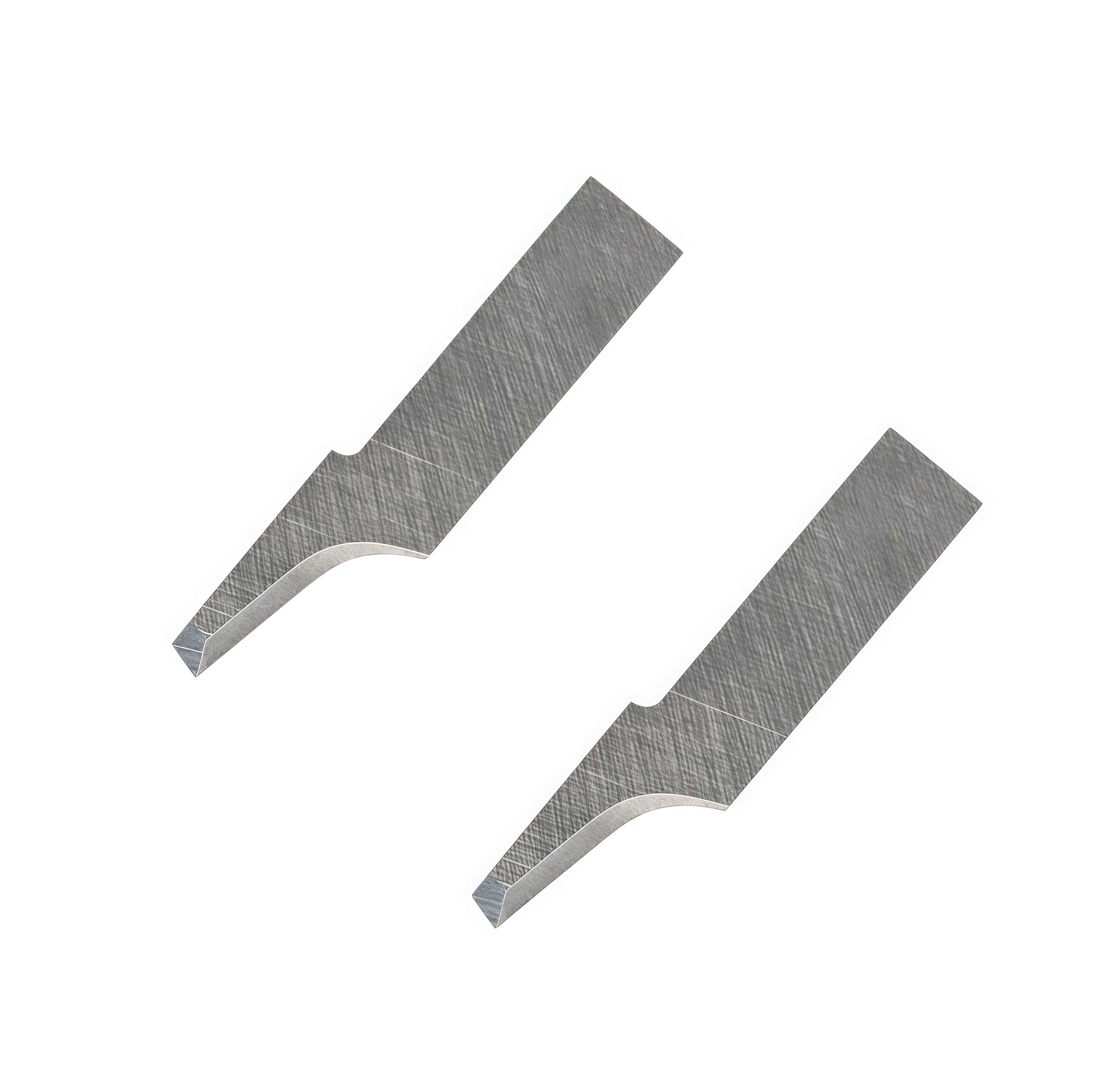

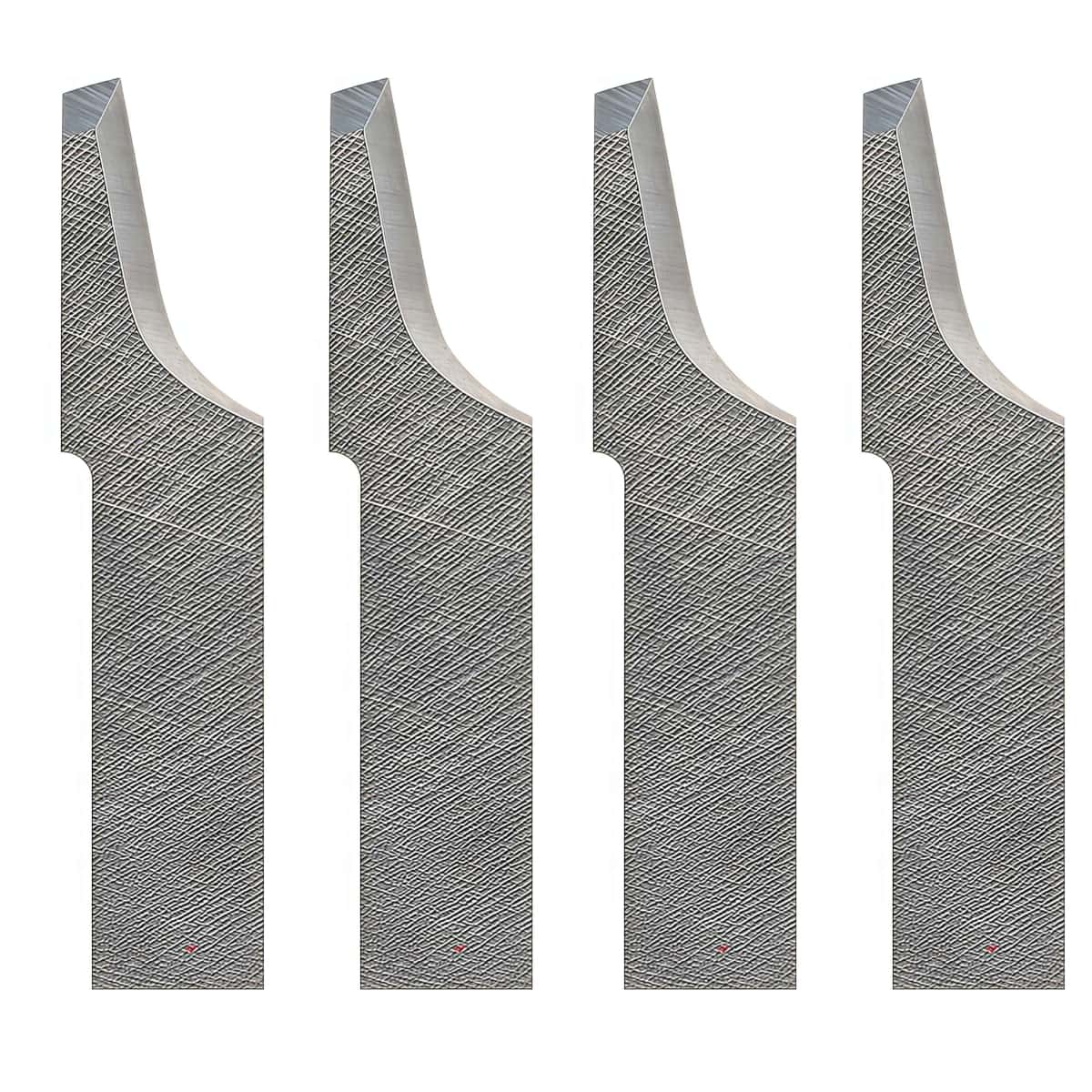

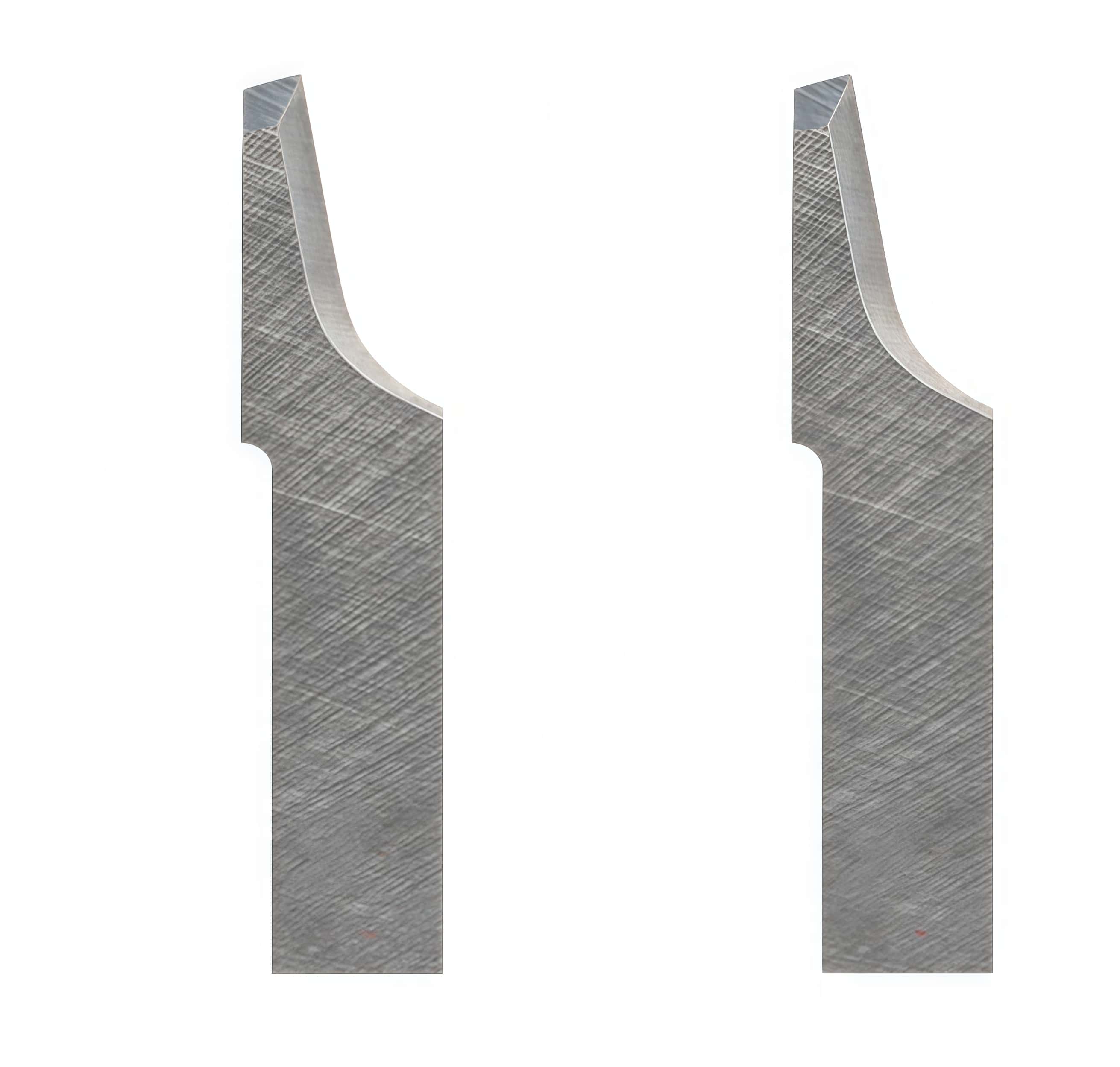

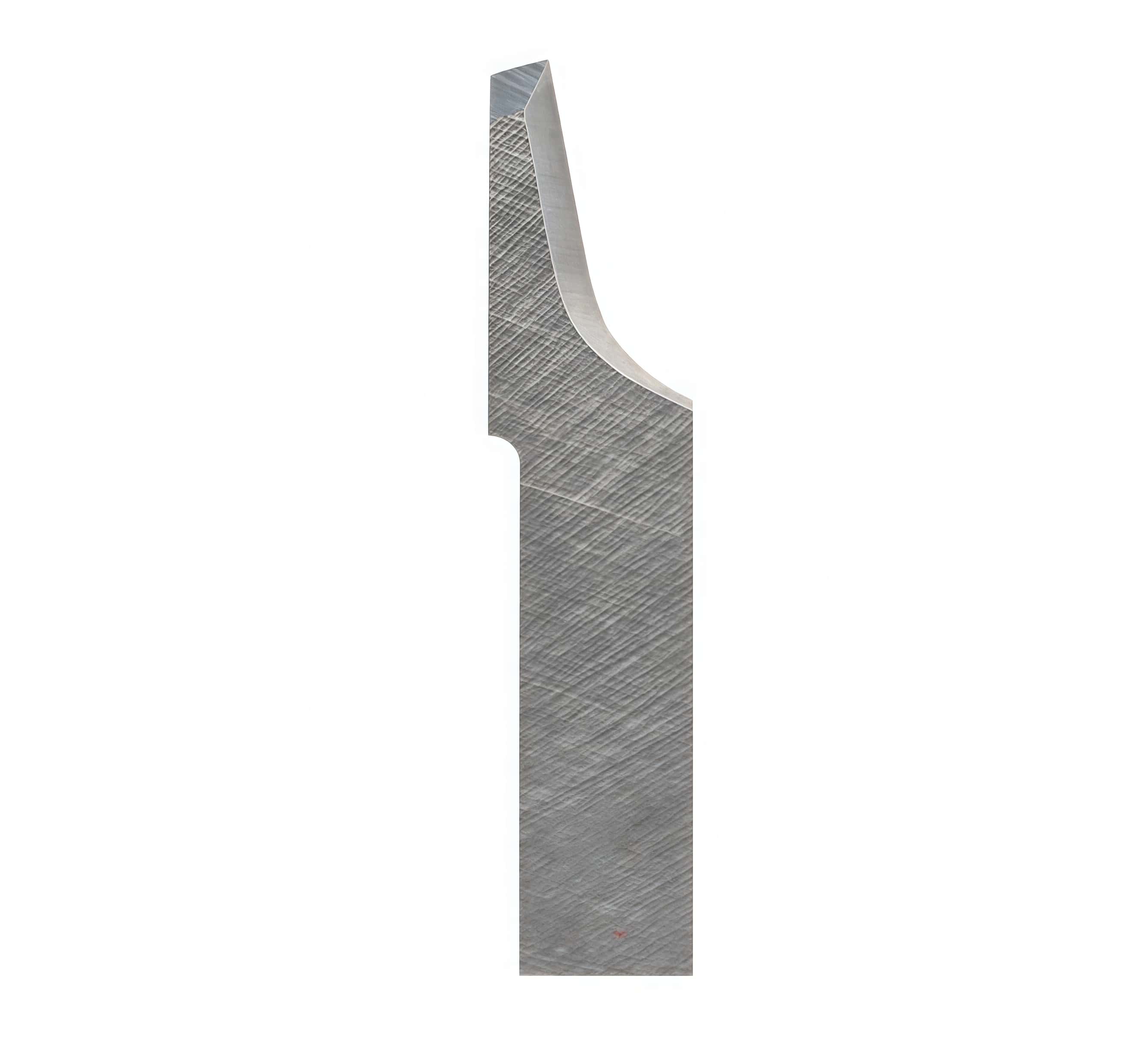

Atom 01039999 Flashcut 11°-15° Hv1600 Tungsten Carbide Knife Blades For Atom Cutter

Atom 01039999 is A high-performance carbide (tungsten carbide) flat-shank vibrating blade specifically designed for the Atom Flashcut HV1600 automatic digital cutting machine's cutting head system Enquire now

Description

Atom 01039999 Flashcut 11°-15° Hv1600 Knife Blade For Atom Flashcut Cutter

Atom 01039999,Atom 39999,Atom Knife,Atom Blade,Atom 01039999 Blade,Atom 39999 Blade,Atom 01039999 Knife,Atom 39999 Knife

Atom 01039999 is high-performance carbide (tungsten carbide) flat-shank vibrating blade specifically designed for the Atom Flashcut HV1600 automatic digital cutting machine's cutting head system.This model features an asymmetrical double-edged cutting edge design (11°-15°), primarily designed for high-speed, precision cutting of high-density, medium-thick materials in the footwear, bag, and industrial packaging industries.

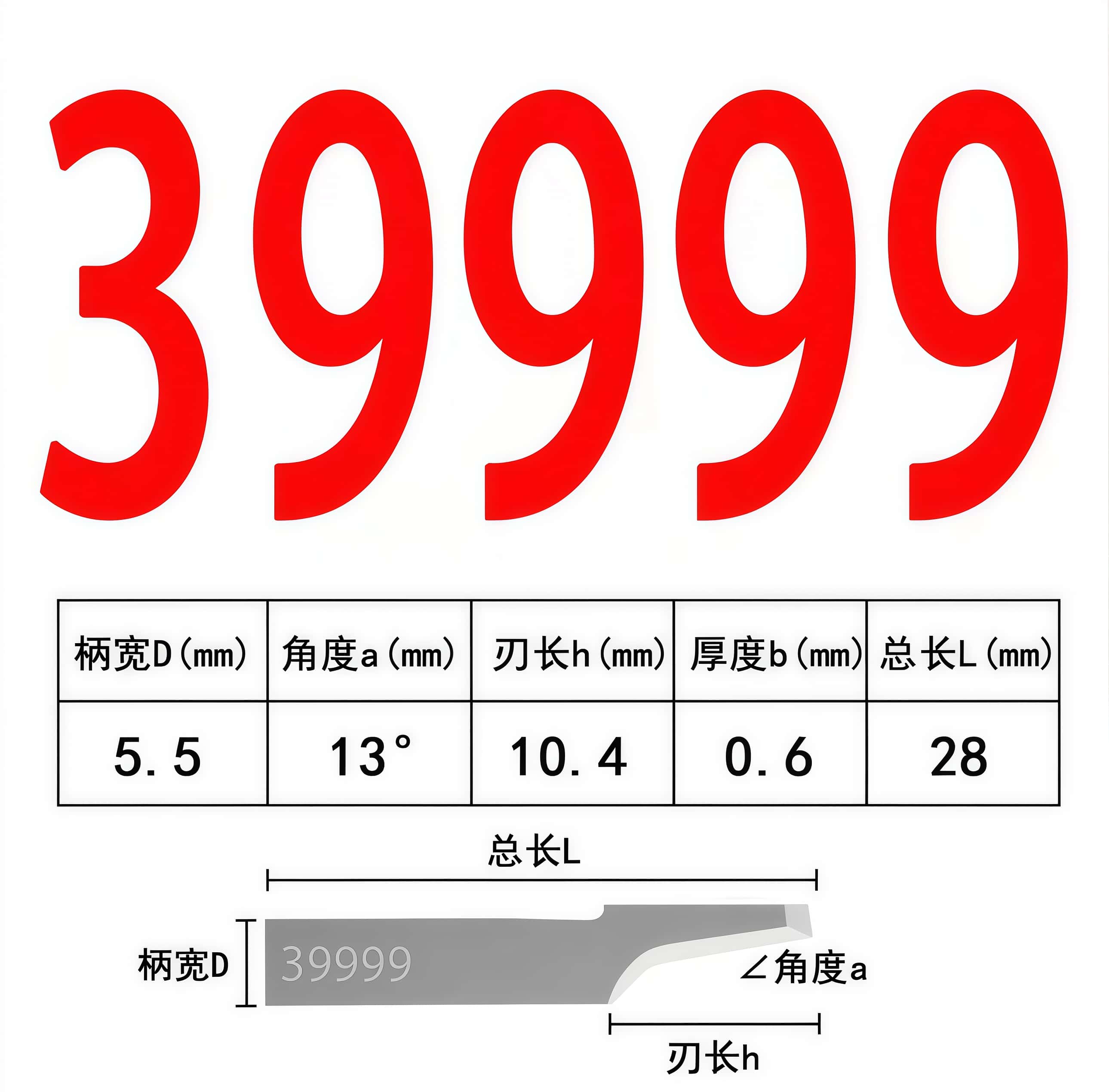

Core Technical Specifications

Cutting angle : 11° - 15° (with back angle/back friction reduction design, the angle is usually finely adjusted between 13° and 14°).
Blade thickness (shank) : 0.63 mm .
Maximum cutting depth : The maximum recommended cutting depth is 12.00 mm (when processing ultra-hard multilayer boards, it is recommended to control it within 8 mm).

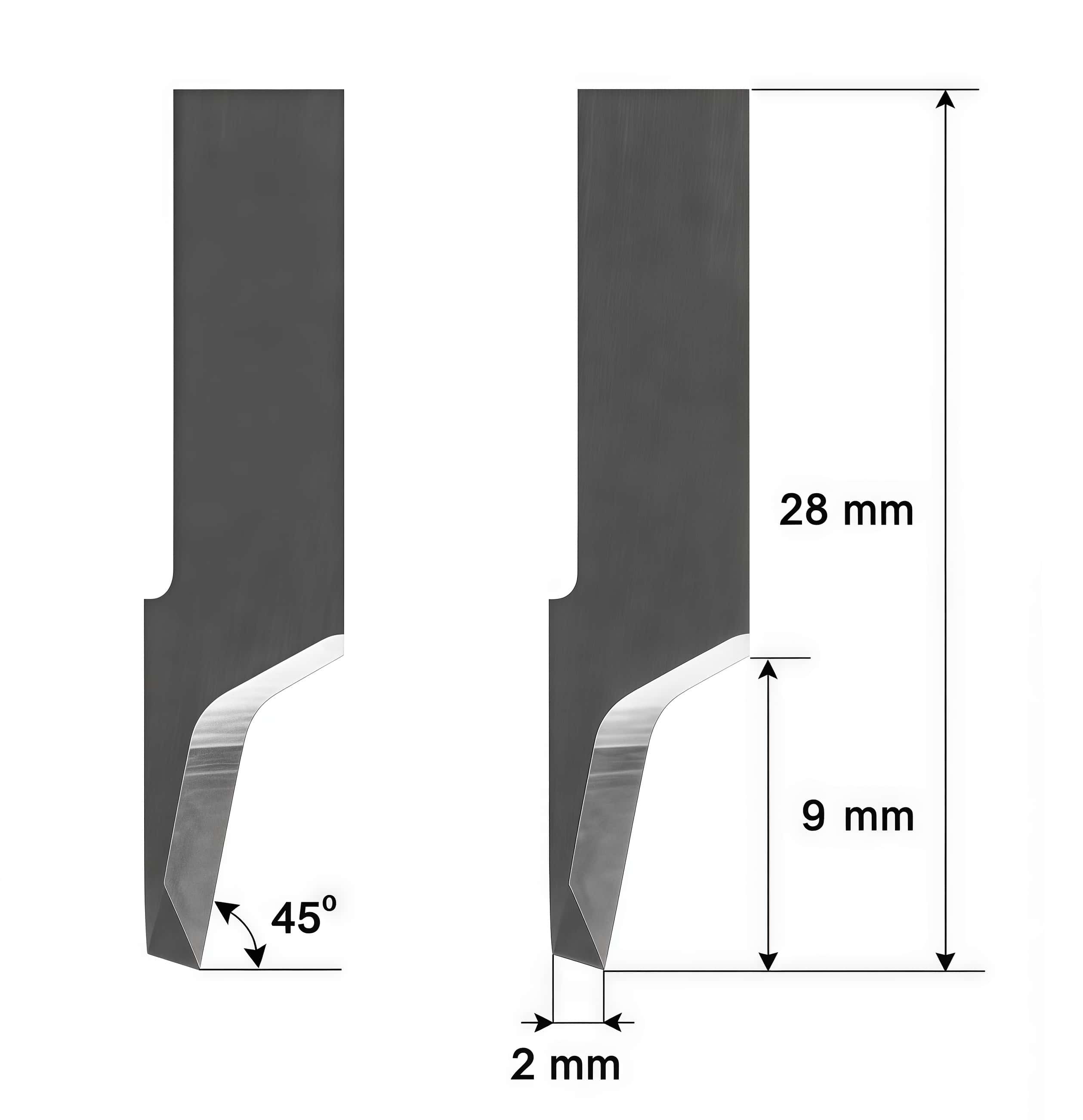

Blade dimensions : total height 28.00 mm, total width 5.50 mm.
Model compatibility : Specifically designed for Atom Flashcut HV1600 series tool heads (also compatible with automated cutting equipment such as MLA).

Advantages in applicable cutting materials and processes

This blade is specifically designed for use with hard sheets at high working speeds.

Footwear and bags : Texon fiberboard (can be cut very quickly when the thickness is no more than 3mm), medium-thickness natural leather/insole (thickness ≤ 6mm).
Industrial packaging : high-density hardboard, honeycomb paperboard, grey paperboard.
Specialty soft materials : high-density foam board, industrial dense rubber and some high-rigidity synthetic materials.

Due to its unique asymmetrical profile of 11°-15°, it can significantly reduce cornering resistance when the blade turns at high speed, and can effectively prevent blade tip breakage or material cut slope caused by overheating in shoe material nesting
