Atom 0103B858 Flashcut 0°-25° HV1600 Oscillating Knife Blades For Atom Cutting Systems

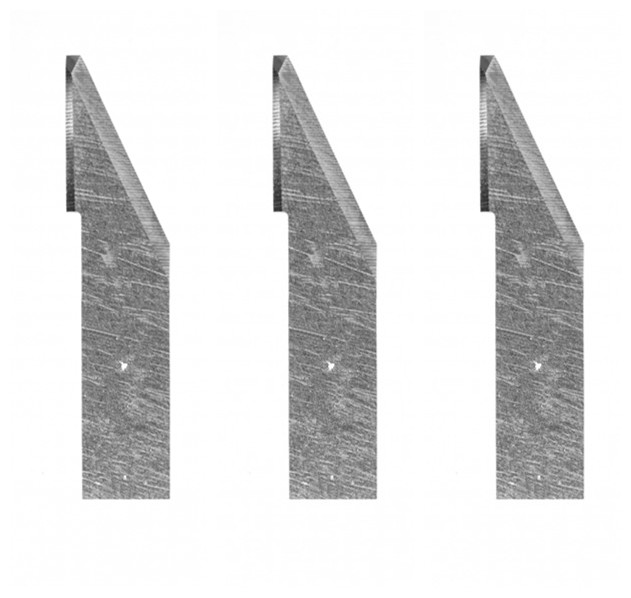

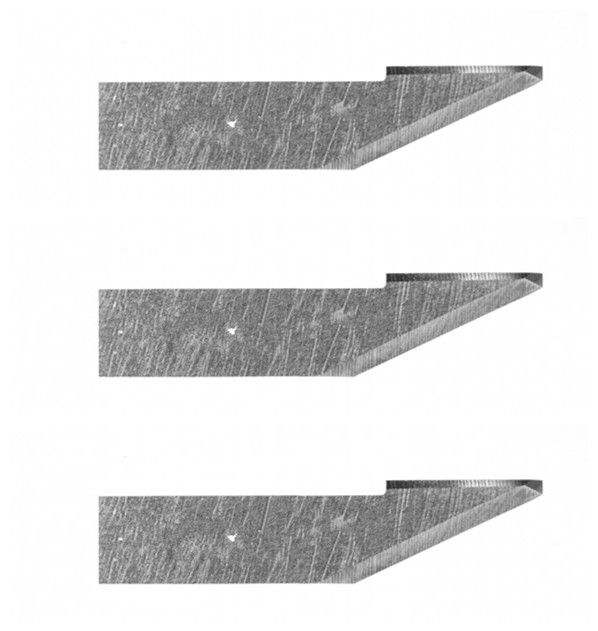

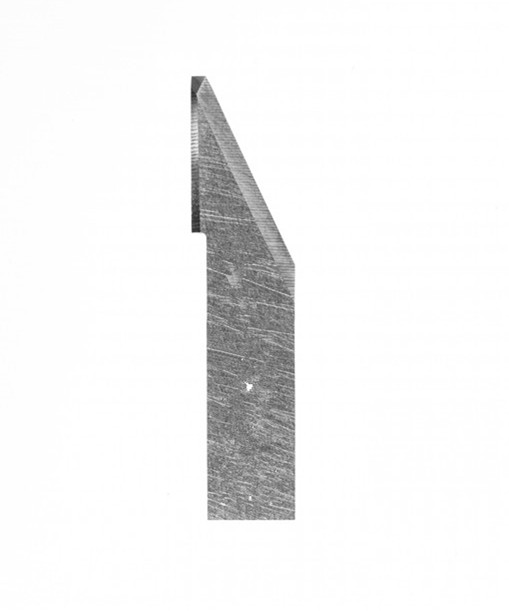

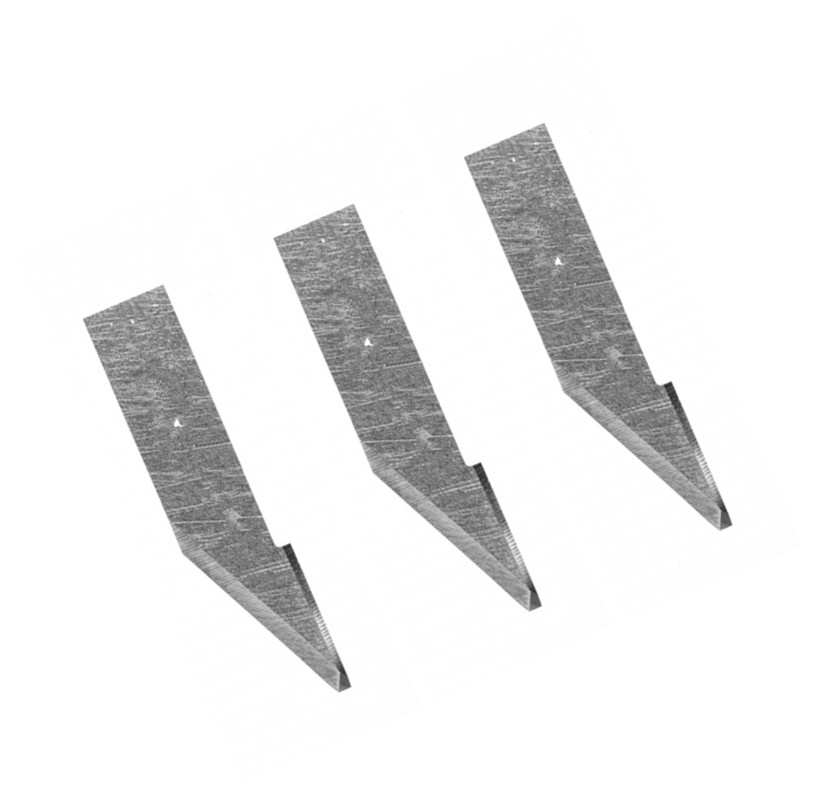

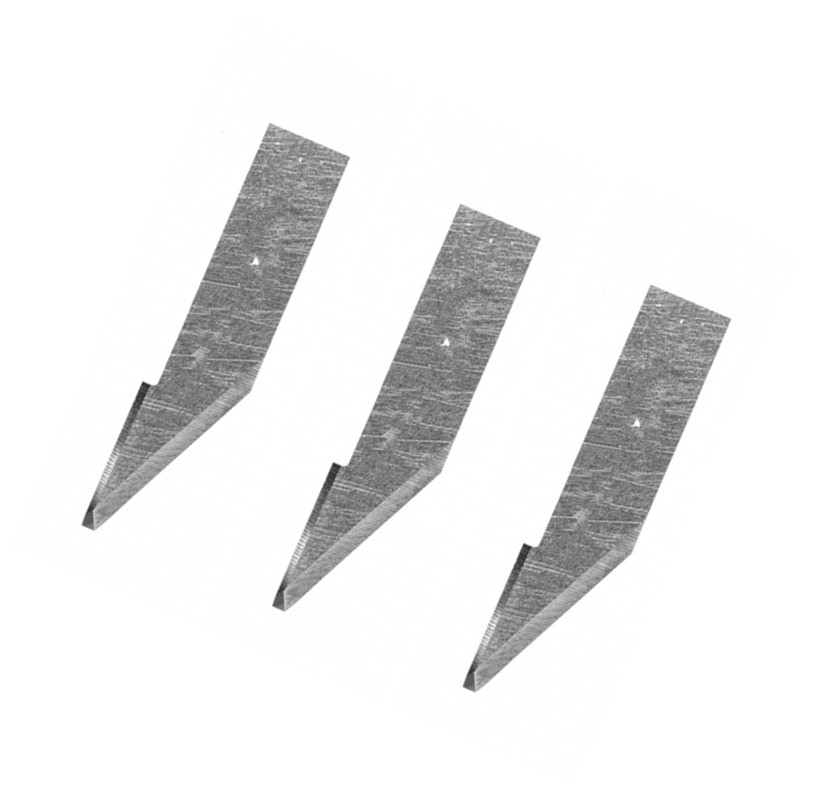

Atom 0103B858 is A high-grade carbide (tungsten carbide) vibrating blade specifically designed for the Atom Flashcut digital cutting system. Enquire now

Description

Atom 0103B858 Flashcut 0°-25° HV1600 Oscillating Knife Blade For Atom Cutting Systems

Atom 0103B858 is high-grade carbide (tungsten carbide) vibrating blade specifically designed for the Atom Flashcut digital cutting system.It features a 0°-25° asymmetrical cutting edge design (often described as a 25°-0° single-sided bevel in some manufacturing standards), and is a signature upgrade consumable of the HV1600 series heavy-duty tool heads. It is widely used in high-speed digital cutting of industrial leather, high-density cardboard, and high-end footwear.

Core Technical Specifications

According to Atom's industrial digital tooling process standards, its main parameters are as follows:

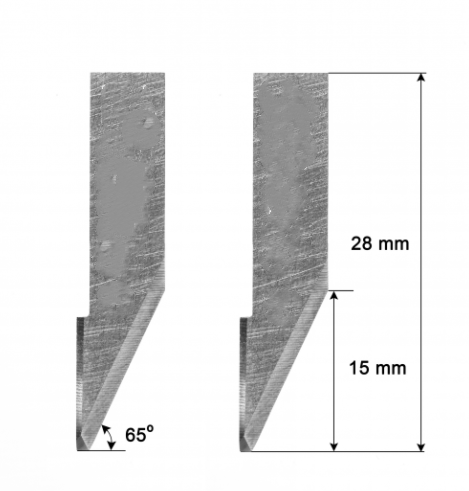

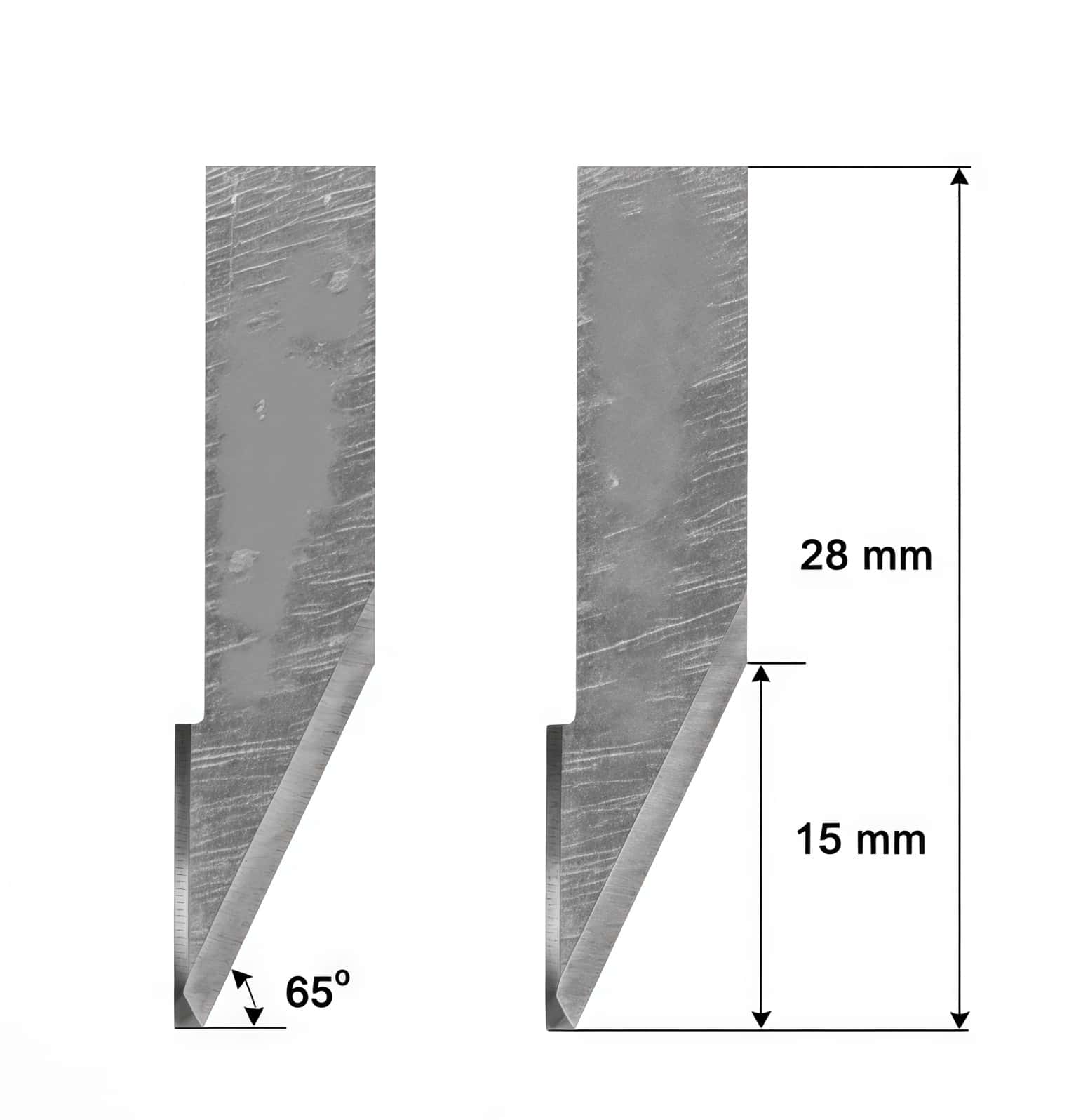

Cutting angle : 0° - 25° asymmetrical bevel (single-sided cutting edge/with back angle friction reduction design). The 0° vertical surface can serve as a perfect material feeder, while the 25° bevel provides strong shearing force.
Blade thickness (shank) : 1.00 mm . This model features a standard, thick, high-strength blade designed specifically for use with the HV1600 heavy-duty cutter head series .
Blade mounting shank : Flat shank structure, with a thickness of 1.0mm, it has extremely high bending rigidity.
Working characteristics : Developed to provide excellent turning and avoidance at high cutting speeds, especially suitable for machining complex nested patterns with small radius arcs or fine gaps.

Suitable for cutting materials

Due to the high rigidity provided by its 1.0mm thickness, this type of blade is often used to tackle thick or medium-to-high hardness non-metallic sheets.

Footwear and bags : various midsoles, heavy hard leather, Texon fiberboard.
Premium leather interior : large pieces of genuine leather for car seats, thick leather for furniture sofas, and heavy-duty synthetic leather.
Industrial gaskets and special materials : high-density solid rubber, special foam, and some non-metallic composite boards (such as flexible graphite boards or self-adhesive composite layers).

Installation and maintenance techniques unique to the HV1600 series

Chuck chip alignment : The HV1600 series uses a 1.0mm high-strength flat mounting chuck. Because processing leather and Texon boards generates a large amount of tiny fiber debris, the chuck must be thoroughly cleaned with compressed air before each blade change . If any debris is caught on one side of the 1.0mm shank, high-frequency vibration can cause a microscopic shift in the blade's perpendicularity, resulting not only in beveled edges on the cut pieces but also a high risk of sudden chipping of the delicate blade tip.
Cleaning Adhesive Surfaces : When cutting rubber, EVA, or sticky composite prepregs with adhesive backing, the 25° beveled edge is extremely prone to sticking to adhesive substances. If you feel burrs appearing on the cut edge or increased resistance when the machine is pulling, do not discard the blade directly . Instead, use a special solvent to clean and wipe the carbide surface, which can usually restore its original sharpness instantly
