Atom R/9999-0911 Flashcut Oscillating Knife Blades For Atom Flashcut Cutter

CHINA Atom R/9999-0911(R-9999-0911) isA high-precision flat-shank carbide (tungsten carbide) vibrating blade specifically developed for the Atom Flashcut automatic digital cutting machine series. Enquire now

Description

Atom R/9999-0911 Flashcut Oscillating Knife Blades For Atom Flashcut Cutter

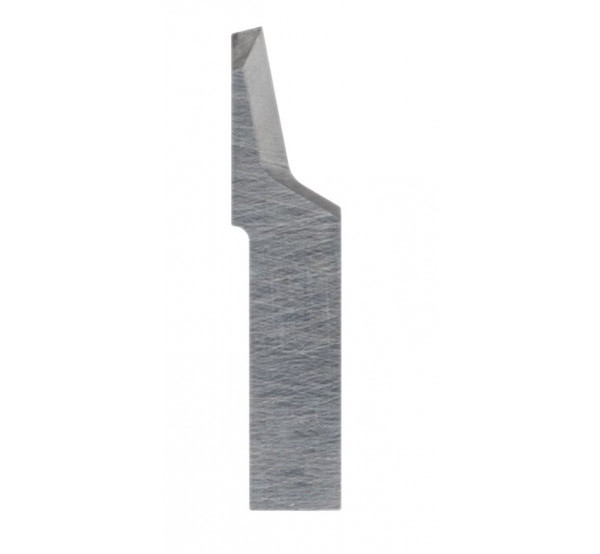

Atom R/9999-0911(Also written as Atom R-9999-0911 ) is A high-precision flat-shank carbide (tungsten carbide) vibrating blade specifically developed for the Atom Flashcut automatic digital cutting machine series.This model features a fine single-sided or small-angle cutting edge, primarily used for high-density layout and ultra-fine turning cutting of non-metallic flexible materials.

Core Technical Specifications

According to the technical specifications white paper for industrial digital cutting tools, the core physical parameters of this blade are as follows:

Blade material : premium cemented carbide/tungsten carbide, with long-lasting wear resistance, high temperature resistance, and deformation resistance.
Cutting edge angle : 13° sharp cutting edge angle design.
Blade thickness : 0.60 mm (process standard compatible with 0.63 mm fixture mounting system).
Blade width : 5.50 mm.
Total blade length : 28.20 mm.
Process characteristics : Extremely sharp blade, clean cut without burrs, ensuring an ultra-long service life under high frequency and high load operation.

Suitable for cutting materials

With its sharp 13° cutting angle and thin, rigid shank of 0.6mm, the R/9999-0911 performs exceptionally well in performing zero-radius interior cuts and complex nested layouts. Its primary applications include:

High-end leather : automotive interior leather, premium genuine leather shoe uppers, and luxury handbags and leather goods.
Industrial textiles : Aramid fiber and carbon fiber prepregs, multilayer high-density nonwoven fabrics, and polyester fiber fabrics.
Fine packaging materials : high-density grey cardboard, precision fiberboard, ultra-thin composite cardboard.
Sealing materials : medium-thin industrial dense rubber, foam board, and some abrasion-resistant plastic film

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
