Esko Kongsberg Bld-Sr6242 Carbide Round Shank Knife Blades For Kongsberg Cutter G42460964

Esko Kongsberg BLD-SR6242 (Part Number: G42460964) is a tungsten carbide round shank knife blade designed for oscillating cutting on Esko Kongsberg CNC digital cutting tables. Enquire now

Description

Esko Kongsberg Bld-Sr6242 Carbide Round Shank Knife Blade For Kongsberg Cutter G42460964

Kongsberg Bld-Sr6242 Blade,Kongsberg Bld-Sr6242,Kongsberg Blade,Esko Bld-Sr6242 Blade,Esko Bld-Sr6242,Esko Blade,Bld-Sr6242,Esko Kongsberg Knife Blade,Esko Kongsberg Blades,Esko Kongsberg Blade,Esko Blades,Kongsberg Blades

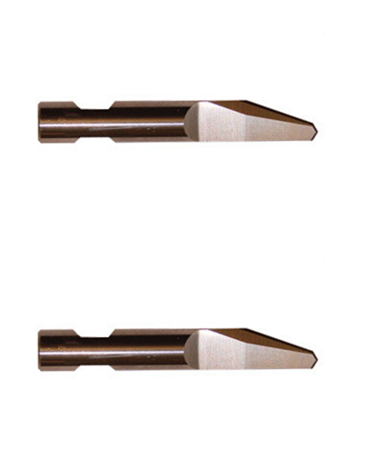

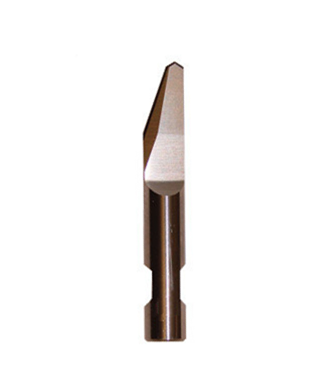

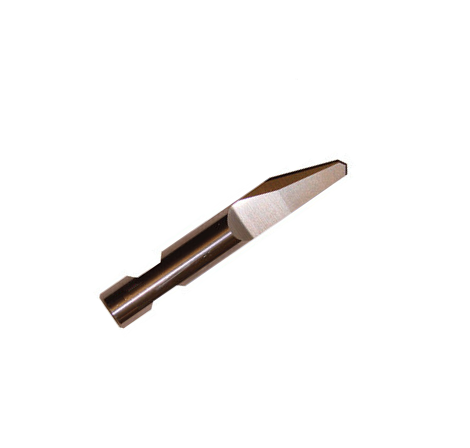

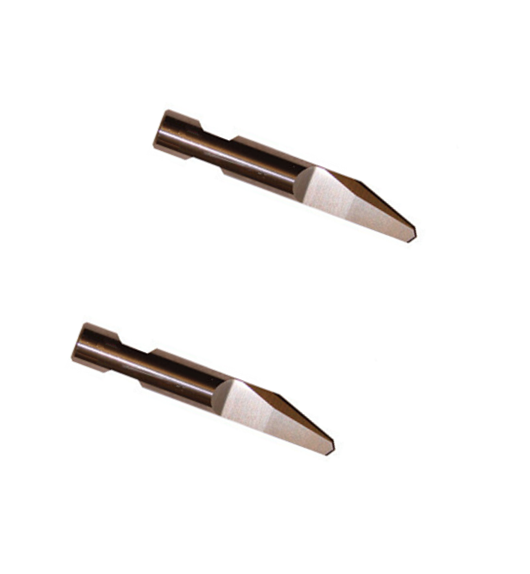

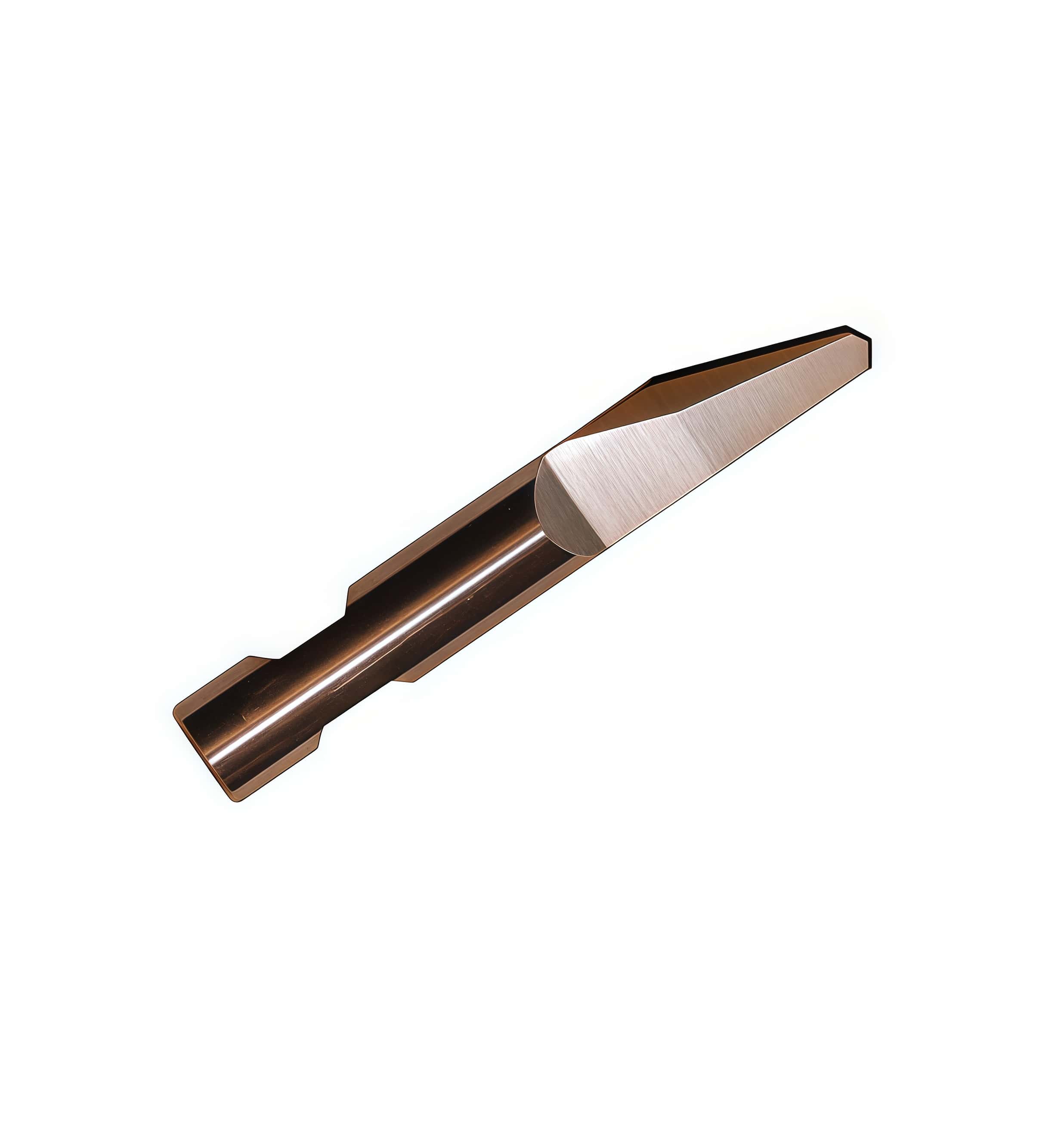

Esko Kongsberg BLD-SR6242 (Part Number: G42460964) is a solid tungsten carbide, 6 mm round-shank oscillating knife blade.

It is engineered for high-frequency knife tools on Kongsberg digital cutting tables to slice through tough, dense materials like hard industrial gaskets and mesh-armed graphite

Recommended use

Excellent blade for cutting tuff gasket materials, even mesh armed graphite. For oscillate cutting with the High frequency knife tools

Cutting Info

Material	Sub Category	Method
Gasket	Mesh armed graphite	Oscillating

Specifications

Core Technical Parameters

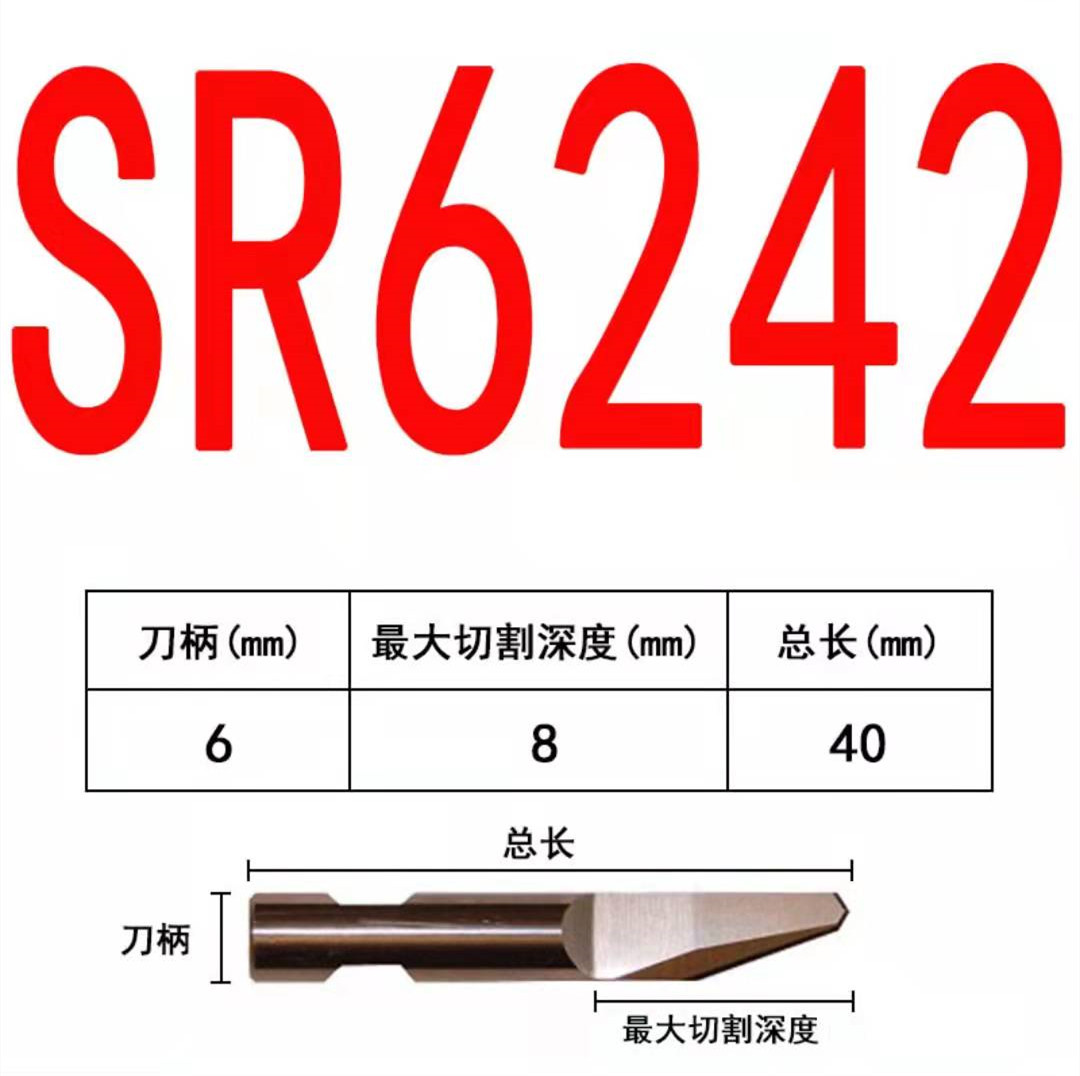

Shank Type: Designed with a 6mm diameter round shank featuring a Weldon clamping groove structure. It must be used with a dedicated SR6xxx series tool holder.
Maximum Cutting Thickness: The blade allows for an effective cutting depth of up to 8mm.
Material: Constructed from solid tungsten carbide through precision sintering and grinding processes, it boasts an exceptionally long service life and high fracture resistance, even under conditions of high-frequency vibration.
Single-Edged Blade Design: The classic single-edged vibrating knife design ensures clean and precise cuts.

Targeted Processing Materials
This blade excels in high-frequency vibration cutting for high-load, highly abrasive substrates, such as:
- Rigid gasket materials, including rigid asbestos and non-asbestos gaskets used for sealing in automotive or industrial piping.
- Mesh-reinforced graphite, a sealing material enhanced with metal mesh.
- High-density rigid rubber sheets and thick, dense fiberboard.
