Esko Kongsberg Bld-Sr8140 Cylindrical Knife Blades Compatible With Kongberg Cutting System G42455899

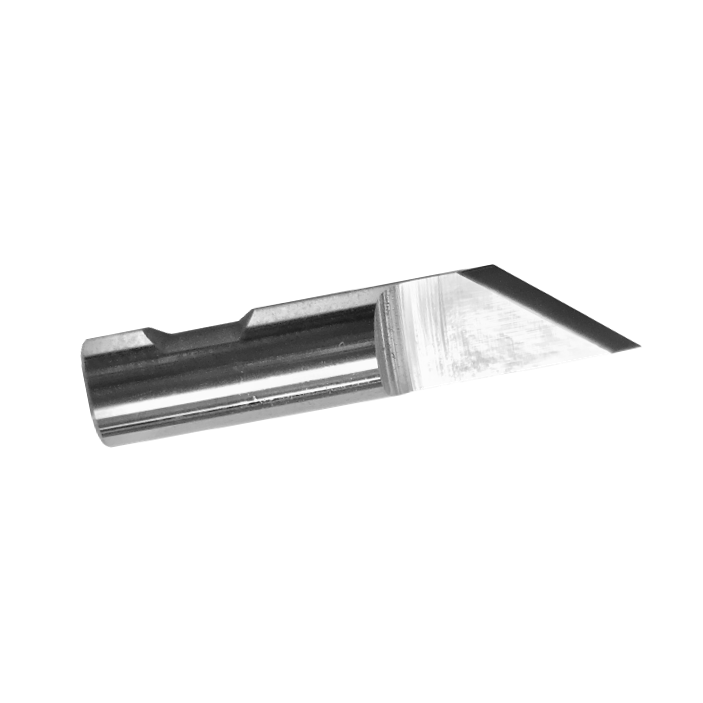

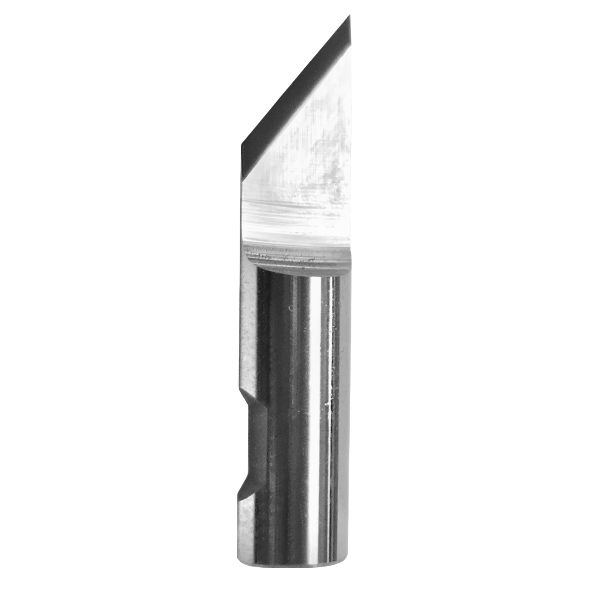

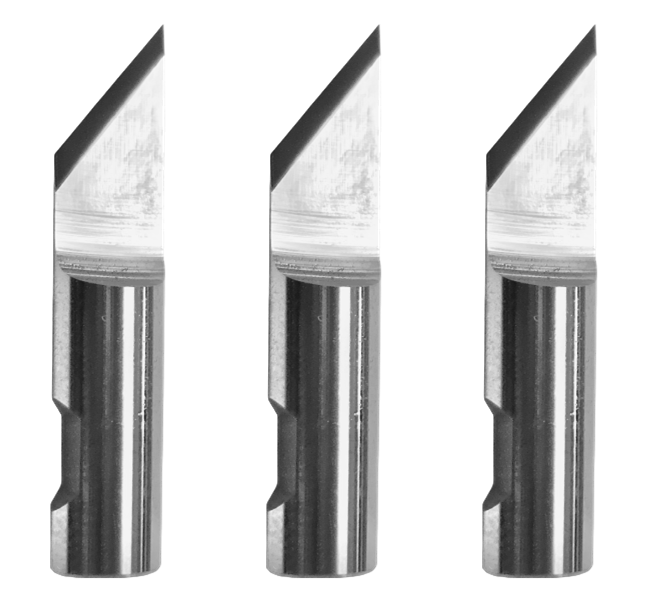

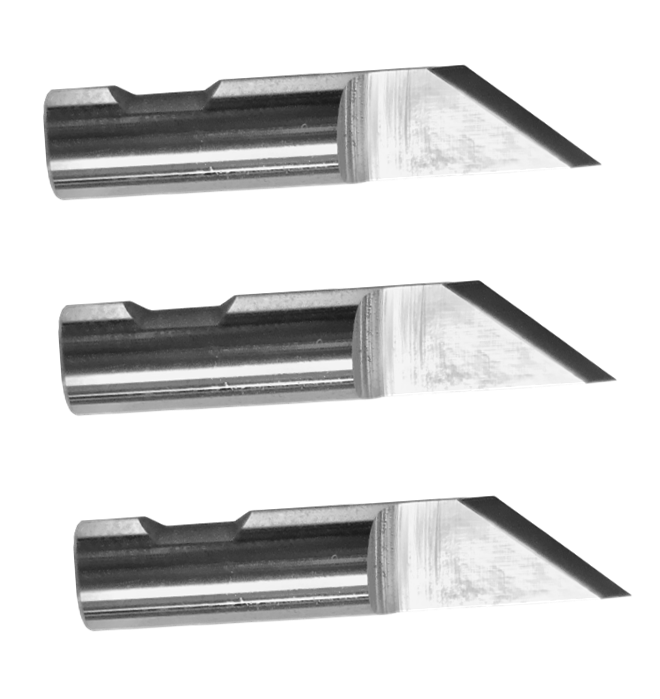

Esko Kongsberg BLD-SR8140 (OEM Part Number 42455899 or G42455899) is a premium, high-rigidity solid tungsten carbide cylindrical knife blade. It is specifically engineered for static, drag, and oscillating knife applications on Kongsberg digital cutting tables. Enquire now

Description

Esko Kongsberg Bld-Sr8140 Cylindrical Shaft Knife Blade Compatible With Kongberg Cutting System

Kongsberg Bld-Sr8140 Blade,Kongsberg Bld-Sr8140,Kongsberg Blade,Esko Bld-Sr8140 Blade,Esko Bld-Sr8140,Esko Blade,Esko Kongsberg Knife Blade,Esko Kongsberg Blades,Esko Kongsberg Blade,Esko Blades,Kongsberg Blades

Recommended use

Good blade for cutting in different foam core materials

CUTTER BRAND
Esko Kongsberg
ANGLE
50°
KNIFE HEIGHT
40,00 mm
MAX. CUTTING DEPTH
9,50 mm
MATERIALS
Foam board
KNIFE TYPE
Drag blade, Weldon
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
round Ø 8 mm

Tool Head & System Compatibility

According to documentation from Kongsberg Precision Cutting Systems, the BLD-SR8140 operates directly or via specific tooling units across Kongsberg C, XP, XL, XN, X, V, and XE tables:

RM Knife Tool (Rigid Material): Direct compatibility (no adapter required) on C, XP, XL, XN, X, and V platforms.
CorruSpeed Tool: Direct compatibility across all primary series including XE tables.
HD / Dual HD Units: Fully compatible when combined with blade adapter part number 34118489.
PowerHead: Fully compatible when combined with blade adapter part number 34118489.

Recommended Substrates and Applications

The BLD-SR8140 is a versatile blade highly regarded for its balance of structural strength and clean cutting edges. It is widely recommended for:

Thinner Flexible Materials: Folding carton stocks, polyester film barriers, thin leather, industrial vinyl, and heavy paper.
Foam Core & Composites: Excellent choice for foam boards and soft polyurethane (PUR) core materials under 5mm.
Graphics and Display Media: Microflute corrugated media, single-wall cardboard (1–3mm), foamed PVC sheets (Forex / Sintra), thin magnetic foils, and lenticular display panels

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
