Esko Kongsberg Bld-Sr8171a Carbide Asymmetrical Knife Blades For Kpcs Cutting Tables G42460956

Esko Kongsberg BLD-SR8171A is a tungsten carbide asymmetrical knife blade for Kongsberg cutting tables, and the catalog reference given is G42460956. It is intended for thinner flexible or rigid materials like folding carton, vinyl, plastics, polyester film, leather, and paper. Enquire now

Description

Esko Kongsberg Bld-Sr8171a Tungsten Carbide Asymmetrical Knife Blade For Kpcs Cutting Tables G42460956

Kongsberg Bld-Sr8171a Blade,Kongsberg Blade,Kongsberg Bld-Sr8171a,Esko Bld-Sr8171a Blade,Esko Bld-Sr8171a,Esko Blade,Bld-Sr8171a,Esko Kongsberg Knife Blade,Esko Kongsberg Blades,Esko Kongsberg Blade,Esko Blades,Kongsberg Blades

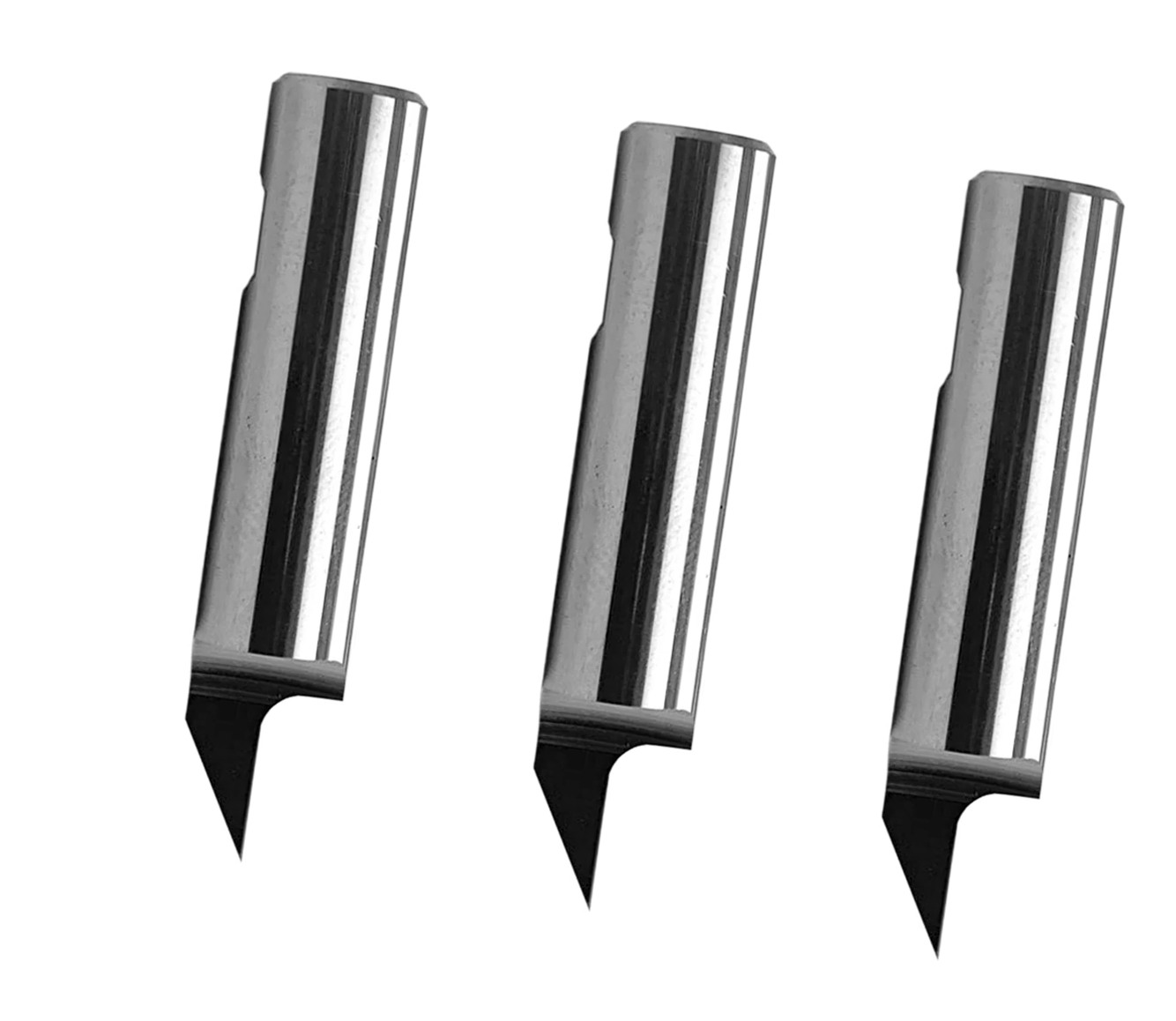

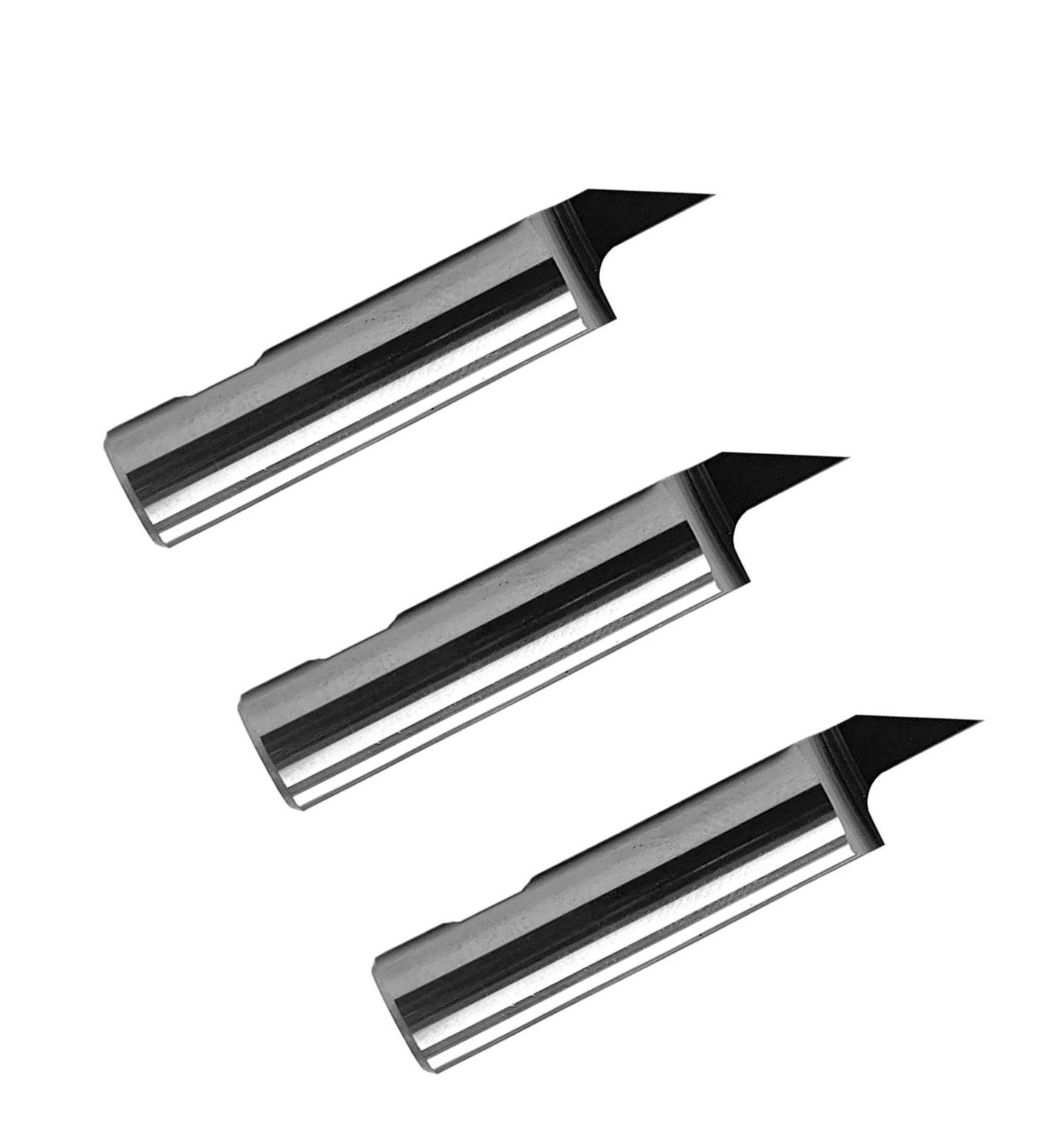

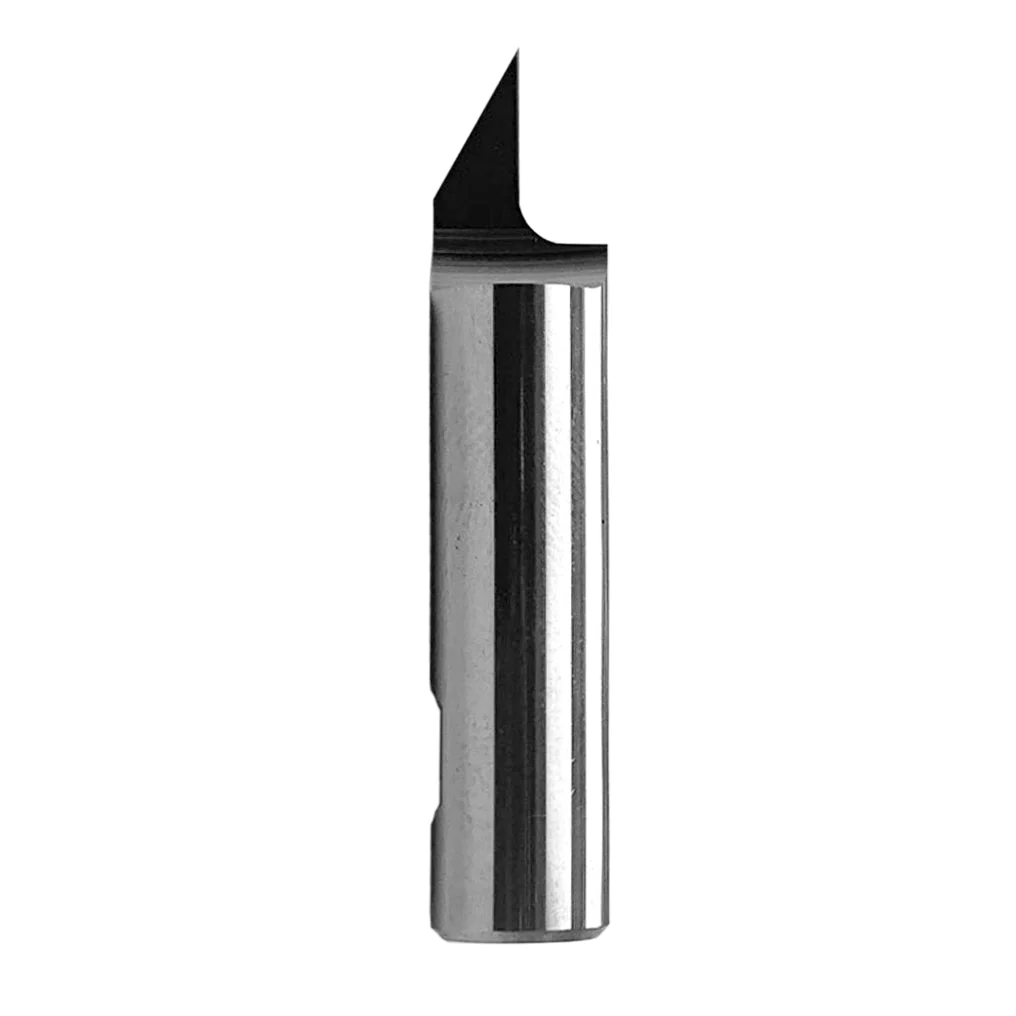

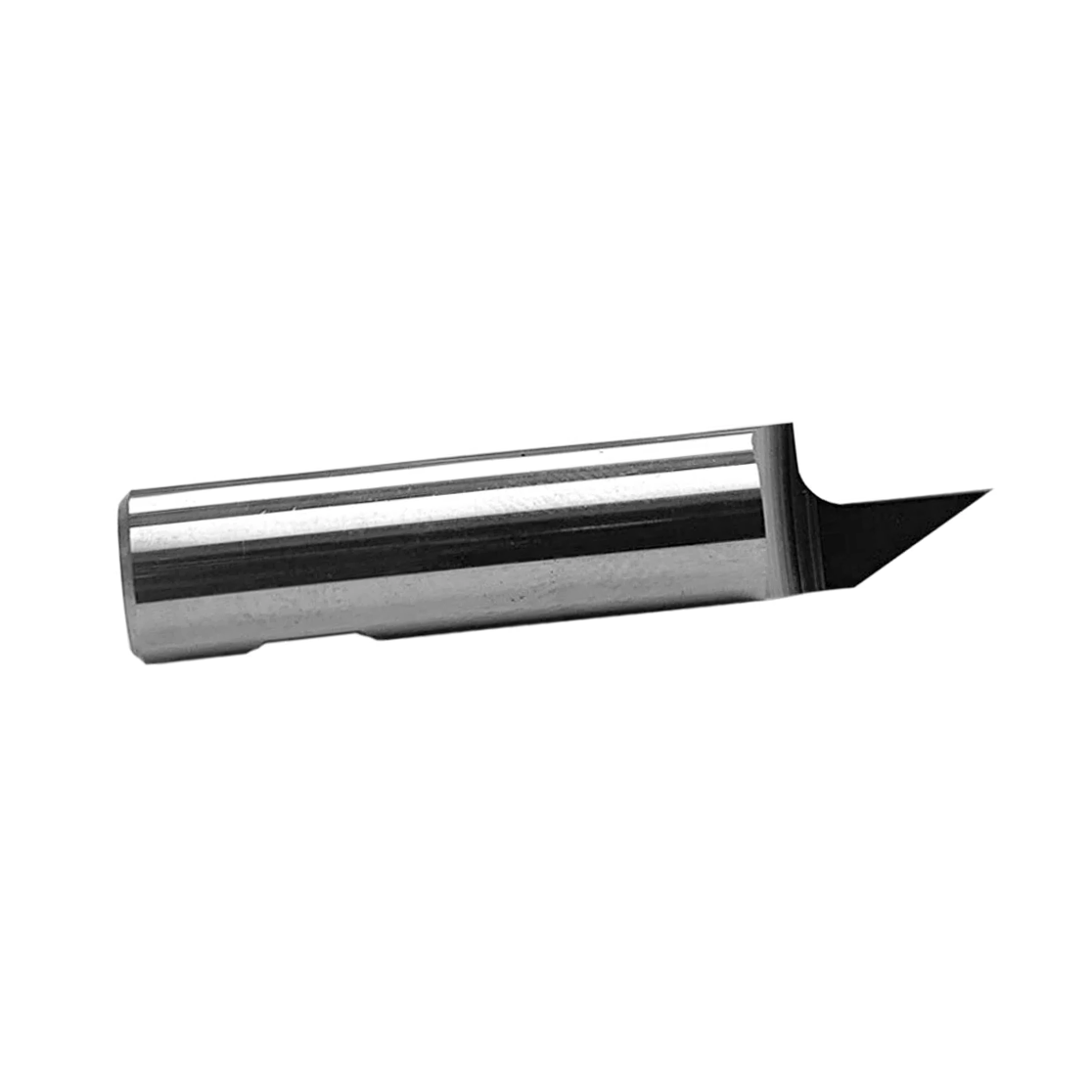

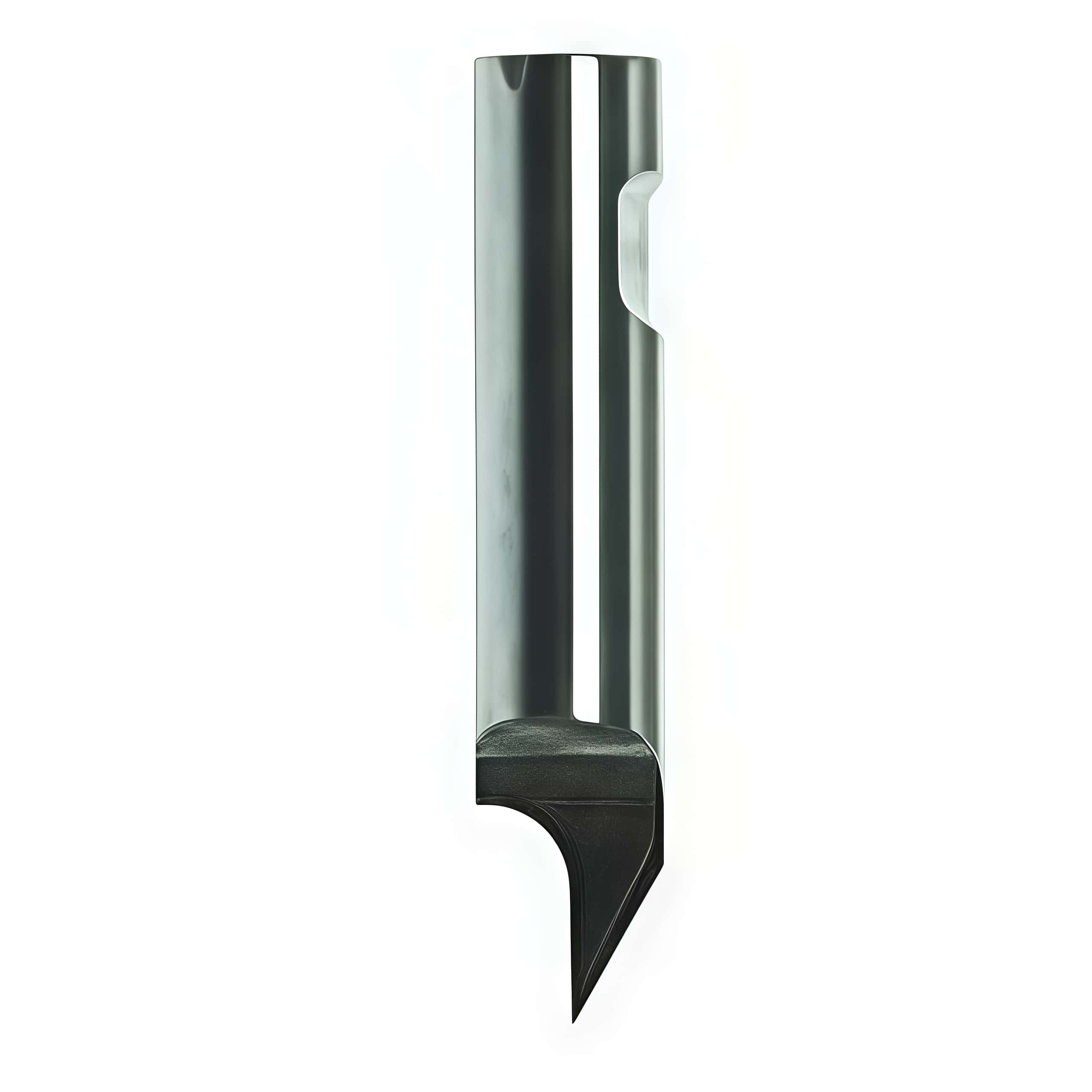

Esko Kongsberg BLD-SR8171A (Part Number: G42460956) is a carbide (tungsten carbide) asymmetric drag blade designed specifically for Kongsberg Precision Cutting Systems (KPCS) automated digital die-cutting tables

Description

Long life tungsten carbide blade for thinner flexible materials such as folding carton, polyester film, leather, vinyl, paper. 40' cutting edge. asymmetric knife blade that ploughs all burr’s and waste to one side. Very important to control the cutting direction when using this blade. Nominal lag value is 0mm.

CUTTER BRAND
Esko Kongsberg
ANGLE
30°
KNIFE HEIGHT
40,00 mm
MAX. CUTTING DEPTH
6,50 mm

MATERIALS
Folding Carton, Plastic, Vinyls

KNIFE TYPE
Asymmetric blade, Drag blade, Weldon

REPLACEMENT
Yes

KNIFE/BLADE MOUNTING
round Ø 8 mm

Machine and blade compatibility

the following head units need to be compatible with the BLD-SR8171A inserts to use on the KPCS cutting table:

HD Unit / Dual HD Unit (Requires a dedicated adapter, part number 34118489:)
PowerHead (Requires a dedicated adapter, part number: 34118489)
RM Knife blade unit (can be installed directly, no adapter required)
CorruSpeed cutter head unit (supports direct mounting)

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards
