Esko Kongsberg Bld-Dr8260a Special Tungsten Carbide Knife Blades For Kpcs Digital Cutters G42461996

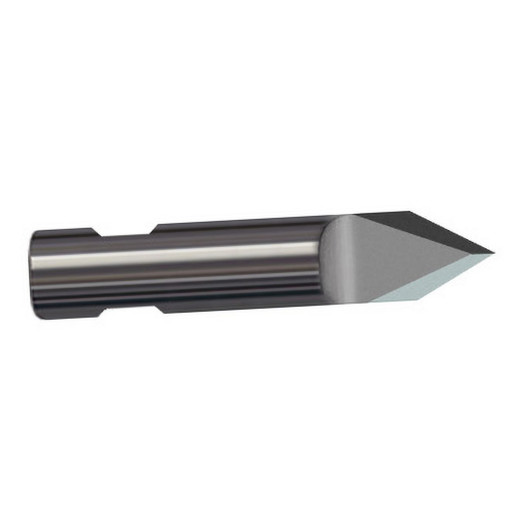

Esko Kongsberg BLD-DR8260A (Part Number G42461996 / 42461996) 8mm round shank solid tungsten carbide knife blade designed for Rigid Material (RM) knife tools on Esko Kongsberg digital CNC cutting tables (including X, XN, XL, V, XP, and C series). Enquire now

Description

Esko Kongsberg Bld-Dr8260a Special Tungsten Carbide Knife Blade For Kpcs Digital Cutters G42461996

Kongsberg Bld-Dr8260a Blade,Kongsberg Bld-Dr8260a,Kongsberg Blade,Esko Bld-Dr8260a Blade,Esko Bld-Dr8260a,Esko Blade,Bld-Dr8260a,Esko Kongsberg Knife Blade,Esko Kongsberg Blades,Esko Kongsberg Blade,Esko Blades,Kongsberg Blades

Esko Kongsberg BLD-DR8260A (OEM Part #G42461996) is high-hardness asymmetric tungsten carbide cutting insert (dragging insert) specifically designed for Kongsberg (KPCS) digital forming cutting machines.Because it has a single-sided asymmetric cutting edge, its core advantage lies in its ability to force all burrs generated during the cutting process to the scrap side , thereby ensuring that the finished product edge achieves extremely high smoothness and perpendicularity

Recommended use

Special tungsten carbide knife blade with an asymmetric edge, optimised for a nice cut ploughing all the burrs to one side. Requires that you can control the cutting direction. Good blade for cutting different plastic materials. Blade tip arrow grinding: 0,5-1,0

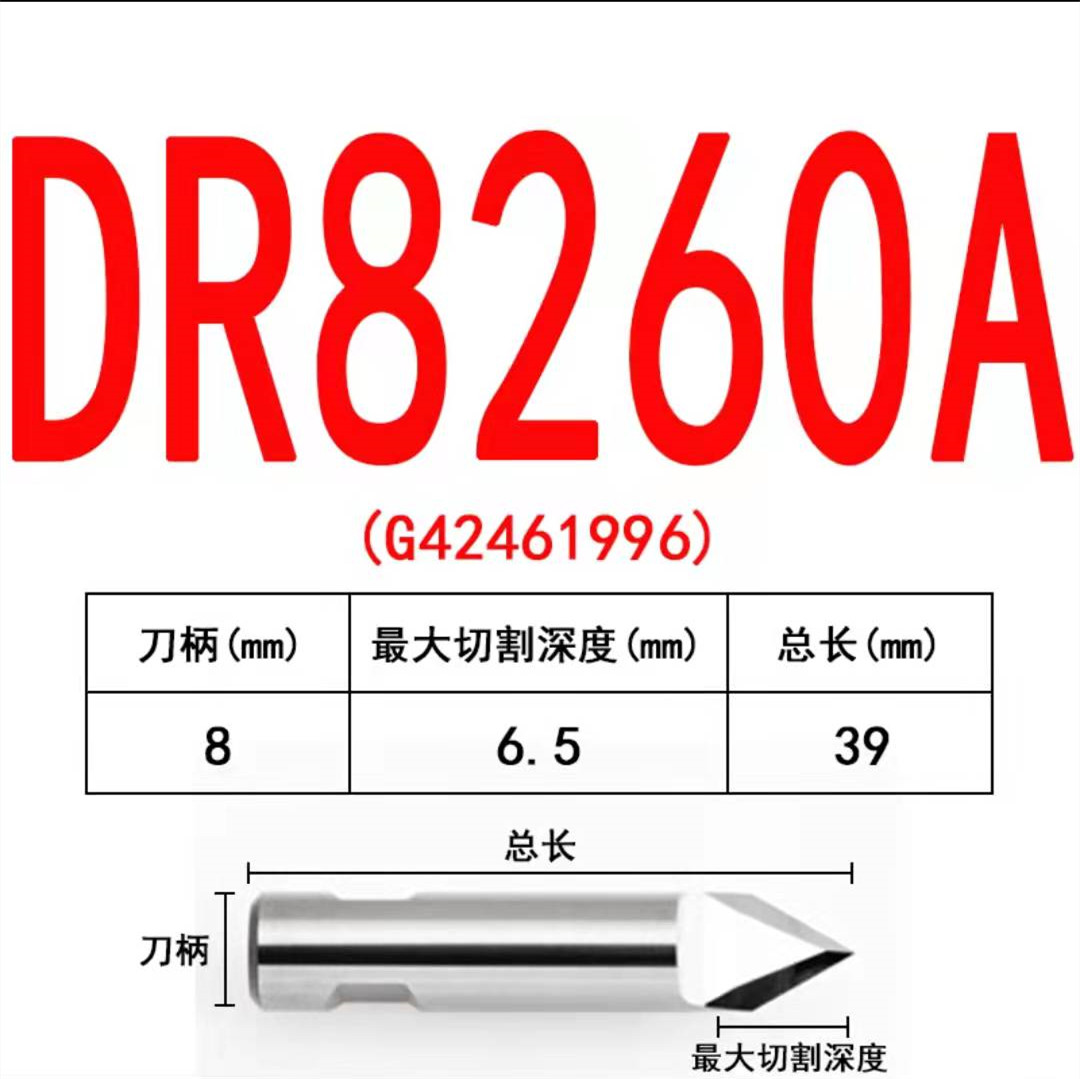

CUTTER BRAND
Esko Kongsberg
ANGLE
60°
KNIFE HEIGHT
40,00 mm
MAX. CUTTING DEPTH
6,50 mm
KNIFE TYPE
Asymmetric blade, Drag blade, Weldon

MATERIALS
Cardboard, Corrugated cardboard, Folding Carton, Gasket materials, Magnetic foil, Plastic, Polipropylen, Polycarbonate, PVC

REPLACEMENT
Yes

KNIFE/BLADE MOUNTING
round Ø 8 mm
