Multicam Bt-57290 84-00193-Bt-57290 K79 Round Shank Knife Blades-Replace Compatible

XK3090-ORP MultiCam BT-57290 (84-00193-90 or K79) is a high-performance oscillating knife blade engineered for extra-deep cutting tasks. Unlike the rolling, driven rotary tool (DRT) blades previously discussed, this tool uses a rapid vertical sawing motion to handle thick, low-density materials. Enquire now

Description

Multicam Bt-57290 84-00193-Bt-57290 K79 Round Shank Knife Blades-Replace Compatible

The MultiCam BT-57290 (also categorized under part number 84-00193-90 or the K79 specification) is a high-performance oscillating knife blade engineered for extra-deep cutting tasks. Unlike the rolling, driven rotary tool (DRT) blades previously discussed, this tool uses a rapid vertical sawing motion to handle thick, low-density materials.

Technical Specifications

Blade Profile: Single-edge with a Round Point Offset tip configuration (frequently cross-referenced as industry part number XK3090-ORP).

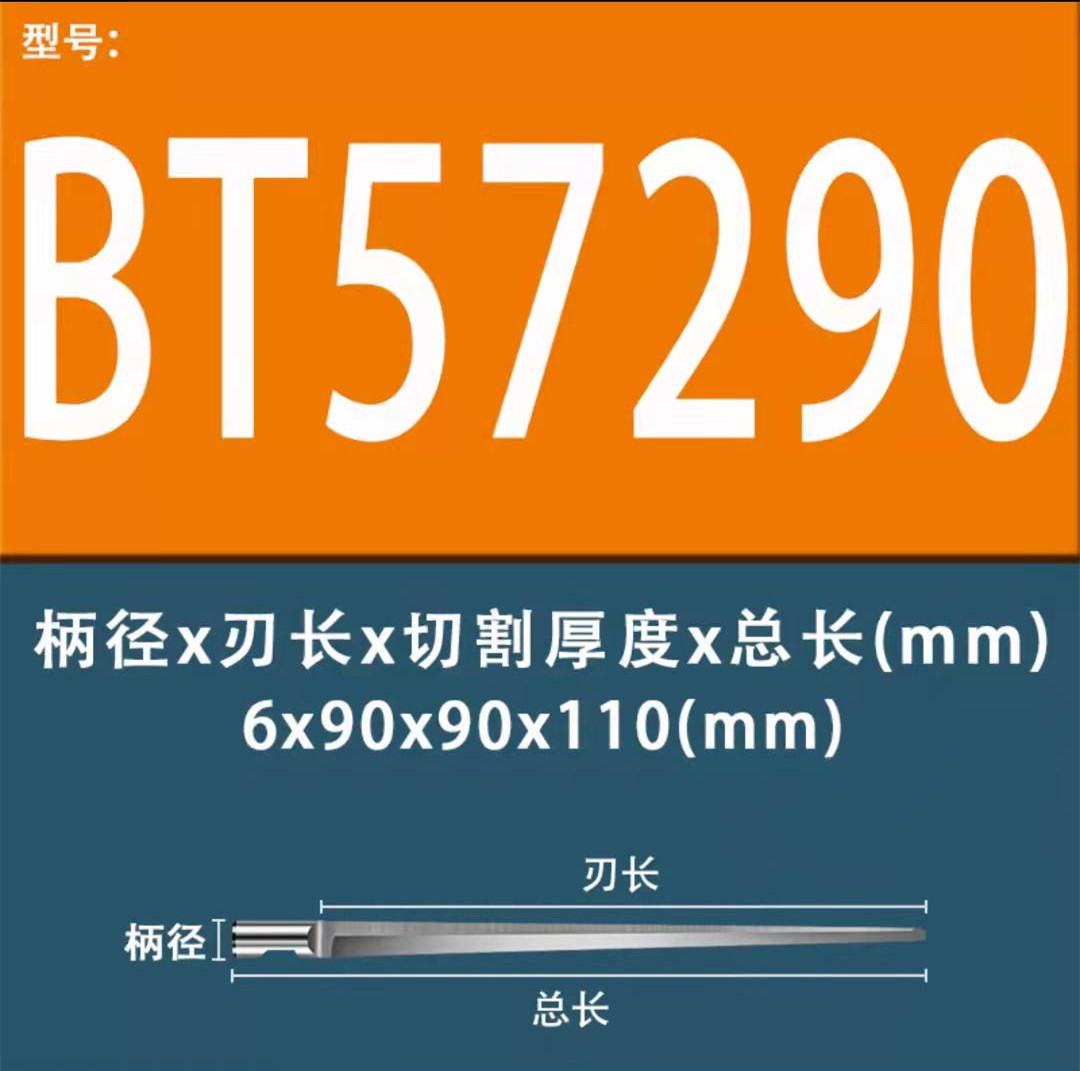

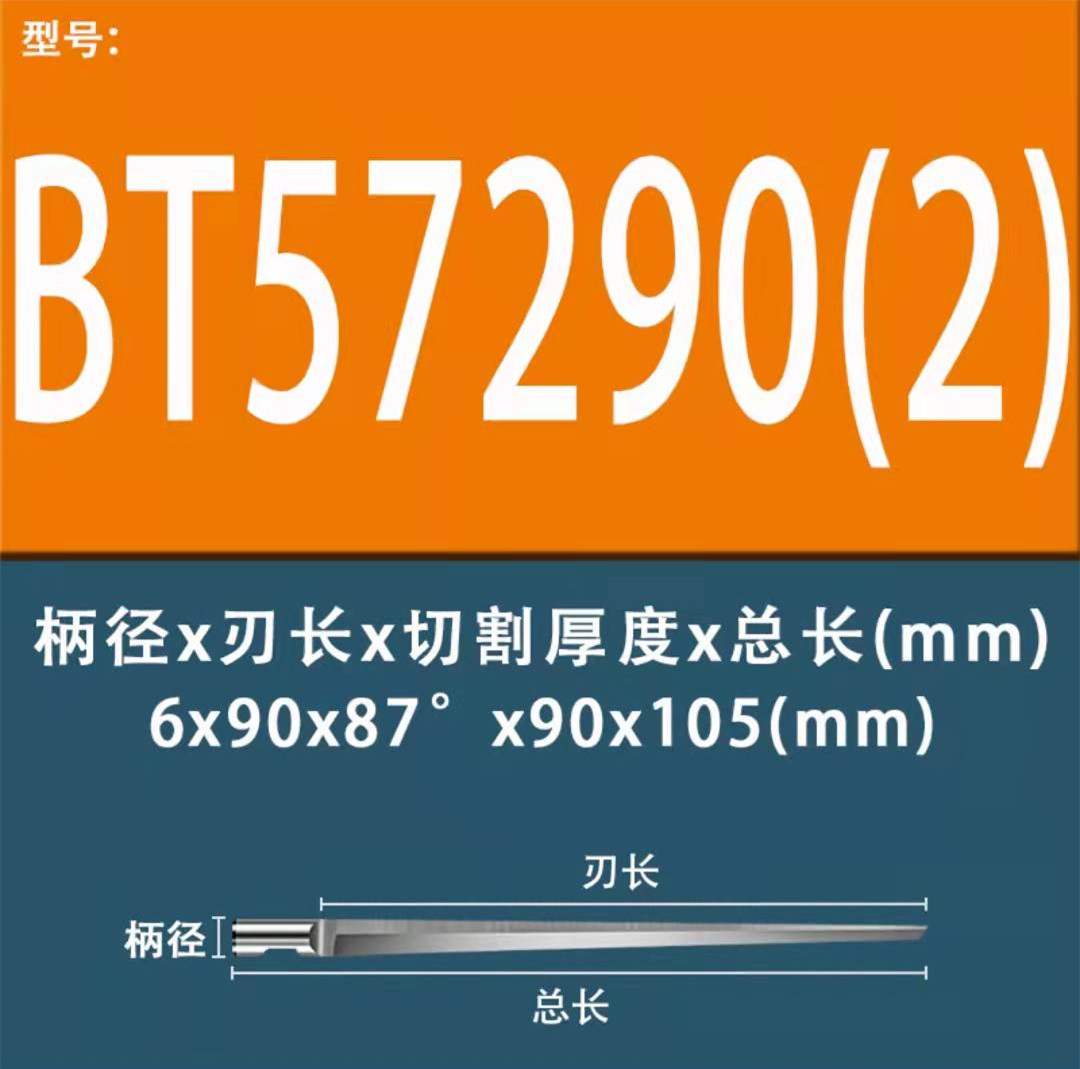

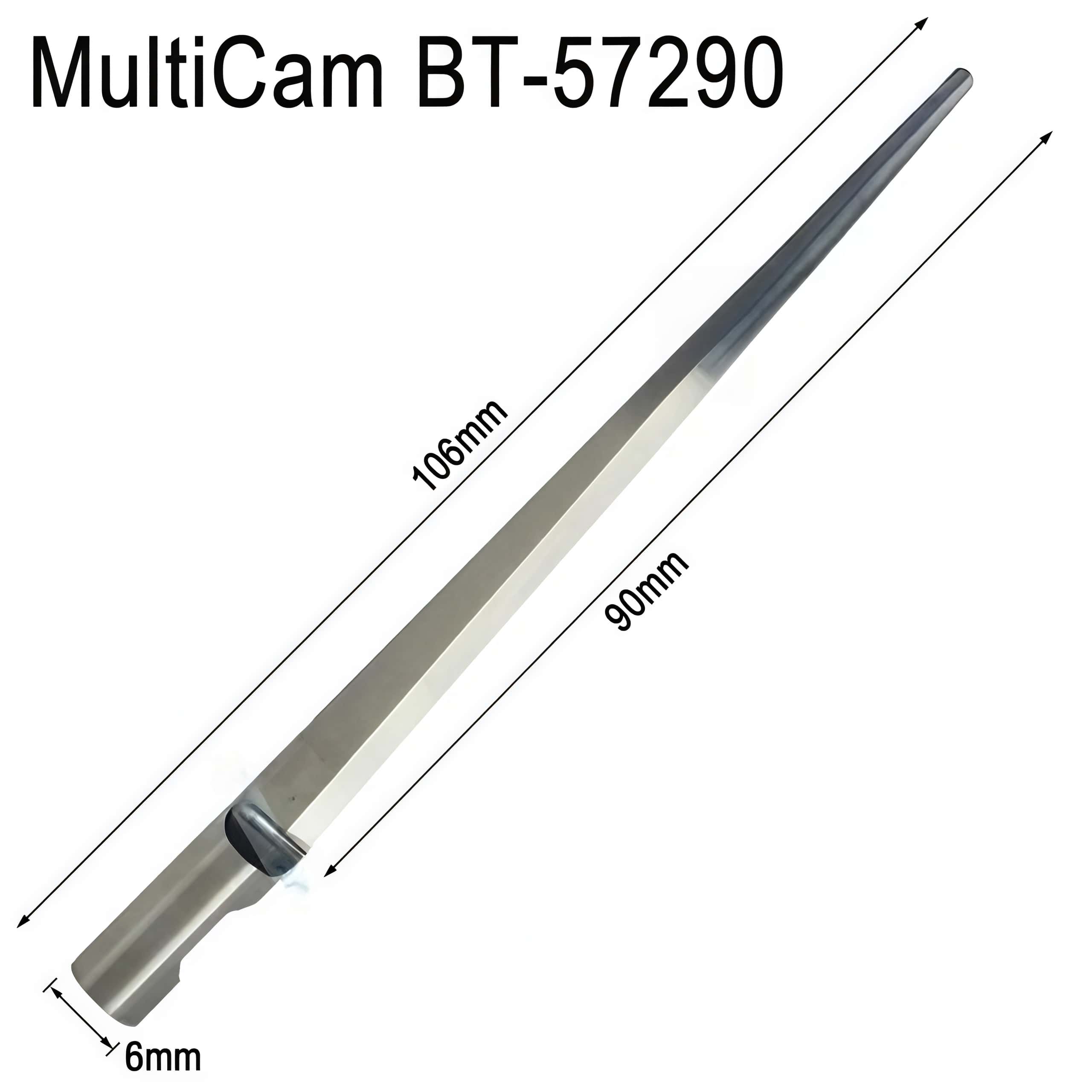

Cutting Depth: Offers a maximum rated cut depth of 90.00 mm (3.54 inches), with a total overall knife height stretching to approximately 110 mm.
Shank Type: Features a 6.00 mm round Weldon shank. This smooth, cylindrical base inserts directly into MultiCam standard oscillating tool heads to provide rigid, high-accuracy tool tracking.
Material Composition: Crafted from ultra-fine grain solid tungsten carbide, giving the blade the necessary structural stiffness to prevent flexing when plunging deep into heavy materials.

Ideal Applications

The K79 / BT-57290 blade geometry is optimized for cutting through thick, energy-absorbing materials that would otherwise bunch up or bind under a rolling rotary edge, including:

Foams: Expanded polystyrene (EPS), polyurethane packaging foam, and heavy-gauge gator board.
Thick Substrates: Soft industrial rubber, thick honeycomb panels, and multi-wall corrugated board.

Equivalent to: MultiCam 84-00193-90, AXYZ B1041L-90

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
