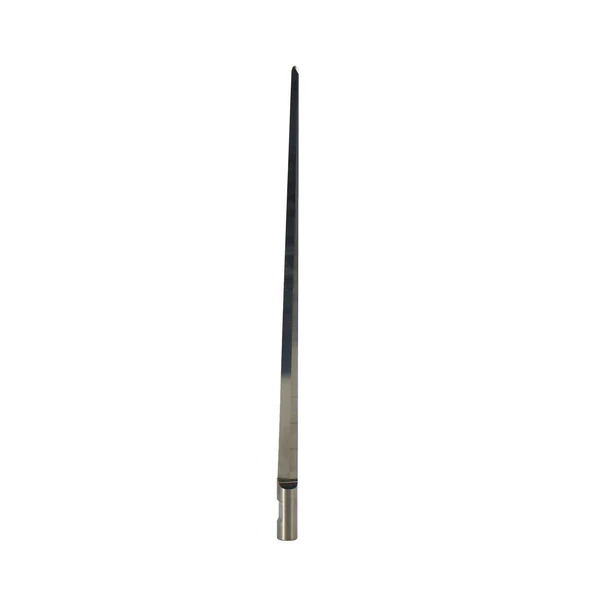

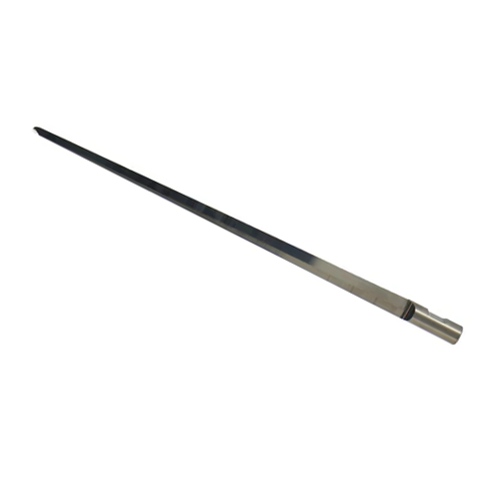

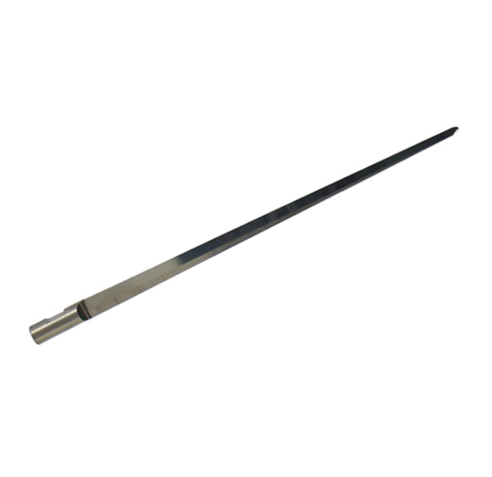

Multicam Bt-572100 84-00193-100 Round Shank Knife Blades For Multicam Cutter

You said:Multicam Bt-572100 84-00193-100 Round Shank Knife Blades For Multicam CutterMulticam BT-572100(84-00193-100) isA professional-grade carbide round shank insert designed specifically for the vibrating cutter heads of MultiCam CNC cutting machines (such as flatbed cutting machines and CNC engr… Enquire now

Description

Multicam Bt-572100 84-00193-100 Tungsten Carbide - VHM -Hard Metal Round Shank Knife Blades For Multicam Cutter

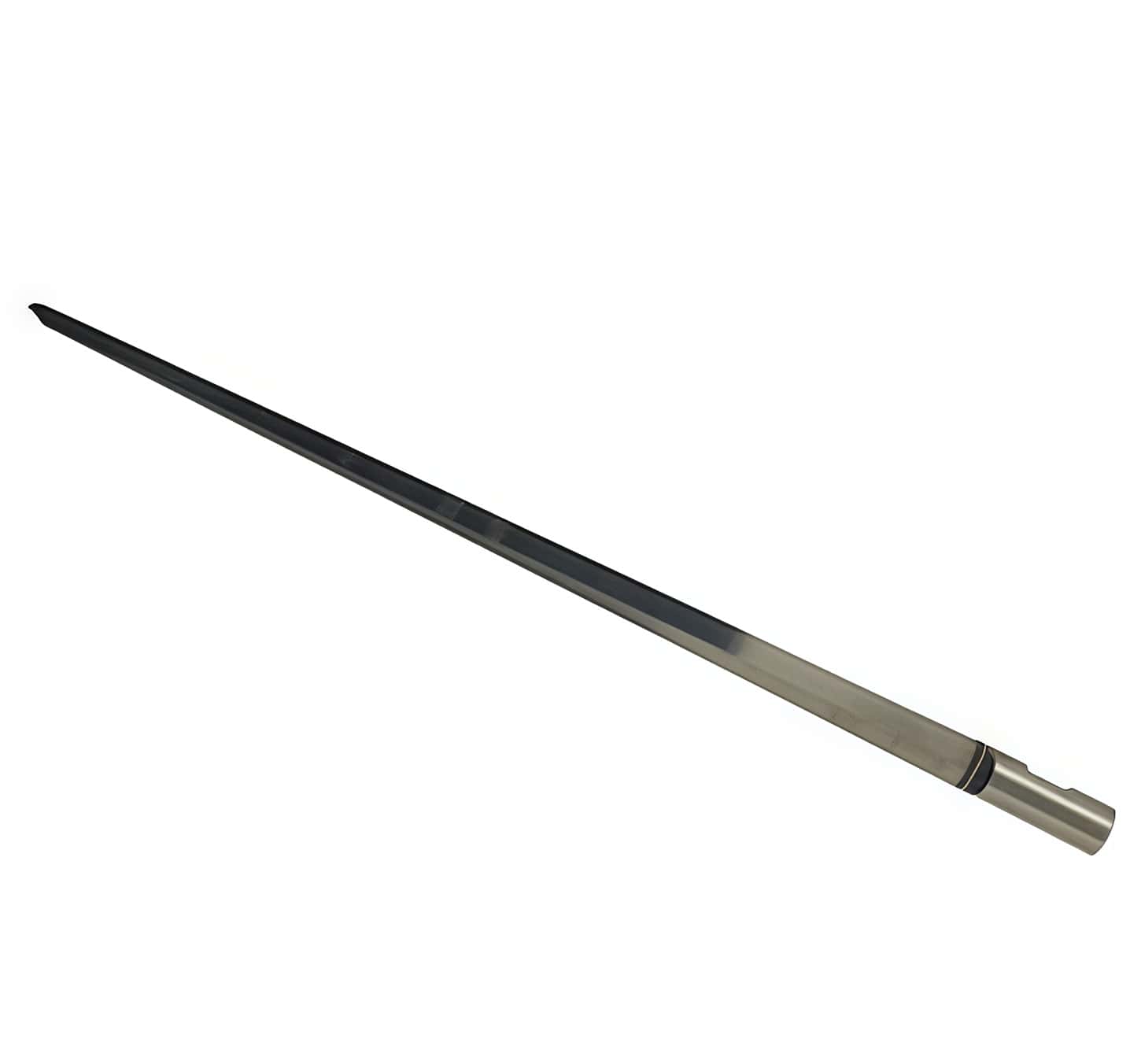

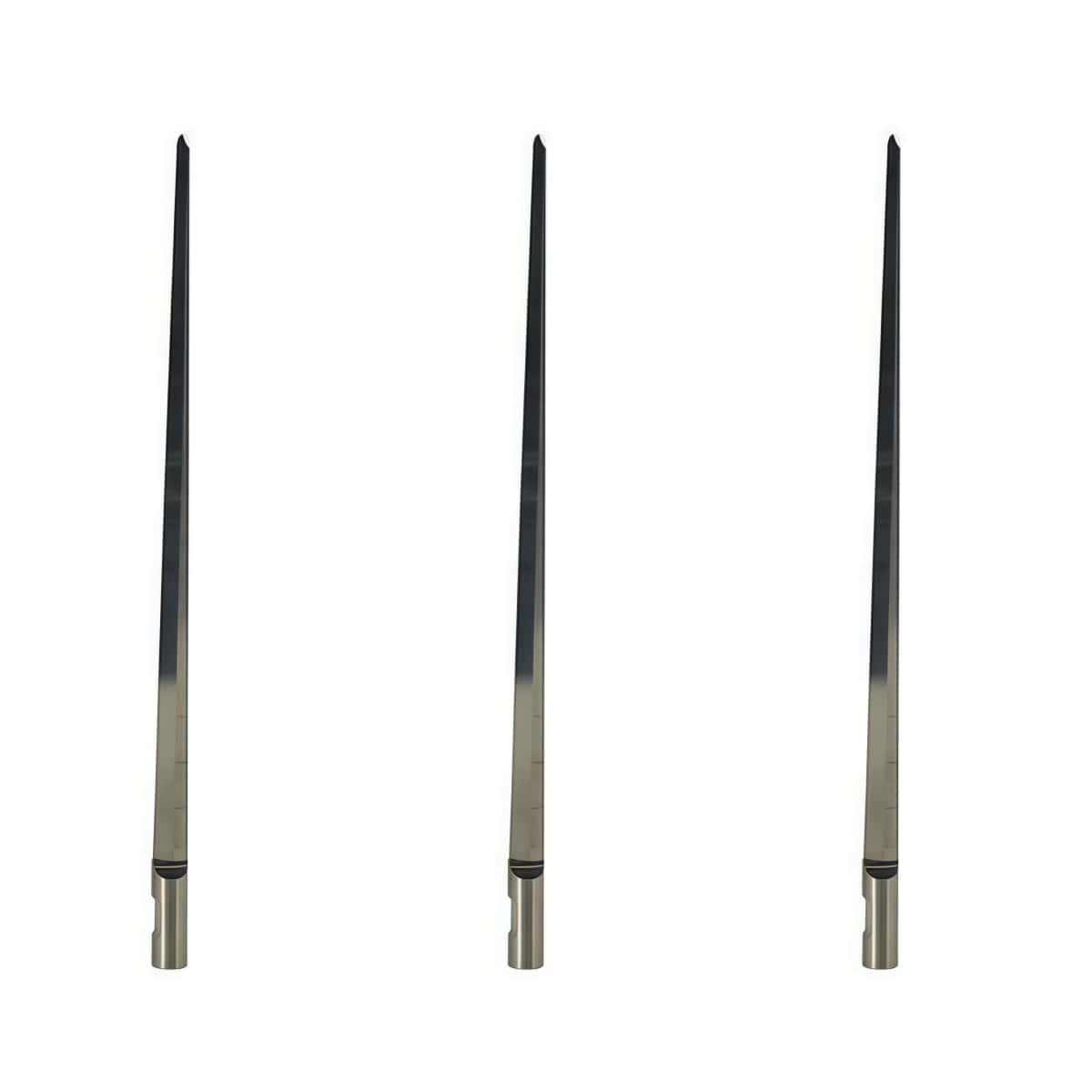

Multicam BT-572100(Official equivalent part number 84-00193-100 ) isA professional-grade carbide round shank insert designed specifically for the vibrating cutter heads of MultiCam CNC cutting machines (such as flatbed cutting machines and CNC engraving machines).It is primarily used for processing extremely thick, high-density special composite materials.

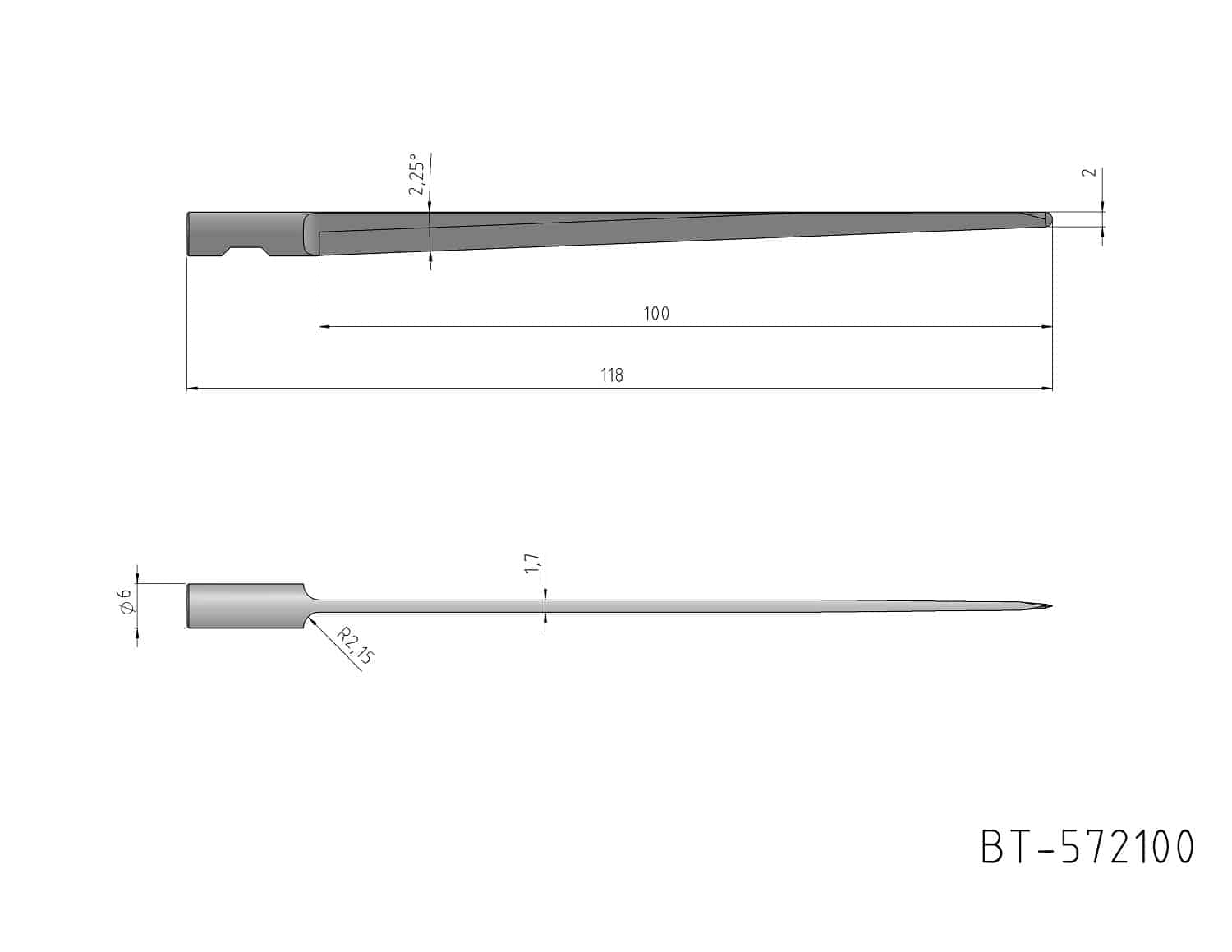

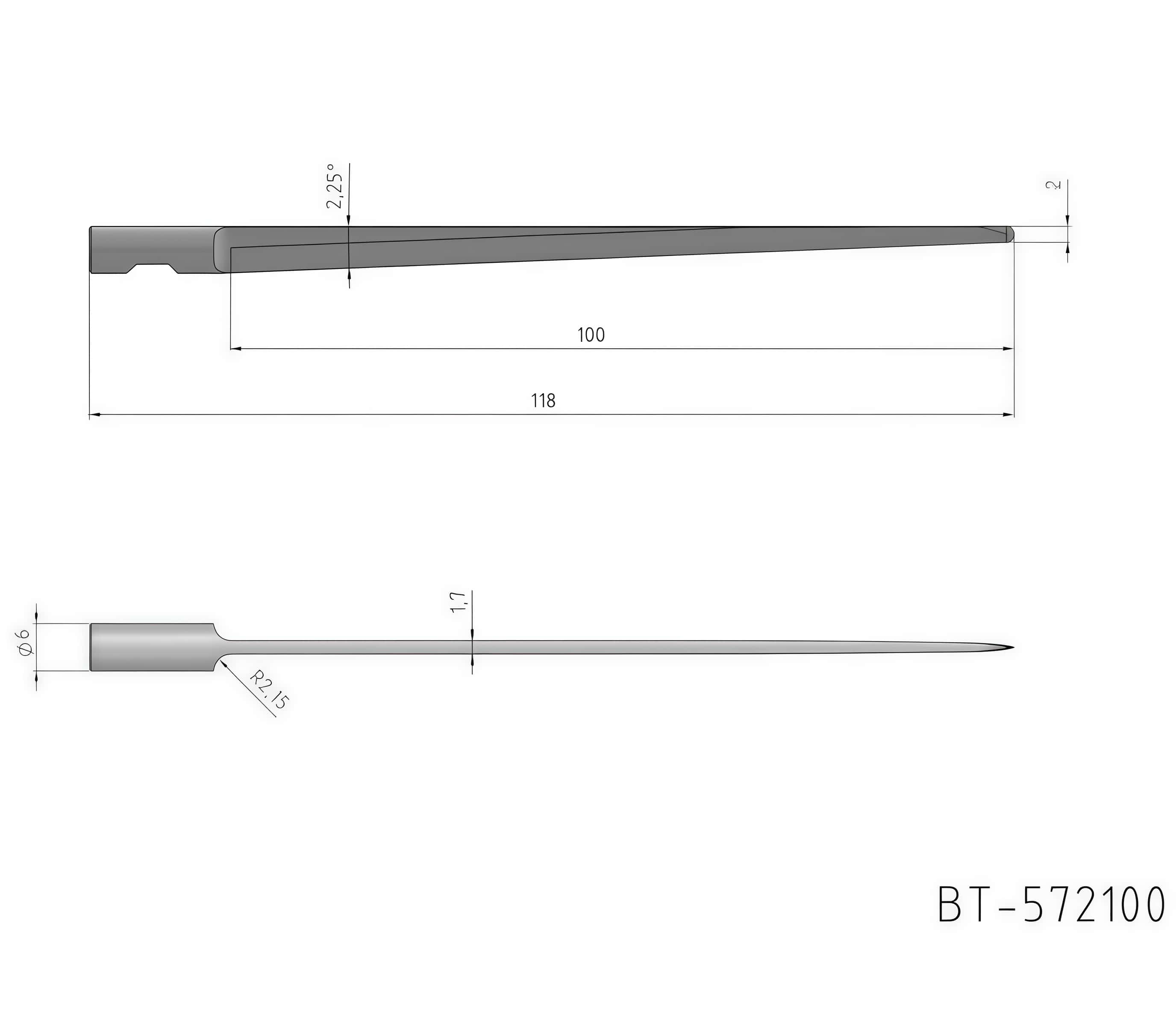

Core technical specifications

This blade model has a distinctly long blade physical characteristic, and its standard technical parameters are as follows:

Handle type : ∅ 6.00mm round shank (with flat section Weldon handle type to ensure clamping without rotation).
Basic cutting edge type : single-edged, rounded tip, which can effectively reduce stress concentration and breakage risk of the cutting tip when cutting thick materials.
Blade material : High-hardness integral tungsten carbide (VHM - Hard Metal) is selected, which has high wear resistance and long service life.
Rated cutting length : 100 mm of ultra-long effective cutting depth, designed specifically for extra-thick materials

Mainly applicable processing materials

Due to its long blade and high rigidity, it is often used in packaging, advertising, gaskets, and industrial composite material processing, and is particularly suitable for cutting:

Honeycomb panels and honeycomb paperboard
Thick foam board, pearl cotton, high-density sponge (Foam board / Dense Foam)
Thick corrugated cardboard and heavy-duty folding carton materials.
Industrial rubber sheet and gasket materials
