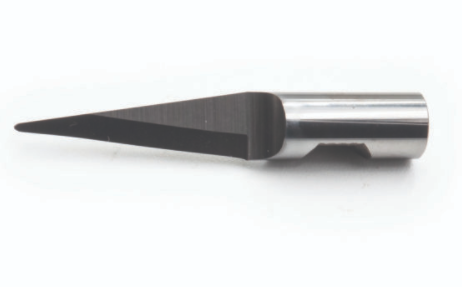

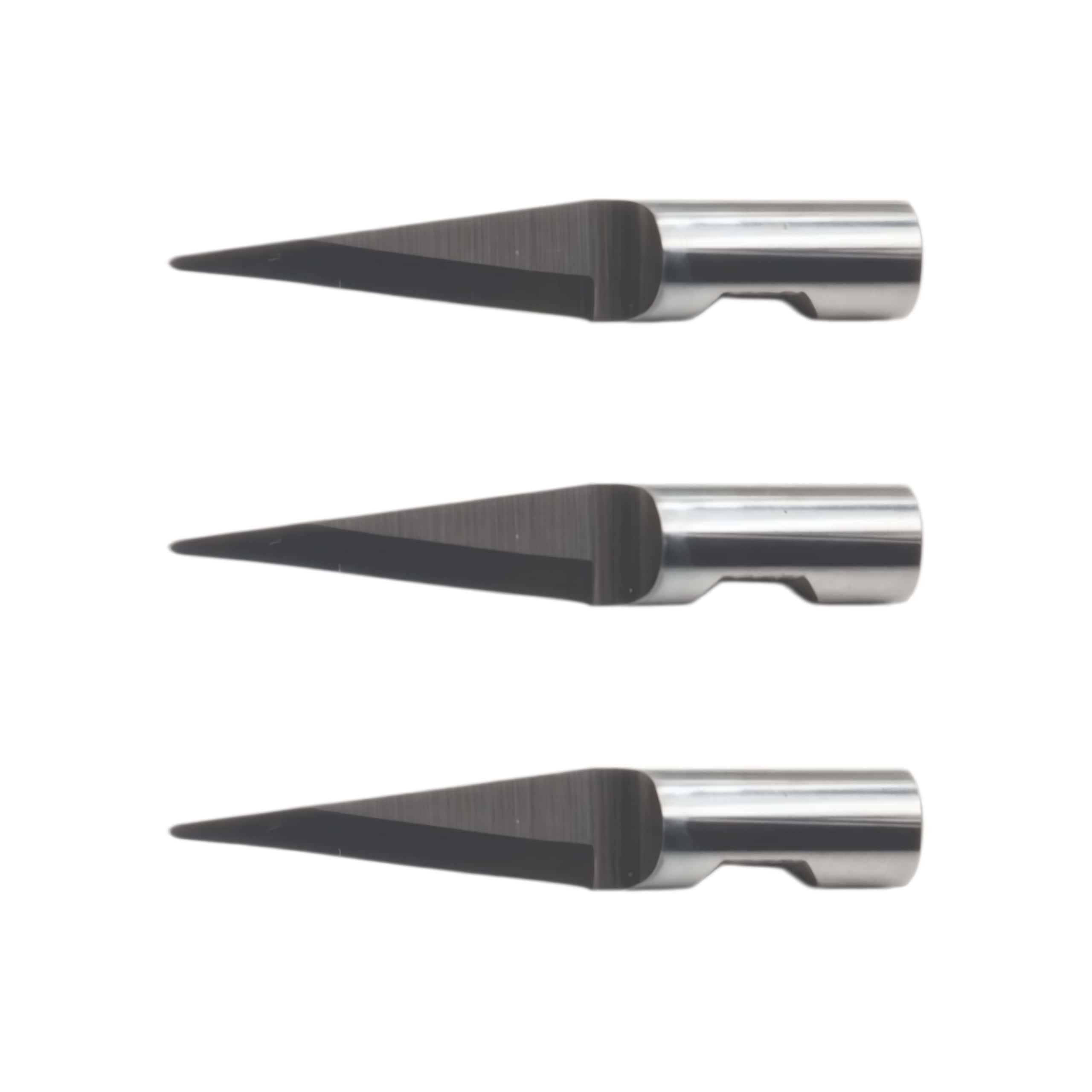

Multicam Bt-57269 84-00193-Bt-57269 003612-Mc140394 K8 Round Shank Shaft Knife Blades

Multicam Bt-57269 84-00193-Bt-57269 003612-Mc140394 K8 Round Shank Shaft Knife Blades is a specialized, solid tungsten steel tool component engineered for heavy-duty, high-frequency cutting operations on digital flatbed CNC cutting tables. Enquire now

Description

Multicam Bt-57269 84-00193-Bt-57269 003612-Mc140394 K8 Round Shank Shaft Knife Blades

Technical Specifications

Blade Profile: Single-edge, flat point profile optimized to cleanly shear dense, fibrous substrates without pulling or catching the material fibers.
Shank / Shaft Style: 6 mm round cylindrical shank (designed for standard MultiCam tool heads like the KH6).
Rated Cutting Depth: 20 mm (approximately 0.79 inches).

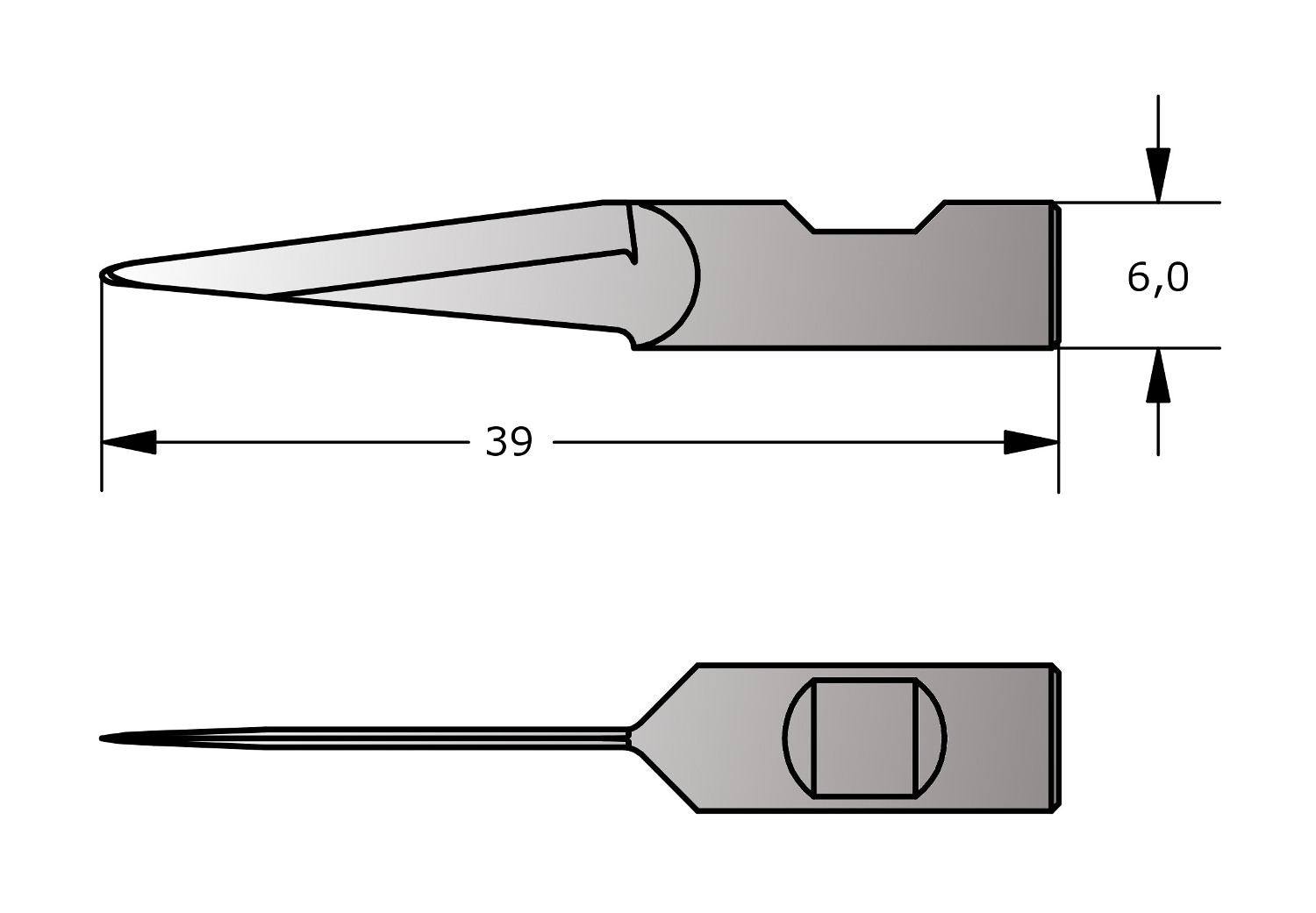

Overall Blade Length: 39 mm.
Material Composition: Micro-grain tungsten carbide for extreme edge retention and resistance to high-vibration wear.

Target Applications

The K8 flat point design is highly effective at driving through dense, multi-layer, or rugged media:

Structural packaging materials like thick corrugated cardboard, multi-wall paper boards, and heavy honeycomb panels.
Tough fibrous goods including industrial felt, gasket composites, heavy canvas, and aramid/carbon fiber fabrics.
Semi-rigid media such as high-density closed-cell foams, magnetic rubber sheets, and dense plastics.

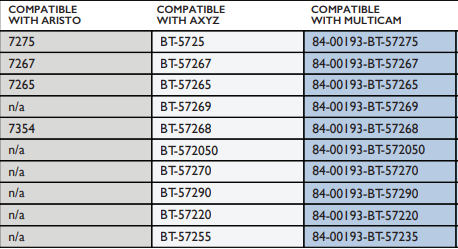

Equivalent to: Summa 500-9834, Summa 500-0834, Multicam 84-00193-BT-57269 003612-MC140394 K8, AXYZ B1041L-20

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
