Zund S3 Z52 Decagonal 10-Sided Carbide Rotary Knife Blades For Zund Cnc Cutter Price List 3910337

CHINA Zund Z52 10-faceted (decagonal) carbide rotary insert(3910337 ) is a high-performance rotary cutting insert developed specifically for the Zund digital cutting system . Made of high-hardness tungsten carbide Enquire now

Description

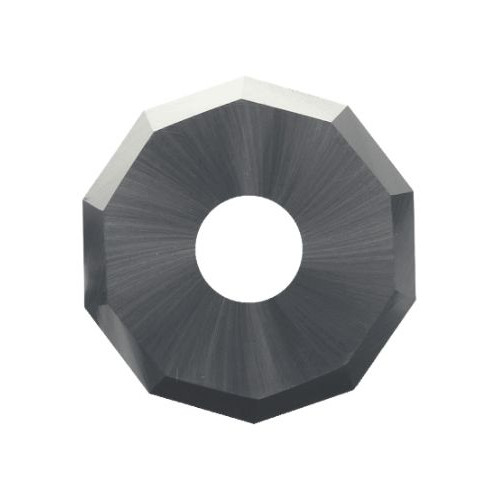

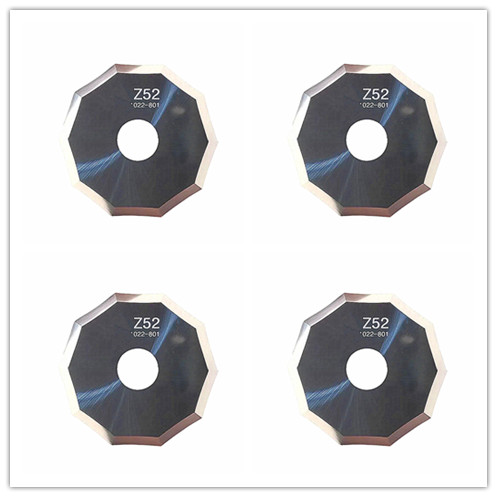

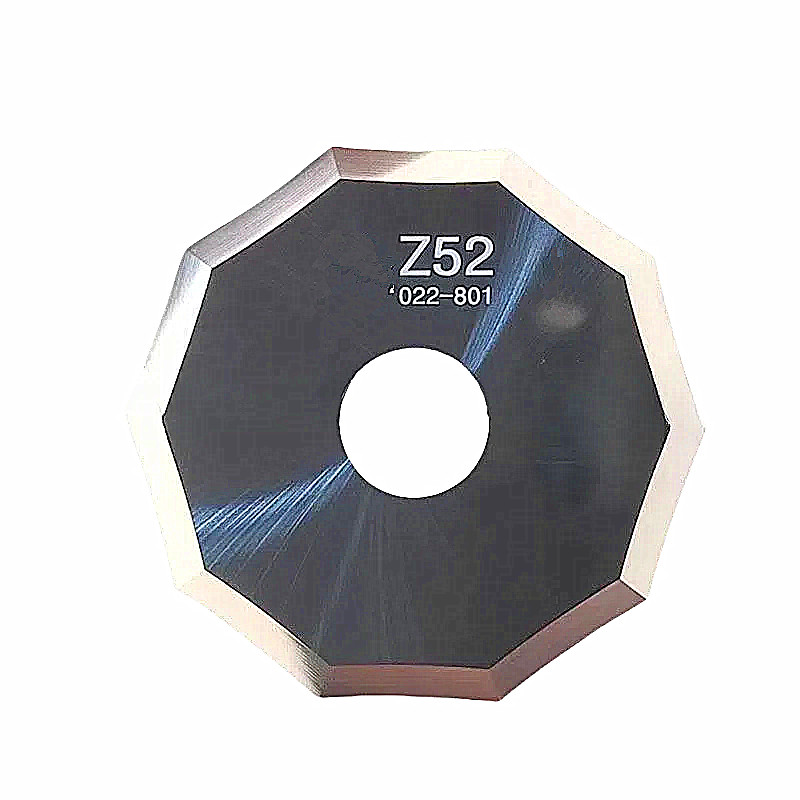

Zund S3 Z52 Decagonal (10-Sided) Carbide Rotary Knife Blade for Fiber Materials - 3910337

Zund Z52 Knife,Zund Rotatary blades,Zund Z52 blade,Zund Z52,Zund blades,Zund Rotatary Knife,Zund 3910337,Zund Rotary Blades,Zund Blades

Item no .: 3910337
Knife type :otatary blade

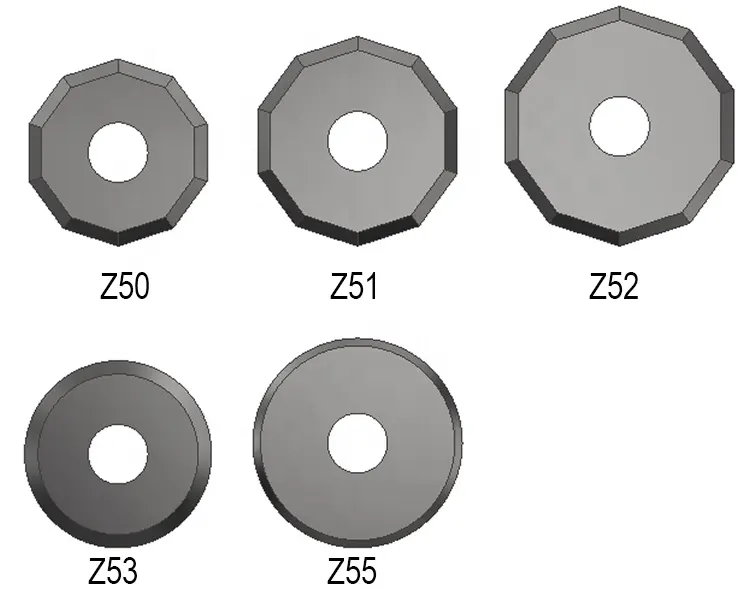

Properties :Decagonal (10-sided) blade similar to Z50/Z51, but with larger overcut and lower cutting force.
Printer compatibility : Zund S3 / G3 / L3

Core Performance and Technological Advantages

Low Cutting Force Design:
Compared to the smaller Z50 or Z51 inserts, the Z52 features a larger diameter. This enhanced design provides greater overcut with reduced cutting resistance, making it more effective for penetrating thick or high-density laminated materials. As a result, it significantly decreases the mechanical load on the rotating tool during operation.

Prevention of Fiber Snagging and Wear:
The decagonal (10-sided) edges create a continuous shearing motion when rotating at high speeds. This ensures clean and precise cuts in high-toughness fibers, effectively preventing material edges from fraying, snagging, or deforming.

Module Compatibility:
Fully compatible with the Drive Rotary Tool (DRT) and Power Rotary Tool (PRT) cutter head modules used on Zund cutting machines.

Description:

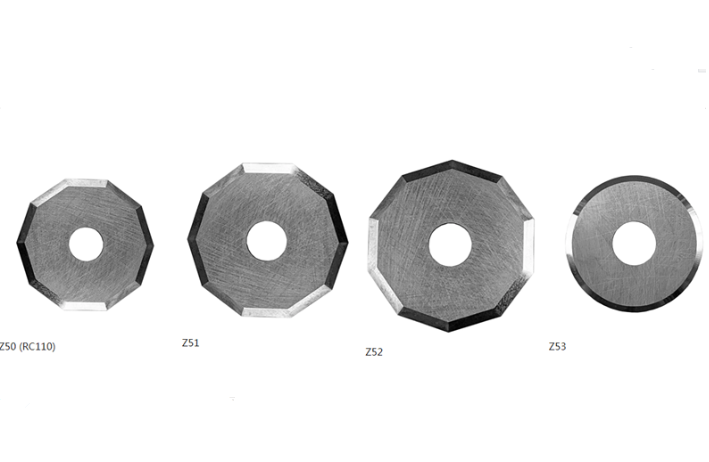

This high-quality generic blade is designed for use with Zund S3, G3, and L3 digital cutters equipped with DRT and PRT tool heads. The decagonal rotary blades have a maximum cutting depth of 7 mm, making them suitable for a range of materials, including glass fiber, carbon fiber, aramid fiber, and textiles. While functionally similar to the Z50 and Z51 blades, the Z52 offers superior performance with its larger overcut and reduced cutting force. These replacement blades correspond to Zund part number 3910337 and are commonly referred to as Z52 blades.

Equivalent to: BT-2352 Summa 500-0862 500-9862, Zund Z52 3910337,MultiCam 003612-MC52-ROTAR,Gerber MCT R52/ R52-V, Blumer B52, iEcho E52,Blackman & White BW52
