Newbull Tungsten Carbide Knives Knife Blades For Newbull Flatbed Cutter Shop In China

CHINA Newbull digital flatbed cutters utilize high-precision tungsten carbide (HM / Hard Alloy) knife blades to handle a wide spectrum of flexible, semi-rigid, and fibrous industrial materials. Enquire now

Description

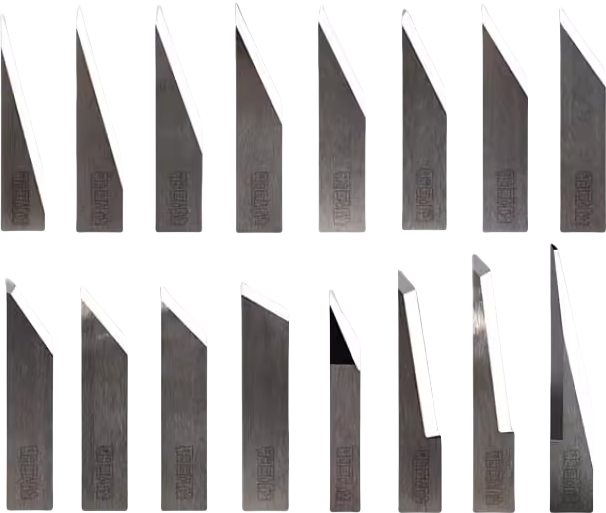

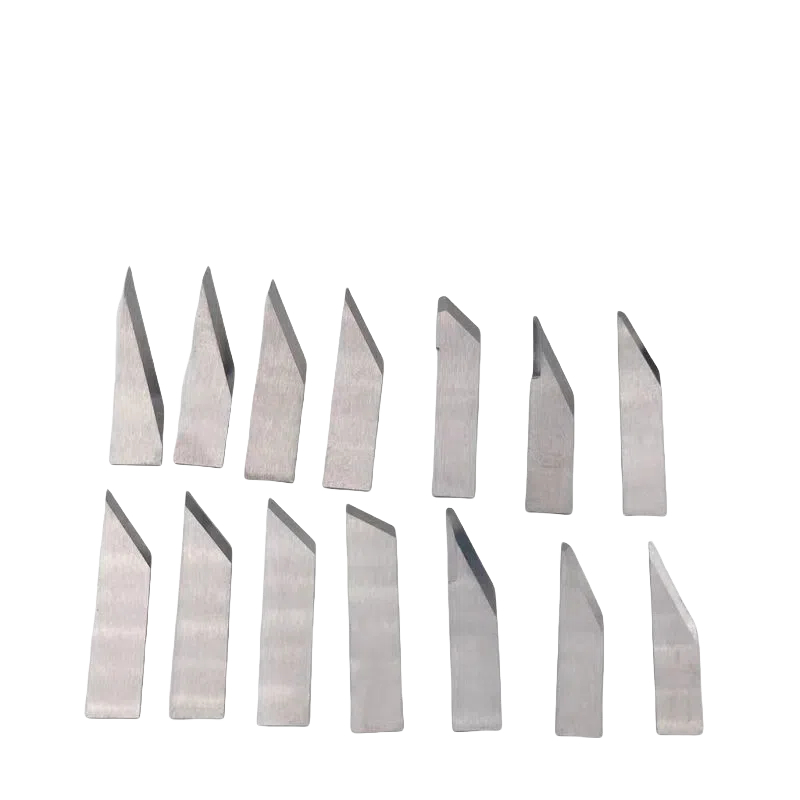

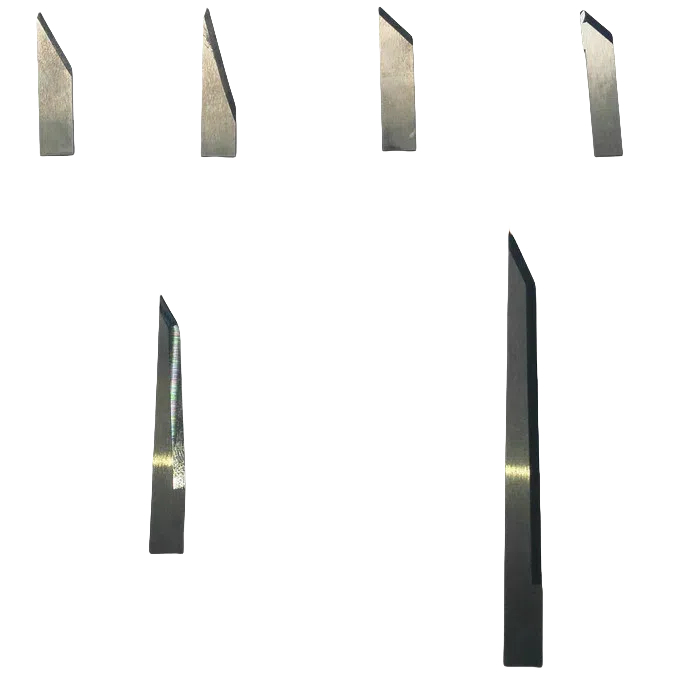

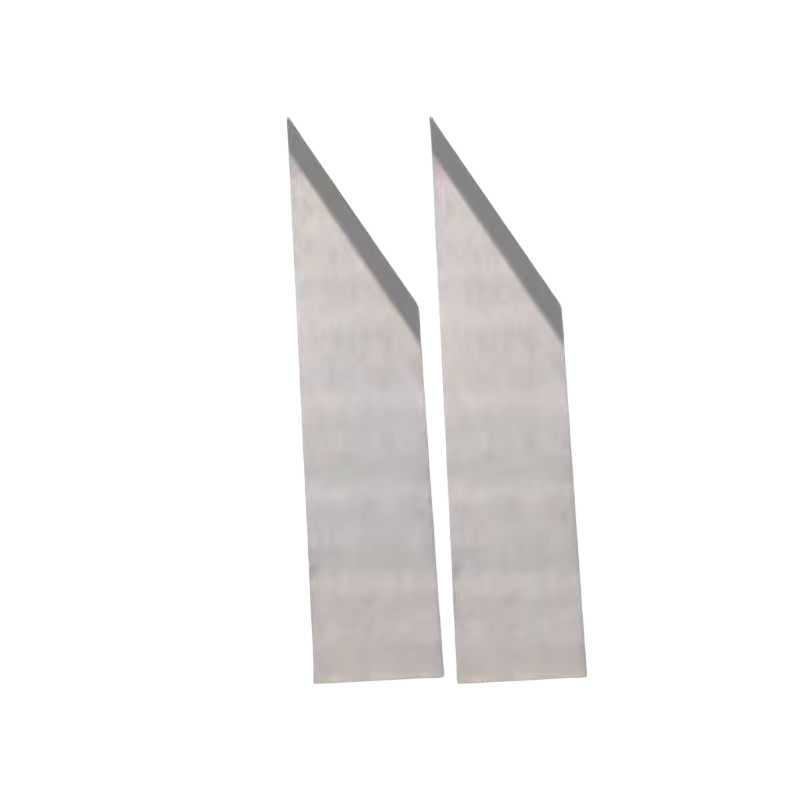

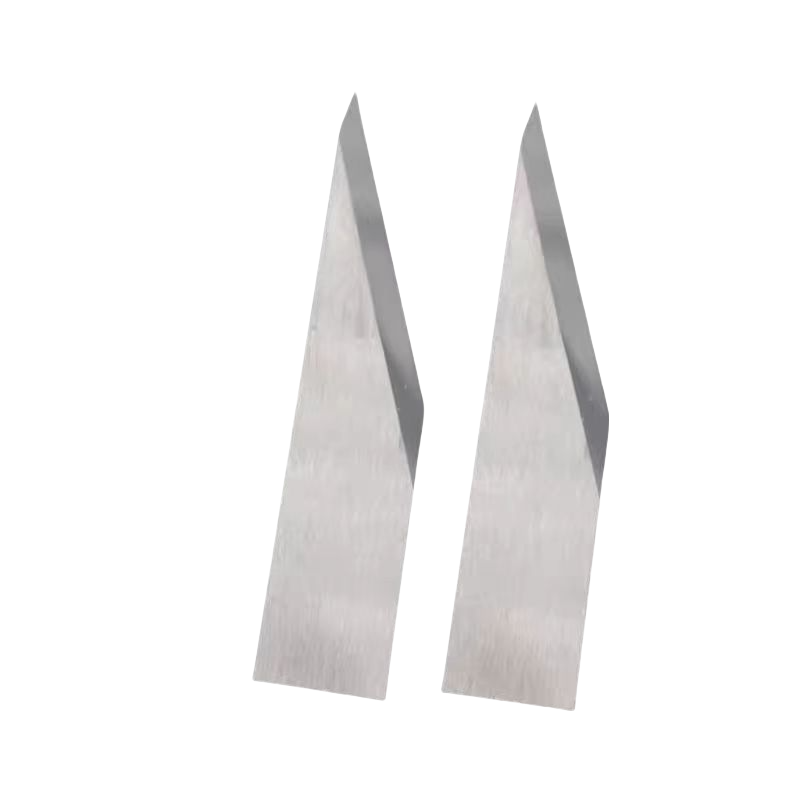

Newbull Tungsten Carbide Knives/Knife Blades

Newbull Knives,Newbull Blades,Newbull Blade,Newbull Knife,Newbull Knife Blades

How many blade types of DCP series cutting machine ?

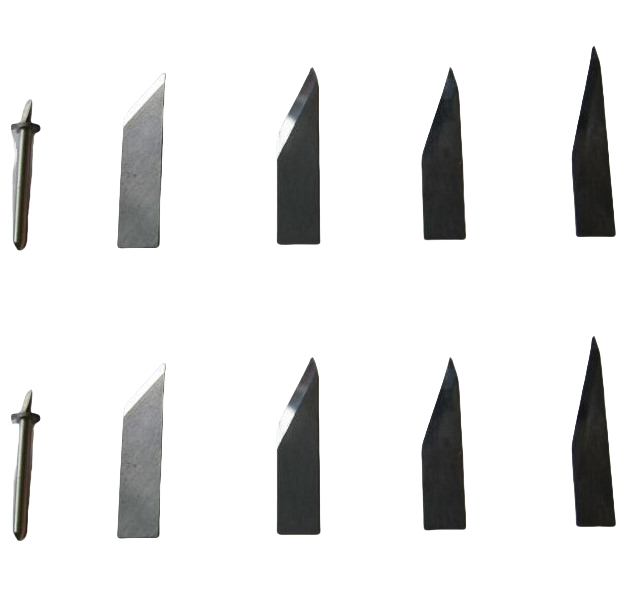

CUTCNC cutting blade
Left 1：Special blade, cutting thickness: within 1.5mm. cutting materials：paperboard, Kraft paper, gray board、offset board and self-adhesive paper.
Left 2：39°blade,cutting thickness: Within 3mm. cutting materials：paperboard, Kraft paper, gray board、offset board, self-adhesive paper and compound materials.
Center：26°blade，cutting thickness: Between 5mm and 7 mm. cutting materials：corrugated board,paperboard, Kraft paper, gray board、offset board, self-adhesive paper and compound materials.
Right 2：20°blade, cutting thickness: Between 7mm and 10 mm. cutting materials：corrugated board, paperboard, Kraft paper, gray board、offset board, self-adhesive paper and compound materials.
Right 1：16°blade, cutting thickness: Between 10mm and 15mm. cutting materials：corrugated board, paperboard, Kraft paper, gray board、offset board, self-adhesive paper and compound materials.

Core Blade Categories & Tool Head Types

Blade Category / Module	Cutting Action	Common Target Materials
Oscillating Blades (EOT Electric / POT Pneumatic)	High-frequency vertical stroke vibration	Corrugated board, foam core, KT board, rubber gaskets, felt, dense sponge, leather.
Drag Knife Blades	Continuous smooth directional drag	Vinyl stickers, thin cardboard, paperboard, PVC film, gasket sheet, magnetic foil.
Tangential / Driven Rotary Blades	High-speed circular rotation / motor driven	Woven fabrics, carbon fiber, fiberglass, banner textiles, soft synthetic leather.
V-Cut Blades	Angular chamfering / grooving (45°, 30°, 22.5°, 15°)	Honeycomb board, heavy cardboard, acoustic felt panels for structural folding box creation.
Creasing / Kiss-Cut Blades	Controlled depth scoring or pressure creasing	Packaging mockups, labels, stickers, self-adhesive sheets.
