Zund Z62 Oscillating Blades For Zund Digital Cutter | Cutting Systems | Flatbed Cutter 5002488

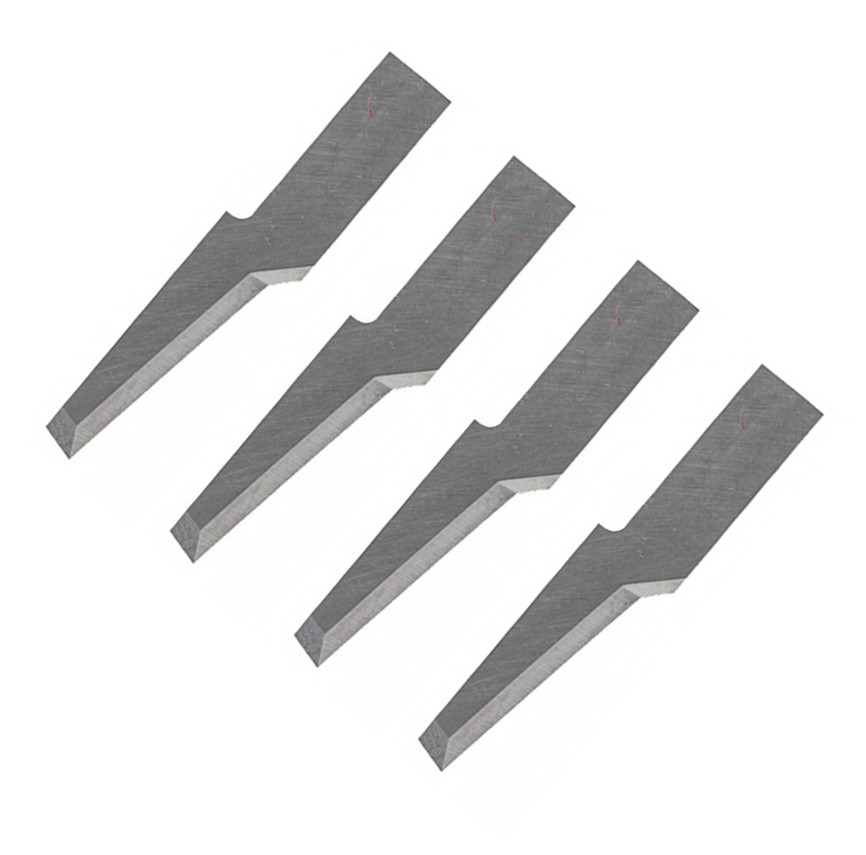

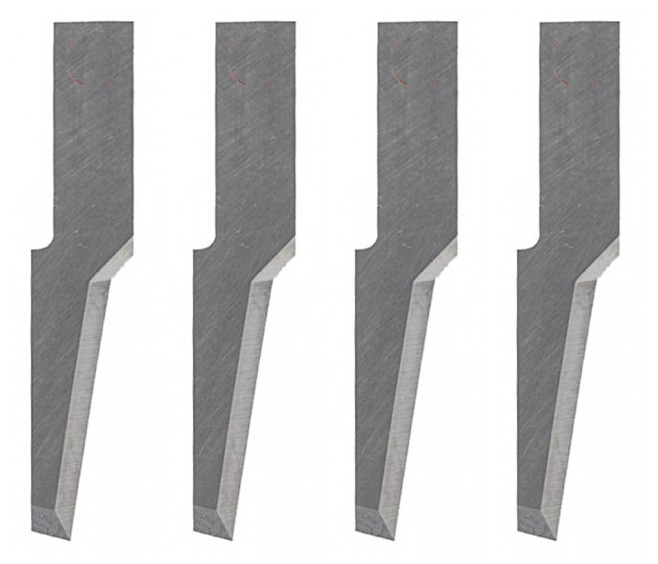

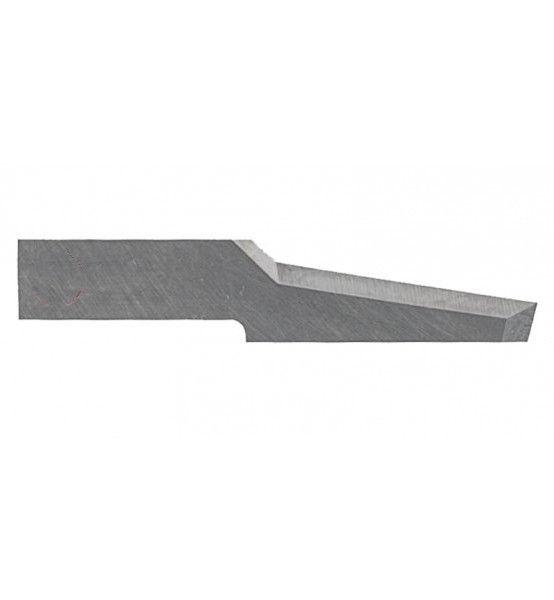

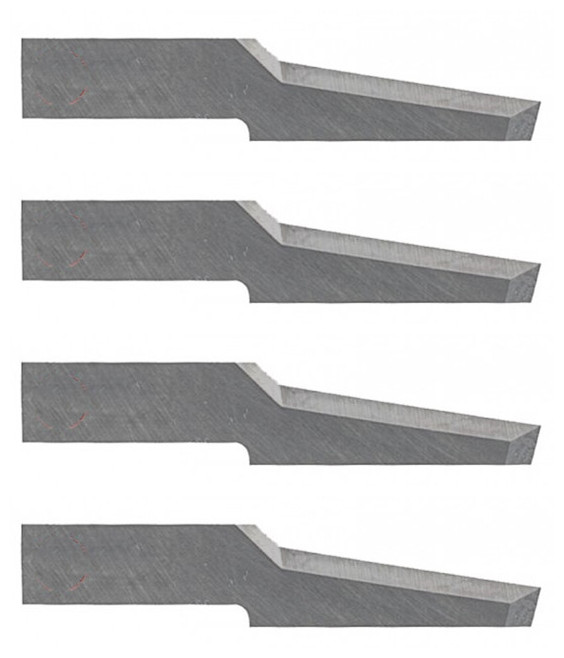

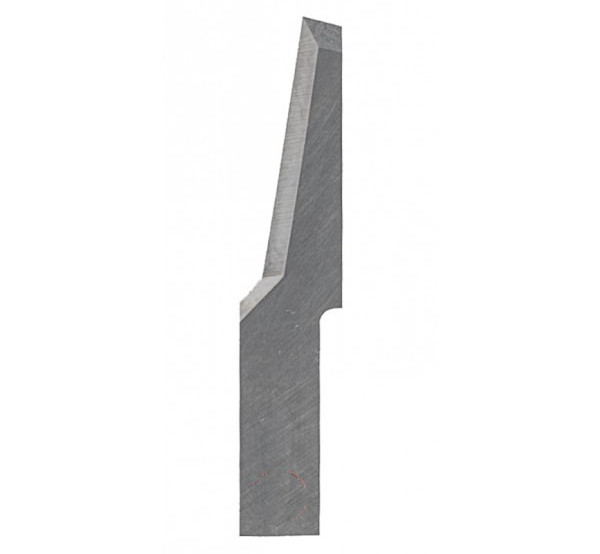

Zund Z62 Solid Carbide Vibrating Flat Cutting Blade(Official order number:5002488 is a high-precision tungsten steel vibrating blade designed specifically for CNC flat-top cutting machines. Officially, it is defined as a "flat vibrating tip with minor initial correction". Enquire now

Description

Zund Z62 Oscillating Knife Blades 5002488 For Zund Digital Cutter | Cutting Systems | Flatbed Cutter

Zund Knife,Zund Z62,Zund Z62 blade,Zund Oscillating blade,Oscillating blade,Zund 5002488,Zund Z62 Knife

ANGLE
15°/78°
KNIFE HEIGHT
28,00 mm
KNIFE WIDTH
4,45 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
13,20 mm
KNIFE TYPE
Flat, Oscillating blade, Pointed
MATERIALS
Aramid fibers, Carbon fibers, Corrugated cardboard, Felt, Foam board, Leather, Non-woven fabric, Nylon fabric, Polyester fabric, Textiles
KNIFE/BLADE MOUNTING
flat 0,63 mm

Suitable for machine manufacturer:
Blackman & White BW62 Carbide Oscillating Knife Blade

iEcho (iEcho CNC) : Equivalent to iEcho E62 vibrating insert.
Hasler : Corresponding modelHasler H62(1000620)
Humantec/Lectra MFC : Directly compatible with corresponding EOT/POT tools

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
