Zund Z64 Carbide Oscillating Knife Blades For Zund Digital Cutter | Cutting Systems | Flatbed Cutter

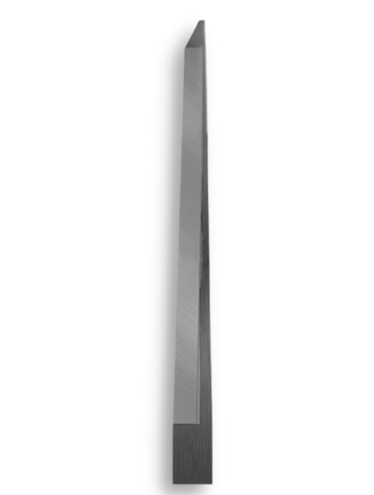

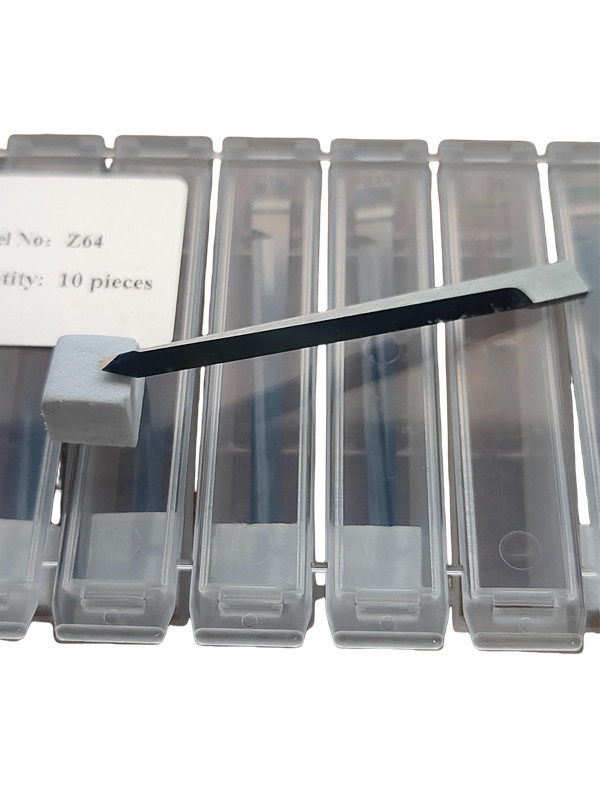

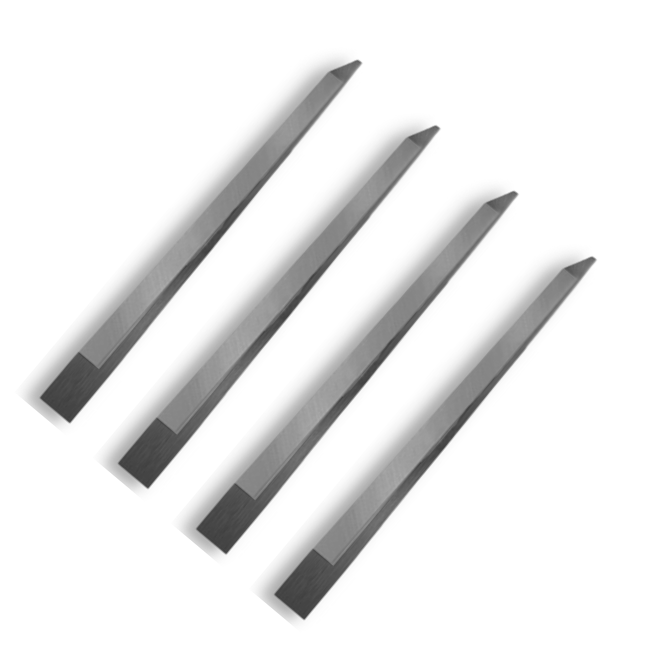

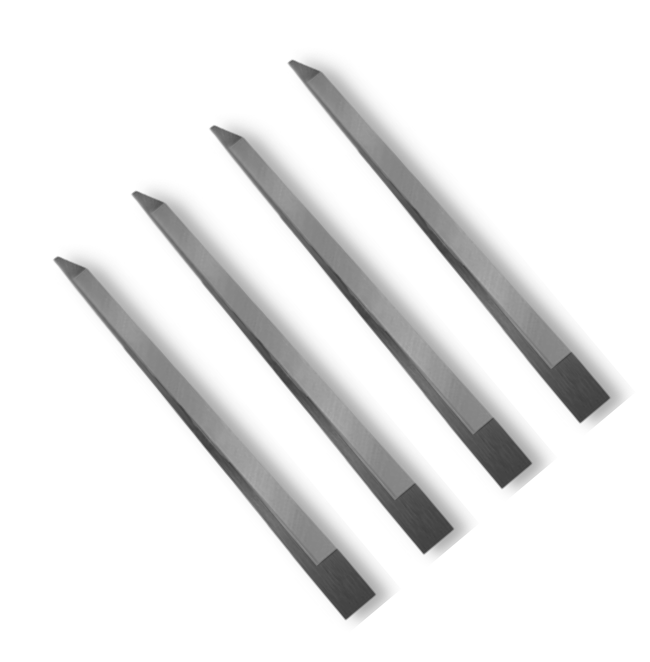

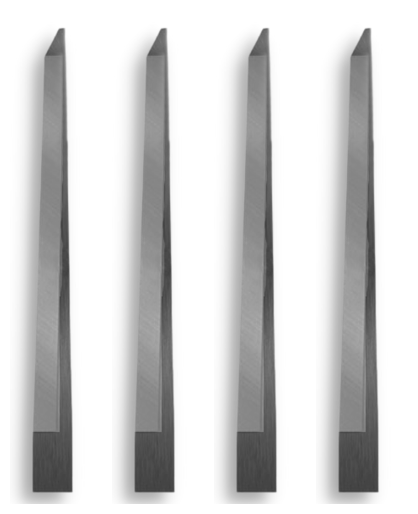

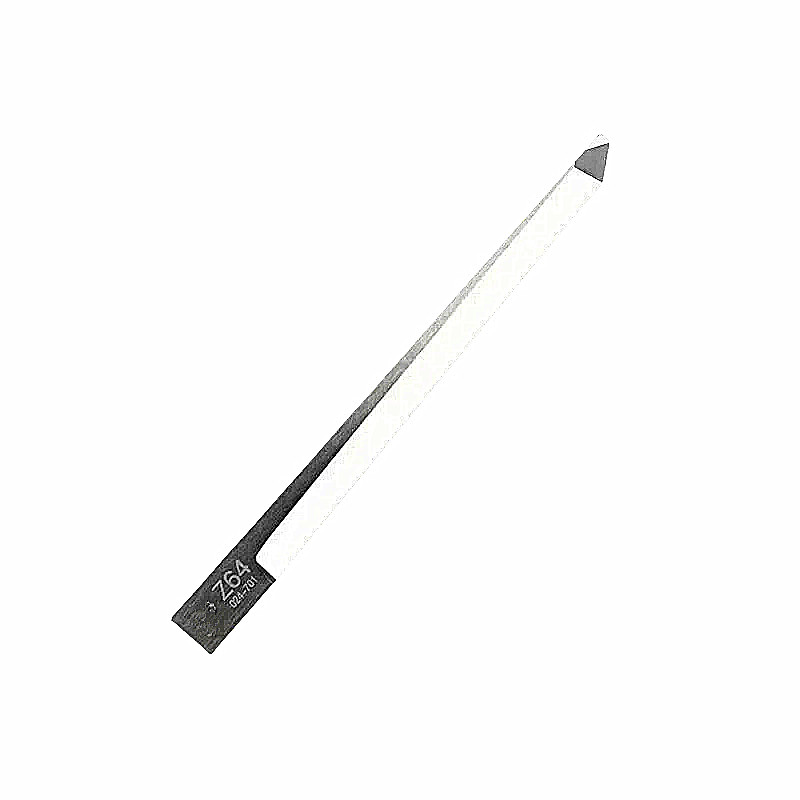

CHINA BT-2364 The Zund Z64 vibrating blade (5002739 ) isA flat vibrating blade designed specifically for machining heavy, soft materials .As a core consumable in digital flatbed cutting systems (such as Zund G3 and S3), it possesses extremely deep cutting capabilities
Enquire now

Description

Zund Z64 Carbide Oscillating Knife blades For Zund Digital Cutter | Cutting Systems | Flatbed Cutter 5002739

Zund Z64,Zund Z64 Blade,Zund Z64 Knife,Zund Knife Blade,Zund Knife,Zund Blade

Equivalent
5002739
Z64
Thickness / Type
1.50 mm
Max. cutting depth
56 mm
Pre-cut
3.5 + 0.03 x Tm
Post-cut
-
Composition
Tungsten Carbide - HM - Hard Metal
Knife width
5,7 mm

Applicable Materials and Models

Recommended materials for cutting :

Various types of foam/sponge : polyethylene foam (PE Foam), polyurethane foam (PUR Foam).
Heavy-duty packaging materials : corrugated cardboard, honeycomb board, thick cardboard.
Industrial substrates : sound-absorbing mat, rubber, felt, leather.

Compatibility tool modules :
- Pneumatic vibration tool ( POT / POT 1.5mm)
- Electric Vibration Tool ( EOT-250 )
Compatible cutting machine brands :
- In addition to being fully compatible with Zund G3 / S3 / L3 flatbed cutting machines, this physical specification blade is also widely used in digital cutting systems such as Esko Kongsberg (XP/C series) , Summa F series , Multicam Celero, iEcho, and Gerber MCT.

Suitable for machine manufacturer: blade no.
Zund: 5002739, Z64
Mécanuméric: 100610620, COMPO008773 / Blade holder no. 202306207 / Blade holder clamp no. 202306197
