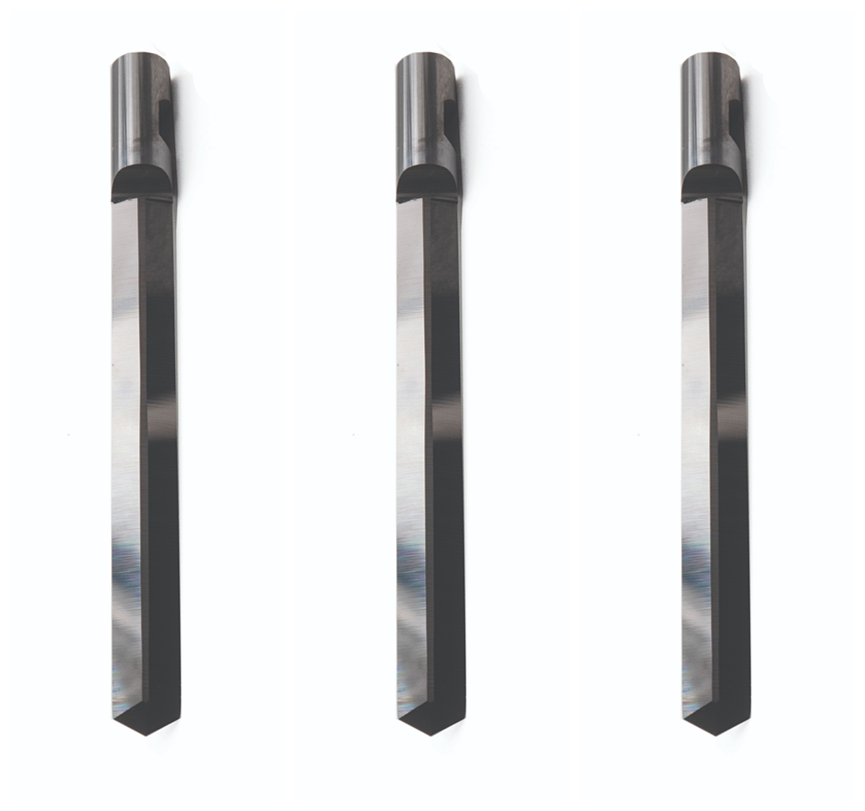

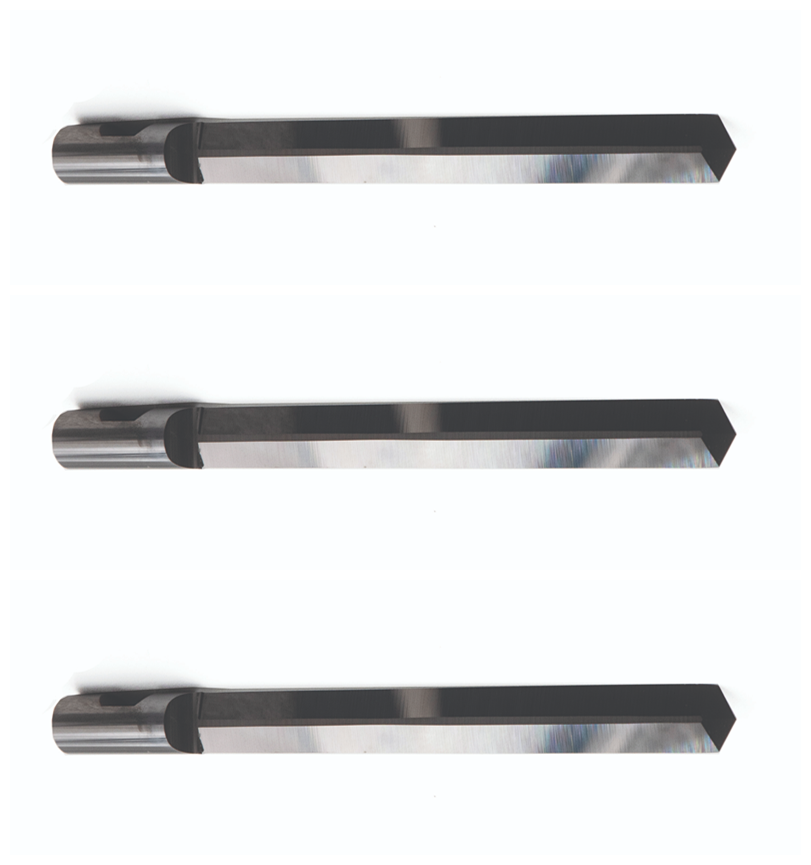

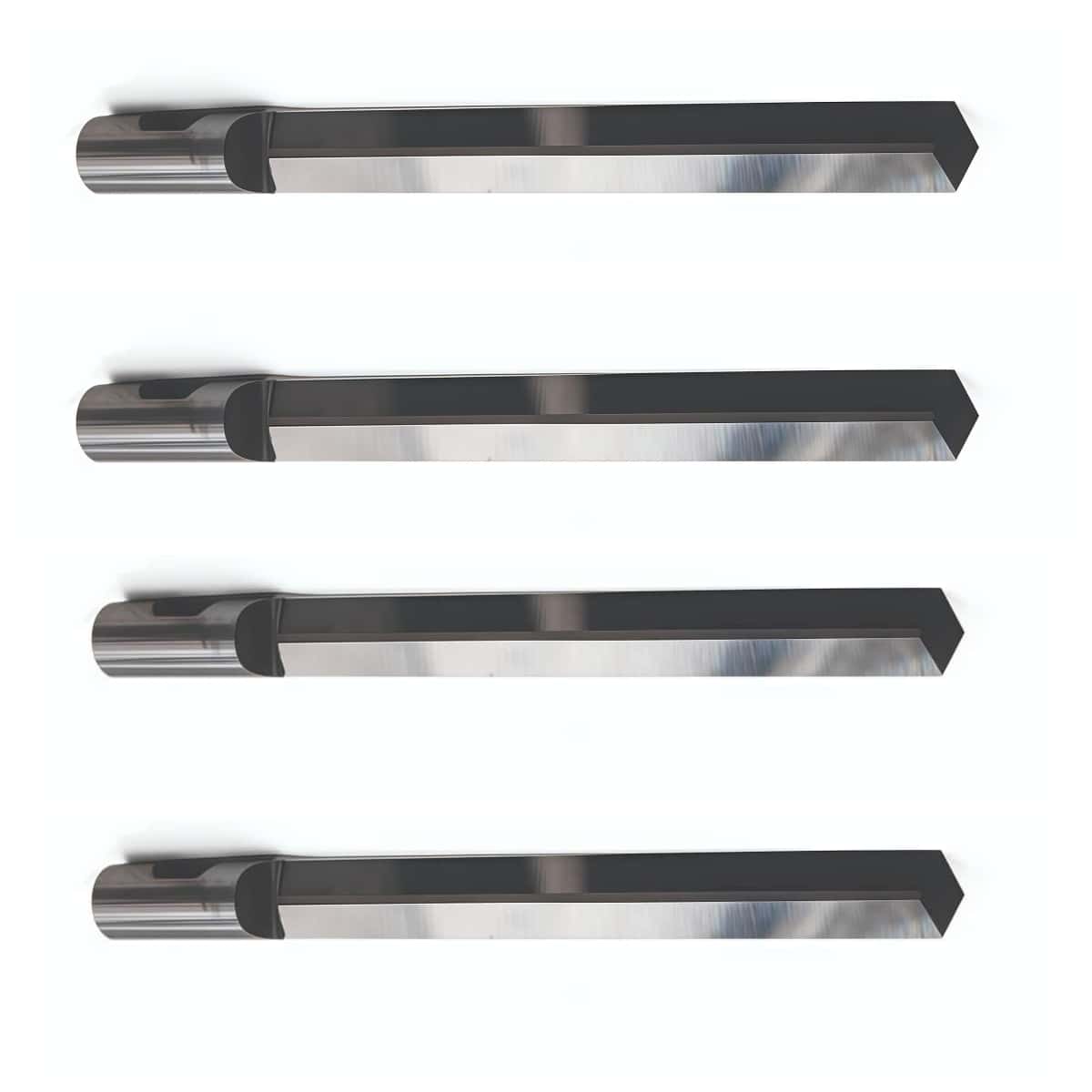

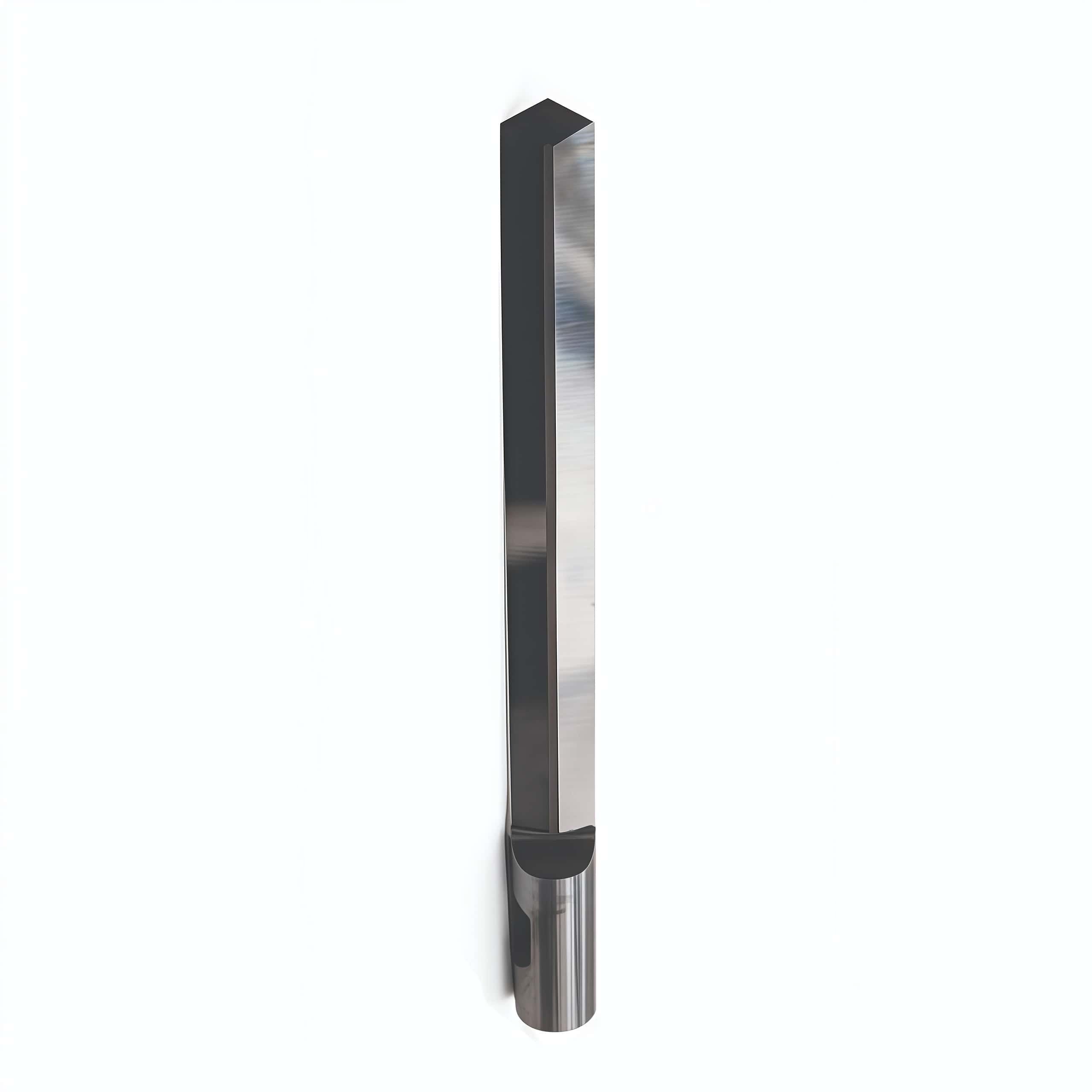

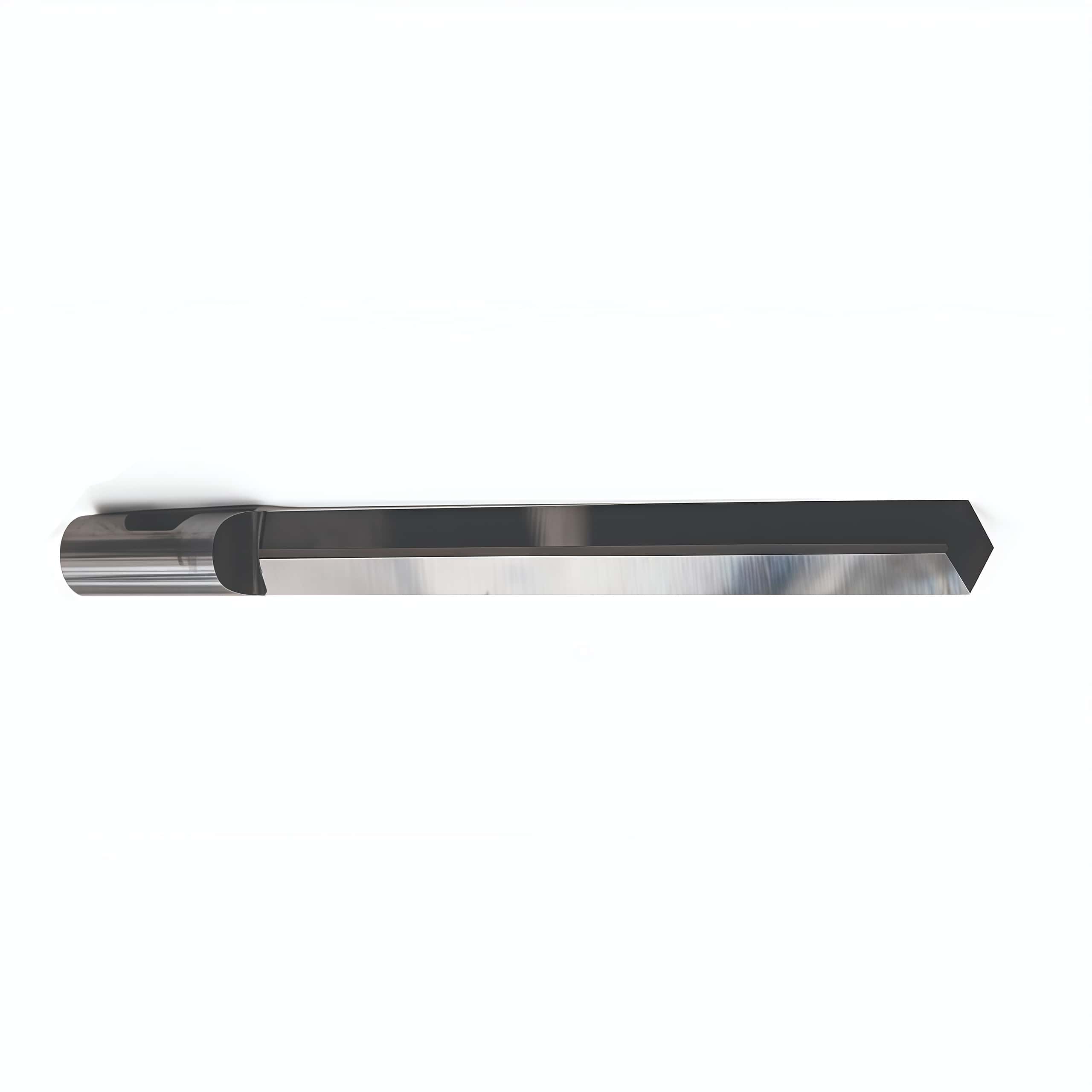

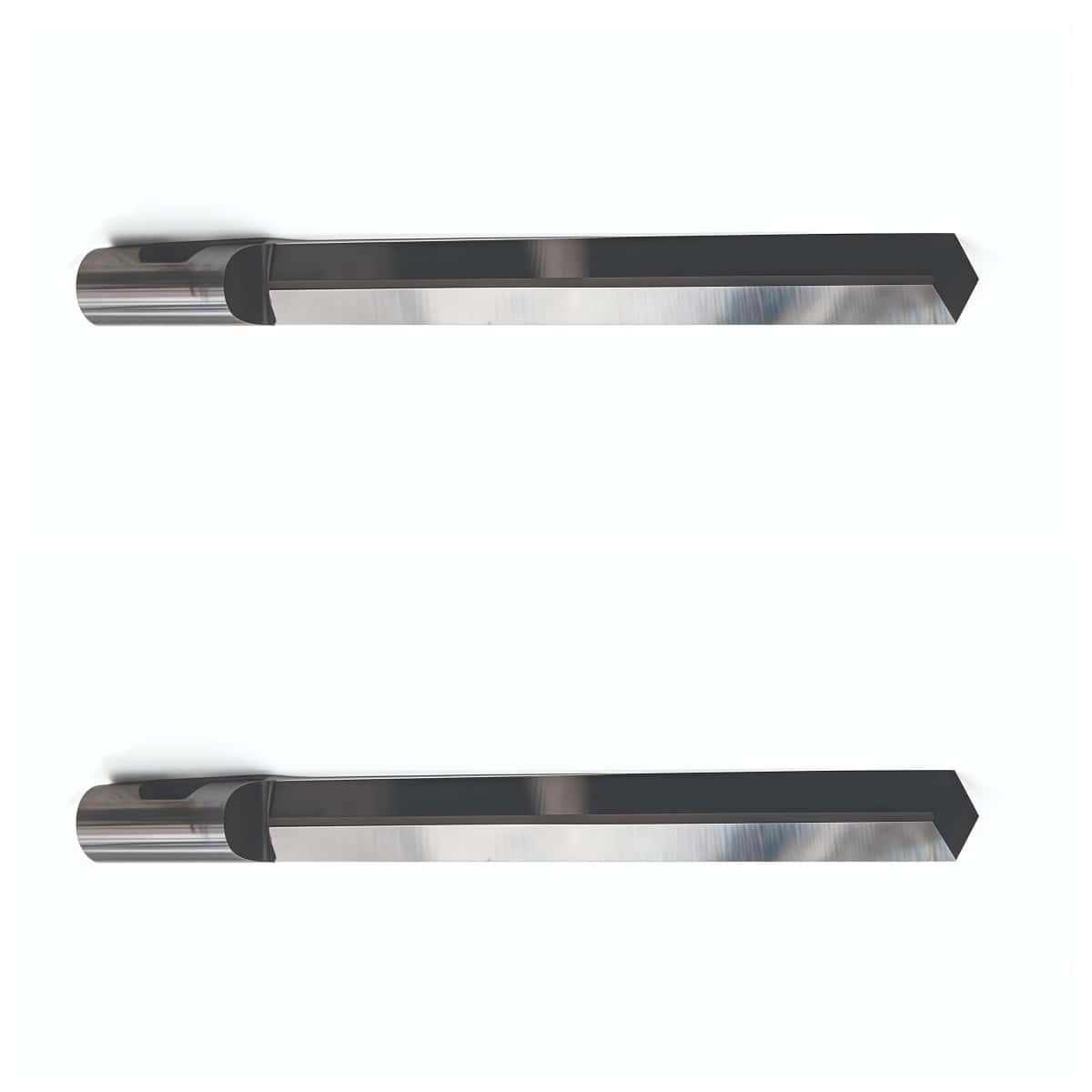

Multicam 84-00193-BT-56255 K114 Oscillating Knife Blades For Multicam Flatbed Cutters And Routers

Multicam 84-00193-BT-56255 K114 Oscillating Knife Blades is high-performance solid carbide vibrating insert designed specifically for industrial flatbed cutting machines and CNC engraving machines.
Enquire now

Description

Multicam 84-00193-BT-56255 K114 Oscillating Knife Blades For Multicam Flatbed Cutters And Routers

Core Technical Specifications

Cutting Length : 55mm , designed for medium-thickness materials.
Total Length : 71mm .
Shank Diameter : 6mm round shank with Weldon flat locating facet (for positioning and fastening).
Tip Style : V-shaped tip (Pointed / V-Point Tip) , providing excellent penetration and piercing power.
Cutting structure (Edge Type) : Double-edged design (90° geometric cutting angle) , supporting bidirectional or more complex curved contour cutting.
Material : High-quality tungsten carbide , extremely wear-resistant, with a cutting life many times that of high-speed steel.

Suitable for cutting materials

Thanks to its double-edged and pointed design, the K114 blade performs exceptionally well in vertical cutting and cutting intricate details of semi-rigid and porous materials.

Corrugated cardboard and honeycomb
High-density foam board and KT board (Foamboard / Foam)
Folding Cartons and Packaging Cardboard
Rubber and soft gasket materials

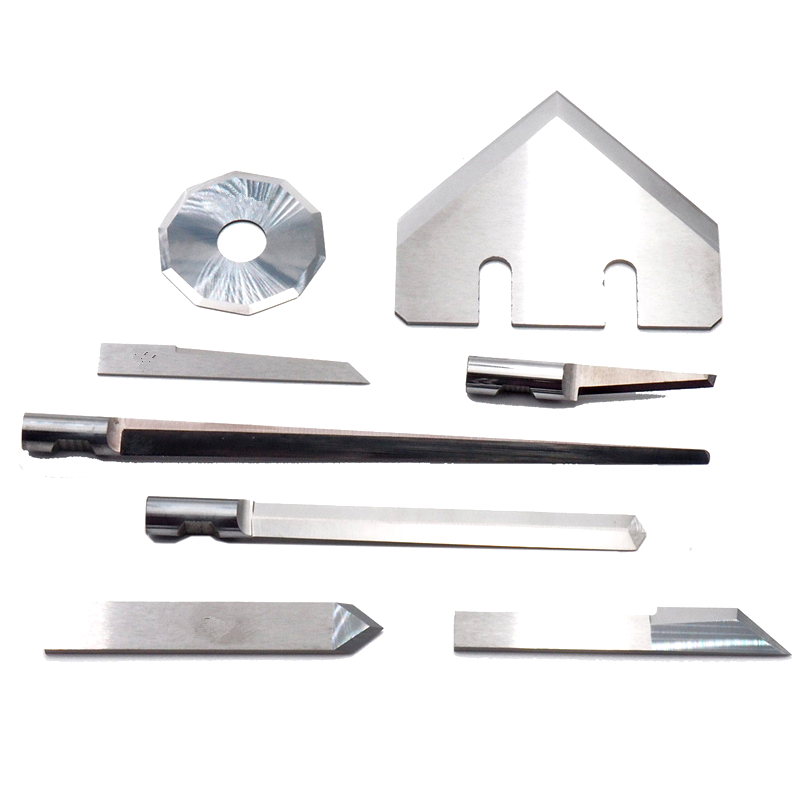

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
