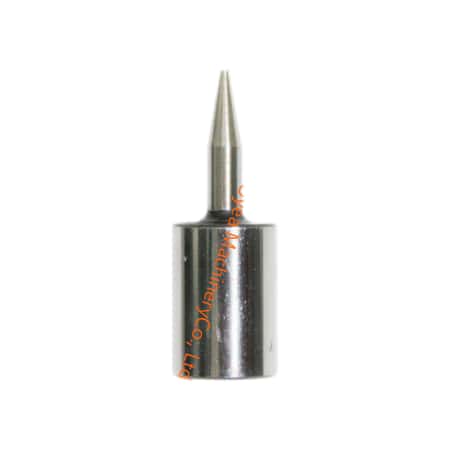

Zund 3999211 Punching/Notching bits Bit Hss H100 Supplies

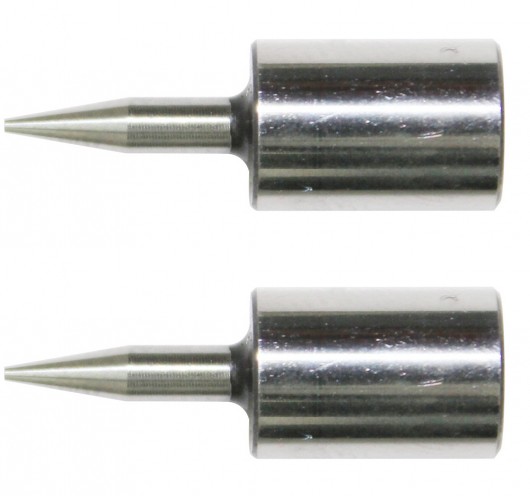

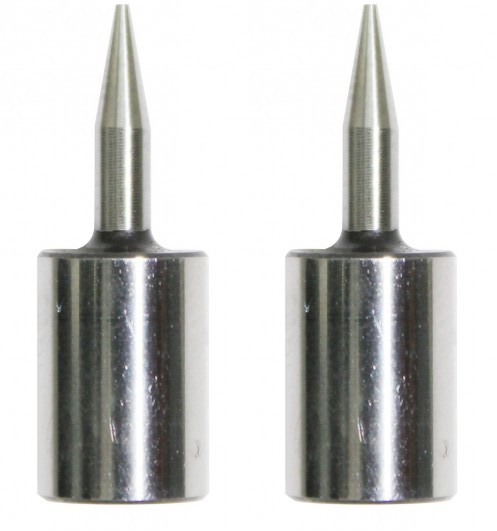

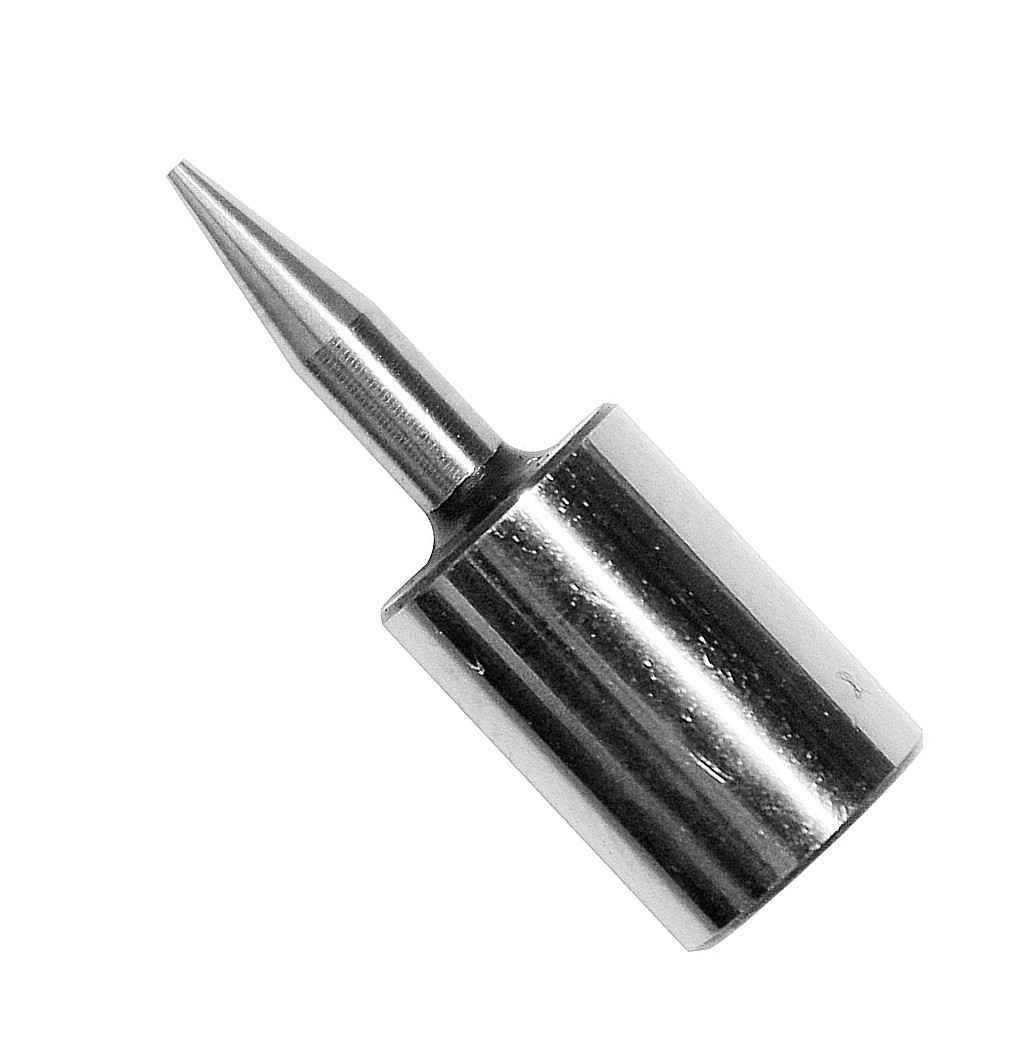

Zund 3999211 (Punching Bit HSS H100, 0.5 mm) is a high-precision hollow punch bit designed for official Zund digital cutting systems. It is primarily used with specialized punching and marking modules (such as the Zund NMM - Notching Marking Module or PPM - Punch Module Enquire now

Description

Zund 3999211 Punching/Notching bits Bit Hss H100 Supplies Replacement Compatible Accessories

Zund Punching,Zund 3999211,Zund Punching Bit,Zund 3999211 Bit

Technical Specifications

Parameter	Specification
Zund Item Number	3999211
Material	HSS (High-Speed Steel)
Type	Punching / Notching Bit (H100 Series)
Punch Diameter	0.5 mm
Shank / Tool Holder Diameter	7 mm
Module Compatibility	Zund NMM (Notching Marking Module), PPM (Punch Module)
System Compatibility	Zund G3, D3, S3, L3 digital cutters

Key Applications & Advantages

Intended Materials: Leather hides, suede, technical textiles, rubber gaskets, vinyl, woven fabrics, and garment/upholstery patterns.
Function: Used to punch fine 0.5 mm positioning/sewing reference holes or ventilation holes at high speeds (up to 8 holes per second depending on material density).
Precision: High-Speed Steel (HSS) material retains a sharp cutting edge for clean cuts without tearing flexible media.
Waste Removal: Operates with internal evacuation through the 7 mm shank to direct punched material plugs into the module's receptacle.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
