Zund H111 Punching Bit 3999209 Hollow Punch Tube For Zund Digital Flatbed Cutters

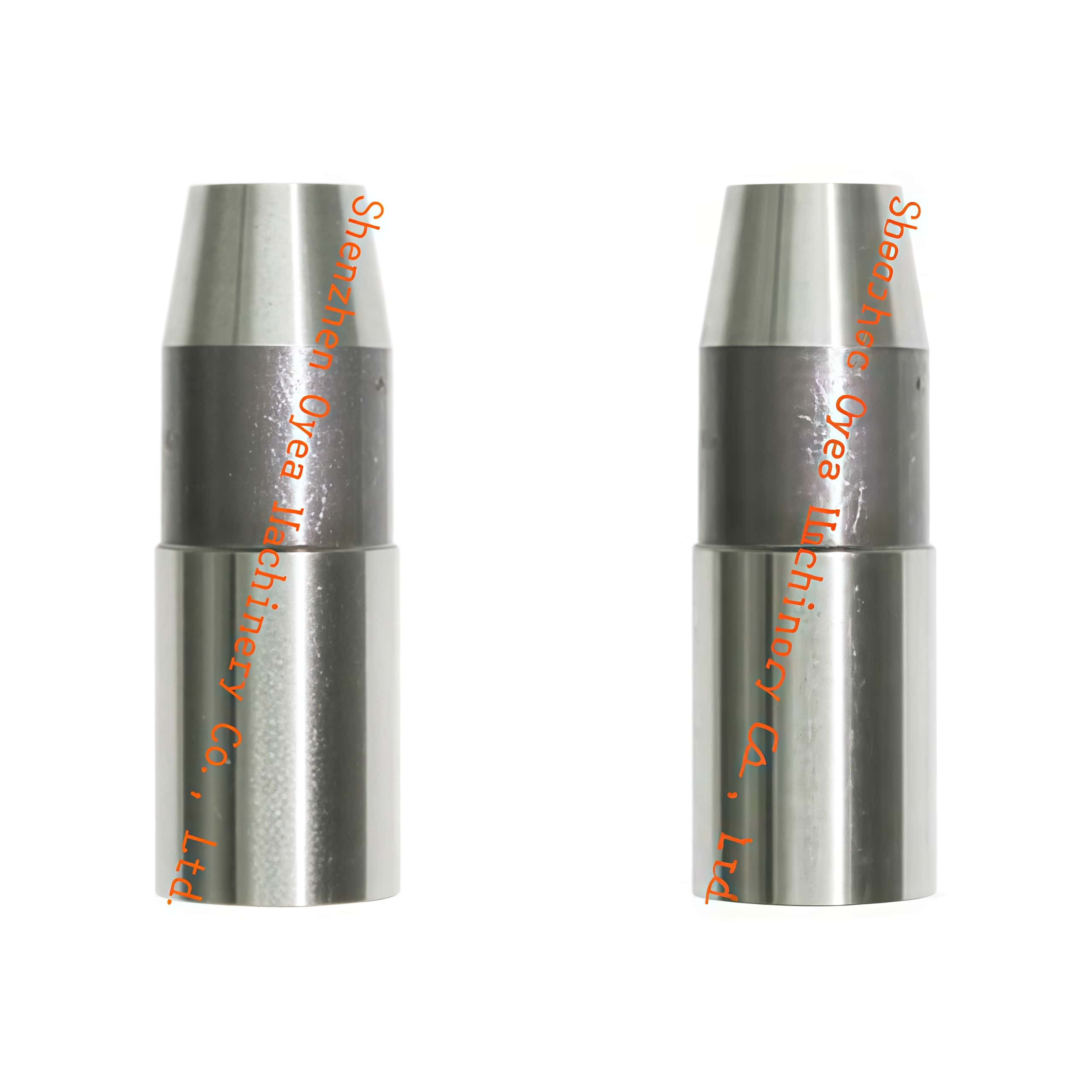

Zund H111 Punching Bit (Item No. 3999209) is a heavy-duty, High-Speed Steel (HSS) hollow punch tube engineered for precise, high-speed perforation on automated Zund digital flatbed cutting systems. Enquire now

Description

Zund H111 Punching Bit 3999209 Hollow Punch Tube For Zund Digital Flatbed Cutters

Key Specifications

Punch Diameter: 5.0 mm
Cutting Depth: 7.0 mm (maximum material thickness)
Tool Holder (Shaft): 7.0 mm
Material: Premium High-Speed Steel (HSS)

Hardware & Software Integration

Compatible Hardware: Operates inside Zund tool modules designed for 7mm shank bits, including the Punch Module (PM) and the Punching Tool (PNT).
Multi-Tool Systems: Frequently utilized in specialized modules such as the Punching Marking Module (PMM) and the Punching Pricking Module (PPM).
System Compatibility: Fully compatible with Zund G3, S3, D3, and L3 digital flatbed cutters.
Automation Workflow: Works natively with Zund Cut Center (ZCC) to handle precise positioning and vacuum-assisted hollow waste ejection to prevent material buildup.

Recommended Materials

This 5.0 mm bit is designed to create clean, debris-free holes without fraying or tearing in:

Genuine Leather: Ideal for assembly holes and decorative perforations in automotive and upholstery leather.
Technical Textiles: Punches dense woven fabrics, industrial canvas, and synthetic fibers cleanly.
Industrial Gaskets: Delivers sharp edges for bolt holes in rubber, neoprene, and sealing polymers.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
