Key Specifications

Compatible Comelz Cutting Systems

The HZ5Z.20 is compatible with Comelz automatic cutting tables equipped with pneumatic punching units, including:

Comelz CJ1 / CJ2 series – Up to 600 punches/min

Comelz CZM series – Up to 300 punches/min

Comelz BX / BXM series – Standard punching modules

Comelz FX / FXS series – High-frequency punching heads

·

These machines typically feature 4–7 independent punching units integrated into the cutting head, allowing simultaneous perforation and cutting operations.

Material Applications

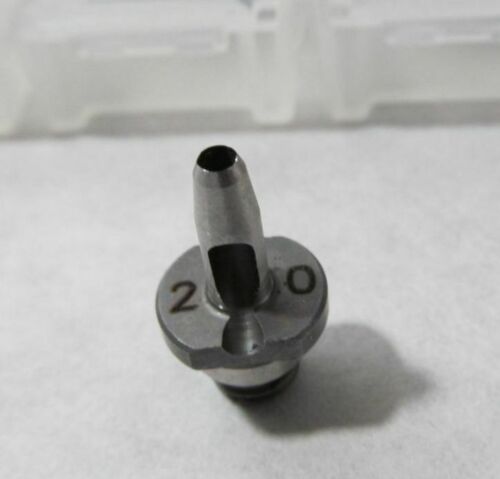

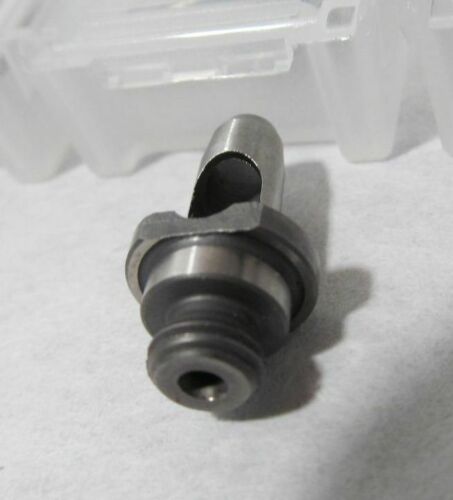

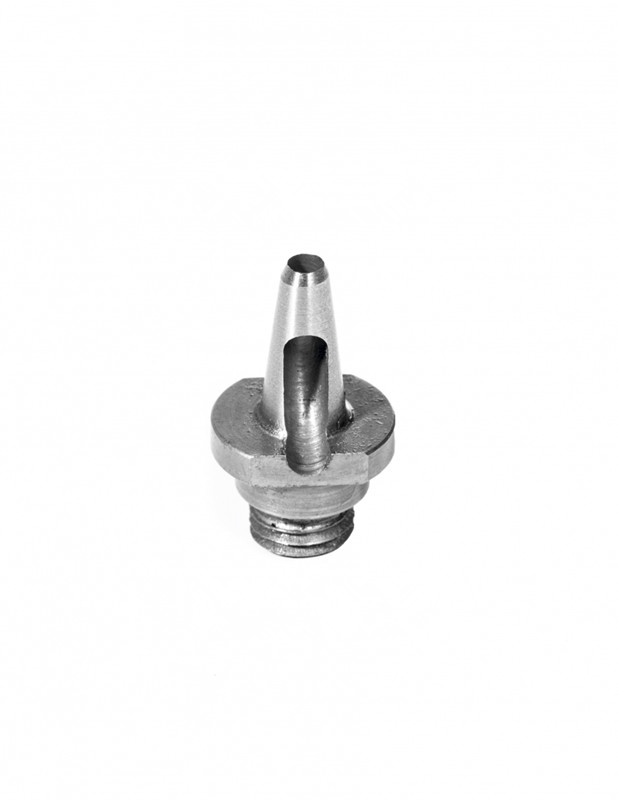

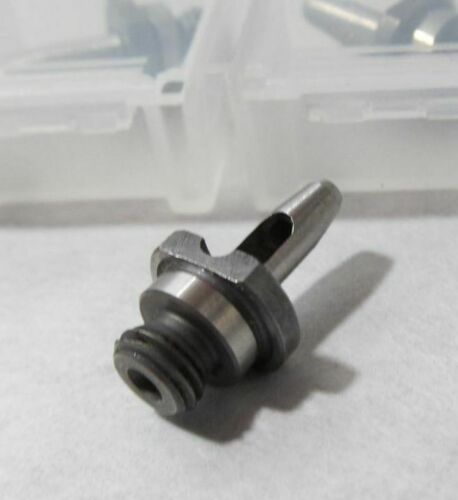

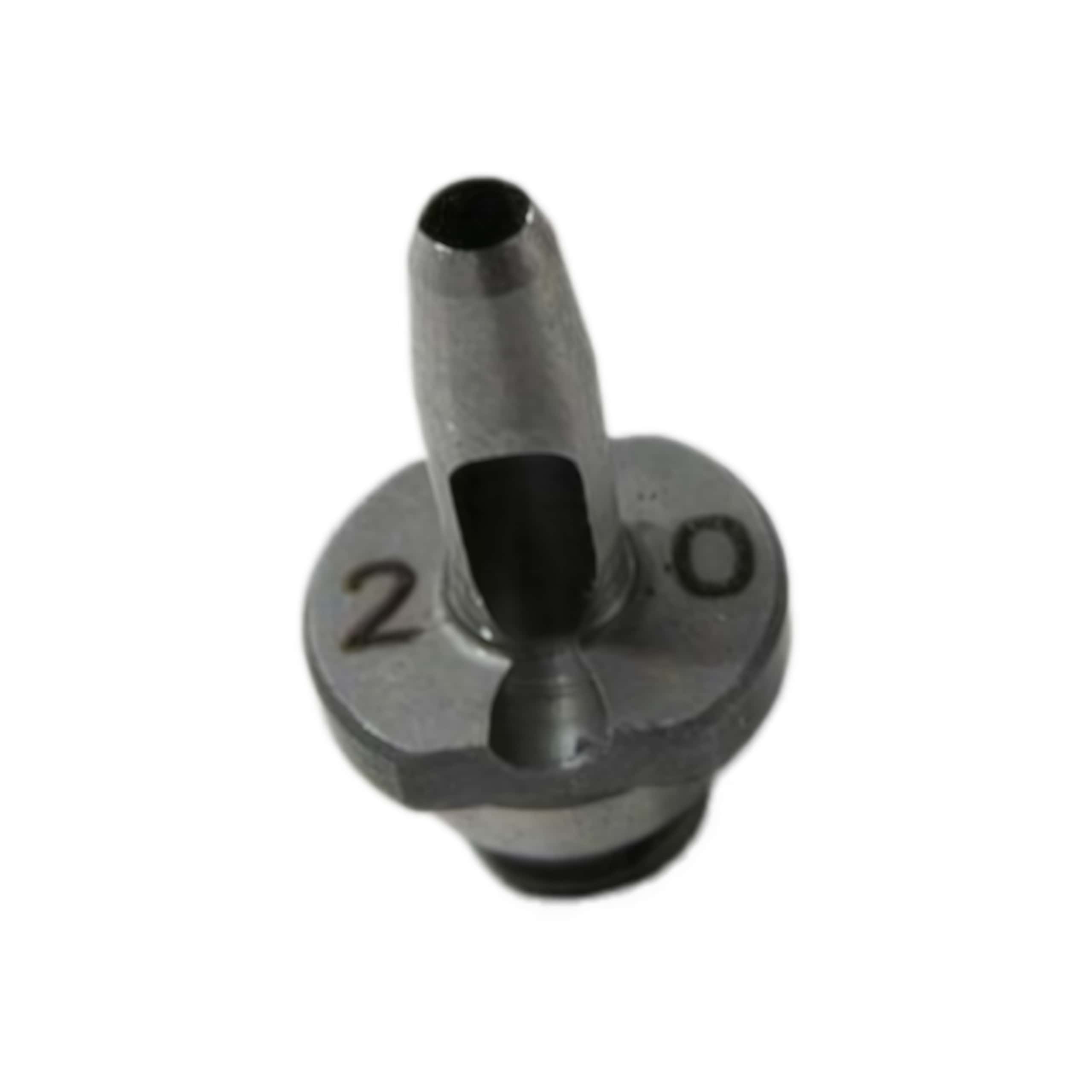

The 2.0 mm punch is optimized for perforating:

Leather: Full-grain, split, synthetic leather, automotive upholstery leather

Fabrics & Textiles: Technical textiles, coated fabrics, canvas, polyester, nylon, mesh

Cardboard & Paperboard: Folding carton, packaging board, corrugated cardboard (single-wall)

Technical Materials: Gasket materials, rubber sheets, foam-backed textiles, composite laminates

Typical Applications

Decorative perforation: Fashion leather goods, shoes, bags, automotive

Ventilation holes: Automotive seats, footwear, sports equipment, technical apparel

Tear-off patterns: Packaging, promotional materials, ticket perforation

Registration marks:Alignment holes for multi-layer assembly

Stitch guides: Perforated lines for hand-stitching leather goods
