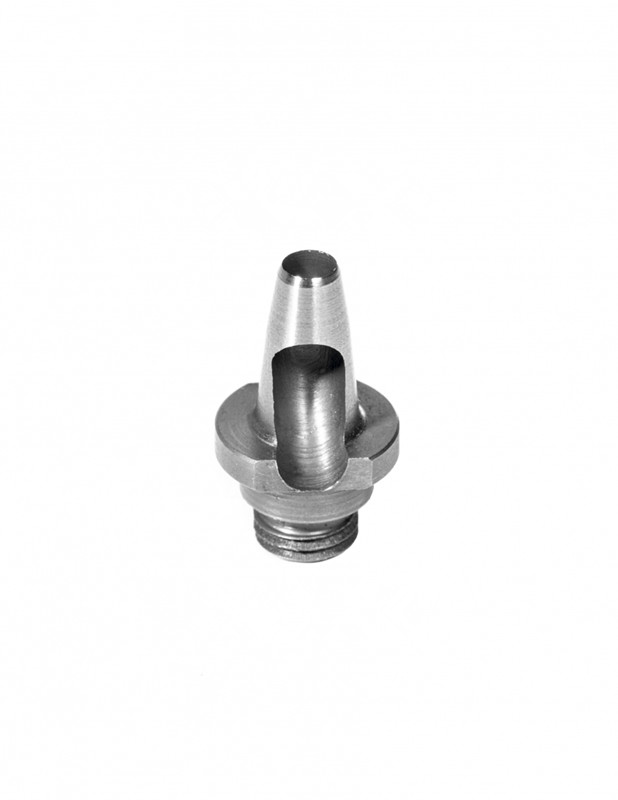

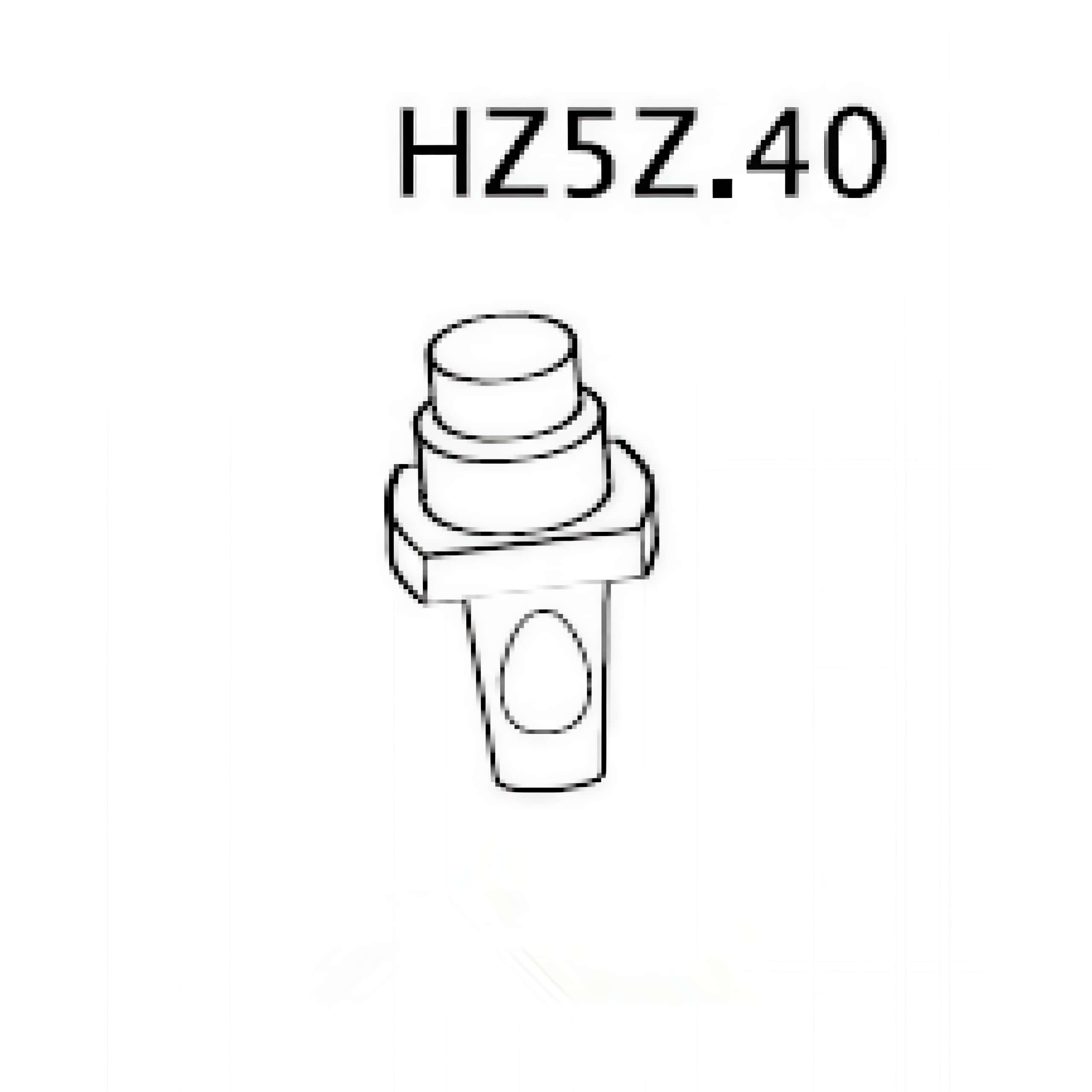

Comelz Punching Tools 4.0(HZ5Z.40)
Comelz Punching Tools 4.0 (HZ5Z.40) is a high-precision punching bit, expertly crafted for Italian Comelz automated CNC leather cutting machines, including models like the Comelz P55+ and CZ P series. Enquire now
Share this:
 Facebook  Twitter  LinkedIn  Google+  Addthis
Comelz Punching Tools 4.0(HZ5Z.40)

Core technical parameters
  • Perforation diameter (Ø) : 4.0 mm . This size is specifically designed for punching standard 4 mm round through holes, widely used in footwear, bag fabrics, car seat covers for ventilation holes, and decorative cutout designs.
  • Base interface : Threaded structure; there are two main compatible base specifications on the market:
    • 8 mm threaded base (most common HZ5Z.40 standard specification).
    • 6 mm threaded base (for specific modifications or narrow profile tool holders).
  • Material : Typically made of high-speed steel (HSS) or fine cemented carbide/tungsten carbide . High-speed steel has good toughness and fracture resistance; while cemented carbide has extremely high hardness, providing a longer cutting life.

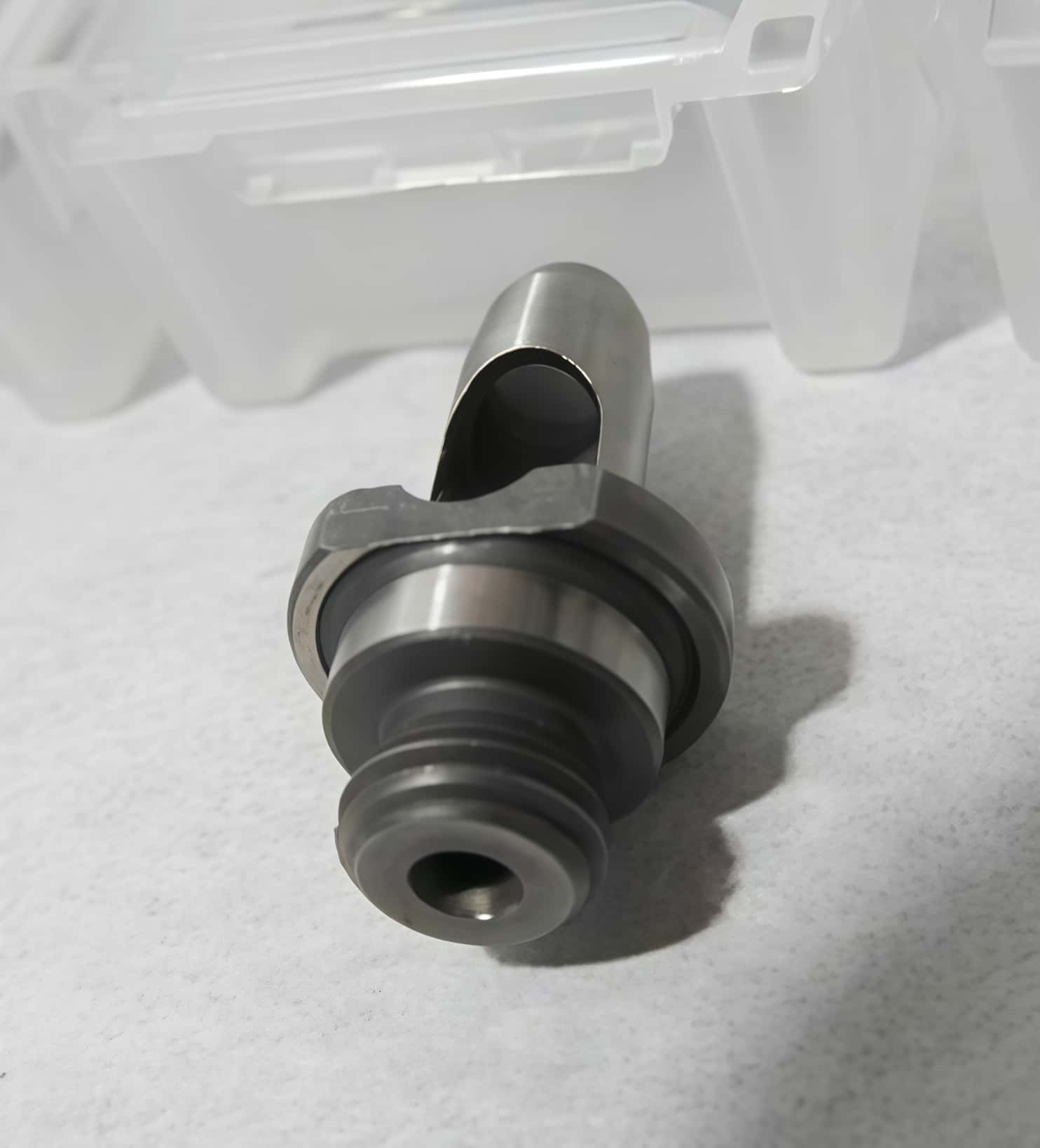

  • Structural design : Most are hollow tubular punches, some with side chip removal grooves (Lateral Evacuation) to ensure that the leather scraps (waste "punch cores") punched off can be smoothly discharged upwards or to the side, avoiding blockage of the punch and causing blade collision.
Applicable materials
Because the Comelz system is deeply integrated into the footwear and leather goods industries, this punch is primarily optimized for the following materials:
  1. Natural leather : genuine leather fabric, thick cowhide, sheepskin, etc.
  2. Synthetic/artificial materials : PU leather, PVC material, microfiber leather.
  3. Technical textiles : various shoe upper fabrics, mesh fabrics, and reinforcing linings.
  4. Structural accessories : positioning holes are punched in the middle and bottom plates, cardboard, folding boxes, etc

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
Tel:+86-0769-88014625
Phone Number:+86-18823852826
Email: info@china-oyea.com
          1659590865@qq.com
Web: www.china-oyea.com
We warmly welcome every customer to send us drawings for making customized product.  Contact with us ,you will get more than what you can !

Other models：
HZ5Z.10  - 1mm
HZ5Z.15  - 1.5mm
HZ5Z.20  - 2mm
HZ5Z.25  - 2.5mm
HZ5Z.30  - 3mm
HZ5Z.35  - 3.5mm
HZ5Z.40  - 4mm
HZ5Z.50  - 5mm
HZ5Z.60  - 6mm
