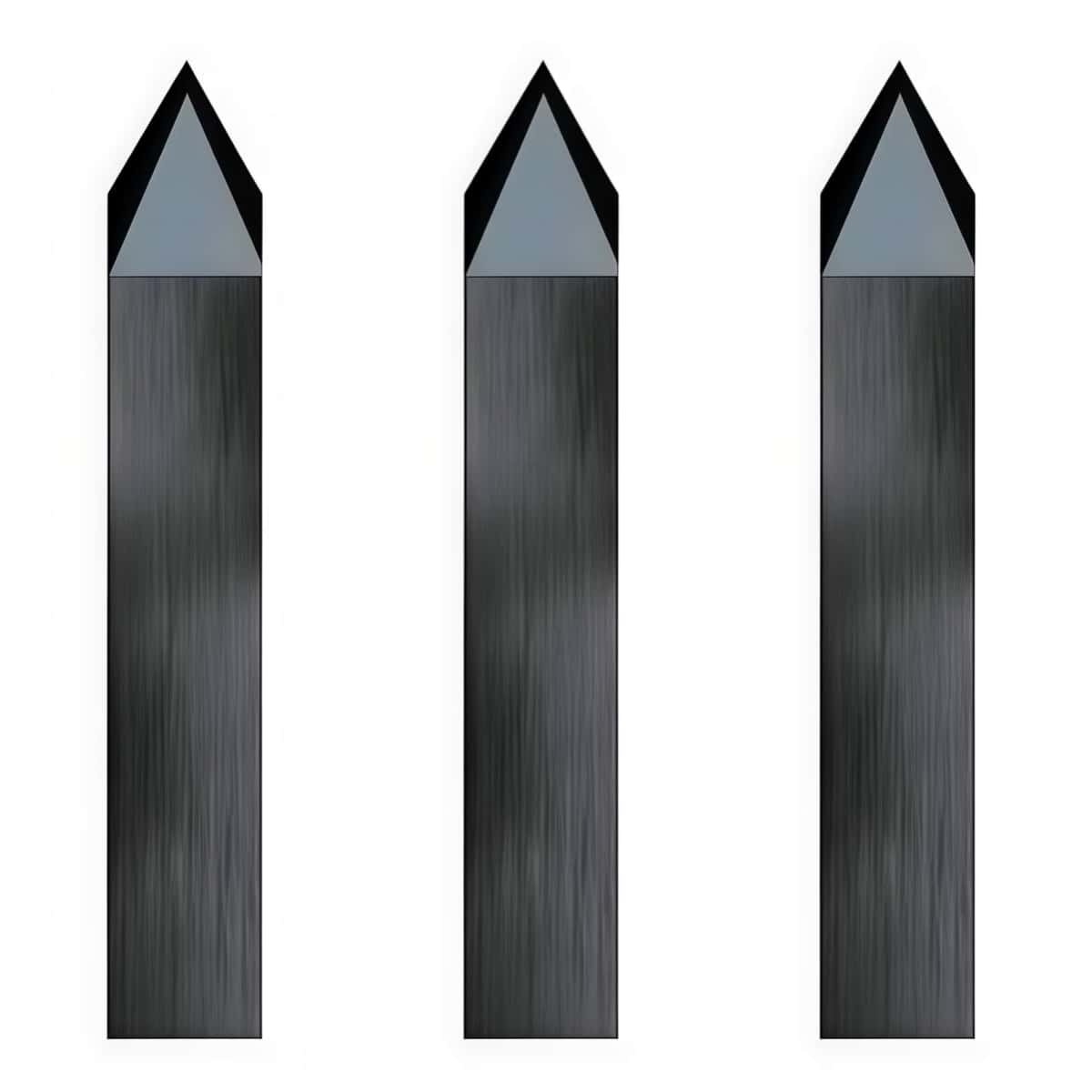

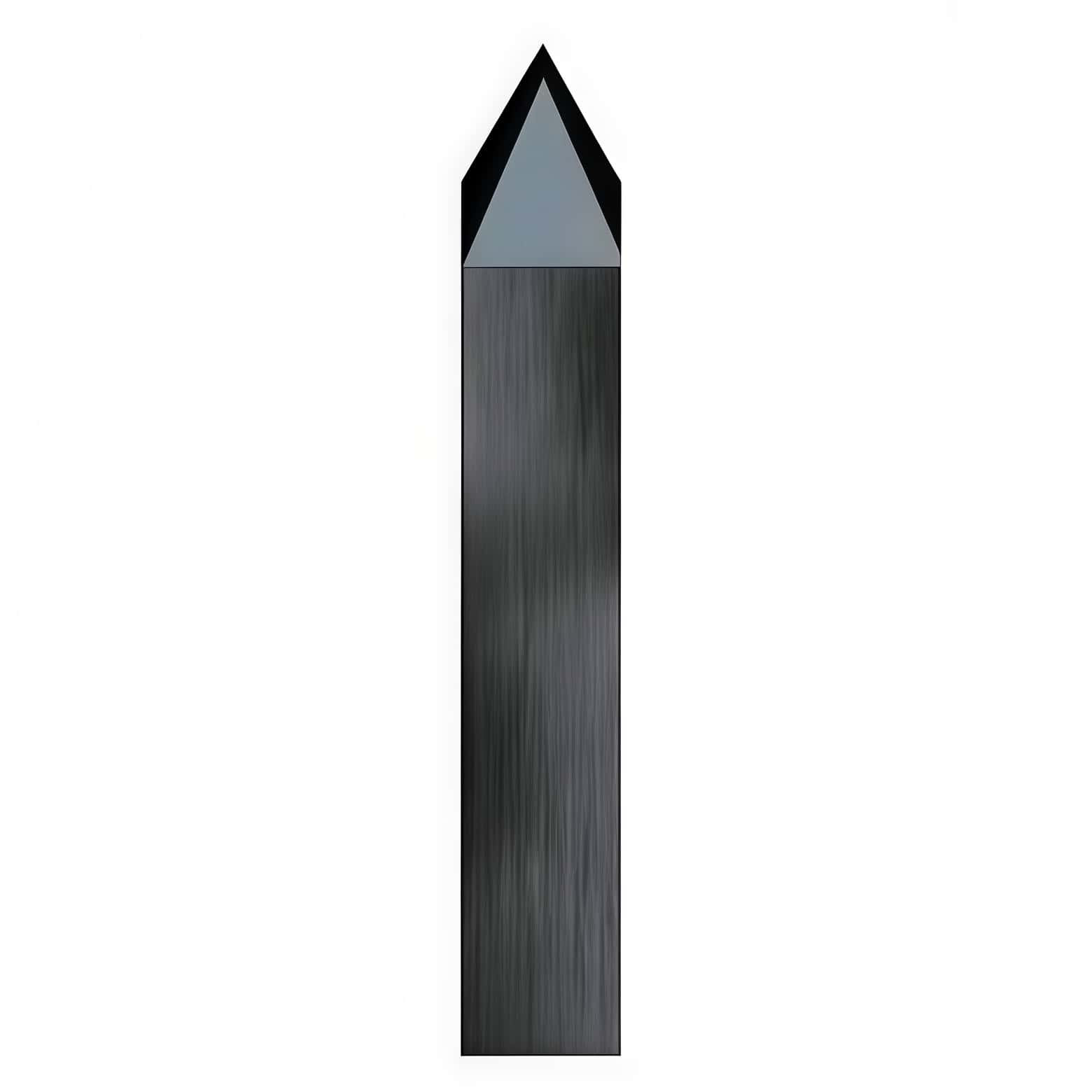

Z11 Hard Metal Drag Blade (one-piece carbide flat/drag blade)It is a standardized industrial-grade blade with extremely high versatility in the digital cutting industry . Although different brands use different designations or spare part numbers (such as Lectra's internal code 301439-14or Zund's 3910309) on their original equipment (such as CNC cutting machines and flatbed cutting machines), their physical geometry and mounting slots are completely identical, making them cross-brand drop-in replacement parts .

Core Technical Specifications

· Blade type : Flat-stock drag blade (pointed)

· Material : Fine Grain Tungsten Carbide

· Cutting edge angle : 60°

· Maximum depth of cut : 6.9 mm

· Thickness : 1.50 mm

· Height/Length : 50.00 mm

· Width : 8.00 mm

Compatibility chart for all brands and models

This blade is generally referred to in the industry as Z11 Blade It can be 100% seamlessly compatible with the following devices and cutter heads:

Applicable processing materials

Thanks to its steep 60° cutting edge angle and 1.5mm high-rigidity blade thickness , the Z11 excels at cutting medium-to-high hardness non-metallic materials that have undergone some wear or require high-precision through-cutting.

· Advertising and Signage : Lightbox fabric/tarpaulin, thick PVC banners, magnetic stickers, reflective film, self-adhesive vehicle stickers.

· Industrial packaging : corrugated plastic sheet (PP), solid cardboard, folding cartons, rigid foam core.

· Composite materials : prepreg carbon fiber, prepreg glass fiber, and aramid fiber (Kevlar).

· Sealing and others : Gasket material, sole rubber, canvas, polyester fabric.
