Esko Kongsberg BLD-DF113 Carbide Knife Blades–Manufactured In China G42443036

Esko Kongsberg BLD-DF113 Carbide Knife Blades G42443036 Scian Ar Ais Nóż z powrotem Messerklingen Лезвия ножа Lames de couteau 나이프 블레이드 Mesbladen Čepele nožů Lame de cuțit Pisau Lâminas de faca ナイフの刃 Оштрице ножа Čepele nožov Rezila nožev ใบมีด Леза ножа Hojas de cuchillo Kés pengék Lame di coltello… Enquire now

Description

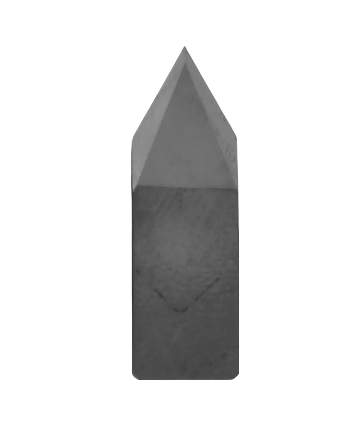

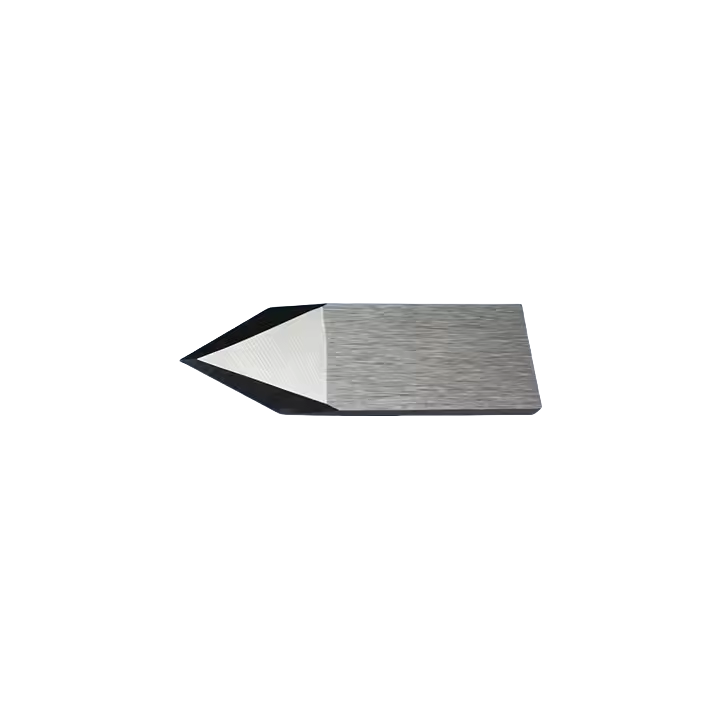

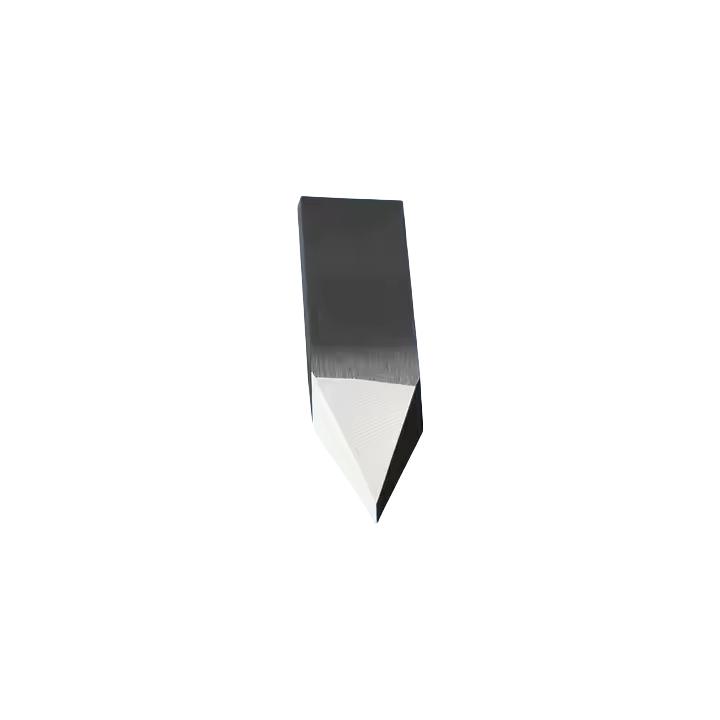

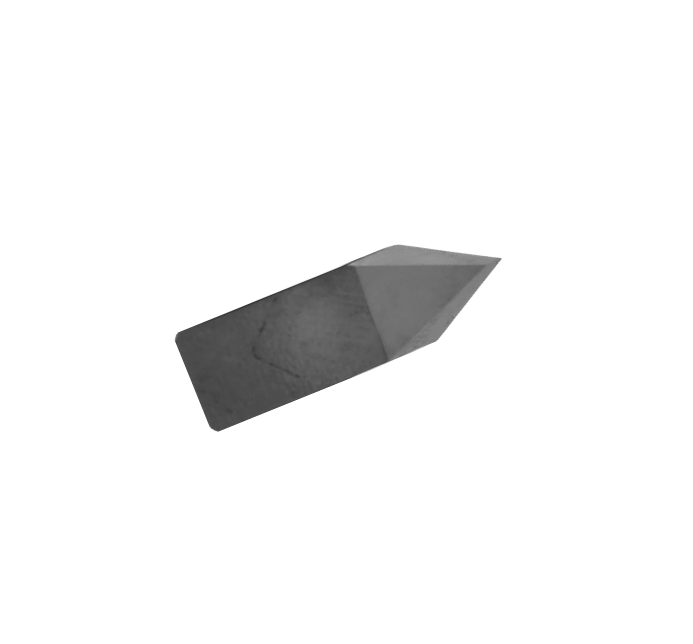

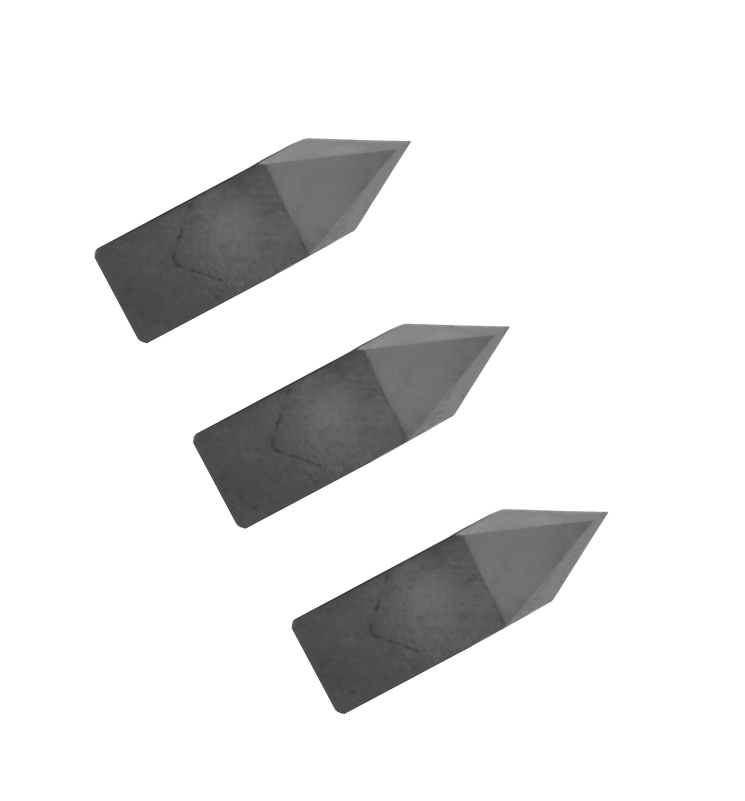

Esko Kongsberg BLD-DF113 Carbide Knife Blades G42443036

The Esko Kongsberg BLD-DF113 (Part No. G42443036) is a general-purpose, solid tungsten carbide drag blade designed for high-precision through-cutting on digital cutting tables. This 60° "sword" style blade is double-sided, allowing it to stay sharper longer than single-edge alternatives by being flipped once one side dulls.

Recommended use

General-purpose, double-sided, 60º sword knife blade for flexible materials. Used for through-cutting of paper, cardboard, vinyl, thin plastics, styrene, etc.

CUTTER BRAND
Esko Kongsberg
ANGLE
60°
KNIFE HEIGHT
25,00 mm
KNIFE WIDTH
8,00 mm
THICKNESS
1,50 mm
MAX. CUTTING DEPTH
6,50 mm
KNIFE TYPE
Drag blade, Flat
REPLACEMENT
Yes
KNIFE/BLADE MOUNTING
flat 1,5 mm

Common Applications

This blade is optimized for a variety of flexible materials, including:

Packaging: Folding cartons and corrugated plastic (up to 5mm).
Signage & Vinyl: Self-adhesive, reflective, and magnetic vinyls or PVC banners.
Specialty Materials: Thin plastics (styrene, polycarbonate), polyester fabrics, canvas, and gasket materials.

Replacement for:
Jwei J353 Esko Kongsberg G42443036 42443036 BLD-DF113 i-309 Summa 500-0803 500-9803 Colex T00313 Blackman & White BW113 MultiCam 94-02466-910.309-S Zund Z11 in 25 mm AXYZ BT1051L-7 Gerber MCT DE13 895013
