Summa 500-9803 500-0803 F-Series Double Edge Cutout Cutter Knife Blades

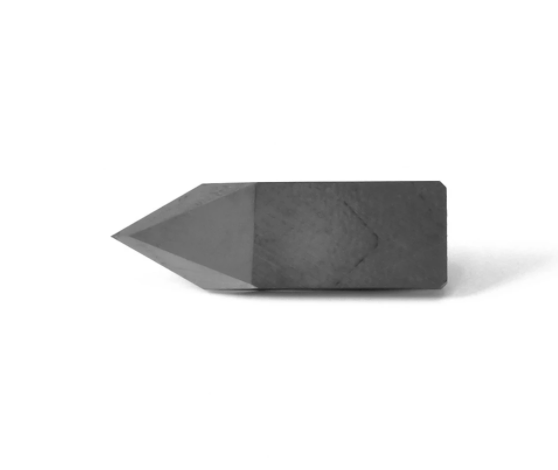

CHINA Summa 500-9803 is a 60° Double Edge Cutout Knife Blade engineered specifically for the Summa F Series Flatbed Cutters. It is designed as a heavy-duty replacement blade to deliver precise, clean cuts through both flexible and rigid media. Enquire now

Description

Summa 500-9803 500-0803 F-Series Double Edge Cutout Knife Blades

Summa 500-9803,Summa 500-0803,Summa 500-9803 Knife,Summa 500-0803 Knife,Summa 500-9803 Blade,Summa 500-0803 Blade,SUMMA blade,SUMMA F Series Blades,SUMMA Blades,summa Cutter blades

Technical Specifications

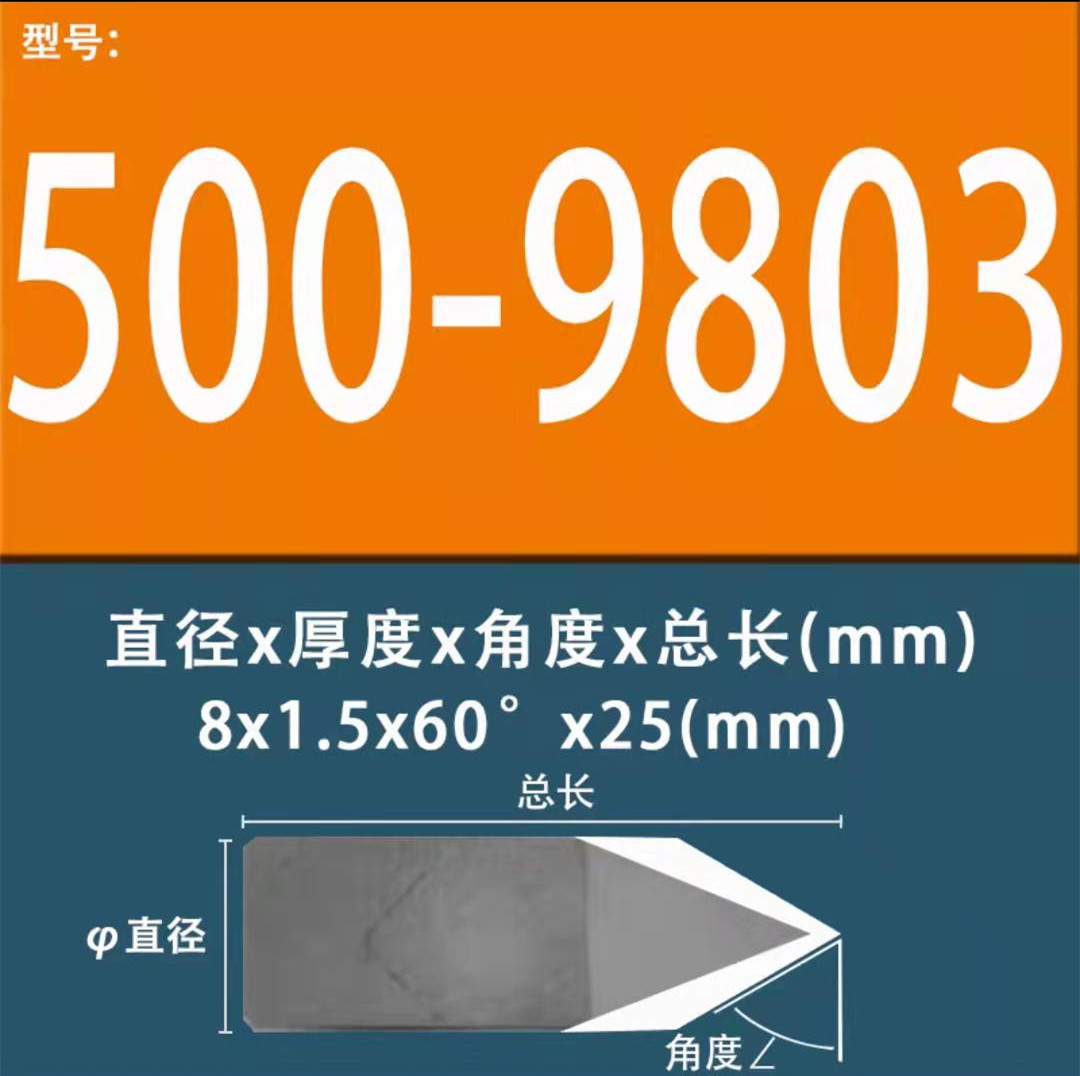

Blade Type: Flat drag blade with a double cutting edge.

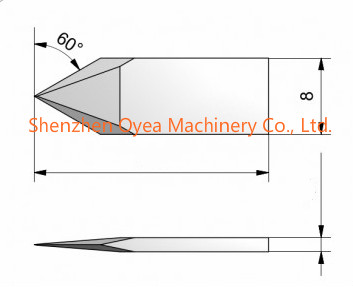

Cutting Angle: 60° angle.
Blade Height: 25 mm.
Blade Thickness: 1.5 mm.
Maximum Cutting Depth: Fulfill cuts on materials up to 5 mm (0.19 inches) thick.

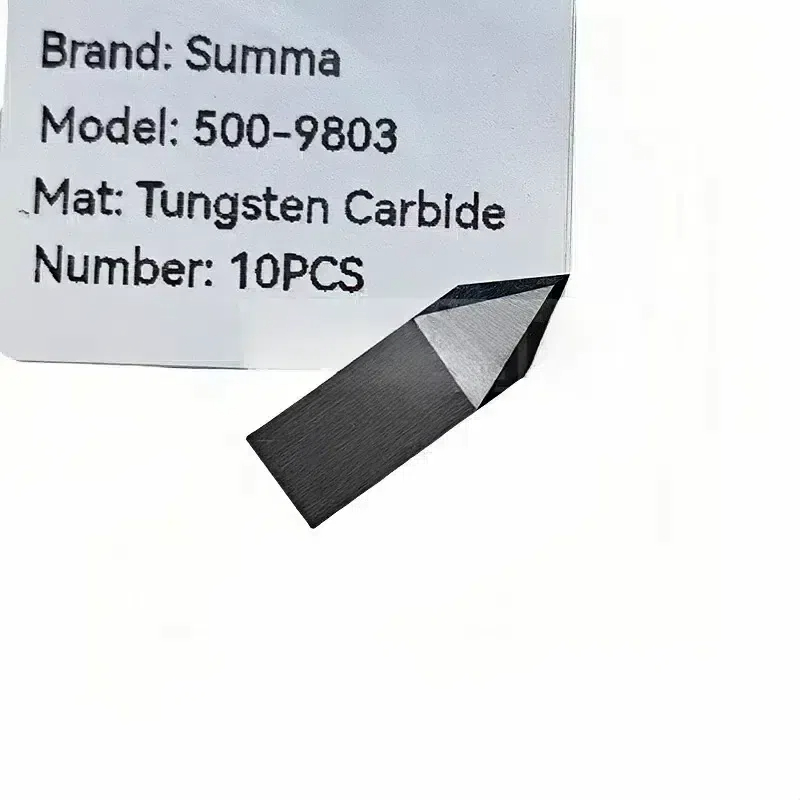

Material Composition: High-grade tungsten carbide for prolonged sharpness.

Equipment Compatibility

Tool Holder Compatibility: Designed natively for the Summa Double Edge Cutout Tool, part number 500-9313.
Machine Compatibility: Fits all Summa F-Series flatbed cutting plotters (such as the F1612 and F1625).

Common Applications

This blade is highly versatile and optimized for routing and cutting standard sign-making or packaging graphics, including:

Corrugated cardboard and folding cartons
Coroplast (corrugated plastic) and rigid magnetic foil
Cardstock and heavy paper
Thick adhesive vinyl and PVC banner materials
Thin polycarbonate and polypropylene sheeting

Replacement for:Jwei J353 Esko Kongsberg G42443036 42443036 BLD-DF113 i-309 Summa 500-0803 500-9803 Colex T00313 Blackman & White BW113 MultiCam 94-02466-910.309-S Zund Z11 in 25 mm AXYZ BT1051L-7 Gerber MCT DE13 895013
