COLEX T00313 60°Double Edge Knife Blades Compatible Colex Systems

china XZ0011 COLEX T00313 is 60° Double Edge Tangential / Drag Knife Blade designed specifically for the Colex Sharpcut digital flat cutting and plotting system. Enquire now

Description

COLEX T00313 60° Double Edge Knife Blades Compatible With Colex Cutting Systems

COLEX Knife,COLEX T00313,COLEX T00313 Blade,COLEX T00313 Knife,COLEX Blade,Colex Blades

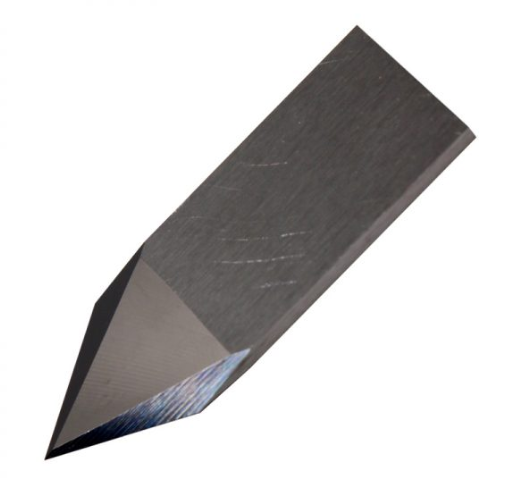

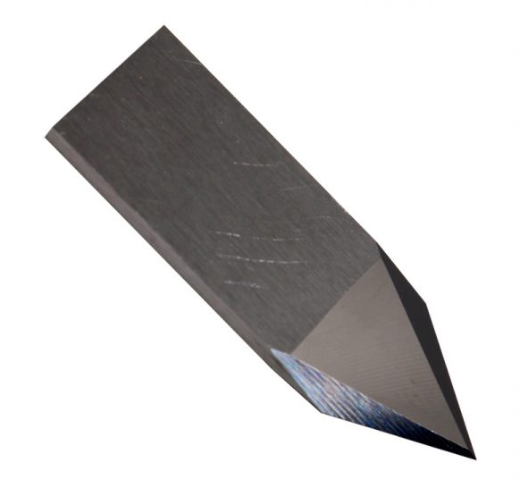

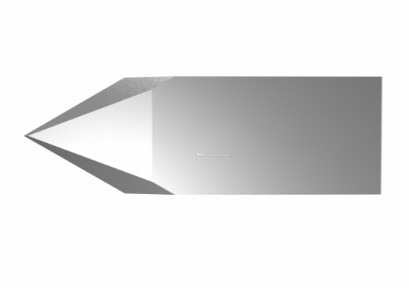

The Colex T00313 60° Double Edge Knife Blade is a precision cutting tool designed for use with the Colex Sharpcut flatbed digital cutting systems. Crafted from durable tungsten carbide, this blade is specifically engineered for tight radius cutting and high-performance finishing.

T00313 60 degree double edge blade designed for cutting materials like vinyl, magnet, PVC, and styrene.

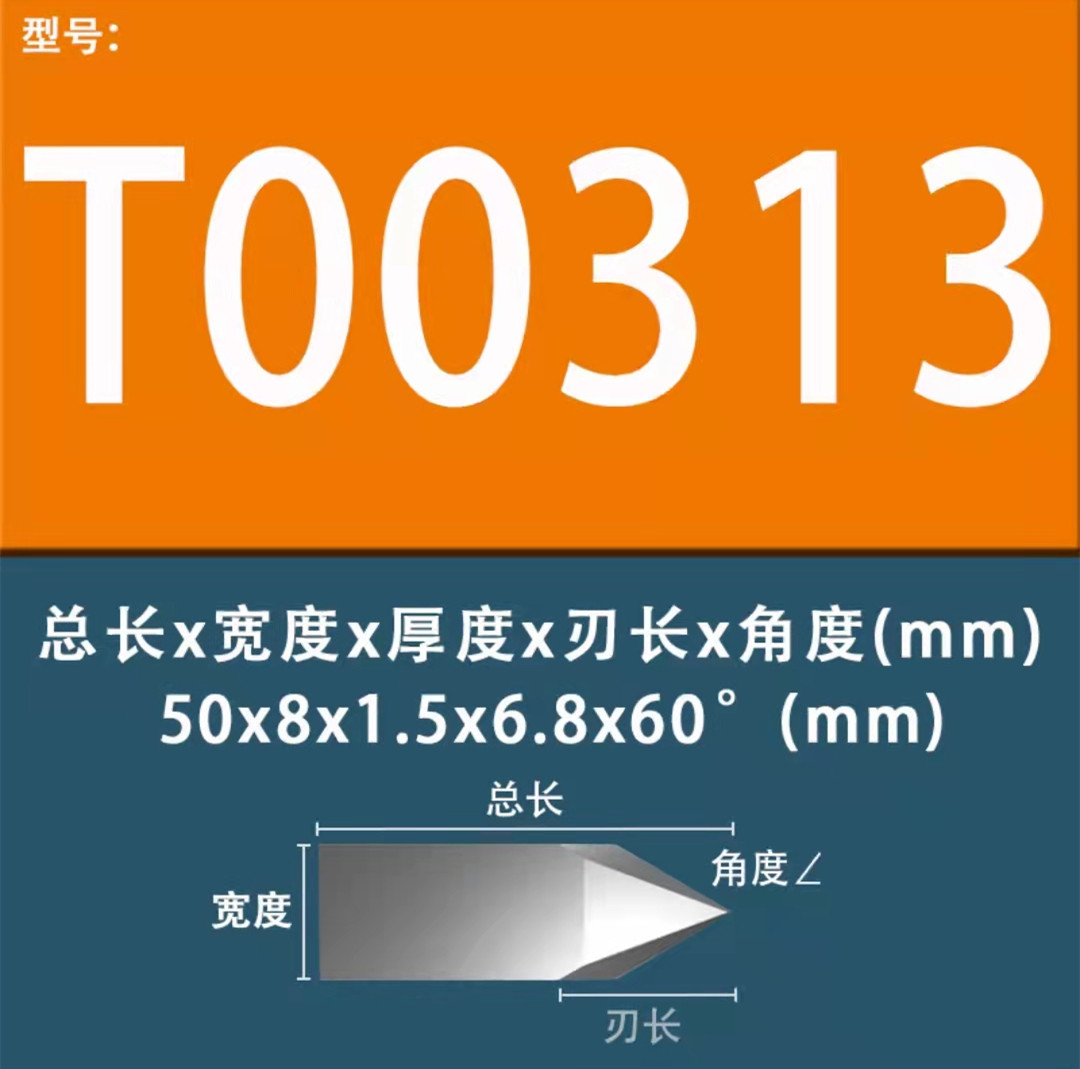

Dimensions 3.1 × .5 × .25 in

Recommended Applications

The T00313 is versatile and ideal for cutting various rigid and flexible materials, including:

Plastics & Vinyl: PVC (up to 3mm), self-adhesive and reflective vinyls, styrene.
Paper & Cardboard: Folding cartons, cardboard, and chipboard.
Specialty Media: Magnetic foil, canvas, polyester fabric, tarpaulin, and hard foam.

Production Application Tuning Recommendations

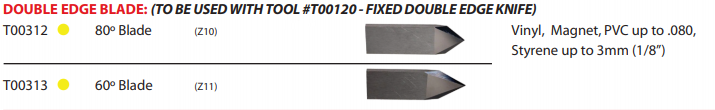

Solving the "material lifting at sharp turns" problem : If you find that the material at the corner is easily lifted or torn when cutting small text or making sharp turns using the 80° T00312, replacing it with the T00313 will allow it to glide more smoothly over the corner using its 60° acute angle.
Lifespan and parameter trade-off : Since the 60° tip is finer than the 80° tip, when cutting harder materials such as 3mm Styrene at high speed, please appropriately reduce the initial pitch speed in the Colex software to prevent the tip from chipping due to hard impact when it hits the material surface during the initial full-cut.

COLEX Knife,COLEX T00313,COLEX T00313 Blade,COLEX T00313 Knife,COLEX Blade

Replacement for:Jwei J353 Esko Kongsberg G42443036 42443036 BLD-DF113 i-309 Summa 500-0803 500-9803 Colex T00313 Blackman & White BW113 MultiCam 94-02466-910.309-S Zund Z11 in 25 mm AXYZ BT1051L-7 Gerber MCT DE13 895013
