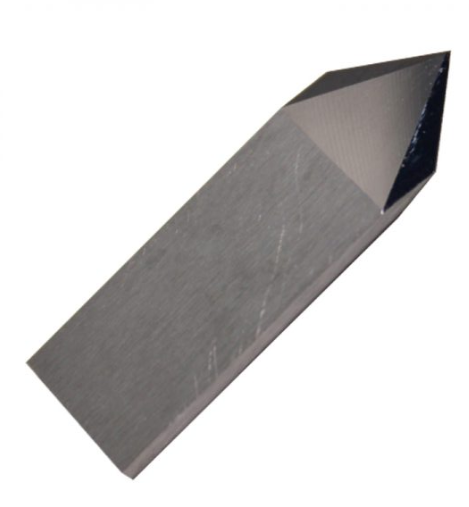

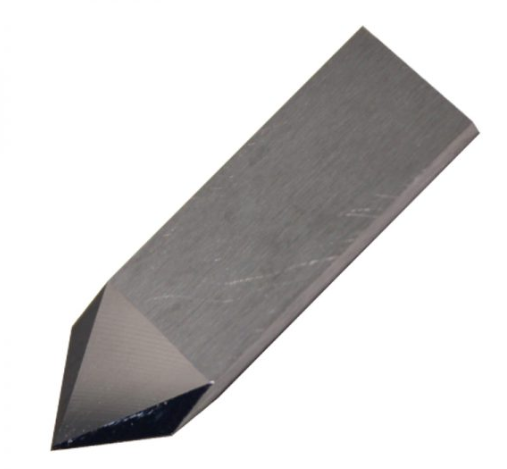

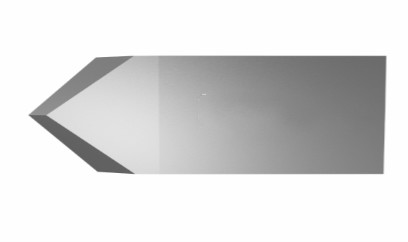

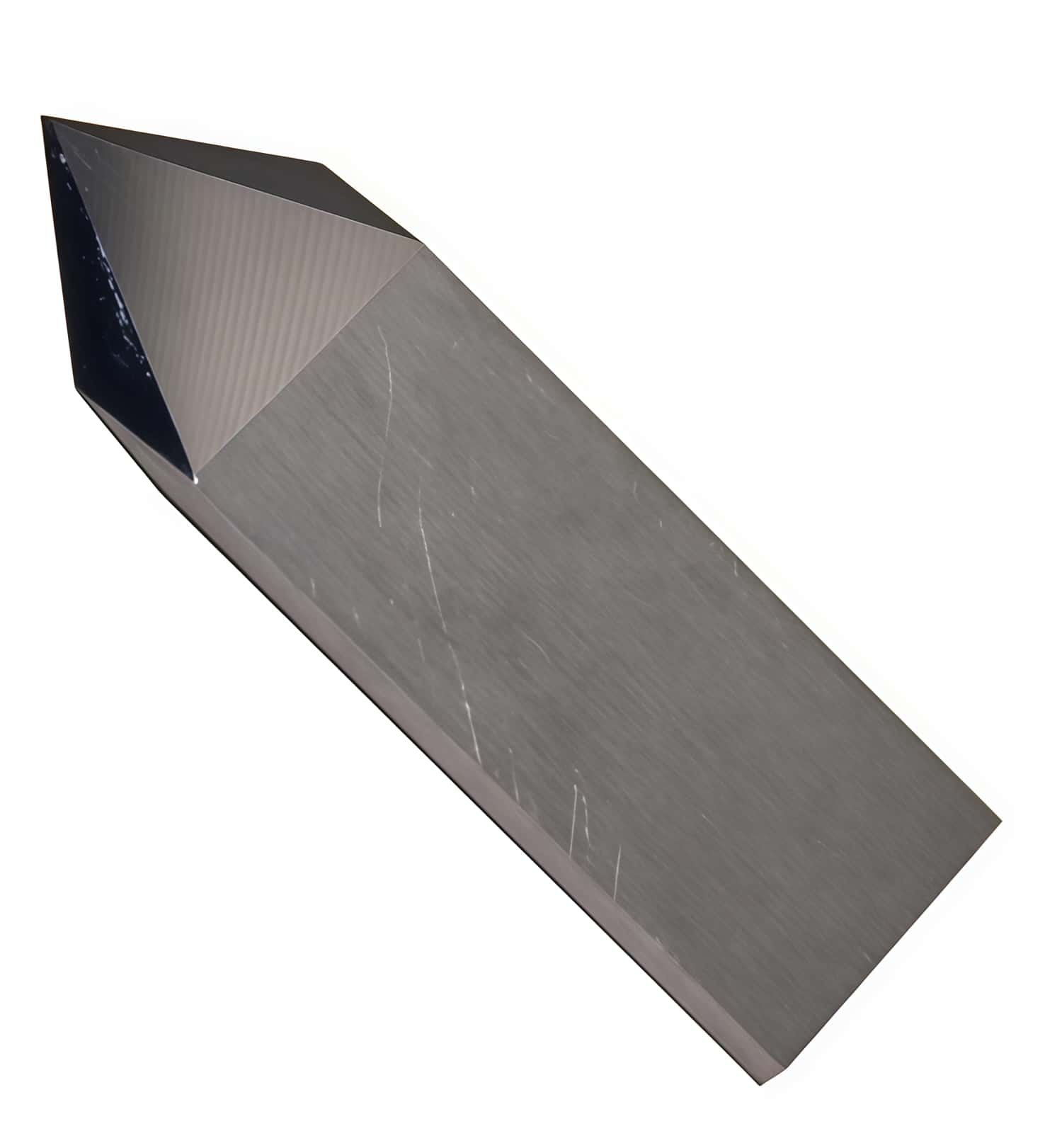

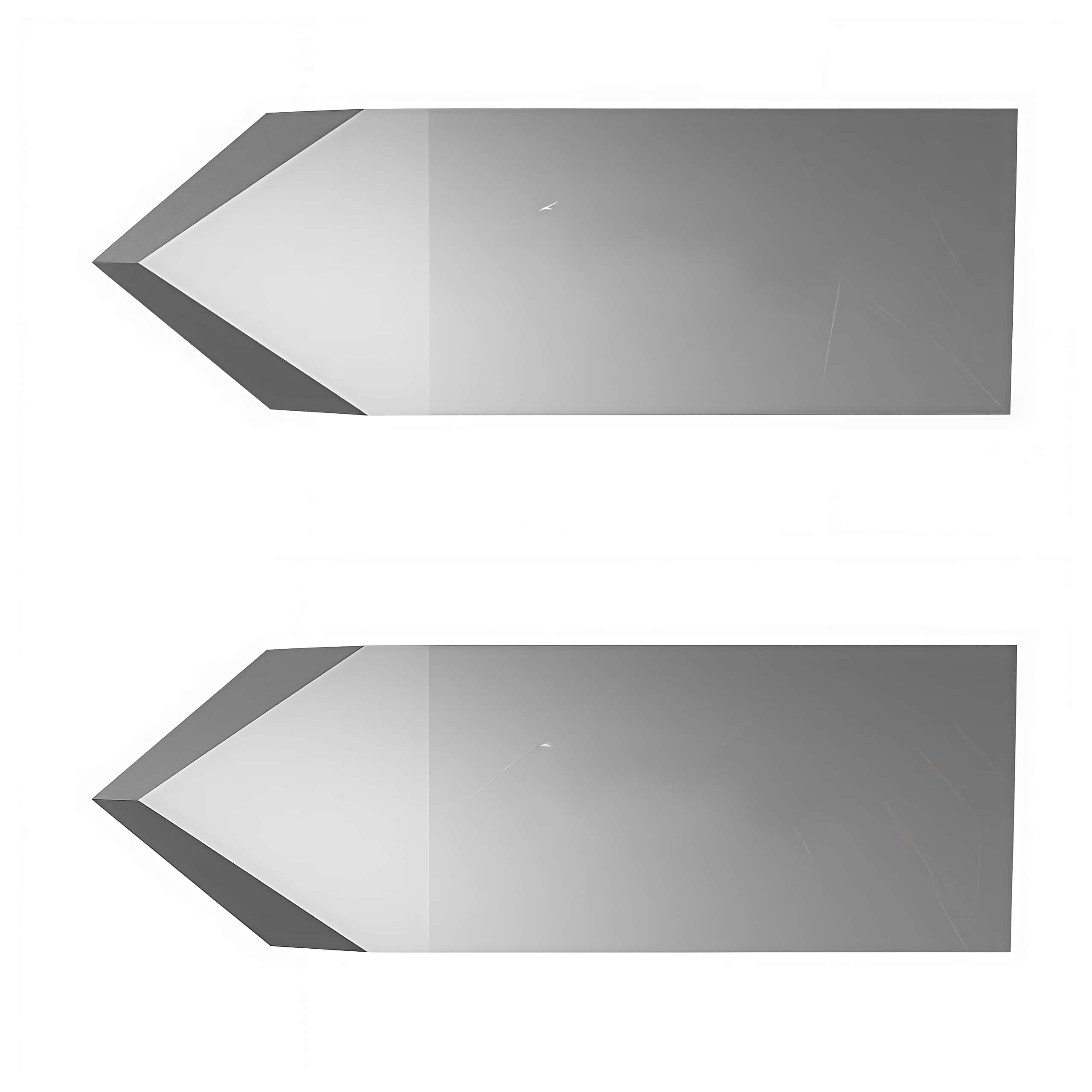

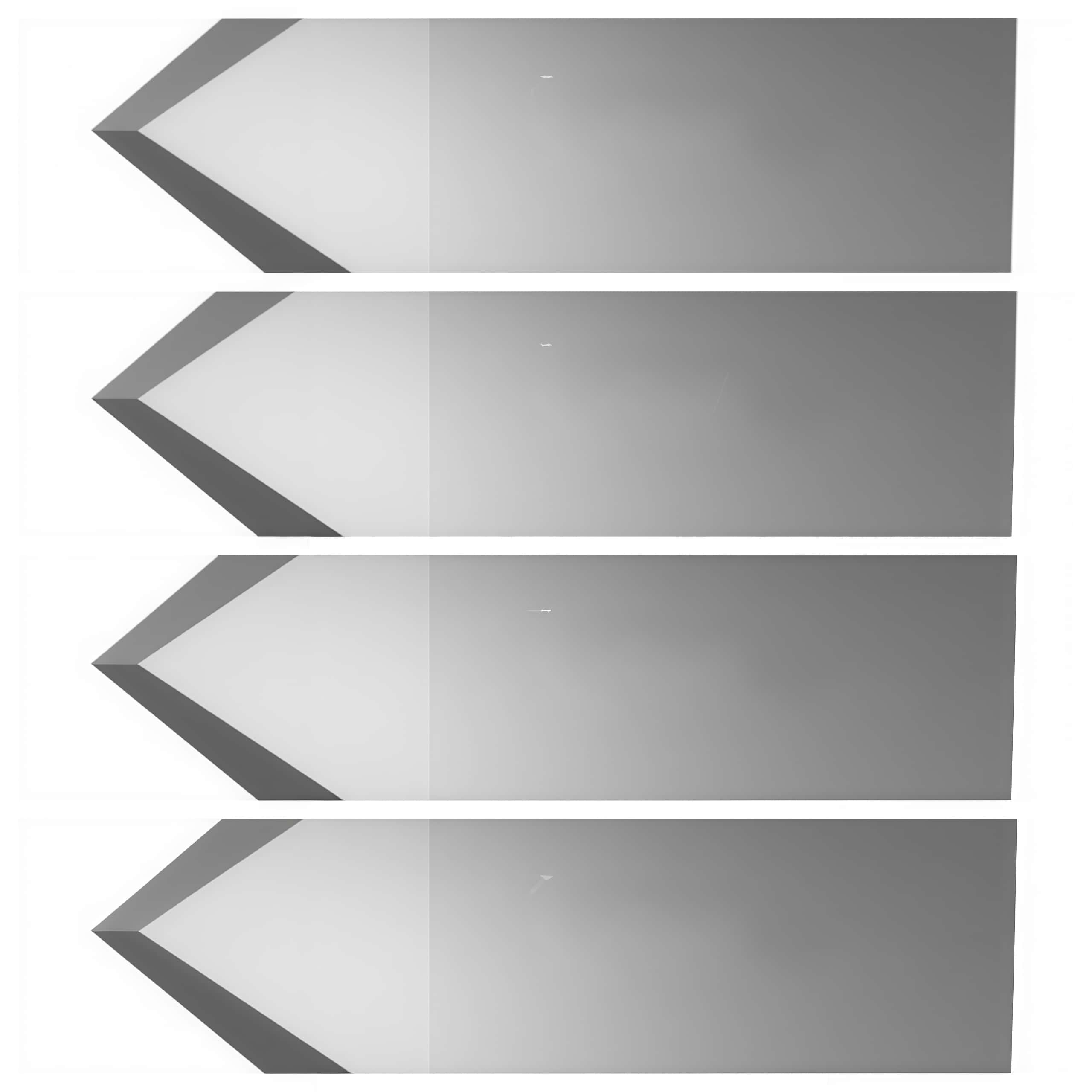

COLEX T00312 80° Double Edge Knife Blades For Colex Cutter

COLEX T00312 is 80° Double Edge Tangential / Drag Knife Blade designed specifically for the Colex Sharpcut series of digital plotters Enquire now

Description

COLEX T00312 80° Double Edge Knife Blades For Colex Cutter

COLEX Knife,COLEX T00312,COLEX T00312 Blade,COLEX Knife Blade,COLEX Blade,Colex Blades

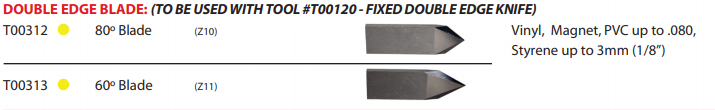

T00312 80 degree double edge blade designed for cutting materials like vinyl, magnet, PVC, and styrene up to 3mm (1/8″)
Dimensions 3.1 × .5 × .25 in
Used With Colex Holder: T00120
Description: Flat Knife Drag Blade Double Edge 50°

Replacement for:Summa 500-9802 Esko BLD-DF112 G42444299 MultiCam 94-02466-910.301-S Zund Z10 in 25mm Blackman & White BW112 Colex T00312 50-degree Dual Edge Solid Carbide Wide Diameter Knife Blades

Material Compatibility
This blade is optimized for a variety of flexible and semi-rigid substrates, including:
Vinyl: Standard and reflective adhesive vinyls.
Plastics: PVC, Styrene, and thin plastics.
Paper Products: Cardboard, folding carton, and paper.
Others: Magnetic foil, canvas, and polyester fabric.

Production Efficiency Reminder:

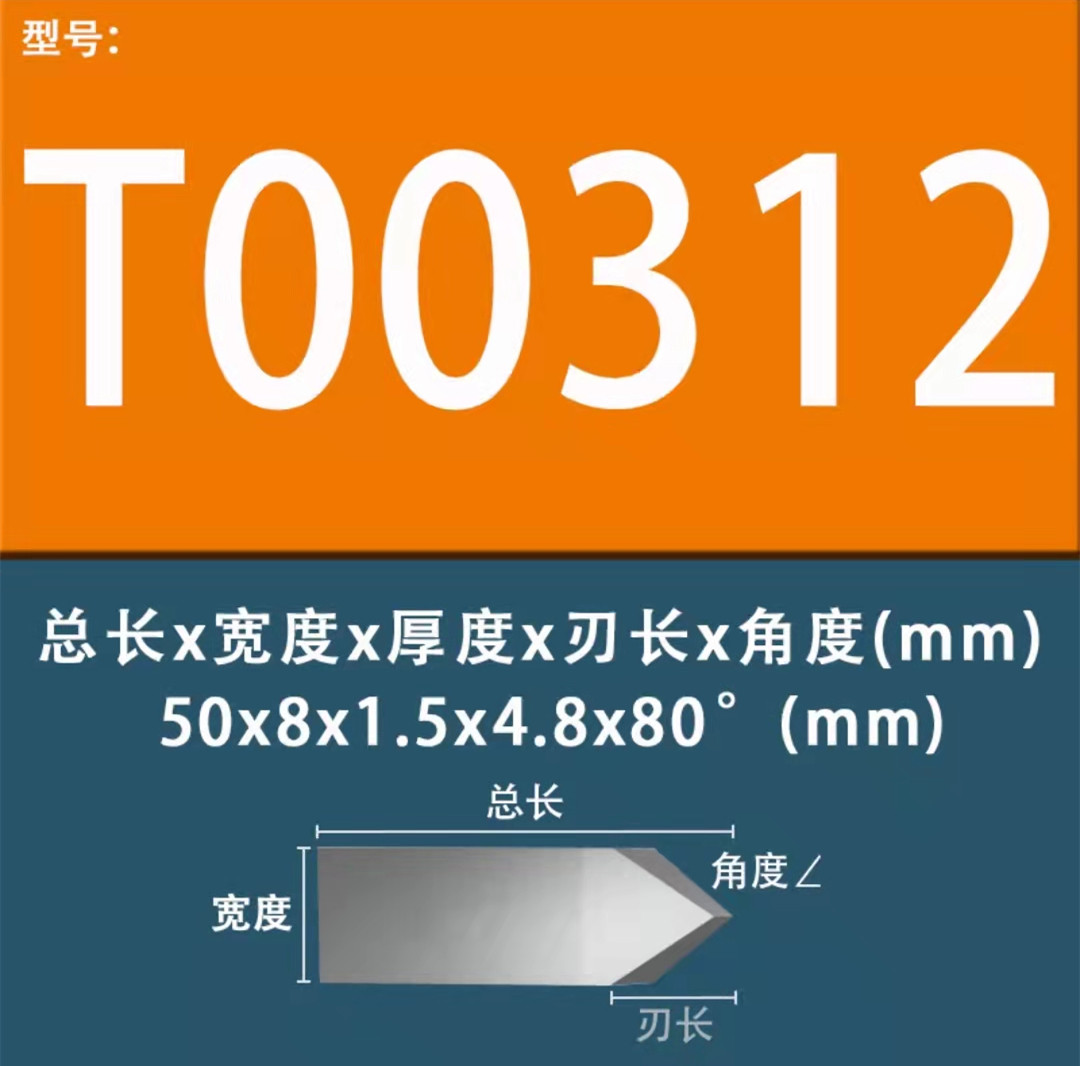

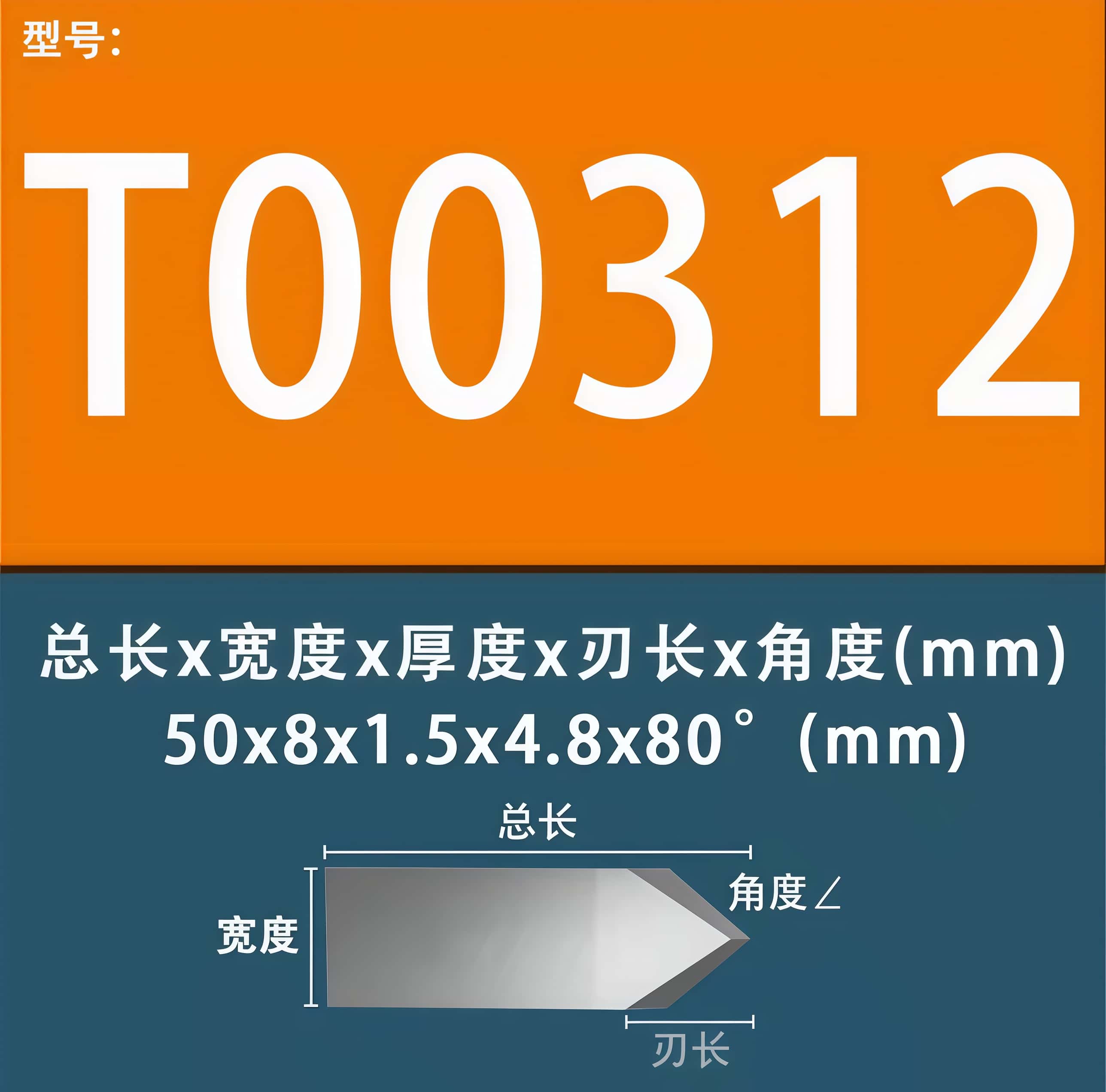

The 80° obtuse-angle tip and 1.5mm thickened body of the T00312 are designed for an ultra-long service life when performing high-speed straight/large-radius full-thru cuts . If your drawings contain a large number of extremely fine and complex texts, sharp turns, or small round holes smaller than 5mm , this insert may cause slight material pulling or overcutting at corners due to its wider tip angle. For extremely high-precision cutout patterns, it is recommended to switch to its sister model, the T00313 insert , with a 60° angle

COLEX Knife,COLEX T00312,COLEX T00312 Blade,COLEX Knife Blade,COLEX Blade

COLEX T00312 80° Double-Edge Knife Blade is designed for use with Colex cutters, offering a reliable replacement option for high-performance cutting tasks. This blade is compatible with a variety of supply needs, making it ideal for factories, manufacturers, wholesale distributors, and sales shops. Suitable for OEM and ODM applications, the product offers excellent precision and durability. Manufactured and supplied by Shenzhen Oyea Machinery Co., Ltd. in China, it caters to production, consumables, spare parts, and industrial cutting solutions at competitive prices.
