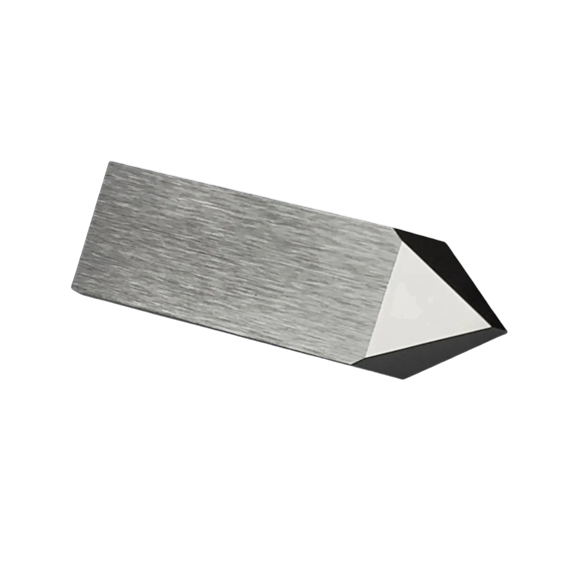

Blade type
Pull blade
Flat
Recommended material
Cardboard
Corrugated plastic
Folding carton
Magnetic foil
Polypropylene
Polycarbonate
PVC
Vinyl
Total length 25.4mm
Width 8mm
Thickness 1.5mm
Max. Cutting depth 4.77/6.93mm
Replacement for:
Jwei J353 ESKO Kongsberg G42443036 42443036 BLD-DF113 i-309 Summa 500-0803 500-9803 Colex T00313 Blackman & White BW113 MultiCam 94-02466-910.309-S Zund Z11 in 25 mm AXYZ BT1051L-7 Gerber MCT DE13 895013
Common Applications & Recommended Materials
This blade geometry is one of the most widely used general-purpose drag blades in industrial cutting and digital finishing. It is suitable for cutting soft and semi-rigid materials, including:
Corrugated Board & Cardboard: Single-wall corrugated, folding cartons, paperboard.
Foam Board & Core: Thin foam, foamular, and soft expanded PVC.
Vinyl & Banner Materials: Pressure-sensitive adhesive vinyl, magnetic foil, tarpaulin, PVC banners.
Gaskets & Technical Textiles: Rubber, felt, gasket sheets, woven and non-woven fabrics.
Plastics & Polypropylene: Thin polypropylene sheets, polycarbonate foils, and solid plastic sheet materials.
