Esko Kongsberg BLD-KC103 Tungsten Carbide Drag Knife Blades For Kongsberg Cutter G42458323

Esko Kongsberg BLD-KC103, also identified as G42458323, is a solid tungsten carbide drag knife blade for Kongsberg cutting systems. It is commonly listed for reflective vinyl, polycarbonate, cardstock, pattern materials, and tarpaulin, with a 3 mm diameter and about 2.6 mm maximum cutting depth.
Enquire now

Description

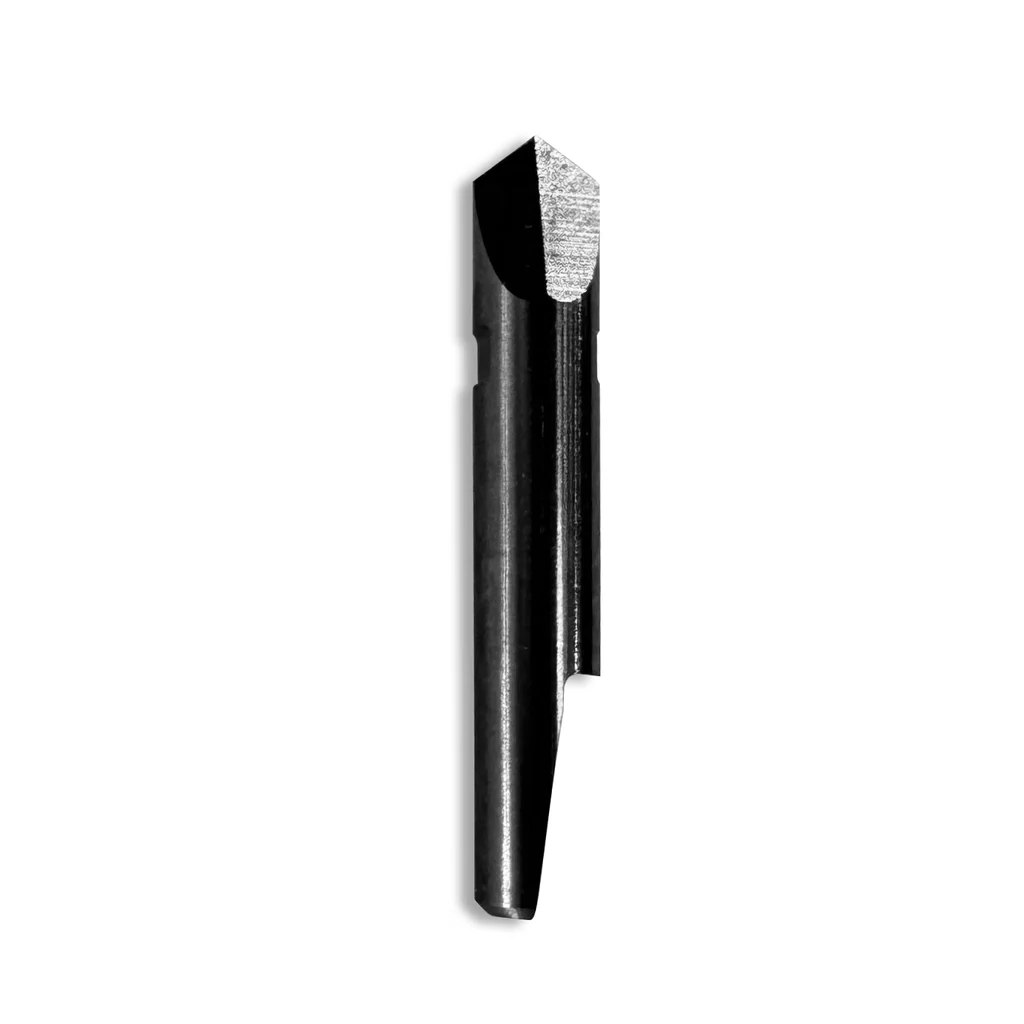

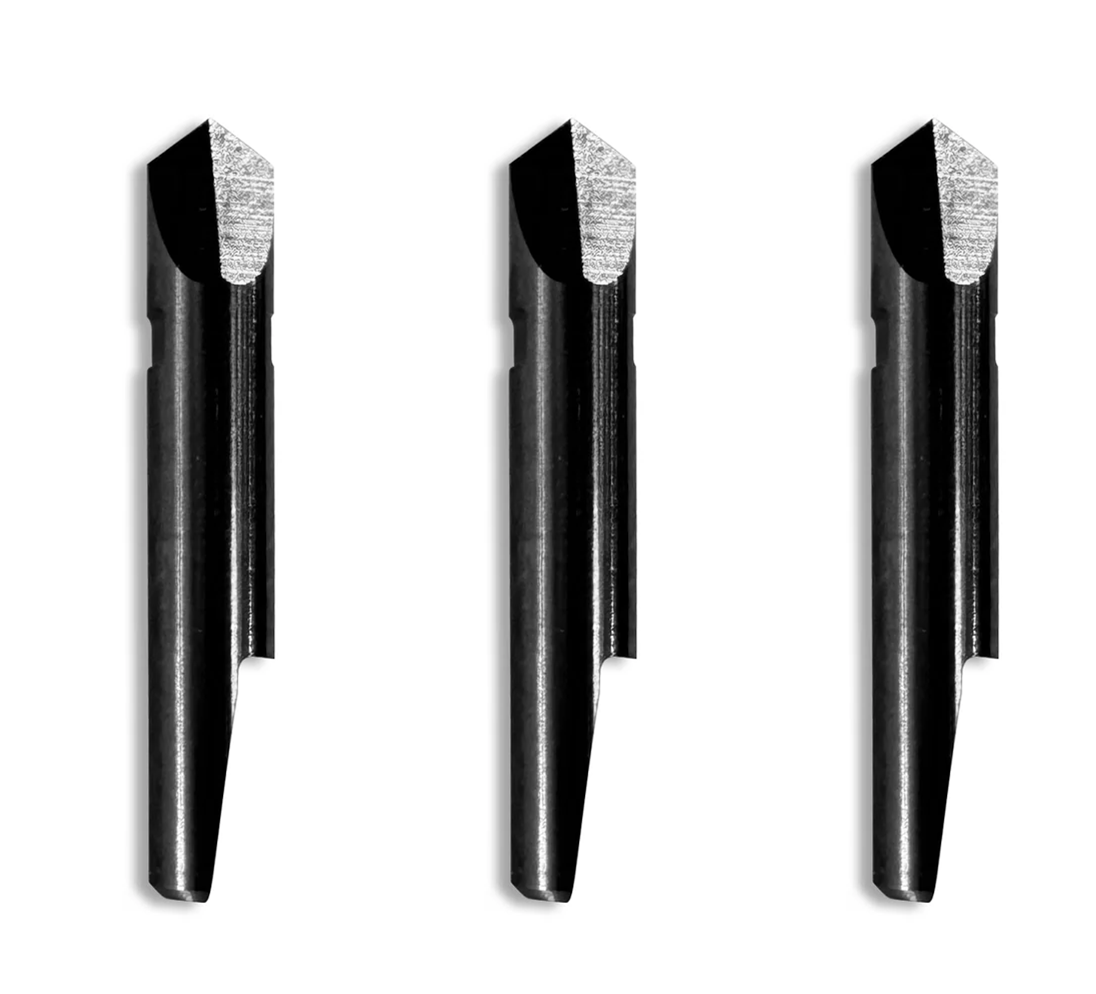

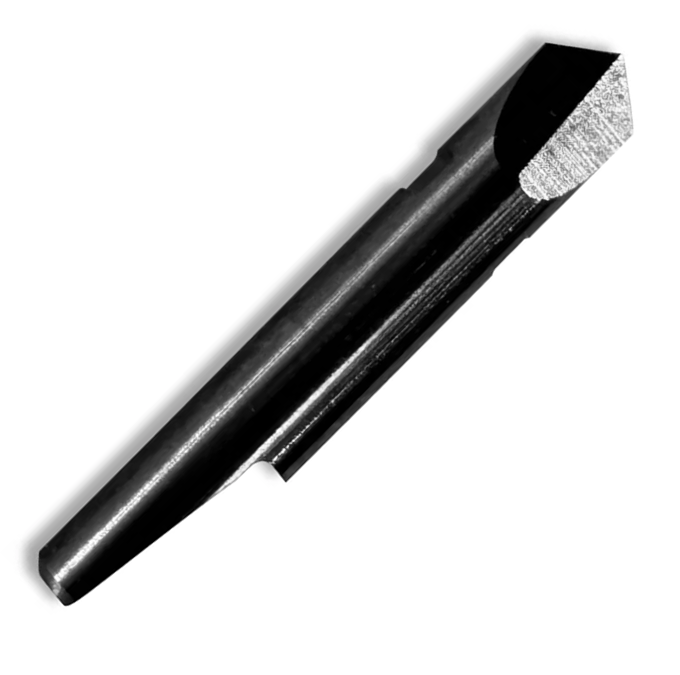

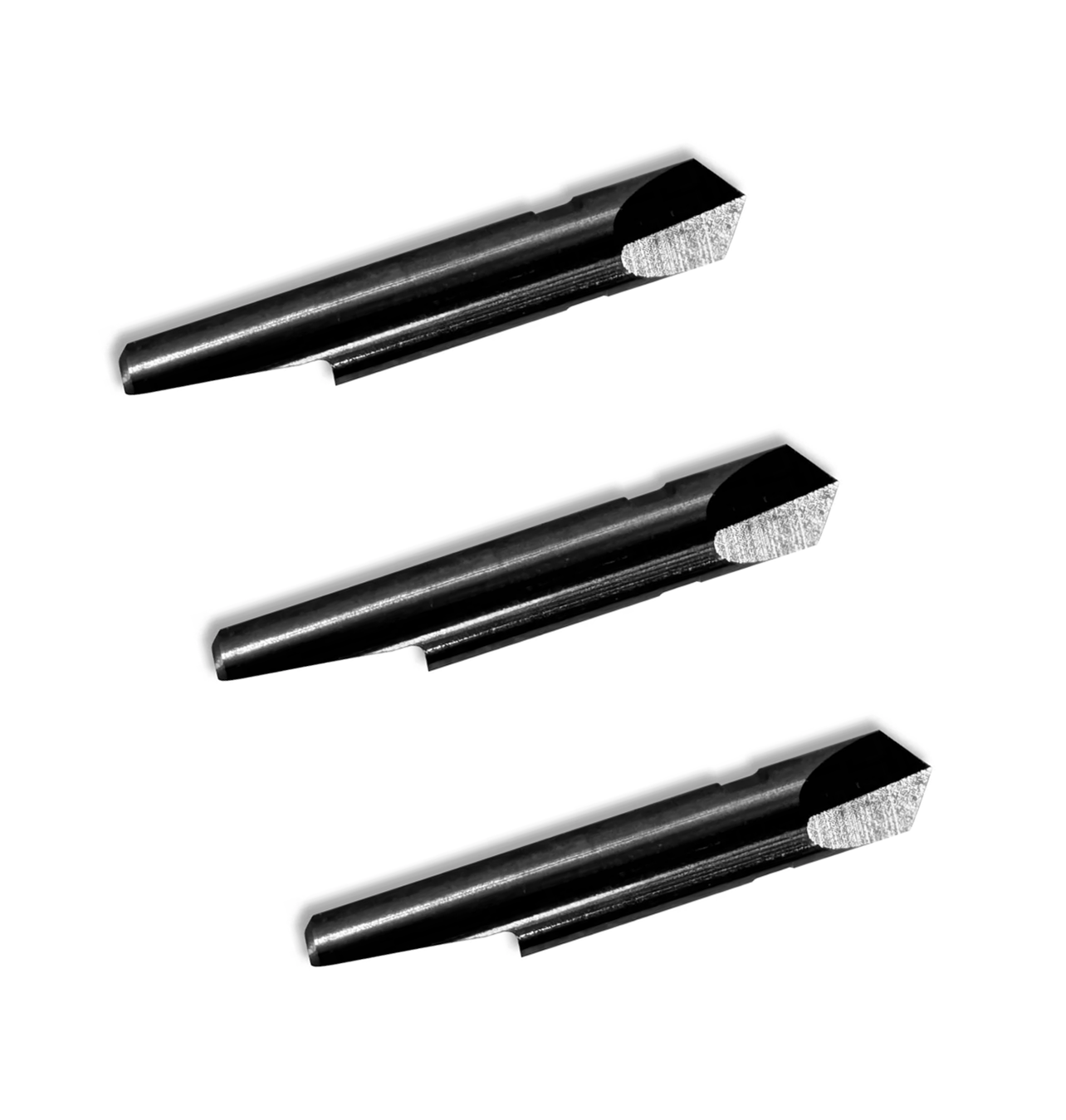

Esko Kongsberg BLD-KC103 Tungsten Carbide Drag Knife Blade For Kongsberg Cutter G42458323

Esko Kongsberg BLD-KC103(G42458323 or 42458323) is designed specifically for Kongsberg digital precision cutting machines .Solid carbide (tungsten steel) double-edged half-cut/round shank drag blade.It is primarily used in conjunction with the PressCut die-cutting module or the KissCut half-cutting system , and is specifically designed for high-precision cutting through the surface film without damaging the backing paper (half-cutting)

Recommended use

Example of use: masking film. This is a vinyl knife with a 40'/35' cut angle, a double edge design.

CUTTER BRAND

Esko Kongsberg

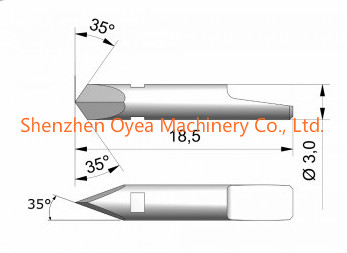

ANGLE
35°
KNIFE HEIGHT
18,50 mm
KNIFE WIDTH
3,00 mm
THICKNESS
3,00 mm
MAX. CUTTING DEPTH
1,00 mm
KNIFE TYPE
Drag blade, Kiss Cut
REPLACEMENT
Yes

Recommended processing materials

This blade is specifically designed for the following advertising adhesives, functional films, and composite flexible packaging materials due to its minimal overcut control and sharp edge:

Reflective Vinyl / Diamond Grade Foil
Masking film / Sandblasting protective film
Polycarbonate film/ plastics
Magnetic Media / Cardstock

Replacement for:Zund 3910115 Z3,Esko Kongsberg G42458323 42458323 BLD-KC103 KC13,Bullmer 069738 B3,Blackman & White Bw Kiss Cut 3
