Zund Z606 Oscillating Knife Blades For Sale Parts Sharpening 5210312

CHINA Zund Z606 is a long-reach pointed oscillating knife blade, item number 5210312, used for soft foam and similar thick materials up to about 70 mm. It is typically sold as an HSS or tungsten-carbide-compatible replacement, u Enquire now

Description

Zund Z606 Oscillating Knife Blades 5210312 For Sale Parts Sharpening

Zund Z606 blade,Zund Oscillating blade,Zund Z606,Zund Z606 blade,Zund 5210312,Zund Z606 Knife,Zund Knife

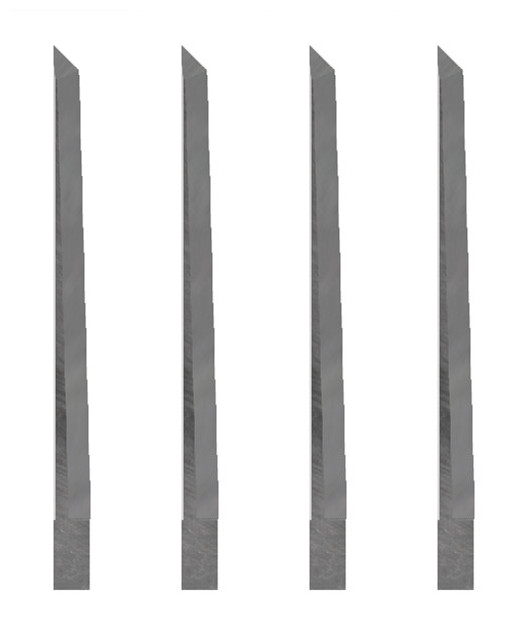

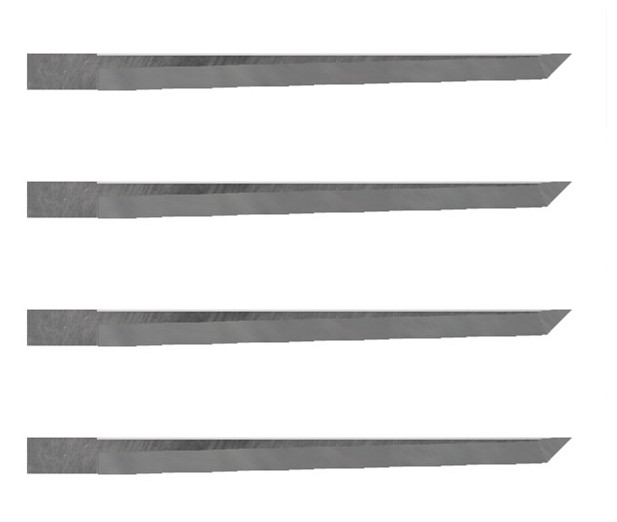

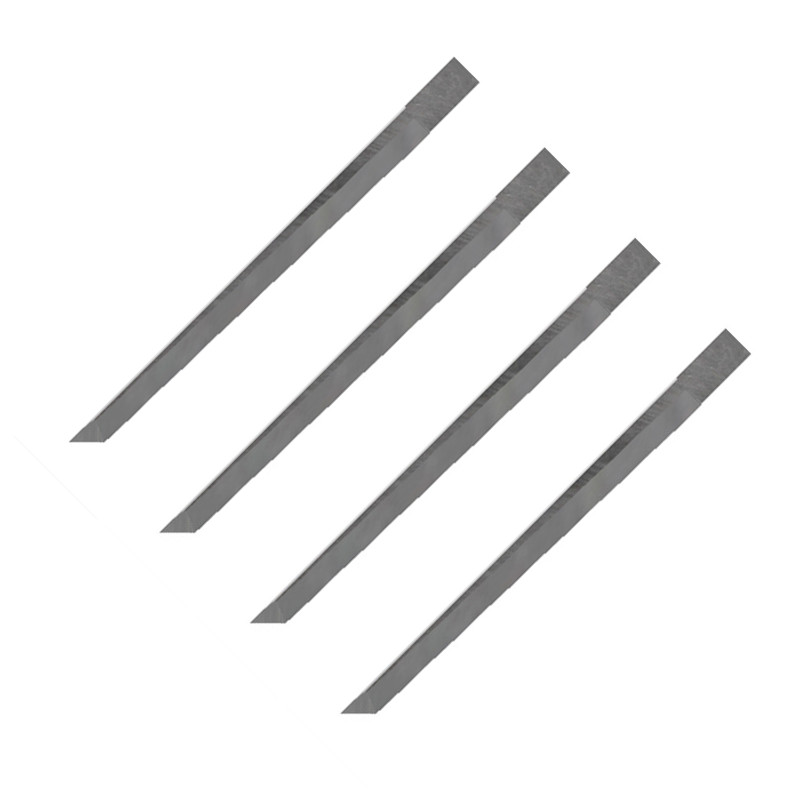

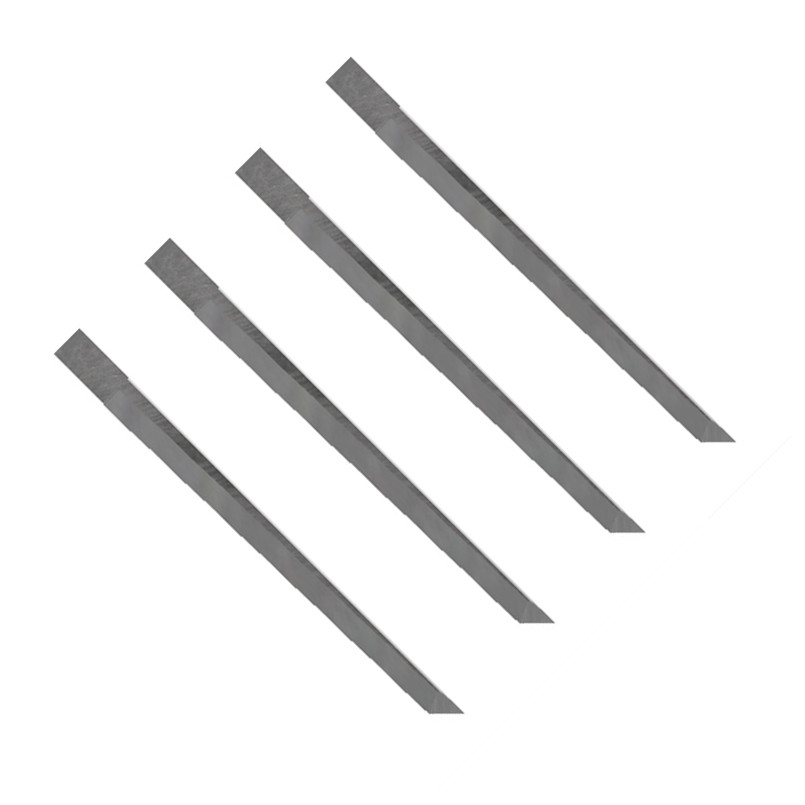

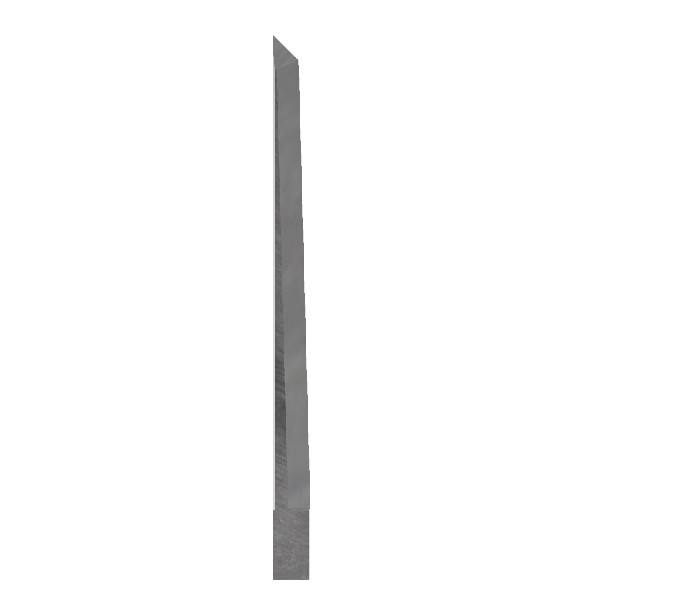

Zund Z606 oscillating knife blades (Part #5210312) are high-performance, pointed industrial cutting blades engineered for deep, precise through-cutting of thick, soft materials. versions are manufactured using High-Speed Steel (HSS), while heavy-duty aftermarket equivalents utilize long-lasting solid tungsten carbide to maximize wear resistance

Oscillating blade - pointed
Max. cutting depth: 71.5 mm
Oscillating blade for soft foam up to 70 mm thickness and < 45 kg/m3
Recommended materials:
Foam board/Foam
Pre-cut: 3.8 + 0.03 x Tm
Post-cut: -
Max. cutting depth: 71.5 mm
Knife thickness: 1.5 mm
Knife material: HSS
Zund Item no: 5210312

Parts & Sharpening Considerations

The Case Against Sharpening: While standard steel tooling can sometimes be re-ground, oscillating plotter knives feature ultra-precise, micro-engineered 45° angles and pre-cut offsets (3.8 + 0.02 × Tm). Attempting manual sharpening or standard machine grinding alters these dimensions, leading to registration errors, uneven depths, and premature damage to your underlying Zund cutting matrix or conveyor underlays.
Carbide Upgrades: Rather than seeking sharpening services, high-volume production facilities generally transition from factory HSS to solid tungsten carbide replacements. Carbide variants maintain an operational edge significantly longer, lowering your overall cost-per-cut and reducing machine downtime caused by blade changeovers.
Hardware Parts: When replacing a worn Z606, always inspect your companion tool parts—including the 1.5 mm tool base inserts, gliding discs, and low spring inserts—to ensure clean oscillation without mechanical slop

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .

Tel:+86-0769-88014625

Phone Number:+86-18823852826

Email: info@china-oyea.com

1659590865@qq.com

Web: www.china-oyea.com

We warmly welcome every customer to send us drawings for making customized product. Contact with us ,you will get more than what you can !
