Zund Cutting Knife Blades For Zund Digital Cutter Cutting Systems Flatbed Cutter Made In China

China Zund cutting knife blades are precision tungsten-carbide tools engineered for Zund digital flatbed cutter systems (G3, S3, L3, etc.), available in drag, oscillating, and specialized geometries to match specific tool heads and materials Enquire now

Description

Zund Cutting Tungsten Carbide Knife Blades Knives For Zund Digital Cutter Cutting Systems Flatbed Cutter （Manufacturer Supplier Factory Wholesale）

Drag blades (non‑powered tools)
Drag knives run in non‑powered heads such as UCT, KCT, VCT, SCT, C2, and insertion sleeve 40, and are used for foils, paper, thin cartons, banners, and similar sheet materials.

Flat‑stock blades (UCT, SCT, insert sleeve 40):
Z6, Z10, Z11, Z44, Z46, Z101, Z102, Z103, Z83
These are typical for general flat materials; Z10/Z11 are very common for vinyl, paper, and thin board applications.

Round‑stock blades (C2, C2P, KCT, KCM‑S):
Z1, Z2, Z3, Z4, Z5, Z7
These are selected by material thickness, desired overcut, and stability vs. sharpness; e.g., narrower wedge angles cut more sharply but are less stable

V‑cut blades:
Z70, Z71, Z701, Z73
Used in V‑cut tools (VCT) for creasing/folding lines and partial‑depth cuts in packaging and cartons.

Mat‑cutting blades (PPT):
Z30, Z33, Z34, Z35
Optimized for matboard and passepartout; Z30 is a well‑known 50° mat‑cut blade with shallow max depth (~2 mm).

Oscillating blades (EOT / POT tools)
Oscillating knives are used in powered EOT/POT heads for thick or tough materials (corrugated, foam board, composites, textiles, leather, etc.).ruida-blades+1

Pointed oscillating blades:
Z16, Z17, Z20, Z21, Z22, Z60, Z66, Z601, Z606, Z608
These are chosen by required cutting depth and angle; for example, Z17 is commonly used around 12 mm depth with a ~65° angle, while Z606/Z608 are long‑reach blades for very thick boards.

Flat oscillating blades:
Z26, Z41, Z42, Z61, Z62, Z63, Z64, Z68, Z69, Z82, Z201, Z202, Z203, Z204, Z603, Z605, Z607
Flat geometries are favored for materials like corrugated, aramid/carbon prepregs, fabrics, foams, and leather where a straight cutting edge improves stability and life.

Rotary blades (DRT / PRT tools)

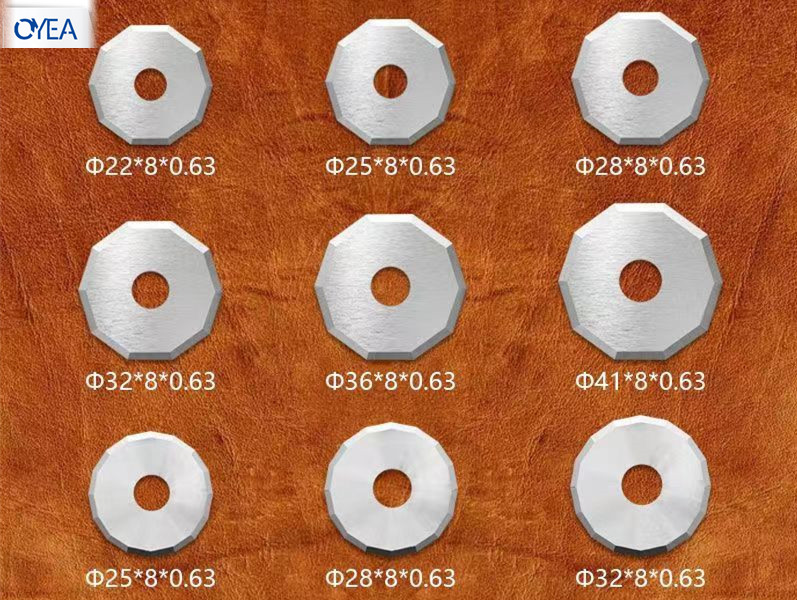

Rotary (decagonal) blades are used in DRT/PRT rotary tools for breathable and technical materials.

Rotary blades:
Z50, Z51, Z52, Z53
Typical applications: textiles, carbon fiber, glass fiber, and other technical fabrics where a rotating edge reduces drag and heat compared with drag/oscillating tools.

Coated blades
Coated variants are offered for extended life or specific material interactions:
Z42C, Z50C, Z51C, Z52C, Z104C, Z206C, Z609C
These are often used where abrasion or adhesion is an issue (e.g., coated fabrics, composites, or sticky materials).

Practical selection tips (for purchasing/maintenance)
When choosing or specifying blades for Zund systems, focus on:

Tool head compatibility – match blade series to the exact tool (UCT/SCT/C2 vs EOT/POT vs DRT/PRT).

Material type and thickness – use drag for thin sheets, oscillating for thick/tough, rotary for breathable technical fabrics.

Geometry (angle, thickness, pre/post‑cut) – determines overcut, edge quality, and max depth.

Material of blade – most are solid tungsten carbide (HM) for long life; coated versions add wear/anti‑stick benefits.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.

If you have more questions to know ,please contact us .
