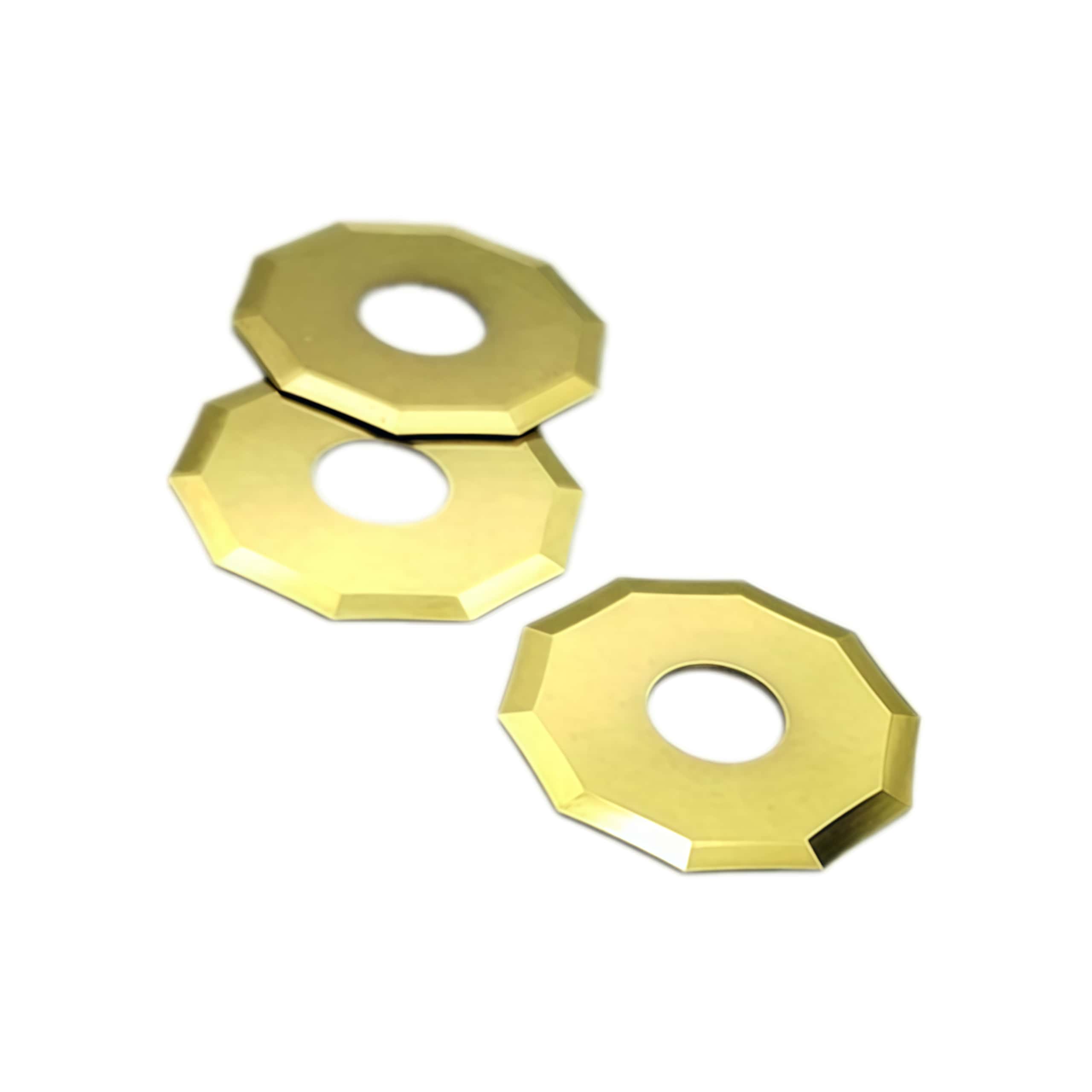

Zund Z50c Z51c Z52c Hard Coating Decahedral (10-Sided) Rotary Carbide Blades

Zund rotary blades with a Titanium Nitride (TiN) or Titanium Carbonitride (TiCN) coating—designated by the "C" suffix—are high-performance decagonal (10-sided) carbide blades designed for Zund digital cutting systems using Rotary Cutting Tools (DRT/PRT). Enquire now

Description

Zund Z50c Z51c Z52c Hard Coating Decahedral (10-Sided) Rotary Carbide Blades

Zund-compatible titanium-coated decagonal (10-sided) rotary blades provide low drag and extended wear life when cutting textiles, technical fabrics, fiber-reinforced materials, and canvas.

Blade Model	Cutting Depth	Thickness	Machine Compatibility	Primary Application & Key Features
Z50C	3.5 mm	0.6 mm	Zund DRT / PRT	High-speed cutting of light textiles and woven synthetic materials.
Z51C	1.0 mm	0.6 mm	Zund S3 / G3 / L3	Standard decagonal rotary blade designed for clean cuts in textiles and aramid fibers.
Z52C	1.0 mm	0.6 mm	Zund S3 / G3 / L3	Larger overcut design requiring significantly lower cutting force; ideal for delicate or dense fabrics.

Titanium Coating & Material Benefits

Reduced Friction: The titanium coating lowers heat build-up during continuous high-RPM motorized rotary tool operations.
Extended Service Life: Provides 2x to 4x longer life compared to standard tungsten carbide blades before needing replacement or sharpening.
Sharpening & Maintenance: Decagonal rotary blades require precision CNC grinding equipment to maintain the exact 10-sided geometry and bevel angles; simple manual sharpening will round off the facets.

Suitable for machine manufacturer:Blackman & White Coated Titanium Decagonal (10-sided) Knife Blade BW52B BW51B BW50B,Summa Coated Titanium Decagonal (10-sided) Knife Blade 500-9860C 500-9861C 500-9862C
