Zund Z17 Oscillating Knife Blades For Zund S3 G3 Cutter For Sale MyZund 3910307

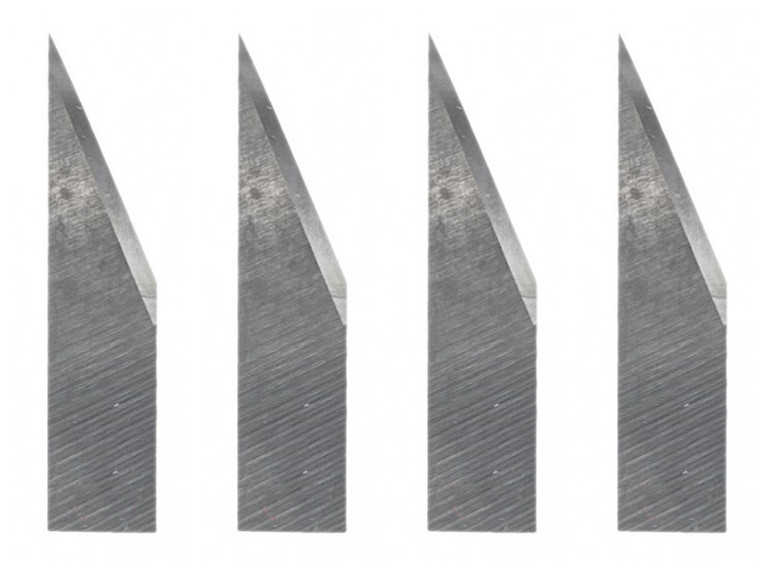

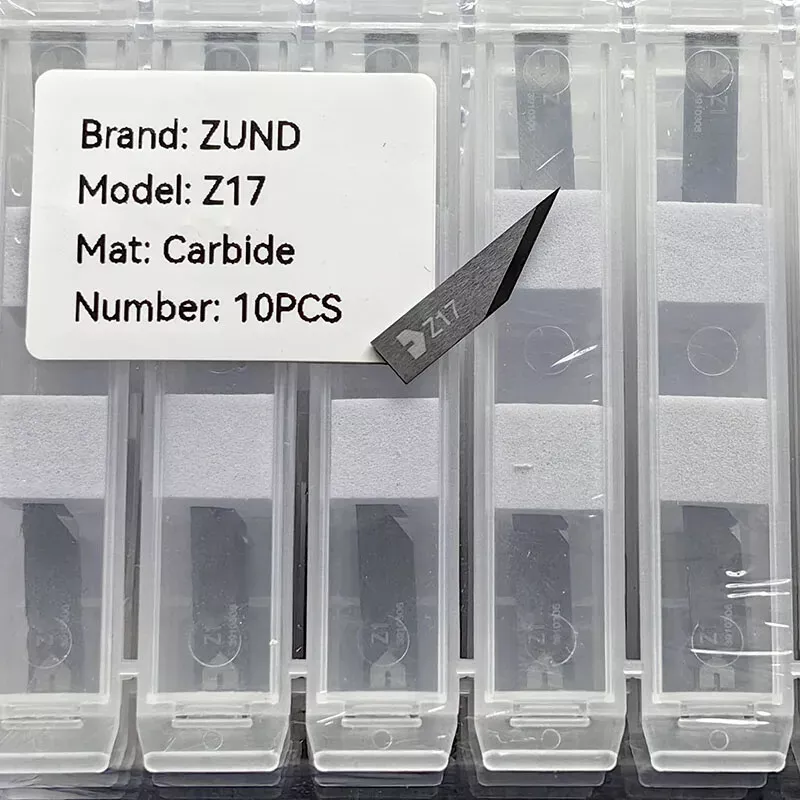

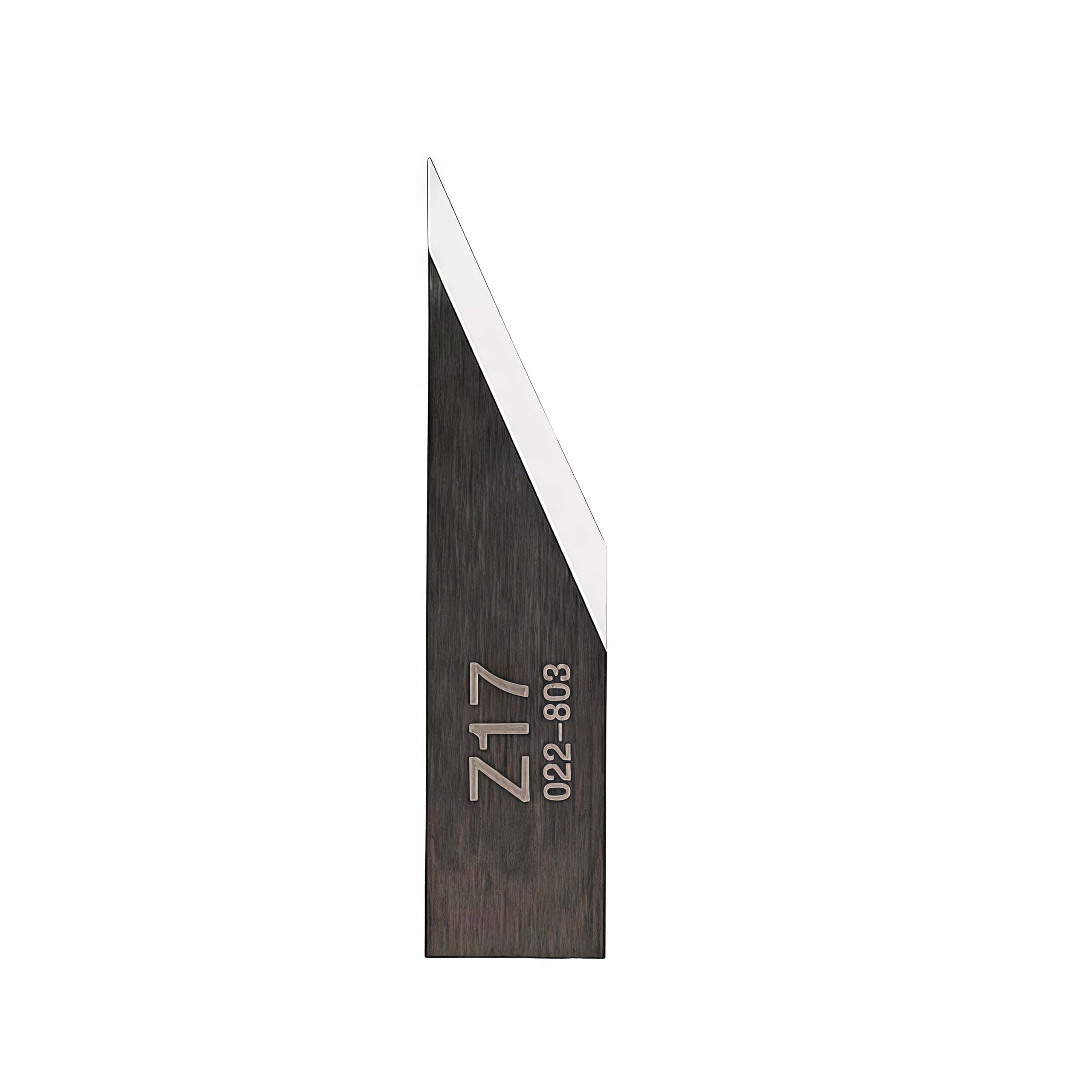

Zund Z17 Carbide Oscillating Knife Blade (3910307) is a premium, single-edged pointed tungsten carbide cutting tool engineered for Zund S3, G3, and L3 digital cutting tables. Enquire now

Description

Zund S3 Z17 Carbide Drag Oscillating Knife Blades 65° Cutting Angle for Thin Materials - 3910307 For Sale Myshop

ZUND Z17,ZUND Carbide Blade,zund blade,Zund Z17 Knife,Zund Z17 Blade,Zund Knife,Zund Knife Blade

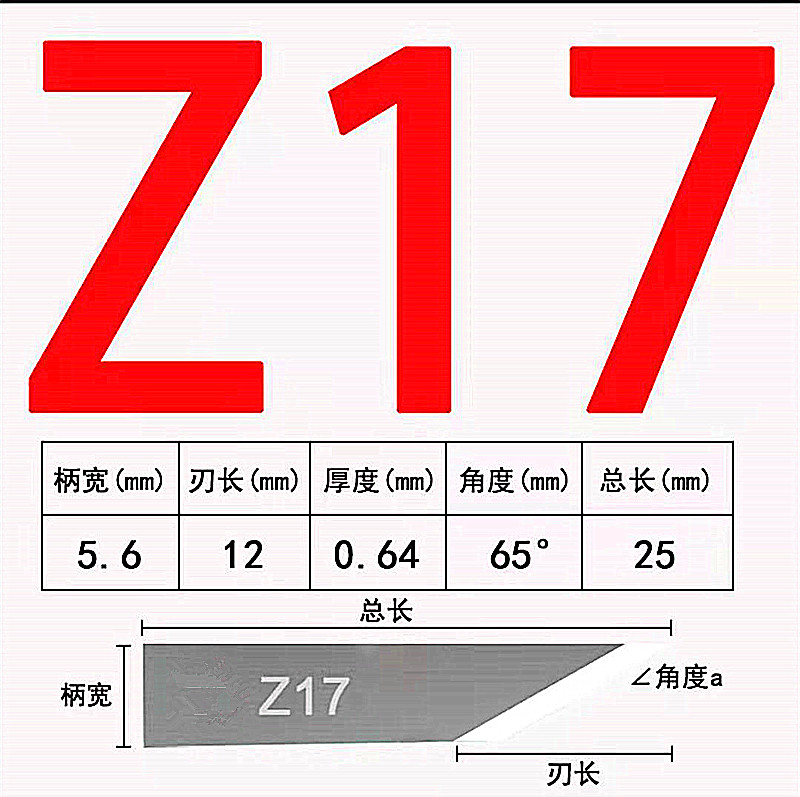

ANGLE
65°
KNIFE HEIGHT
25,00 mm
THICKNESS
0,63 mm
MAX. CUTTING DEPTH
12,00 mm
KNIFE TYPE
Flat, Oscillating blade, Pointed

CUTTER BRAND
Aoke-Kasemake
Blackman & White
Comagrav
Combi Pro
Morgan Tecnica
Mécanuméric
SMRE
Sumarai
Summa
Zund
iEcho....

Tooling Compatibility

The Z17 is natively designed to load into standard 0.63 mm blade holders across high-frequency Zund tooling configurations:

Electric Oscillating Tool (EOT): Ideal for clean execution on thin, flexible sheets.
Pneumatic Oscillating Tool (POT): Perfect for continuous long runs through high-density or stacked industrial materials.

Material Applications

With a maximum cutting depth of 12.00 mm, the Z17 is frequently deployed for through-cutting thin to mid-thickness substrates where corner precision and tight detail are vital:

Packaging Materials: High-grammage folding cartons (100g to 1500g), solid paperboard, and corrugated single-wall blanks.
Industrial Gaskets: Dense rubber compounds, soft fibrous boards, and specialized sealing sheet materials.
Soft Synthetics: Medium-density foam cores, thick leathers, and flexible shoe sole materials.

Replacement for: XZ0017,BT-2317,Zund Z17 / 3910307,Esko T17, G42441220, 42441220, BLD-SF217, i-217,Bullmer B17,iEcho E17,Mecanumeric 100610390,COMPO008759,Blackman & White BW17,Comagrav FN12,Atom 01039894,Viliani 2157 T17,Ronchini RM-01039894,ITC BDF-17
