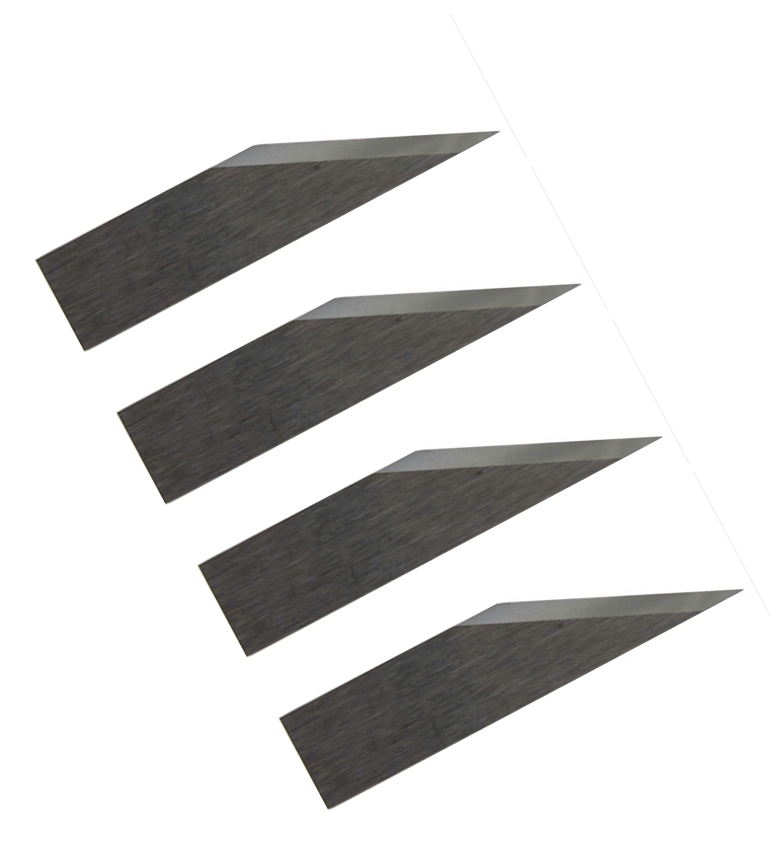

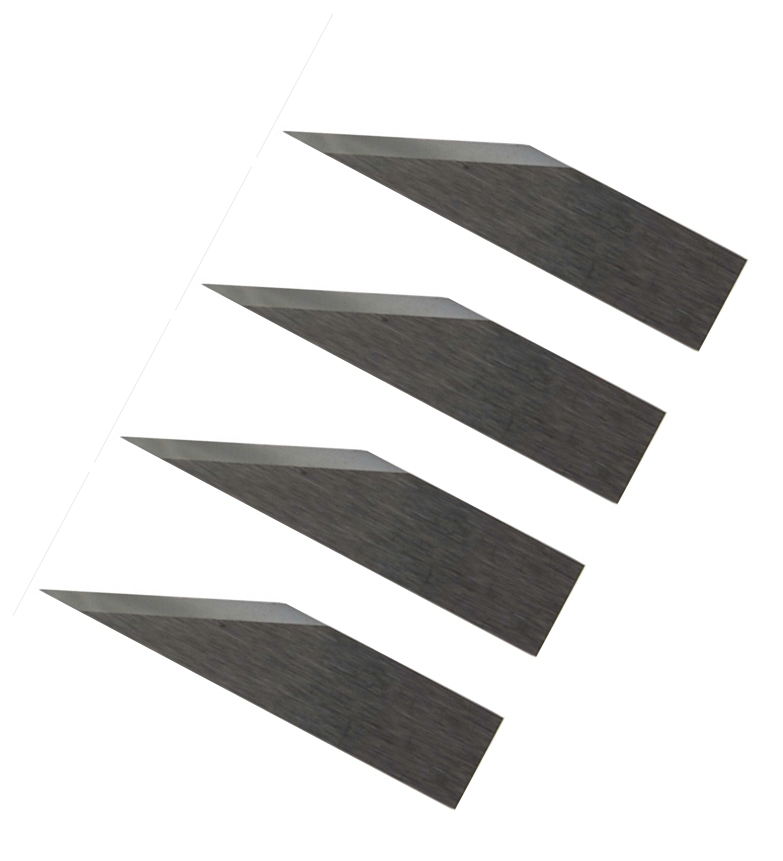

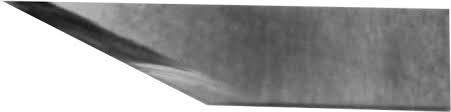

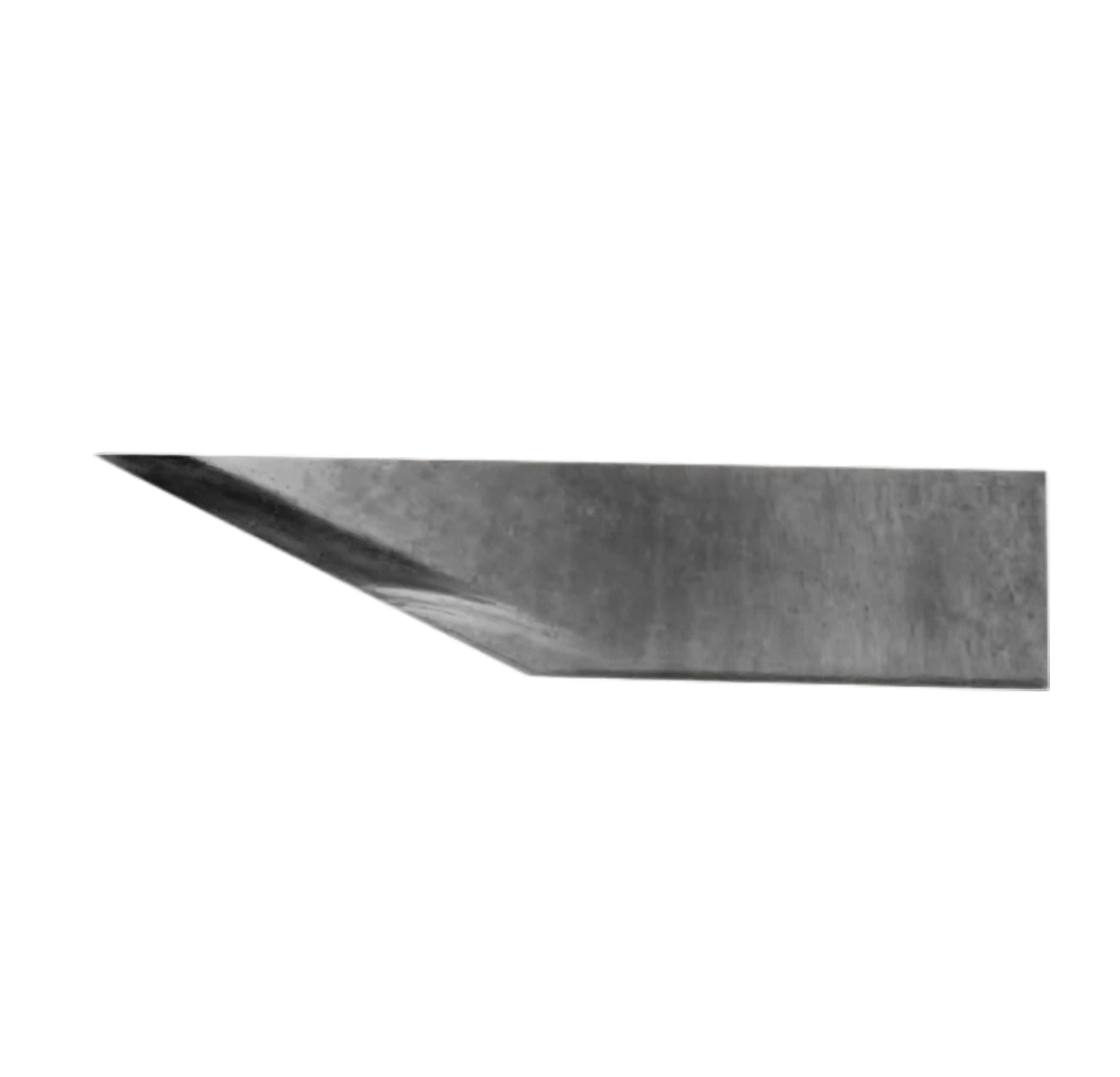

Blackman & White BW17 Tungsten Carbide Oscillating Flatbed Knife Blades

Blackman & White BW17 Tungsten Carbide Oscillating Blade is a high-performance replacement consumable specifically developed for the Blackman & White (B&W) CNC digital flatbed cutting system. Enquire now

Description

Blackman & White BW17 Tungsten carbide Oscillating Knives Knife Blades

Blackman & White BW17,Blackman & White BW17 Knife,Blackman & White BW17 Blade,Blackman & White Knife Blade,Blackman & White Knife,Blackman & White Blade

Max Material Thickness:
12.0 mm
Cutting Method:
Oscillate cut, through cut
Cut Angle:
65°

Compatible with Blackman & White cutting heads and cutting bed systems

In B&W's platform, this blade cannot be used with ordinary unpowered Thru Cut cutters; it must be installed in the following power module:

Electric Oscillating Knife : Driven by a high-frequency 12,000 RPM motor with a stroke of approximately 0.7mm. When used with this knife, the BW17 can perfectly cut extremely complex graphics.
Air Oscillating Knife : This blade provides a long-stroke shearing force of 8mm using a powerful pneumatic pressure of 9,000 RPM. It is often used for materials such as medium-density foamed soft rubber.
Compatible cutting bed models : Fully compatible with Blackman & White's Genesis-V series and Mastercut series large-format CNC flatbed cutting systems.

Core Applicable Materials:

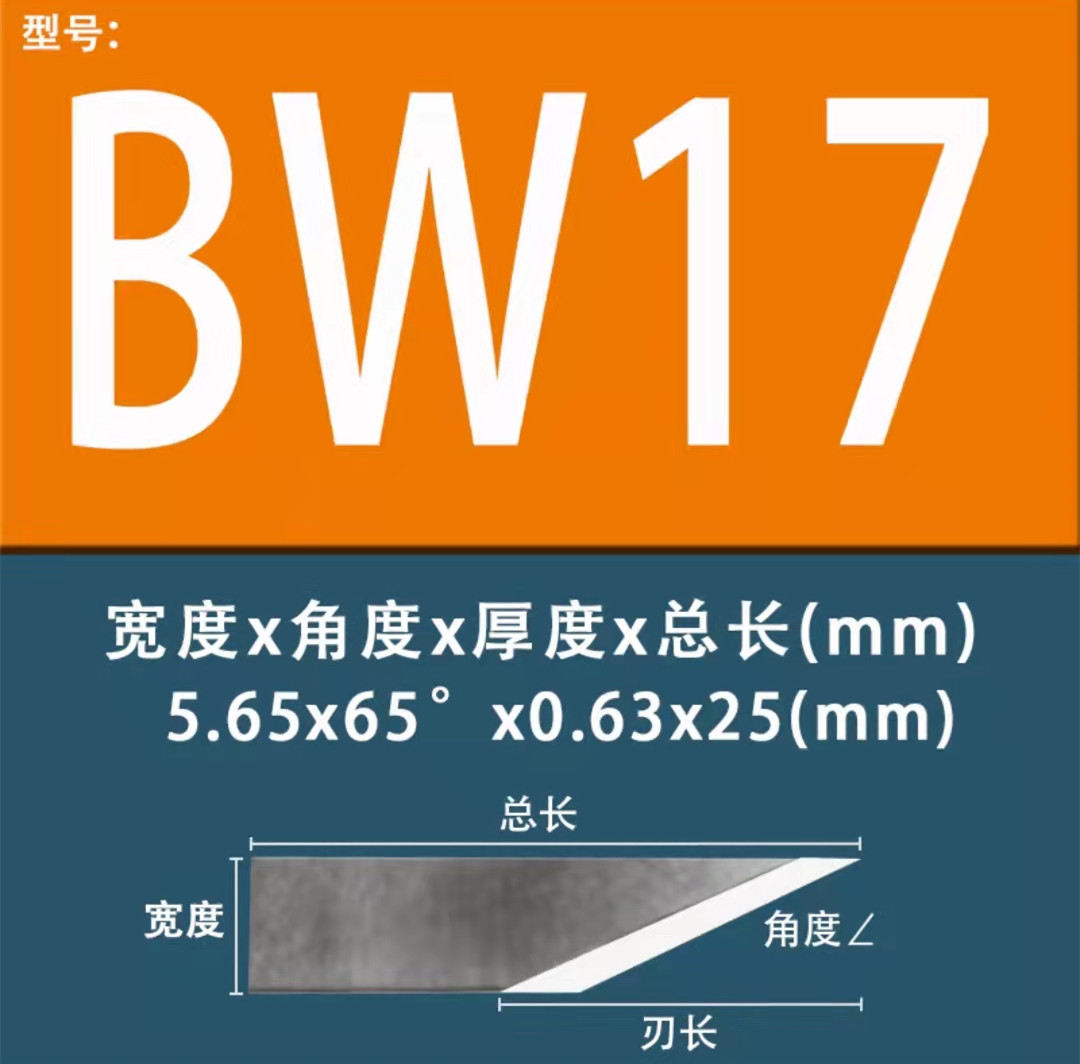

The BW17's 65° cut and 0.63mm thickness make it particularly well-suited for handling consumables prone to structural displacement under stress or requiring high rigidity for cutting dense materials:

Advertising, Printing & Packaging: Various grades of cardboard, thickened honeycomb paperboard, corrugated paper, KT foam board, and lightweight foamed PVC board.

Sealing & Industrial Manufacturing: Dense rubber gaskets, specialty industrial felt, high-density EVA foam, magnetic self-adhesive patches.

Composite Materials & Textiles: Prepreg polyester fibers, nonwoven fabrics, multi-layer heavy-duty coated canvas, and technical textiles.

Replacement for: XZ0017,BT-2317,Zund Z17 / 3910307,Esko T17, G42441220, 42441220, BLD-SF217, i-217,Bullmer B17,iEcho E17,Mecanumeric 100610390,COMPO008759,Blackman & White BW17,Comagrav FN12,Atom 01039894,Viliani 2157 T17,Ronchini RM-01039894
