ZUND Z103 Drag knife blades 5219266 For Zund Flatbed Digital Cutting Tables & Plotters

CHINA ZUND Z103 Drag knife blade 5219266 Nóż z powrotem Messerklingen Лезвия ножа Lames de couteau 나이프 블레이드 Čepele nožov Rezila nožev ใบมีด Леза ножа Hojas de cuchillo Kés pengék Lame di coltello Lưỡi dao Bıçak Bıçakları 切割机钨钢刀片 Mesbladen Čepele nožů Lame de cuțit Pisau Lâminas de faca ナイフの刃 Оштрице… Enquire now

Description

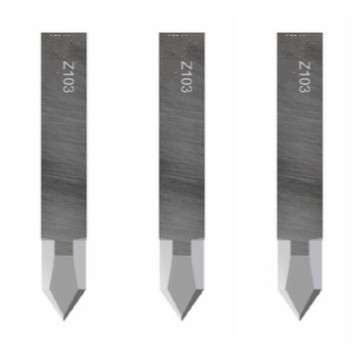

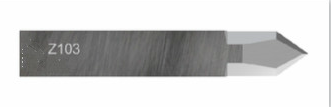

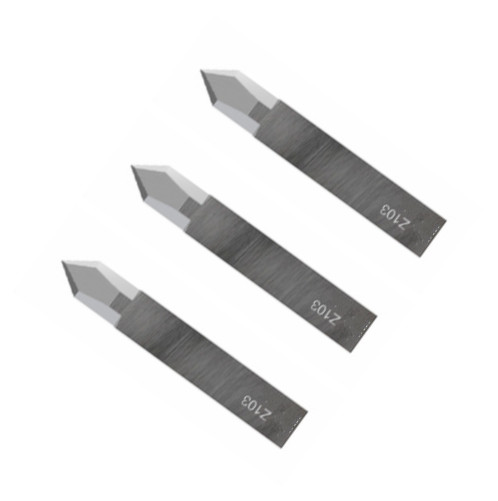

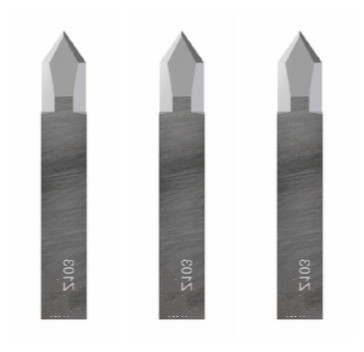

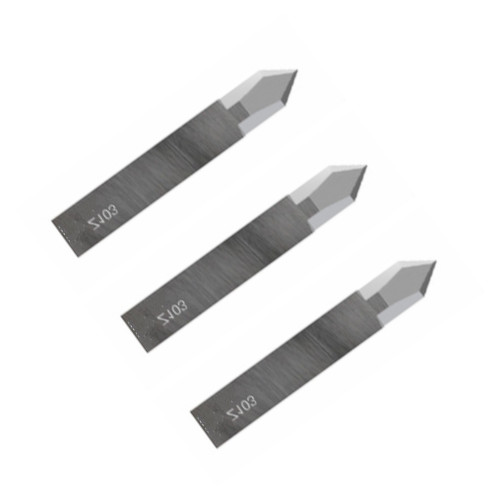

ZUND Z103 Drag knife blades 5219266 For Zund Flatbed Digital Cutting Tables & Plotters

ZUND Z103 knife,ZUND Z103,ZUND 5219266,ZUND Z103 Drag blade,ZUND Z103 blade,ZUND Drag blade,ZUND blade

The Zund Z103 is a double-sided tungsten carbide drag blade designed for digital cutting systems. It is primarily used for cutting less tough or fibrous materials, offering similar performance characteristics to the popular Z11 blade but with a significantly higher cutting depth.

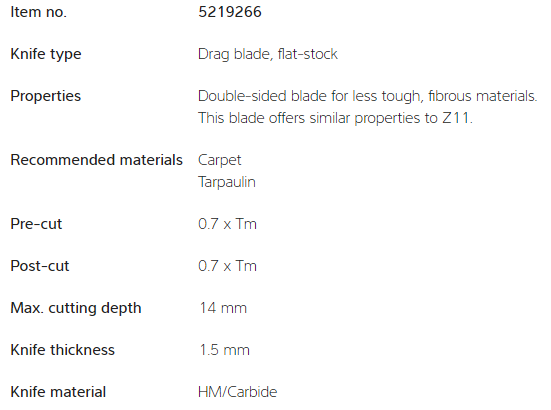

Item no.
5219266
Knife type
Drag blade, flat-stock
Properties
Double-sided blade for less tough, fibrous materials. This blade offers similar properties to Z11.
Recommended materials
Carpet Tarpaulin
Pre-cut
0.7 x Tm
Post-cut
0.7 x Tm
Max. cutting depth
14 mm
Knife thickness
1.5 mm
Knife material
HM/Carbide

Key Applications
The Z103 is optimized for materials that require a deeper cut than standard drag blades like the Z10 or Z11 can provide. Recommended materials include:
Fibrous Materials: Textiles and soft boards.
Industrial Plastics: Corrugated plastic (PP) and tarpaulins.
Flooring: Carpeting.
Other Materials: Similar to the Z11, it can handle hardfoam, magnetic foil, and folding cartons, but its 14mm depth makes it the preferred choice for thicker versions of these materials

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
