Zund S3 Z71 Tungsten Carbide Drag V-cut Bevel knife Blades Webshop MyZund 5006045

China Bt-2371 Zund S3 Z71 Tungsten Carbide Drag V-Cut Bevel Knife Blade (5006045) is a highly specialized, heavy-duty industrial cutting tool manufactured from high-grade tungsten carbide. It is specifically engineered to perform precise 45-degree angle miter and bevel cuts using the V-Cut Tool (VCT… Enquire now

Description

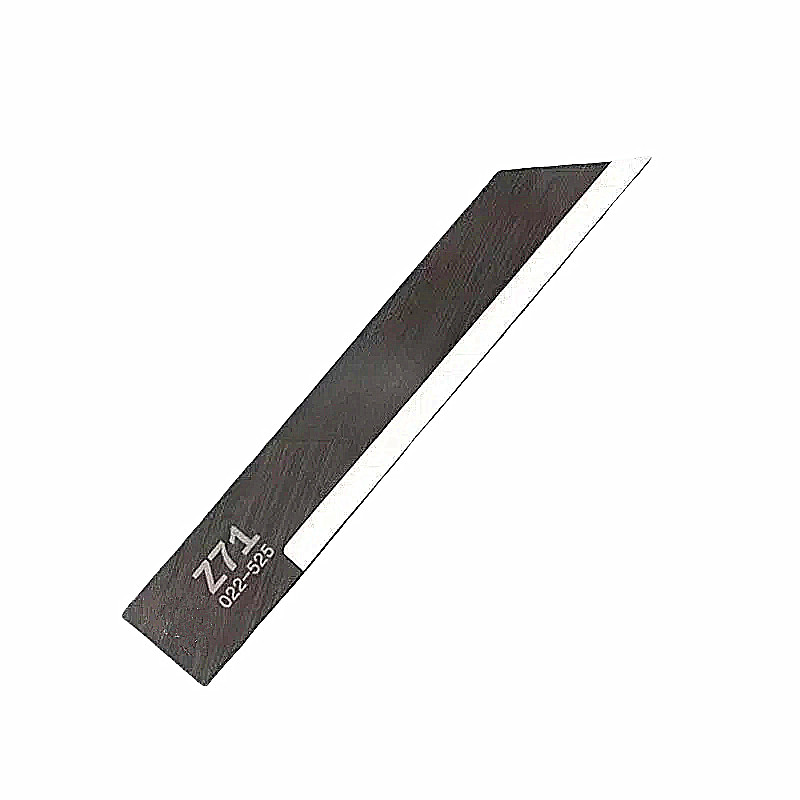

Zund S3 Z71 Tungsten Carbide Drag V-cut Bevel knife Blades 90° Cutting Angle for Corrugated Materials 5006045

Zund Z71 V-cut blade,Zund Z71,Zund V-cut blade,Zund blade,Zund Z71 blade,V-cut blade,zund 5006045,Zund Z71 knife

Equivalent
5006045
Z71

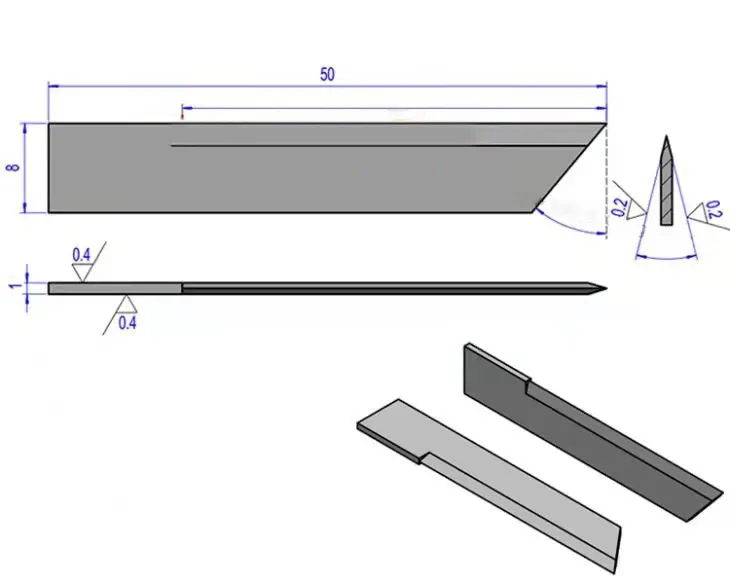

Thickness / Type
1.00 mm
Max. cutting depth
37 mm
Composition
Tungsten Carbide - HM - Hard Metal
Tool
V - Cutting Tool (VCT)

System & Tool Compatibility
Machine Compatibility: Optimized directly for the compact, high-precision Zund S3 flatbed series, but widely cross-compatible with Zund G3 and Zund L3 digital cutting production lines.

Tooling Integration: Operates within the Zund V-Cut Tool (VCT) module. Depth performance is governed by the structural design of the selected blade holder

Holder Part 5206263: Configured for shallow operations up to a 10 mm max depth.

Holder Part 5206264: Configured for deeper stock penetration up to a 16 mm to 18.4 mm max depth.

Primary Applications & Material Profiles
Due to the rigid, wear-resistant crystalline matrix of tungsten carbide, the Z71 handles high-drag multi-layered and cellular materials without dulling prematurely. It is standard across the packaging, fulfillment, sign-making, and interior architectural industries for processing:
Corrugated Substrates: Heavy-wall corrugated cardboard and multi-wall structural folding cartons.
Plastics & Sandwich Boards: Twin-wall corrugated plastics, fluted polypropylene sheets, and composite sandwich panels.
Foam Cores: Expanded foam boards, polyurethane insulation sheets, and light structural acoustic foams.
Heavy Flooring: Industrial carpets and woven textile floor mats

Suitable for machine manufacturer: XZ0071 Zund 5006045 Z71 iEcho E71 Summa 500-9826 500-0826 Comagrav E71 Bullmer B71 Multicam K71 003612-MC71 ITC BDF-71 V-Cut Knife Blade

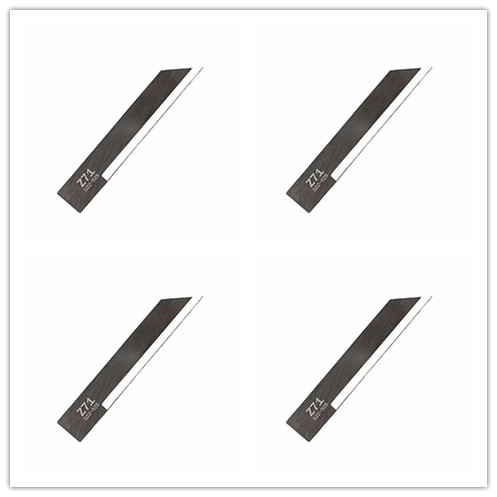

Digiprint Supplies S3 Z71 Generic SetA popular generic double-pack distributed internationally through Shenzhen Oyea Machinery Co., Ltd. This setup is ideal for rapid, everyday turnaround tasks processing traditional foam core and double-wall corrugated stock

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
