CHINA Summa 500-9826 (500-0826) is a high-performance Tungsten Carbide (Hard Metal) flat V-cut knife blade explicitly designed for the Summa F Series flatbed cutting systems. It is engineered primarily for V-Cut Tools (VCT) rather than standard Pneumatic Oscillating Tools (POT), though it is highly … Enquire now

Description

Summa 500-9826 500-0826 F-Series V-Cut Knife Blade, Hard Metal-Replacement Compatible Review

SUMMA V Cut Blade,SUMMA 500-9826,SUMMA 500-0826,Summa V Cut Knife,Summa F Series Knife,Summa F Series Blade,SUMMA blade

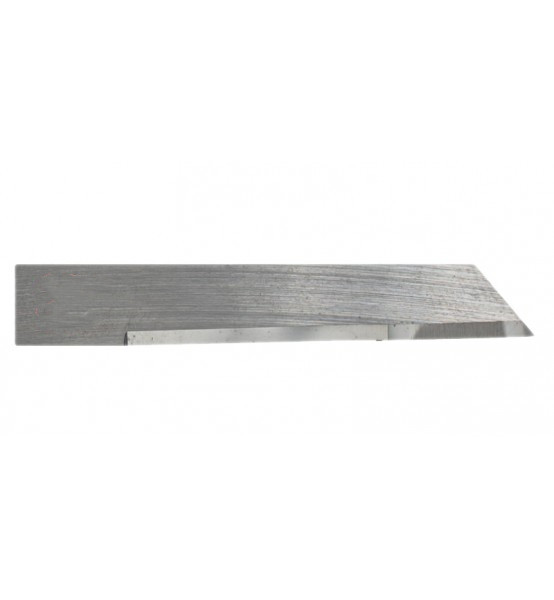

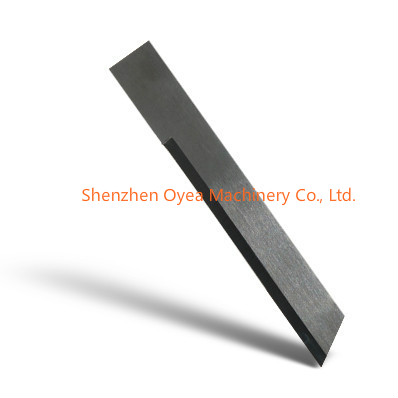

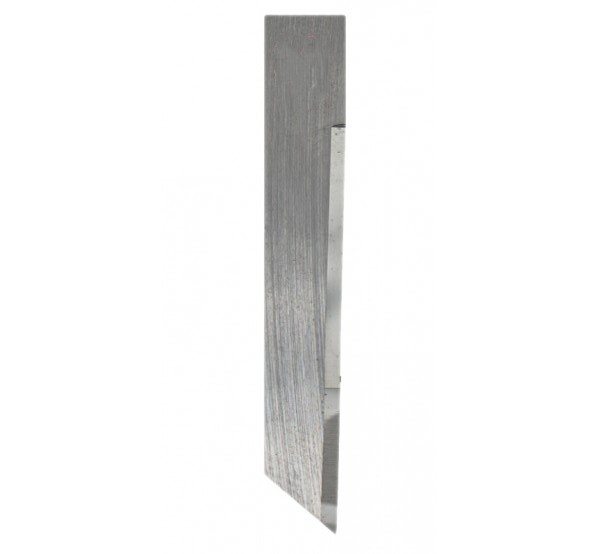

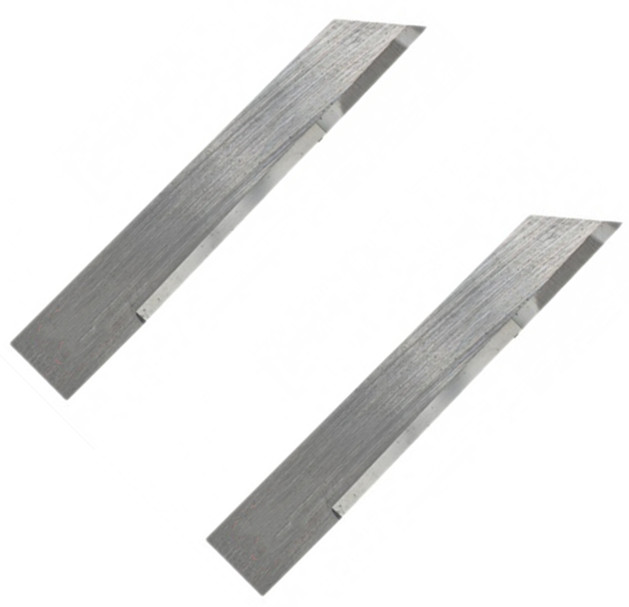

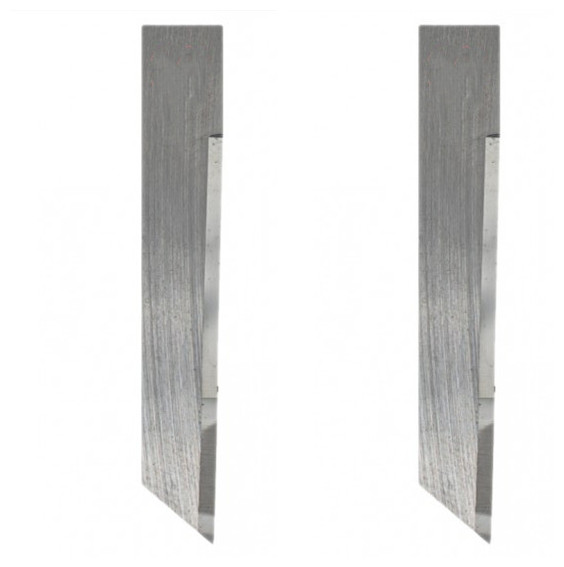

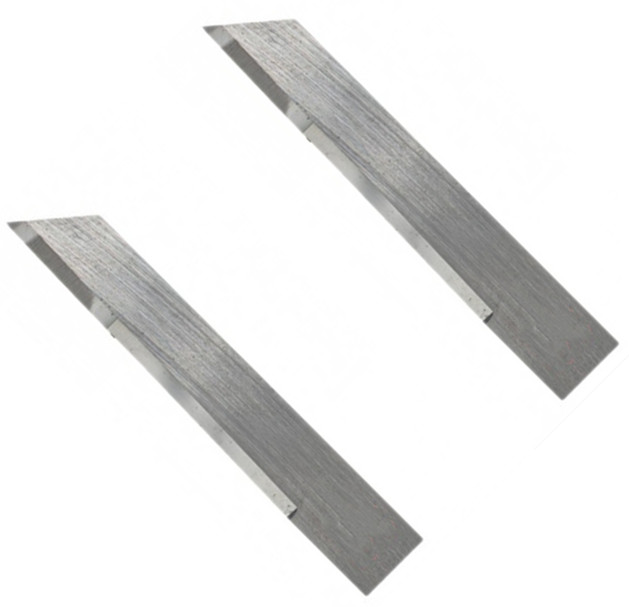

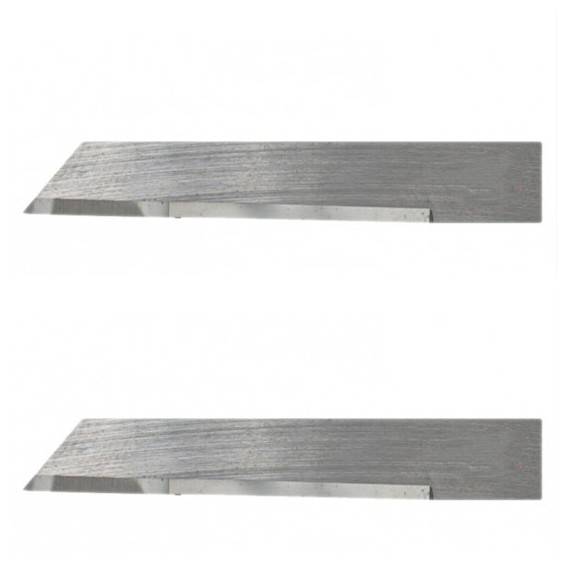

The Summa 500-9826 (factory part number 500-0826) is a premium Tungsten Carbide (Hard Metal) V-Cut flat knife blade engineered for the Summa F Series flatbed cutting tables. It is specialized for making precision structural grooves, chamfers, and angled folds in thick composite boards.

Quick Technical Overview

Part Numbers: 500-9826 (Retail) / 500-0826 (Bulk/Manufacturing).
Material Composition: Solid Tungsten Carbide (HM - Hard Metal) for maximum edge life.
Blade Thickness: 1.0 mm (provides rigid stability during high-force lateral cuts).
Maximum Cutting Depth: 18 mm to 27 mm depending on material structure and machine clearance.

Primary Module & Usage

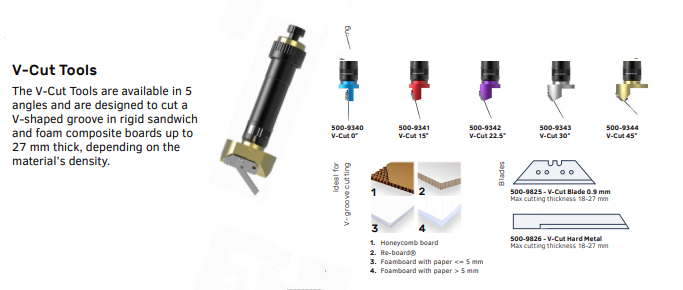

The 500-9826 blade is built explicitly for the Summa V-Cut Tool (VCT) module.

The Function: It slices continuous V-shaped channels into thick boards so they can cleanly bend into 3D structural shapes like boxes, pop-up displays, or custom packaging.
Pneumatic Oscillating Tool (POT) Note: While aftermarket manufacturers often list it under "POT/V-Cut" categories because it shares a similar flat-shank mounting architecture, it is primarily meant for non-oscillating, locked-angle tangential V-cut operations on rigid sandwich boards.

Best-Suited Materials

Honeycomb display panels (e.g., Re-board®, X-board)
Heavy-wall corrugated cardboard and plastics
PET acoustic sound-absorbing felt panels
Soft-core foam boards, sandwich boards, and thick industrial carpet

Suitable for machine manufacturer: XZ0071 Zund 5006045 Z71 iEcho E71 Summa 500-9826 500-0826 Comagrav E71 Bullmer B71 Multicam K71 003612-MC71 V-Cut Knife Blade

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
