Gerber Tl-051 Tangential Knife Blades Compatible For Gerber Automated Cutting Machine

The TL-051 is a specialized 30° tangential knife blade designed for Gerber automated cutting systems. Compared to the more common 45° TL-052, the TL-051 features a sharper, more acute angle that allows for even higher precision and lower drag when cutting thin or delicate materials. Enquire now

Description

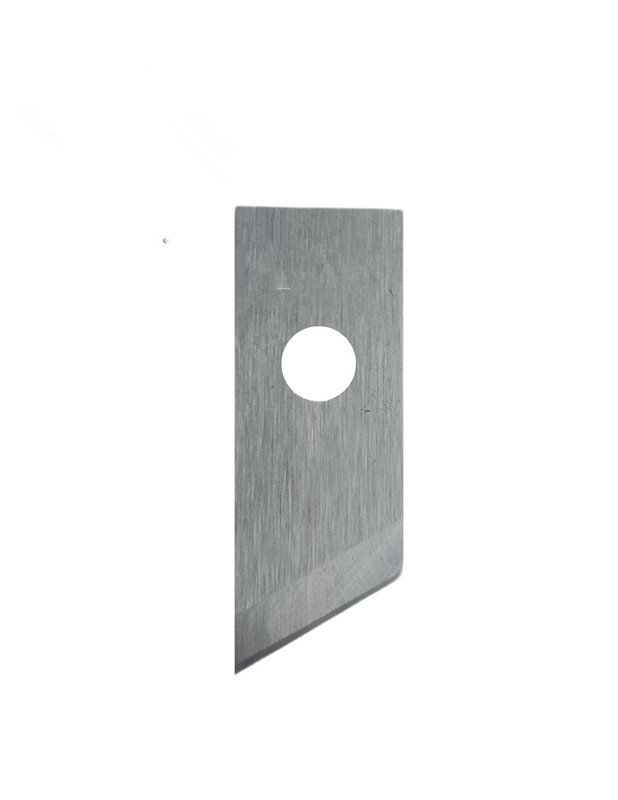

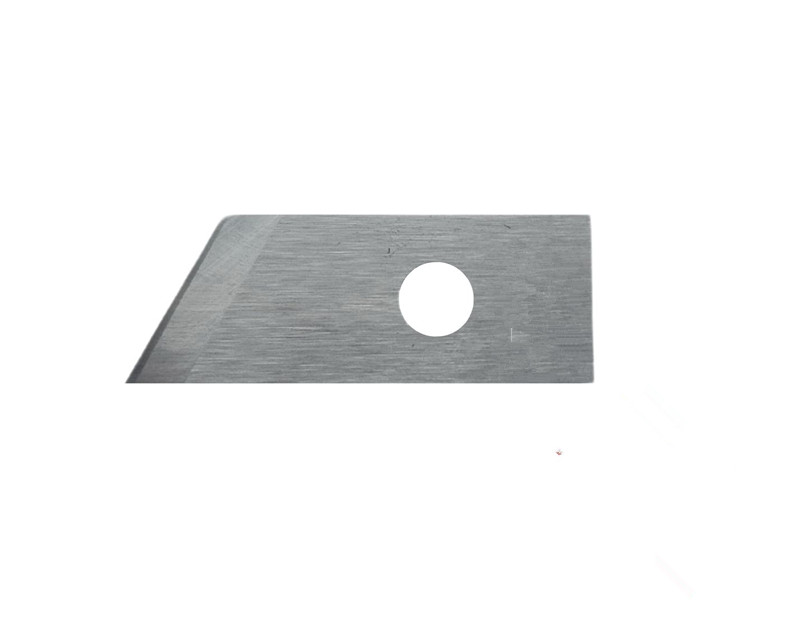

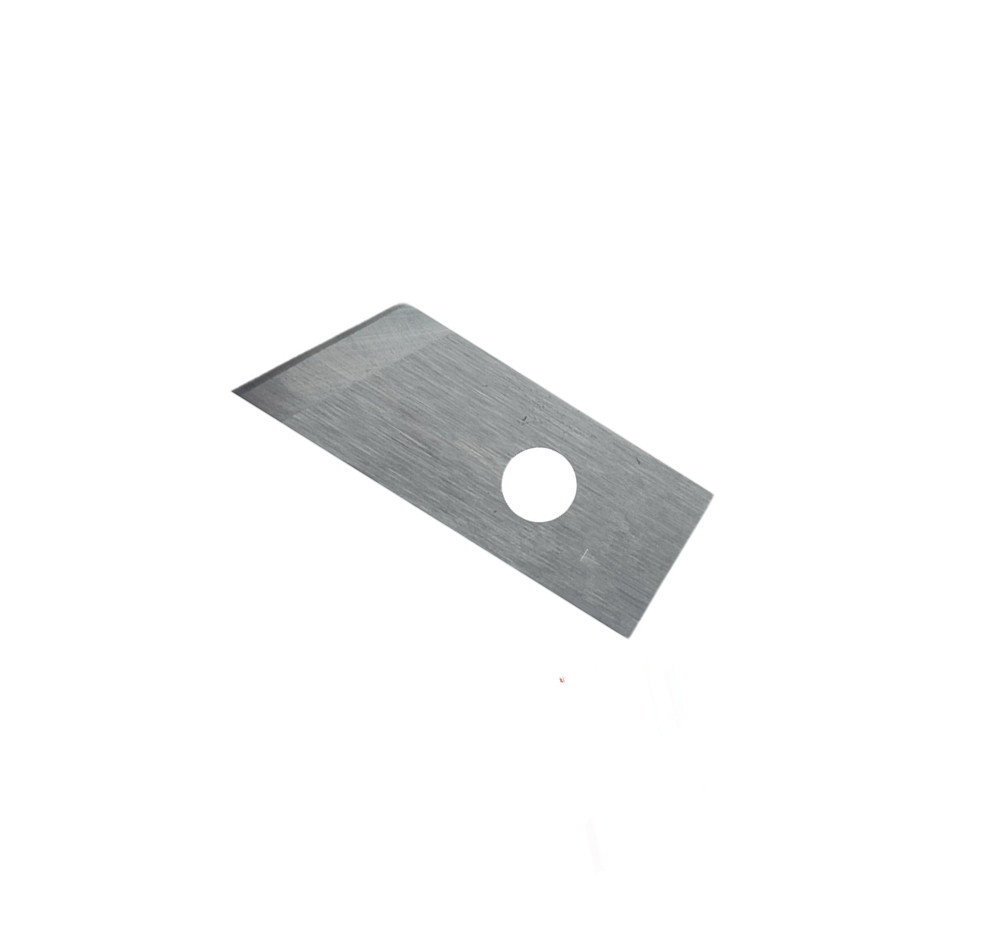

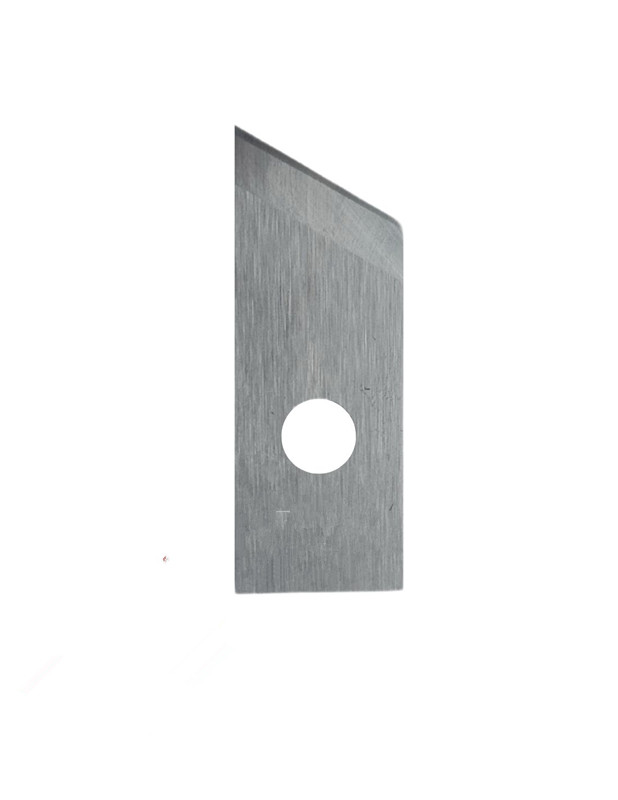

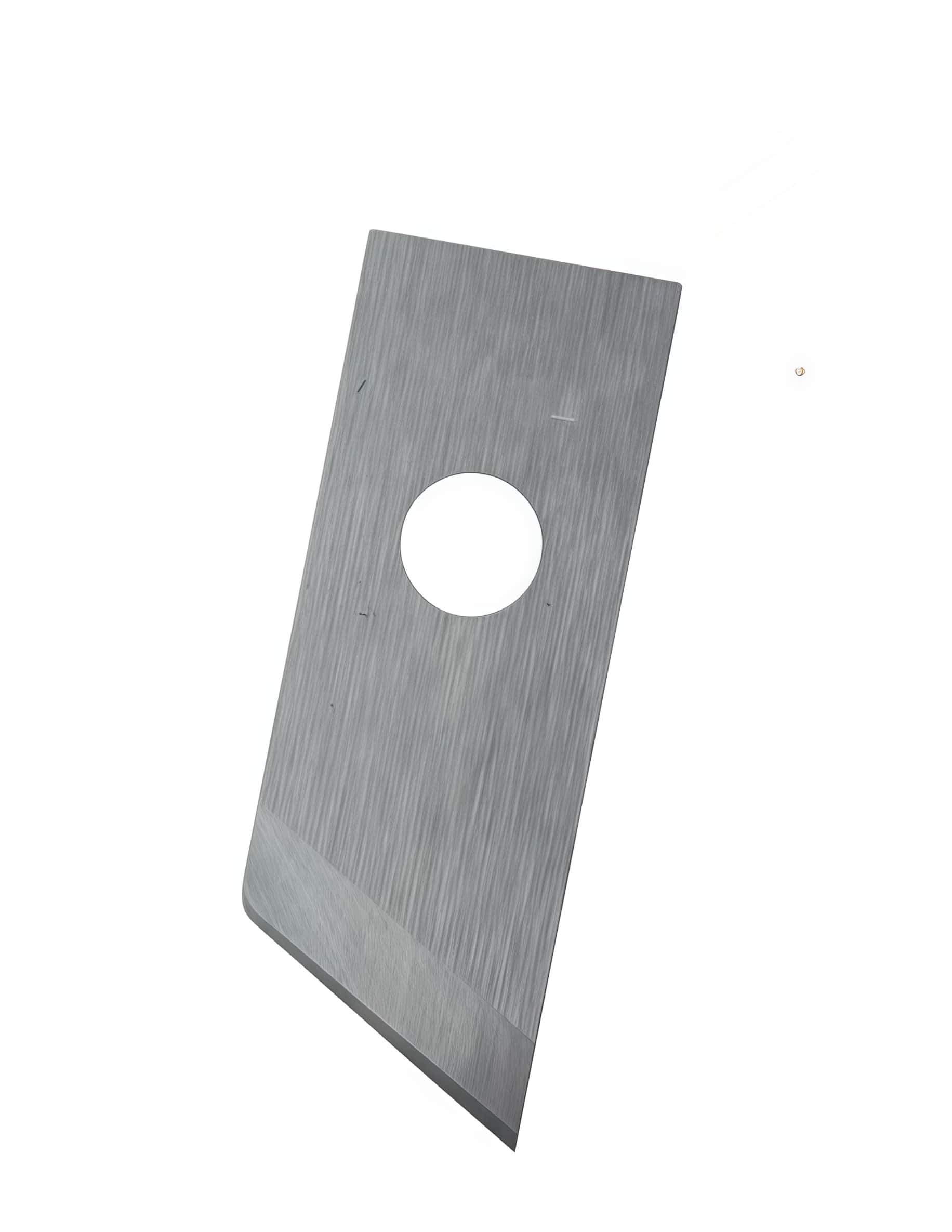

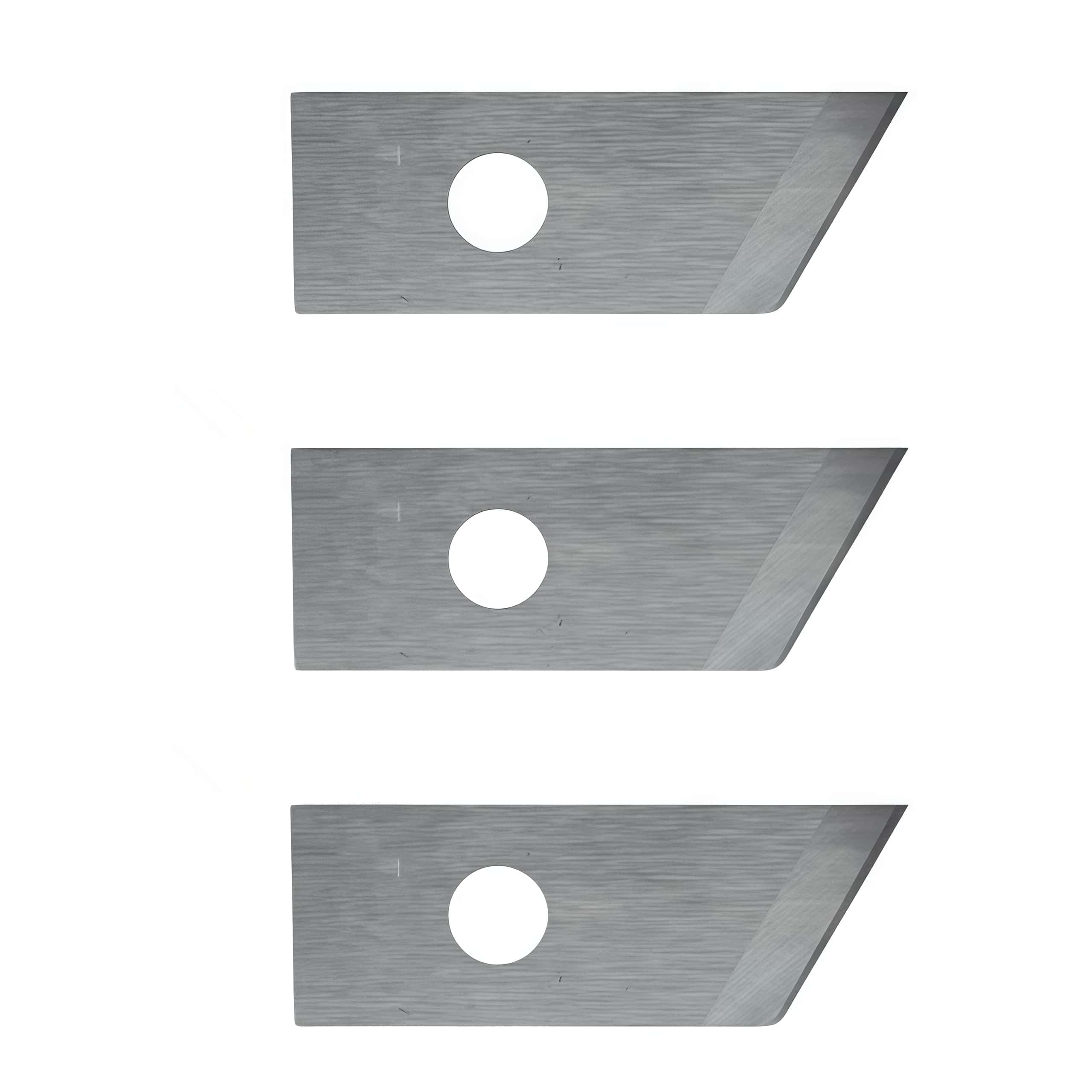

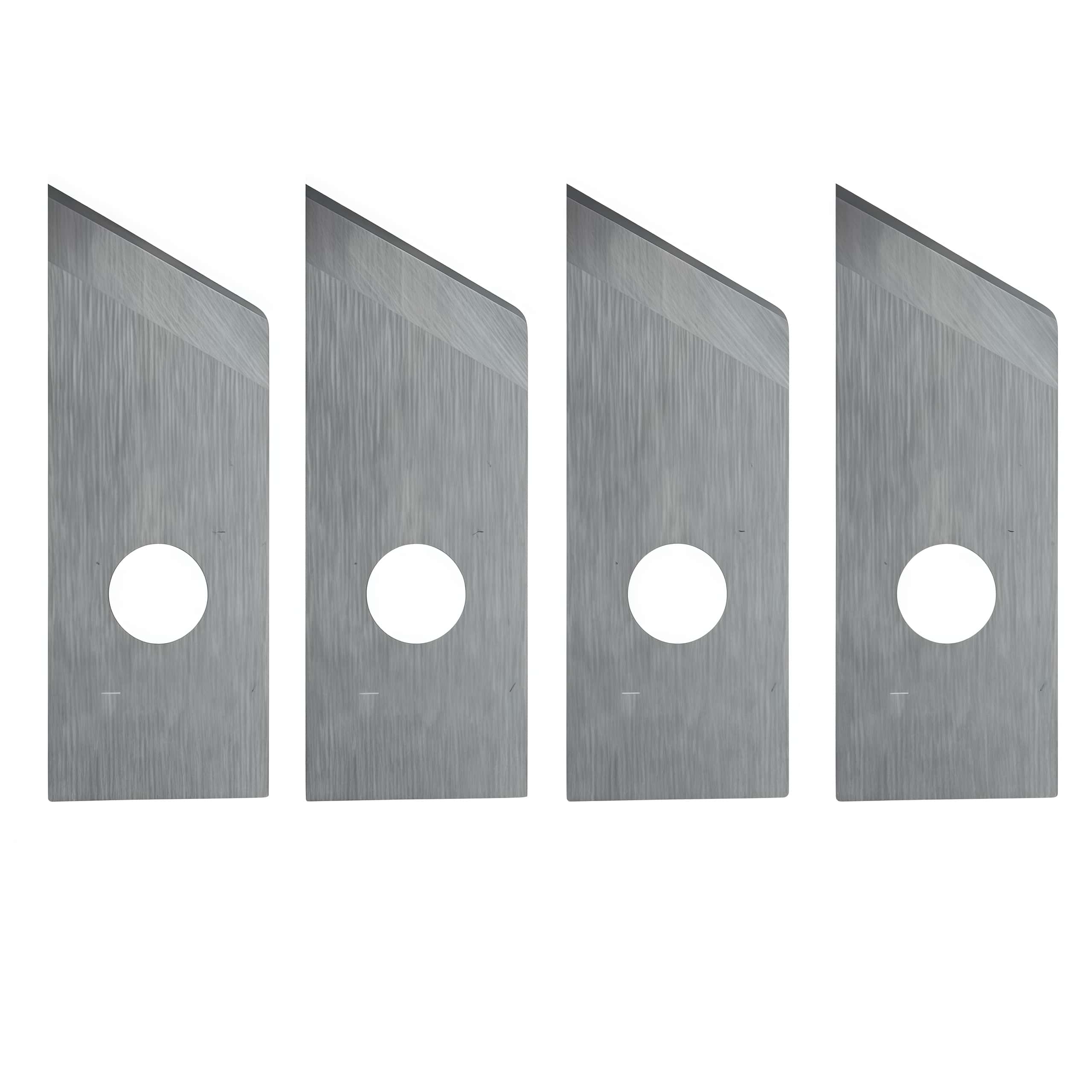

Gerber Tl-051 Tangential Knife Blade Compatible For Gerber Automated Cutting Machine

Gerber TL-051 is a 30° tungsten carbide tangential knife blade designed for precise, shallow-depth cutting of thin materials like leather, paper, and fabrics. It is fully compatible with automated systems including Gerber Z1, Taurus, GTxL (with SPC option), and the DCS series (1500, 2500, 3500, 3600)

Equivalent

TL-051

Thickness / Type

1.00 mm

Max. cutting depth

3.5

Composition

Tungsten Carbide - HM - Hard Metal

Tool

Tangential knife tool

Recommended materials

Fabric
Leather hide
Paper

Compatible Brand

Gerber
Lectra

Knife width

6.5 mm

Key Technical Details

Material: Typically manufactured from Solid Tungsten Carbide to maintain an ultra-sharp edge over long production runs.
Mounting: Features the standard Gerber circular mounting hole ($\varnothing$2.7mm) for tangential tool heads.
Action: As a tangential blade, the machine active steers the blade in the direction of the cut, which eliminates the "swivel" or "offset" issues found in drag-knife systems.

Machine Compatibility

The TL-051 is compatible with the following Gerber Technology systems when equipped with a tangential tool head:

Gerber DCS Series: DCS 1500, DCS 2500, DCS 3500.
Gerber Z1: The latest generation of automated cutting.
Gerber Taurus: High-precision leather cutting.
Gerber GTxL: Models featuring the Single Ply Cutter (SPC) option.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
