Summa 391-360 D & T & R Series Standard Drag Plotter Knife Blades 9tl89-67041 For Sale

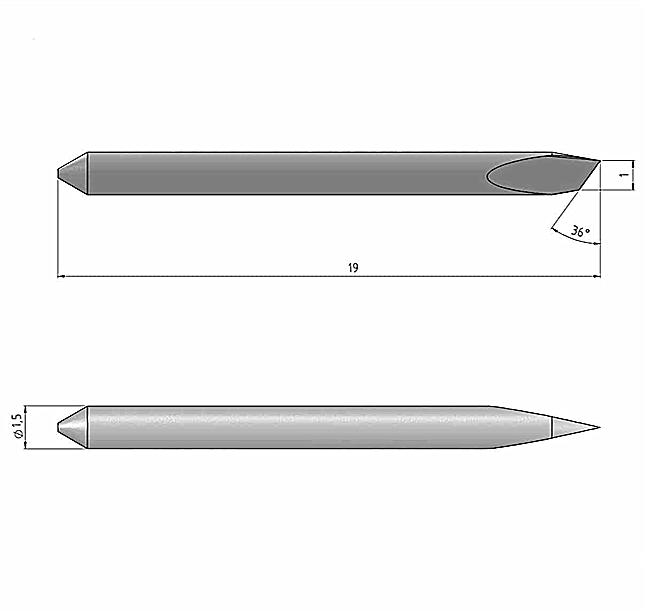

Summa 391-360(HP 9TL89-67041) is Standard drag cutter blades designed specifically for Summa D (Drag), T (Tangential), and R series engraving machines.This blade features a 36° cutting angle, making it ideal for cutting standard vinyl adhesive film, reflective film, and regular stickers. Enquire now

Description

Summa 391-360 D & T & R Series 36°standard drag knife blades 9TL89-67041 For Sale

summa 391-360 blades,Summa 9TL89-67041,summa 391-360,Summa 391-360 blades,Summa drag knife,Summa drag blade,summa d series blades,summa 391-360 knife

Description

Standard drag blades for cutting basic materials. Fits most Summa cutters.

*ATTENTION - Using drag blades with a T Series cutter requires the T Series Drag Blade Holder (part# 395-323). The cutter must also be placed into Drag Mode.
Specifications

Cuts material up to .010″ (.25mm) thick.
Part Number: 9TL89-67041 (previously 391-360)

Cross-series device compatibility notes

This blade is compatible with many Summa inkjet printers and Summa-manufactured all-in-one printers, but the installation requirements differ between series:

D Series (Drag-and-drop type) :
- Fully natively compatible . Installs directly into standard tool holders (original part number 391-332 / current part number 9TL89-67033 ).
- Applicable models include: Summa S One series, S Class 2 D series, SummaCut, SummaSign pure drag blade, etc.
T Series (True Cutting Wire Cutting Machine) :
- Conditions compatible . To use this drag blade on a true tangential cutter head model, a dedicated T-series drag blade holder (part number: 395-323) must be purchased separately , and the cutting mode must be switched from "Tangential Mode" to "Drag Mode" in the engraving machine menu.
- Applicable models include: S Class 2 T series and S Class T series.
R/F/DC series (flatbed or digital die-cutting machines) :
- It is compatible with the drag tool head of the F-series flatbed cutter and the slitting module of the early DC3, DC4, and DC5 wide-format thermal transfer inkjet printing integrated machine.

Compatible:Itc Bdr-S35d
