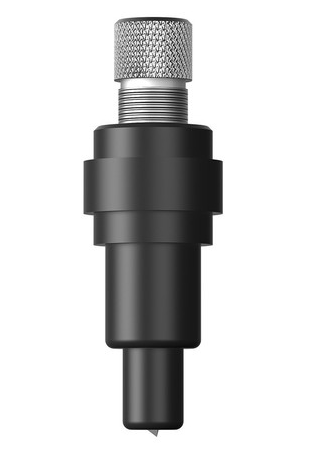

Summa 391-332 Standard Drag Knife Blade Holder 9TL89-67033 For Sale

Summa 391-332(9TL89-67033 ) isSumma original standard tool holderIt is the most essential and frequently used universal accessory in Summa cutting machines and trimmers, designed specifically for clamping standard drag blades with a diameter of 1.5 mm . Enquire now

Description

Summa Standard 391-332 Drag Knife Blade Holder 9TL89-67033 For Sale

Core technical specifications and reference price

part number : 391-332 (With the upgrade of the Summa system, all newly produced batches have now been switched to the new code 9TL89-67033 , both of which are the same product).
Matching tool holder diameter : 1.5 mm (specifically for use with tool holders).
Built-in technology : Equipped with high-specification ultra-precision dual micro bearings, ensuring smooth rotation of the blade on the material with extremely high concentricity, eliminating the phenomenon of blade jumping at the corners of the edge.

Compatible official original blades

This blade holder uses a rotary fine-tuning knob to control the length of the exposed blade tip, and is perfectly compatible with the following two 1.5mm diameter alloy blades:

391-360(New batch number 9TL89-67041): 36° standard cutting blade , perfectly cuts ordinary films such as car wraps, self-adhesive labels, and lightbox paper.
391-231: 60° thickened/hard material special drag blade , commonly used for rhinestone templates, thick cardboard and special films with high abrasion.

List of perfectly compatible models

This tool holder is compatible with all Summa drag-cutting head systems:

Roll-to-roll cutting machines : the new generation S Class 3 (Drag cutter head series), S One series, and the classic S Class 2 D-Series (such as D75/D140/D160).
Flatbed cutting machine : Summa F series (such as the mainstream F1612 flatbed machine) needs to be inserted into the "Drag Knife Module" slot of the machine for use.

OYEA Knives manufactures and supplies a full line of both STANDARD and CUSTOM leather cutting knives and blades. All of our standard leather cutting knives are manufactured to exceed the exact OEM standards.
